Introduction
Metal core printed circuit boards, or MCPCBs, serve critical roles in applications demanding superior thermal management, such as power electronics, LED lighting, and automotive systems. Routing on these boards requires careful consideration due to the metal substrate, typically aluminum or copper, which enhances heat dissipation but introduces unique challenges like coefficient of thermal expansion mismatch between layers. Proper MCPCB trace routing guidelines ensure reliable electrical performance while mitigating risks of warpage and delamination. Engineers must balance high current handling, signal integrity, and mechanical stability to achieve optimal outcomes. This article explores structured approaches to routing, drawing on established engineering principles for electric engineers designing high-performance boards. Mastering these techniques directly impacts product reliability and longevity in demanding environments.
Understanding Metal Core PCB Routing and Its Importance
MCPCB routing involves patterning copper traces on a board where a thick metal core replaces traditional FR4 substrates, primarily to conduct heat away from components. The process differs significantly from standard PCBs because the core influences trace placement, via usage, and overall layout symmetry. Routing decisions affect not only electrical conductivity but also thermal pathways and structural integrity. In high-power scenarios, poor routing can lead to hotspots, voltage drops, or electromagnetic interference. Adhering to MCPCB trace routing guidelines becomes essential for maintaining performance under thermal stress. Ultimately, effective routing aligns electrical and thermal demands, ensuring the board meets operational specifications.
The relevance stems from MCPCBs' prevalence in sectors where heat generation exceeds standard dissipation capabilities. For instance, power amplifiers and motor drives rely on efficient routing to handle elevated currents without degradation. Signal integrity routing preserves waveform quality in mixed-signal designs, while ground plane MCPCB configurations provide low-impedance returns. Neglecting these aspects risks failures like trace lift-off or reduced lifespan. Engineers prioritize routing strategies that comply with industry benchmarks, fostering robust designs from prototype to production.
Core Technical Principles Governing MCPCB Routing
The foundation of MCPCB routing lies in managing thermal conductivity and mechanical stresses across layers. The metal core offers high thermal conductivity, around 10 to 200 times that of FR4, directing heat efficiently, but the dielectric layer must isolate traces while allowing vias to transfer heat. Coefficient of thermal expansion differences between copper, dielectric, and core demand symmetric layouts to prevent warpage during soldering or operation. Trace geometry influences current density and resistance, requiring calculations based on material properties and ambient conditions. Impedance arises from transmission line effects in high-frequency paths, modulated by dielectric thickness and proximity to the core. Ground planes enhance shielding and return paths, but their integration with the core requires precise stitching. These considerations are explored in greater depth in our guide to aluminum PCB stackup design and thermal management.
Vias play a pivotal role, serving dual purposes for electrical connectivity and thermal relief. Thermal vias, often filled or arrayed, funnel heat to the core without compromising electrical isolation. Routing over the core demands awareness of its uniformity, as irregularities can alter impedance profiles. IPC-2221 provides generic guidelines for such designs, emphasizing material interactions and layout symmetry. Signal propagation speed depends on effective dielectric constant, influenced by core proximity. These principles guide engineers in simulating routes before fabrication to predict behaviors under load.
Essential MCPCB Trace Routing Guidelines
Follow structured MCPCB trace routing guidelines to optimize width, spacing, and length for reliability. Prioritize wider traces for high current paths to minimize resistive losses and I-squared-R heating, distributing current evenly across the conductor. Maintain adequate spacing to prevent arcing under voltage stress, especially in power sections. Use smooth bends with 45-degree angles or curves to reduce reflections and stress concentrations. Position critical traces away from board edges to avoid mechanical vulnerabilities during handling or mounting. Symmetry in trace pairs counters thermal expansion effects, preserving planarity.
For high current routing PCB applications, integrate multiple parallel traces or thicker copper weights where feasible, ensuring uniform current sharing. Avoid acute angles that concentrate current density, promoting even heating. Thermal relief patterns at pads facilitate soldering without core overheating. Consult stackup specifics to align traces with optimal heat paths. These practices enhance durability in continuous high-load operations. Regular design reviews catch deviations early, aligning with fabrication capabilities. For detailed calculations on trace sizing under thermal load, see our companion article on aluminum PCB thermal vias design rules and best practices.
Implementing Impedance Control in MCPCB

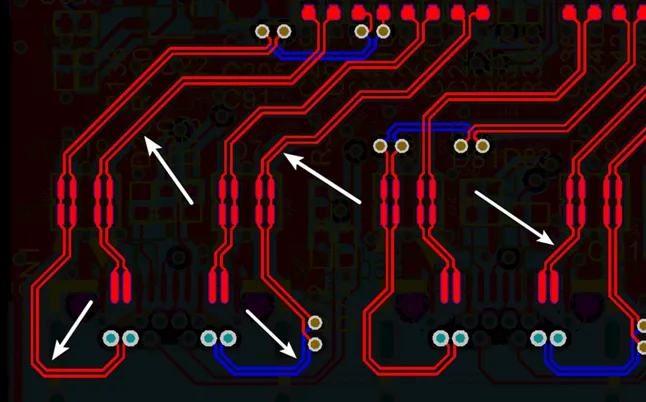

Impedance control MCPCB demands precise stackup definition and trace geometry due to the thick dielectric layer altering characteristic impedance. Microstrip configurations predominate, with traces over the dielectric exposed to air, simplifying control compared to striplines. Calculate impedance using field solvers accounting for core influence on fringing fields. Maintain consistent trace width and spacing from reference planes to achieve target values, typically 50 or 100 ohms. Edge effects near board periphery require compensation through adjusted geometries.
Reference the metal core as a ground plane where possible, but insulate appropriately to avoid shorts. Length matching for differential pairs preserves timing alignment. Fabricate test coupons on panels to verify impedance post-production. Variations in dielectric constant from processing necessitate tolerances in specs. These steps ensure signal quality in RF or high-speed sections. Engineers iterate simulations to refine before routing.
Strategies for Signal Integrity Routing and Ground Plane Optimization
Signal integrity routing in MCPCBs focuses on minimizing discontinuities and crosstalk through disciplined path management. Route high-speed signals over continuous ground planes to provide low-inductance returns, reducing loop areas. Avoid vias in critical paths unless thermally necessary, using blind or filled types to maintain continuity. Differential routing with tight coupling rejects noise effectively. Ground plane MCPCB setups leverage the core's conductivity by stitching with vias, forming a solid reference.
Partition layouts into analog, digital, and power zones to isolate noise sources. Shorten traces and use guard traces for sensitive signals. IPC-6012 outlines performance criteria for such configurations, ensuring qualification under electrical stress. Monitor via stub lengths to prevent resonances. Power planes complement grounds, distributing supply stably. These tactics preserve eye diagrams and bit error rates in operation.
Thermal Via Integration in Routing Layouts

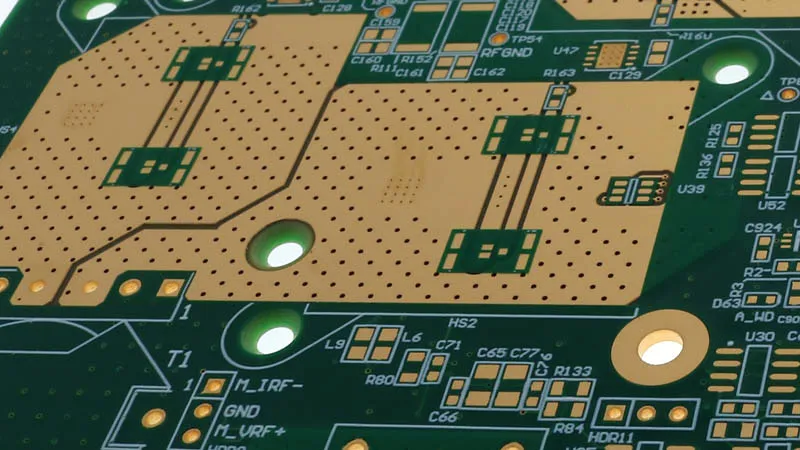

Thermal vias are integral to successful MCPCB routing. Place arrays directly under high-power components with a recommended pitch of 1.0–1.2 mm. A typical 0.3 mm diameter plated thermal via provides roughly 0.15–0.25 W/°C of heat transfer when connected to the core.
Via count formula (approximate):
N ≈ Power (W) / (Via thermal resistance × Allowed ΔT)
For a 6 W LED with a 35°C target rise, 12–18 thermal vias are often required. Consider copper-filled or epoxy-filled vias for >10 W/cm² applications. Route signal traces around (never directly over) dense thermal via arrays to avoid impedance perturbations.
Warpage Prevention and Mechanical Considerations During Routing
Warpage is the most common mechanical failure mode in MCPCBs. Prevent it by enforcing symmetric copper distribution (±10% density variation) on both sides of the core. Maintain uniform routing density — avoid concentrating heavy power traces on one quadrant. Use finite element analysis (FEA) simulation during layout to predict bow and twist under reflow temperatures (typically targeting <0.5% bow).
Route high-current traces in balanced pairs or planes and distribute thermal vias evenly. These steps, combined with proper stackup symmetry, routinely keep post-reflow warpage within acceptable limits even on large panels.
Advanced Best Practices and Troubleshooting Insights
Incorporate thermal vias arrays under power components to bridge traces to the core efficiently, spacing them to balance density and fabrication limits. Stitch ground vias along seams every few millimeters to equalize potentials. Simulate warpage using finite element analysis for asymmetric heavy copper areas. During troubleshooting, inspect for delamination at trace-core interfaces via cross-sectioning. Adjust routing density to uniform levels across the board for even milling. Engineers should also review our broader PCB material selection guide balancing thermal performance and cost when choosing dielectrics and copper weights.
For mixed high-current and signal sections, employ moats or guards to segregate fields. Verify ground plane integrity post-etching through continuity tests. Common pitfalls include over-reliance on the core for all returns, leading to ground bounce, or neglecting solder mask openings for heat escape. Prototype iterations refine these elements. Collaboration with fabrication experts refines DFM early.
Troubleshooting Common MCPCB Routing Issues
Enhanced Troubleshooting Matrix
| Symptom | Root Cause | IPC Reference | Diagnostic Method | Corrective Action |
|---|---|---|---|---|
| Hotspots under ICs | Insufficient thermal vias or narrow traces | IPC-2152, IPC-6012 | IR thermography | Add vias at 1.0 mm pitch; widen traces per calculator |
| Excessive warpage (>0.75%) | Asymmetric copper or routing density | IPC-TM-650 2.4.22 | Shadow moiré or FEA validation | Balance copper pour; redistribute traces evenly |
| Signal integrity degradation | Discontinuous reference or via stubs | IPC-2221B | VNA / eye diagram | Add stitching vias; back-drill critical paths |
| EMI / radiated emissions failure | Poor ground stitching near high-speed zones | IPC-2221 EMI guidelines | EMC chamber test | Implement via fence every 5 mm along edges |
Case Studies and Real-World Applications
- High-Power LED Driver (150 W): Initial design showed 85°C hotspot and 1.2% warpage. Optimized routing with 1.0 mm pitch thermal via array, 3 oz copper traces, and symmetric ground planes reduced temperature to 58°C and warpage to 0.4%, improving LED lifetime by >40%.
- Automotive Inverter Module: Warpage-induced solder joint failures during thermal cycling were eliminated by balancing routing density and adding via fences, passing AEC-Q100 Grade 1 testing with zero field returns in the first 18 months.
- Industrial Power Supply: Switching from FR-4 to optimized MCPCB routing lowered heatsink size by 35% while maintaining <10 mΩ PDN impedance, cutting overall system cost by 22%.
Future Trends in MCPCB Routing
By 2026–2028, thicker copper foils (4–6 oz) on MCPCBs will become standard for >100 A applications. Hybrid FR-4/metal core constructions with selective aluminum cores will enable mixed-signal designs with localized thermal management. AI-driven routing tools that simultaneously optimize for thermal, electrical, and mechanical constraints are already reducing design iterations by 50%. Expect increased adoption of copper-filled thermal vias and embedded microchannel cooling for next-generation 5G RF power amplifiers and EV traction inverters.
Conclusion
Mastering MCPCB routing integrates thermal, electrical, and mechanical disciplines for peak performance. Key takeaways include adhering to trace guidelines, controlling impedance through stackup mastery, prioritizing signal integrity via solid grounds, and leveraging the core judiciously. These strategies mitigate common issues like warpage and hotspots, extending board life in harsh applications. Electric engineers benefit from iterative simulation and standard-compliant designs. Implementing these tips elevates prototypes to production-ready boards reliably.
FAQs
Q1: What are the primary MCPCB trace routing guidelines for high current applications?
A1: MCPCB trace routing guidelines emphasize wider traces to handle elevated currents, smooth bends to avoid hotspots, and thermal vias for dissipation. Symmetry prevents warpage from CTE mismatch. High current routing PCB requires even current distribution and adequate spacing for voltage isolation. Follow these to ensure low resistance and thermal stability without specific dimensions.
Q2: How do you achieve impedance control MCPCB in designs?
A2: Impedance control MCPCB relies on consistent trace widths over uniform dielectric, referencing the core or ground plane. Use microstrip layouts and field solvers for calculations. Maintain proximity to references and include test structures. This preserves signal quality in high-frequency paths effectively.
Q3: Why is ground plane MCPCB crucial for signal integrity routing?
A3: Ground plane MCPCB provides low-impedance returns, minimizing EMI and loop inductance in signal integrity routing. Stitch to the core for equipotential planes. Route signals over continuous sections to avoid splits. This setup enhances shielding and waveform fidelity reliably.
Q4: What role does IPC-2221 play in MCPCB routing practices?
A4: IPC-2221 offers generic guidelines for PCB design, including thermal management and layout symmetry vital for MCPCBs. It informs trace sizing, via placement, and material interactions. Engineers apply it to balance electrical and mechanical demands across routing strategies.
IPC-2221 — Generic Standard on Printed Board Design. IPC.
IPC-6012 — Qualification and Performance Specification for Rigid Printed Boards. IPC.
IPC-A-600 — Acceptability of Printed Boards. IPC.
