One-stop PCB Assembly Services

Fast Turnaround | ISO-Certified Quality | Global Supply Chain Support

Get a PCBA Quote

PCB Assembly Specialists
Precision-driven assembly by experts in SMT and THT for reliable electronic performance.
Full Turnkey Solutions
From design to delivery. AIVON manages every step for a seamless production experience.
Certified Quality
ISO-certified manufacturing with full inspection ensures every board meets the highest standards.
Delivery Guarantee
On-time delivery backed by efficient production and trusted global logistics.

PCBA Capabilities Overview

Lead Time: 1. Regular prototyping orders can be finished in 1-2 days
2. Small batches take 3 days (expedited service available in 24 hours)
3. Medium batches will take 5 days or more, scheduled delivery is recommended for long-term demands:
4. Lead time will be calculated after PCB, components, and necessary documents are ready (BOM, CAD, Gerber file, and other design drawings, etc.)

Stencil: High-accuracy laser cutting stencil to ensure good printing performance such as Fine-pitch ICs and BGA to meet IPC-2 Class or higher

Assembly Options: 1. Seven Siemens high-speed and high-accuracy SMT production lines
2. Three DIP production lines (automatic wave-soldering)+ 2 manual soldering lines
3. Three Assembly and testing lines

Solder Types: SMT, THT, single or double side PnP

Component Service: 1. Turnkey: AIVON has established a complete and reliable supplier network, which enables us to get qualified components at reasonable prices.
2. Kitted or Consigned: Customers provide all components, and we do the assembly work To ensure the PCBA quality, all components shall be packaged in tube, tape, tray or reel to suit our assembly machine.
3. Partial Turnkey: Customers provide the major components and we buy the rest.

Component Size: 1. Minimum Package: 01005 chip size
2. Minimum BGA Spacing: 0.3mm(ball to ball)
3. Minimum Fine Pitch: 0.25mm (X-ray available to ensure the solder quality)

PCB Assembly (PCBA) Process

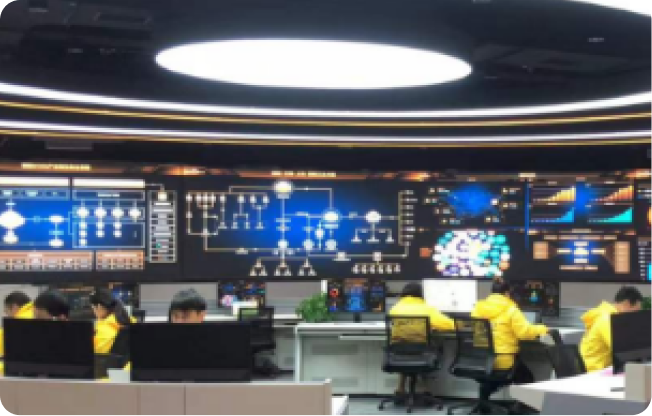

Design Review & DFM Analysis
Our engineers analyze Gerber and BOM files for manufacturability, optimizing layouts and preventing potential assembly issues before production.

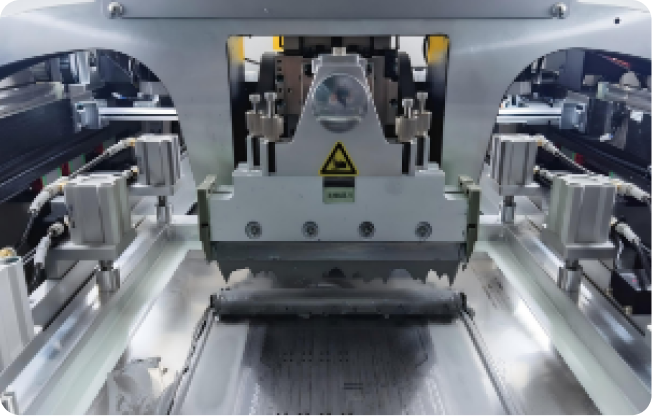

Solder Paste Printing
High-precision stencil printing ensures consistent solder paste deposition for accurate and reliable component placement.

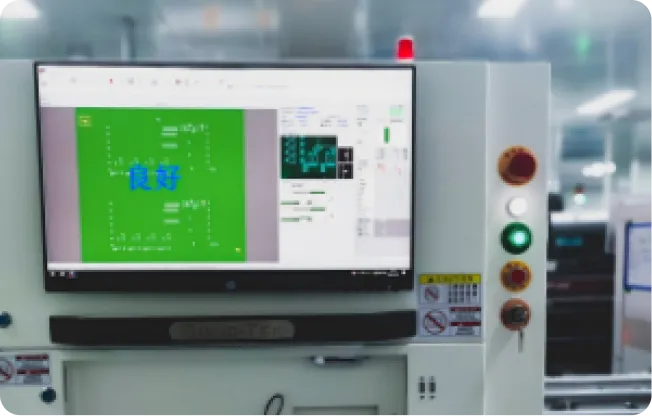

Solder Paste Inspection (SPI)
Automated SPI checks solder volume, alignment, and thickness to eliminate defects early in the process.

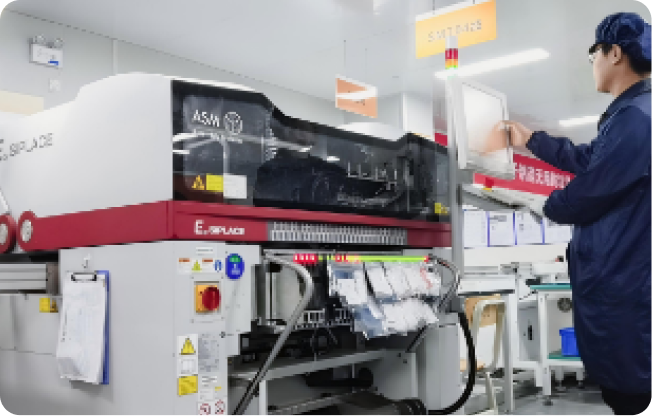

SMT Assembly
High-speed pick-and-place machines mount components with micron-level accuracy for flawless electronic connections.

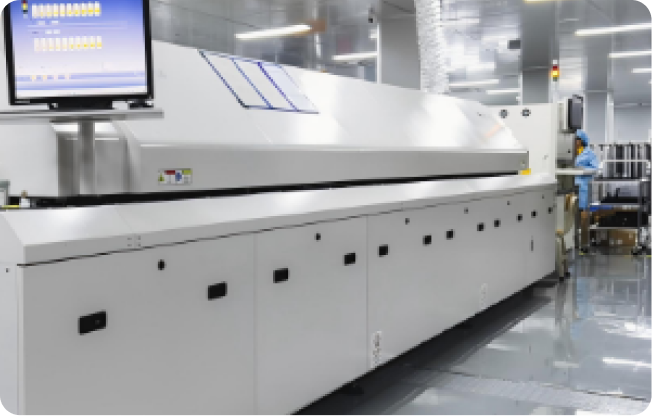

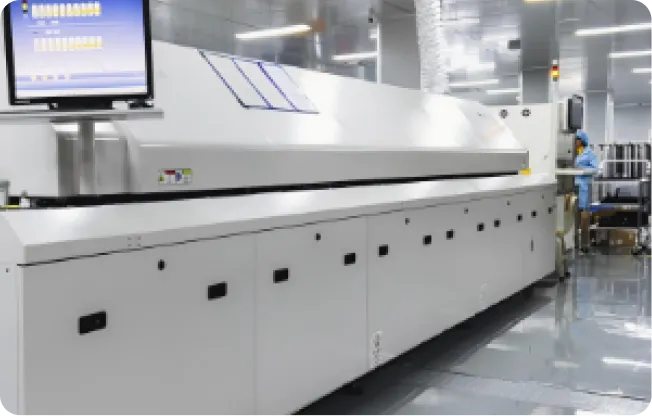

Reflow Soldering
Controlled reflow ovens form perfect solder joints, ensuring durability and consistent electrical performance.

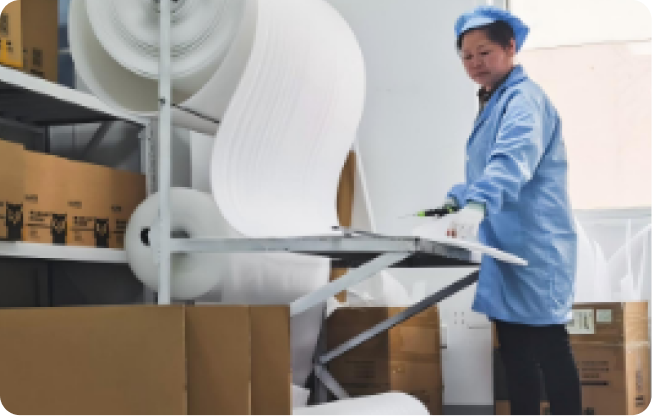

Final Inspection & Packaging
Each board passes a final QA check, then is safely packaged with ESD protection for secure delivery.

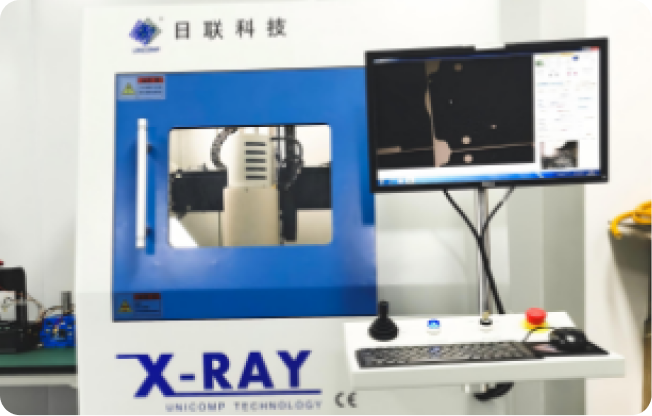

X-Ray Inspection
X-ray inspection ensures hidden solder joints, such as BGAs and QFNs, meet the highest quality standards.

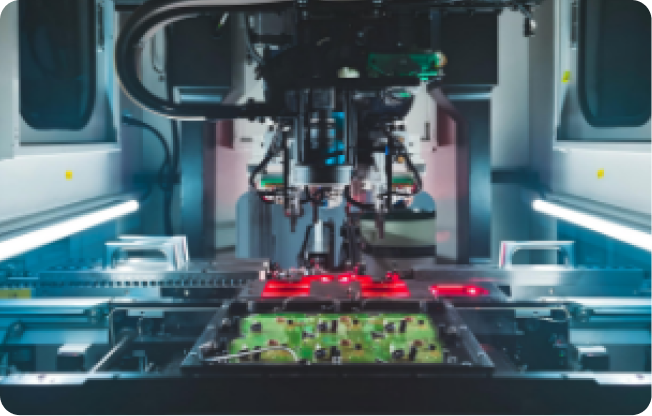

Through-Hole Component Soldering
Manual or wave soldering is performed by skilled technicians for strong and clean through-hole connections.

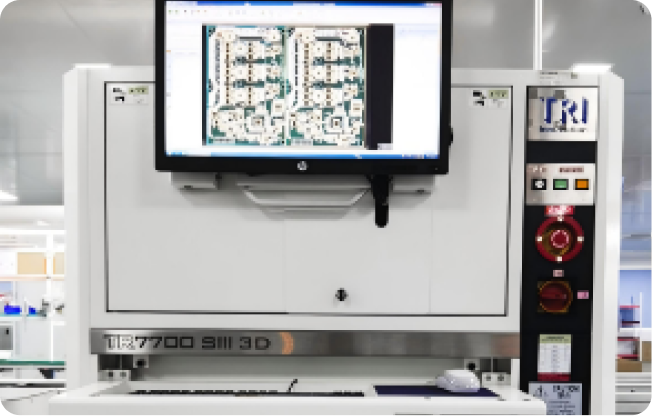

Automated Optical Inspection (AOI)
AOI systems scan every board to detect missing, misaligned, or defective components, guaranteeing zero-defect assembly.

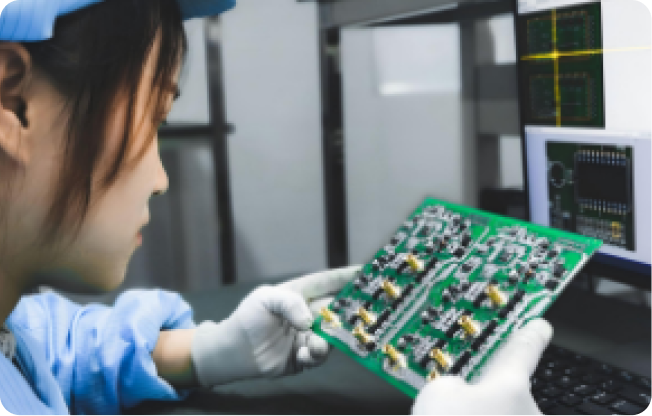

First Sample Testing
Initial boards undergo functional testing and visual checks to validate assembly accuracy before mass production.

How to Order PCB Assembly on AIVON

How to Order PCB Assembly on AIVON

01Upload Gerber file & choose parameters
02Upload BOM file
03Get an Instant online quote

Quote Now

What Industries Does AIVON Serve?

Consumer Electronics
AIVON provides reliable PCB assembly services for consumer electronics such as smartphones, wearables, and home appliances. With precise SMT technology and rigorous quality control, we help brands bring compact, high-performance devices to market faster.
Automotive Electronics
From engine control units to infotainment systems, AIVON’s automotive PCB assembly ensures durability and stability under extreme conditions. We follow automotive-grade standards to guarantee consistent performance and long product life.
Medical Devices
AIVON supports the medical industry with precision PCB assembly for diagnostic instruments, monitoring systems, and wearable health devices. Our manufacturing meets strict quality and traceability standards for safety-critical applications.
Industrial Control
AIVON delivers robust PCB assembly solutions for industrial automation, robotics, and power management systems. With high reliability and customized testing, we help improve operational efficiency and equipment uptime.
Telecommunication
For routers, base stations, and IoT modules, AIVON provides high-frequency PCB assembly with excellent signal integrity. Our expertise ensures stable connectivity and reliable data transmission in complex communication networks.
Aerospace & Defense
AIVON offers high-reliability PCB assembly for aerospace and defense electronics, designed to withstand vibration, temperature, and mission-critical demands. Every board meets rigorous inspection and testing requirements.

PCB Assembly FAQs

What is PCB Assembly?

PCB Assembly (PCBA) is the process of mounting electronic components onto a printed circuit board to create a functional electronic product.

Can AIVON handle component sourcing?

Absolutely. We provide full turnkey assembly and source components only from verified global suppliers.

What is the difference between PCB manufacturing and PCB assembly?

PCB fabrication is the process of manufacturing the bare circuit board, while PCB assembly involves mounting electronic components onto that board to create a working product.

Do you offer repair or rework services?

Yes. We provide professional rework, BGA replacement, and repair services to improve yield and extend product life.

How do I start my PCB assembly order?

Simply upload your Gerber files, BOM, and assembly drawings through AIVON’s online quote form or send them via email. Our team will review them promptly.
