8 Layer FR4 PCB Production Record #FR4-20260110-007

FR4 PCB 8 Layers ENIG (Immersion Gold) Impedance Control 4/4mil Mass Production
Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 225 pcs
Layers 8 Layers Board Type Panel PCB
Dimensions 22 x 32.5 mm Copper Weight 1oz
Thickness 0.8 mm Min Track / Spacing 4/4mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.1mm
Solder Mask Green Silkscreen White
Stack-up Custom Impedance Control No

Manufacturing Timeline

Order Created
Dec 26 17:40
Files Ready
Dec 26 18:02
Engineering Review Completed
Dec 26 22:00
Payment down
Dec 27 12:58
Production Started
Dec 31 14:38
Production Completed
Jan 09 14:28
Progress: 0/6
Engineering Review time: 4.3 h Multiple File Revisions
Production time: 9.0d With Engineering Questions

Logistics Information

Production Completed→Shipping : 1.2d
Carrier
FedEx IP
Destination
UNITED STATES OF AMERICA
Shipping Method
Express Air
Shipping Time
Jan 10 18:16

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Solder Mask Application
08
Electroless Nickel Deposition
09
Immersion Gold Deposition
10
Panelization Optimization
11
Batch AOI Inspection
12
Yield Control Management
13
Electrical Testing

Manufacturing Summary

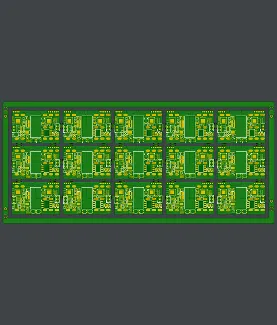

This 8-layer FR-4 PCB order was produced at 0.8 mm finished thickness with mixed copper weights, ultimately executed as 1 oz inner layers and 1 oz outer layers after DFM review. The board size of 22 × 32.5 mm, 0.1 mm minimum hole size, and 4 mil minimum trace/space presented tight geometry for an 8-layer stackup. Panelization used a single-image step-and-repeat layout with bridging and stamp holes to optimize material utilization and downstream assembly handling for the 225-piece (15-set) quantity.



Key DFM challenges included insufficient inner-layer copper-to-copper spacing for the originally requested 2 oz inner copper weight, which would have compromised etching yield and reliability at 4 mil features. The design was adjusted to 1 oz inner layers with corresponding lamination parameters to achieve 0.89 mm ± 0.1 mm pressed thickness while maintaining impedance-neutral performance. Edge clearance concerns on multiple pads (under 0.2 mm to board edge) were resolved through controlled routing and solder mask opening adjustments to prevent excessive copper exposure without affecting functional pad integrity. Solder mask alignment and silkscreen (top-side white only) were verified against the optimized stencil data.



Production proceeded with standard ENIG surface finish and 100% flying probe testing. All engineering changes were implemented and documented prior to release, ensuring consistent delivery within the 14-day window. Detailed resolution of the copper weight and edge clearance adjustments for this panelization scheme is available in the engineering case study.

Real Production Records

Order ID PCB Type Layers Dimensions Solder Mask Surface Finish Quantity Action
FR4-20260520-046 FR4 PCB 2 94.21 x 275 Green ENIG (Immersion Gold) 75 View detail
FR4-20260519-001 FR4 PCB 10 67.6 x 42 Green Gold Plating 20 View detail
FR4-20260515-068 FR4 PCB 14 244 x 267 Green ENIG (Immersion Gold) 10 View detail
