8 Layer FR4 PCB Production Record #FR4-20260505-010

FR4 PCB 8 Layers ENIG (Immersion Gold) Impedance Control Small Volume
Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 100 pcs
Layers 8 Layers Board Type Panel PCB
Dimensions 88.4 x 90.2 mm Copper Weight 1oz
Thickness 1 mm Min Track / Spacing 6/6mil↑
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.3mm↑
Solder Mask Green Silkscreen White
Stack-up Custom Impedance Control No

Manufacturing Timeline

Order Created
Mar 27 02:55
Files Ready
Mar 27 02:56
Engineering Review Completed
Mar 27 05:50
Payment down
Apr 02 04:16
Production Started
Apr 09 13:58
Production Completed
May 04 17:44
Progress: 0/6
Engineering Review time: 0.9 h Multiple File Revisions
Production time: 25.2d With Engineering Questions

Logistics Information

Production Completed→Shipping : 1.0d
Carrier
SF Express
Destination
CHINA, PEOPLES REPUBLIC
Shipping Method
Express Air
Shipping Time
May 05 15:57

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Solder Mask Application
08
Electroless Nickel Deposition
09
Immersion Gold Deposition
10
Electrical Testing

Manufacturing Summary

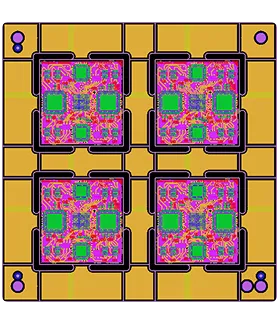

This 8-layer HDI FR-4 board (88.4 × 90.2 mm, 1.0 mm finished thickness) was produced in a batch of 400 pieces (100 sets) using Shengyi S1000-2M TG170 material with 1 oz copper on inner and outer layers. The design included 0.3 mm holes, 6 mil line width/space, ENIG surface finish (2U"), blind vias, and resin-plugged vias on a 2×2 customer panel with V-CUT and routing. Production followed a 25-day lead time with 100% flying probe testing and delivery of electrical test reports plus quality certificates.



DFM review addressed several HDI-specific challenges. Low copper density on L3 and L6 was noted as a lamination risk that could lead to resin starvation or delamination; stack-up was designed from available materials and confirmed. Blind via pads at 0.127 mm for laser drilling and associated solder mask openings were verified against standard HDI PCB practices. NSMD BGA pads were processed per Gerber to improve pad adhesion and reduce cratering risk. Silk screen character frames in the BGA area were reviewed for component seating. Panelization details including V-CUT remaining thickness, angle, stamp hole combination, and process edge geometry were clarified and optimized to maintain panel strength during handling and depanelization.



All files and production parameters were confirmed before release. The completed boards met electrical, dimensional, and reliability requirements with consistent via filling and plating. For detailed resolution of the low copper density and laser via challenges in this HDI build, refer to the related engineering case.
