4 Common PCB Design Mistakes Beginners Make and How to Avoid Them
What This Video Covers
This video explains how avoiding four frequent PCB design errors saves hours of debugging, rework, and frustration for new designers and engineering teams. It covers practical tips to prevent board failures during fabrication and assembly, helping users improve workflows whether building prototypes or scaling production. The guidance applies directly to real-world projects in automotive electronics, medical devices, industrial control systems, and IoT applications where reliability is critical. Viewers learn to identify overlooked issues early, reducing risks in multilayer designs and ensuring better outcomes in demanding environments.
For instant pricing on prototypes or production runs, explore our PCB quote tool. Teams working on complex builds can also review rigid-flex PCB options and HDI PCB capabilities to apply these lessons effectively.
Key Highlights
- Early detection of common design errors prevents costly debugging and rework in PCB fabrication.
- Improved design workflows reduce failures in multilayer, rigid-flex, and high-density boards used in automotive and medical applications.
- Actionable tips help engineers and OEM teams achieve reliable results without repeated manufacturing revisions.
Key Manufacturing Impacts of These PCB Mistakes
Common PCB design mistakes directly translate into fabrication defects, assembly issues, and field failures. Issues like inadequate trace spacing or improper via placement often result in shorts, opens, or signal integrity problems during etching, drilling, and plating processes. In high-volume production, these errors increase scrap rates and extend lead times as manufacturers issue engineering questions (EQs) for clarification or rework.
Multilayer boards amplify risks because stack-up deviations or insufficient annular rings can cause layer misalignment and reduced reliability under thermal cycling or mechanical stress—common in automotive and medical applications. Beginners frequently overlook clearance rules, leading to solder mask bridges or acid traps that compromise yield. Early detection through DFM reviews prevents these costly iterations and supports smoother transitions from prototype to production.
Practical DFM Strategies for Reliable PCB Fabrication

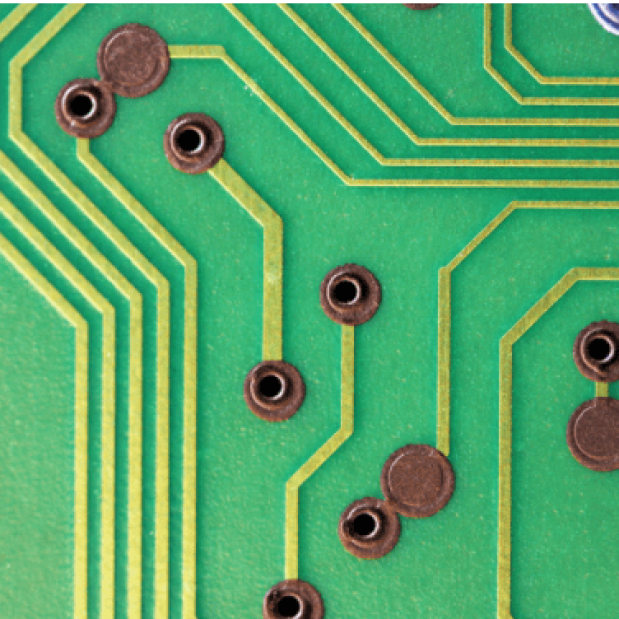

Effective DFM begins with setting comprehensive design constraints before routing. Manufacturers recommend verifying minimum trace widths and spacings against their capabilities—typically 0.1mm or greater for standard processes—to avoid etching inconsistencies. Proper annular ring sizing (minimum 0.15mm depending on drill diameter) ensures reliable plating and prevents breakout during drilling registration tolerances.
Component placement plays a critical role. Maintain adequate clearances from board edges and between pads to facilitate assembly and reduce risks of mechanical damage or soldering defects. Decoupling capacitors should be placed as close as possible to power pins with short, wide traces to minimize inductance. Ground planes should be continuous where possible to support signal integrity and thermal dissipation.
Always run a full Design Rule Check (DRC) and request a DFM analysis from your fabricator before releasing Gerbers. These steps catch issues like missing fiducials, unbalanced stack-ups, or via-in-pad configurations that complicate manufacturing.
Real-World Failure Examples and Prevention in Production
In practice, insufficient trace width for current-carrying paths frequently leads to overheating and trace delamination during operation or reflow. One common case involves power traces that appear adequate in simulation but fail IPC-2221 guidelines, resulting in voltage drops or fire hazards in industrial controls.
Via placement errors, such as inadequate clearance or stubs in high-speed designs, cause impedance discontinuities and reflections. In medical devices, this can lead to unreliable sensor data. Prevention involves using teardrops on pads, specifying back-drilling where needed, and consulting fabricator capabilities early.
Mistake Comparison
| Mistake | Common Cause | Manufacturing Risk | DFM Recommendation |
|---|---|---|---|
| Inadequate Trace Spacing/Width | Ignoring manufacturer minimums | Shorts, etching issues, overheating | Use IPC standards; verify with fabricator calculator |
| Small Annular Rings | Undersized pads or drill tolerances | Breakout, poor plating reliability | Minimum 0.15mm ring; add teardrops |
| Poor Decoupling Placement | Capacitors too far from ICs | Noise, instability | Place <5mm from pins with dedicated vias |
| Missing DRC/DFM Review | Rushed layout | Multiple EQs and respins | Run checks + submit for manufacturer DFM |
Advanced Tips for Multilayer and High-Reliability Designs
For multilayer PCBs common in automotive and IoT, prioritize symmetric stack-ups to minimize warpage during lamination. Control impedance by documenting dielectric heights and consulting the fabricator for trace width/spacing adjustments tailored to their process.
In HDI designs, avoid excessive microvia stacking without proper aspect ratio considerations. Implement copper balancing and thermal reliefs on planes to ensure even etching and soldering. For rigid-flex applications, incorporate dynamic bend areas with appropriate trace routing to prevent cracking. These practices, combined with thorough documentation in fabrication drawings, significantly boost first-pass yield.
FAQ
Q1: How do common PCB design mistakes increase manufacturing costs?
A1: Mistakes such as incorrect layer stack-up or inadequate trace spacing often lead to failed boards, requiring multiple fabrication and assembly iterations that raise overall project expenses.
Q2: What PCB design errors most commonly affect signal integrity in multilayer boards?
A2: Overlooked issues like improper impedance control or thermal management in multilayer PCBs can degrade performance, especially in high-frequency or automotive applications.
Q3: How can beginners avoid mistakes when ordering PCB prototypes for the first time?
A3: Reviewing design rules early and using reliable quoting tools helps prevent errors that cause delays or failures during initial prototyping and testing.
Q4: Why is trace width and spacing critical in PCB design for production?
A4: Incorrect values lead to manufacturing defects such as shorts during etching or insufficient current capacity causing overheating. Adhering to manufacturer-specific minimums and IPC guidelines ensures reliable plating and assembly.
Q5: How does poor component placement impact PCB assembly?
A5: Crowded layouts or components too close to edges complicate pick-and-place, soldering, and inspection, increasing defect rates. Proper spacing and grouping by function improve yield and facilitate testing.
4 PCB mistakes beginners don't realize—until it's too late.
One. Laying out before the schematic is done. You're halfway through routing, then realize—oops, forgot the crystal. Every missing component later means a painful rework.
Lock your schematic first. Even a rough netlist is better than guessing.
Two: Treating power and ground as an afterthought. Treating power and ground as an afterthought.
If power is unstable, nothing else matters. Plan power and ground early. Prioritize return paths and decoupling caps.
Three:Leaving no room for debugging. No test points, no probe space, no silkscreen labels.Now you're debugging blind—with tweezers and prayers. Leave pads, headers, or even just vias.
Four:Trusting footprints without checking them.The part arrives. The pads don't match. The board's a coaster now.One wrong footprint can kill the entire board.Always cross-check: pinout, pad size, orientation, and 3D model.
This is AIVON. Check this before your next layout.
