How to Repair Common Through-Hole Soldering Defects

What This Video Covers

This video provides clear, practical guidance on repairing the three most frequent through-hole soldering defects encountered during PCB assembly: solder bridges, insufficient solder, and solder spikes (icicles).

It demonstrates professional repair techniques that ensure strong mechanical and electrical connections while preserving component and board integrity. Proper iron technique, heat control, and solder flow are emphasized to achieve smooth, concave fillets that meet IPC standards.

These skills are critical across various PCB types including FR4 rigid boards, Flexible PCB, and Rigid-Flex PCB used in high-reliability applications. Defects left unrepaired can lead to field failures, especially in automotive electronics, medical devices, and industrial control systems where signal integrity and thermal management are essential.

The video also covers best practices such as contacting both lead and pad, feeding solder into the joint (not the iron tip), and correct iron removal sequence to prevent cold joints or lifted pads.

Whether you are performing prototype rework, production touch-up, or quality control, these methods help improve first-pass yield and long-term reliability. For projects requiring professional support, get an instant PCB quote or explore turnkey PCB assembly services.

Key Highlights

• Solder Bridges: Safely reheat and drag away excess solder to restore isolation between pads without damaging traces or components.
• Insufficient Solder & Spikes: Add controlled fresh solder or allow proper flow to create smooth, reliable joints that meet IPC Class 2/3 criteria.
• Proper technique (iron contact, solder feed order, and heat management) prevents new defects and ensures mechanical strength in through-hole assembly for demanding applications.

Root Causes and Prevention of Through-Hole Joint Failures

Through-hole soldering defects originate from a combination of process variables that appear repeatedly on production lines. Insufficient preheat or uneven board temperature causes poor wetting, leaving the joint starved of solder. Excess solder volume or delayed iron withdrawal creates bridges and spikes. Contaminated tips, oxidized leads, or residual flux residues further reduce wetting speed and produce incomplete fillets.

In high-volume assembly, wave-soldering or selective-soldering parameters that drift outside the process window amplify these issues. Pad size mismatch relative to lead diameter, inadequate annular ring, or via-in-pad designs that trap flux increase the probability of voids and insufficient solder. Flexible and rigid-flex constructions add thermal-mass variation between stiffener and flex regions, making temperature control more critical.

Prevention starts with DFM rules that specify minimum pad diameters, controlled solder paste or wire volume, and thermal reliefs on large copper planes. Process controls include tip-temperature verification before each shift, frequent tip cleaning, and flux activation checks. When defects still occur, the repair methods shown in the video restore compliance without introducing secondary damage such as lifted pads or delaminated inner layers.

Documented process capability studies show that consistent application of these techniques raises first-pass yield by reducing rework loops and eliminating latent failures that appear only after thermal cycling or vibration testing.

Impact of Unrepaired Defects on High-Reliability Applications

Unrepaired solder bridges create unintended electrical paths that can short adjacent signals or power nets, leading to functional failure under load. Insufficient solder reduces mechanical strength, allowing leads to loosen under vibration or thermal expansion mismatch common in automotive and industrial environments. Solder spikes act as stress concentrators and may fracture during temperature cycling, opening the joint over time.

In multilayer and HDI constructions the thermal mass of inner planes can mask incomplete wetting during initial inspection, allowing defective joints to pass visual checks yet fail later in the field. Flexible circuits are especially sensitive because repeated flexing concentrates stress at poorly formed fillets. Medical and aerospace assemblies governed by IPC Class 3 or higher accept virtually zero tolerance for these defects.

Repair performed with controlled heat and proper technique restores both electrical continuity and mechanical integrity to the levels required by these standards. The video demonstrates the sequence that minimizes heat input to surrounding components and copper, preserving plating adhesion and dielectric integrity. When applied systematically, the same methods also serve as training references for operators and quality inspectors, reducing variation across shifts and sites.

What are some common through-hole soldering defects?
Three common issues are:
solder bridges,
insufficient solder,
and solder spikes.
Fortunately, they can usually be repaired.
For solder bridges, reheat the joint and gently drag the excess solder away with the soldering iron.
For insufficient solder, add a small amount of fresh solder until the joint becomes smooth and properly filled.
For solder spikes, reheat the joint and allow the solder to flow and settle naturally.

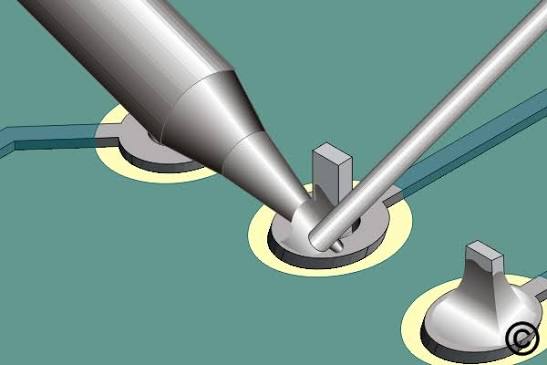

During the repair, make sure the iron tip contacts both the lead and the pad.
Feed solder into the heated joint, not directly onto the iron tip.
When the joint is complete, remove the solder wire first, then lift the iron away.
A good repair creates a smooth, reliable, and properly shaped solder joint.
