PCB Copper Pours: Critical Role in Modern PCB Design and Manufacturing
WHAT THIS VIDEO COVERS
This video explains the engineering purpose and practical implementation of copper pours on PCBs. It covers how properly connected copper areas create low-impedance ground paths that stabilize signals, simplify routing, and improve overall board performance. Viewers learn key thermal and mechanical benefits, as well as critical design rules such as avoiding excessive copper under pads and maintaining clearance from antennas to prevent soldering issues or RF detuning.
The content compares strategies for 2-layer boards versus multilayer constructions, highlighting optimal ground placement for analog and digital circuits. Special attention is given to high-frequency designs where separate digital and analog ground pours are required. Real-world recommendations help engineers balance heat dissipation, noise reduction, and long-term maintainability. The video is especially useful for teams working on 4-layer PCB, high-frequency PCB, and heavy copper PCB projects.
KEY HIGHLIGHTS
- Copper pours tied to ground reduce impedance, stabilize signals, and improve thermal management in both 2-layer and multilayer PCBs.
- Proper design avoids heat-sinking under pads and interference with antennas or RF circuits to maintain manufacturability and signal quality.
- Multilayer boards require separate digital/analog pours, while 2-layer boards benefit from full bottom-layer ground planes for optimal performance.
Engineering Benefits of Copper Pours for Signal Integrity and Heat Dissipation
Copper pours, when properly implemented, lower return path impedance and provide effective heat spreading across the board. In production, this reduces voltage drops in ground paths and helps dissipate heat from power components, minimizing hotspots that can lead to component failure or delamination during operation. Large connected copper areas also enhance mechanical strength by reducing trace stress and improving overall board rigidity.
Ground Plane Strategies: 2-Layer vs. Multilayer PCB Implementations

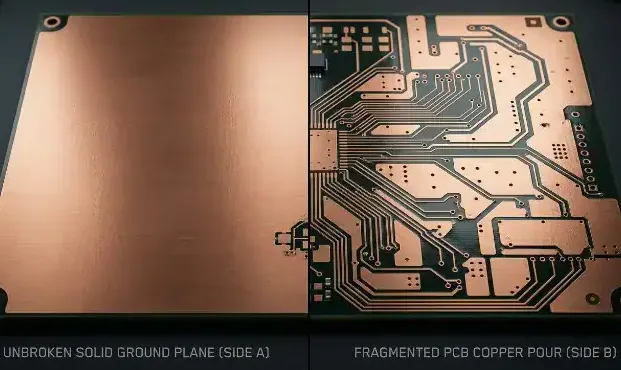

On 2-layer boards, a solid bottom-layer ground pour often serves as the primary reference plane, improving capacitive coupling and reducing crosstalk in cost-sensitive designs. Multilayer designs allow dedicated internal ground planes with stitched pours on outer layers for superior isolation between analog and digital sections, better EMI control, and more flexible routing options. Proper via stitching ensures continuous low-impedance paths across layers.
Key DFM Rules and Clearance Requirements for Reliable Copper Pours
Maintain adequate clearance between copper pours and traces or pads—typically 0.2 mm or more depending on voltage—to prevent shorts during etching and plating processes. Avoid floating copper islands, which can act as EMI antennas, and ensure proper via stitching for connectivity. In CAM engineering review, minimum annular ring and solder mask bridge rules must also be verified around poured areas.
Common Manufacturing Challenges with Copper Pours and How to Avoid Them
Uneven copper distribution across layers can cause board warpage during lamination or reflow soldering due to differential thermal expansion. Excessive copper under thermal pads without relief can lead to soldering defects, while insufficient balancing affects etch uniformity in panel production. Solutions include strategic copper thieving in sparse areas and symmetric layer stackup design.
Best Practices for High-Frequency and Industrial PCB Applications
In high-frequency circuits, isolate sensitive areas with keep-out zones under antennas and use separate pours for digital and analog grounds to minimize noise coupling. Industrial applications benefit from heavier copper pours (2 oz or above) for improved current carrying and thermal performance, combined with careful impedance control.
Copper Pour Impact on Assembly and Soldering Processes
Large copper areas act as significant heat sinks during reflow soldering, which can cause cold solder joints or tombstoning on fine-pitch components if thermal relief is not properly designed. In factory production, CAM auditors routinely adjust pour connections with thermal spokes (typically 4 spokes at 45° angles) to balance heat flow while maintaining electrical performance. For heavy copper boards, this becomes even more critical as the thermal mass increases, potentially requiring profile adjustments in the soldering oven. Neglecting these details often leads to yield loss in SMT assembly lines, especially with mixed component packages.
Copper Pour Comparison Table
| Aspect | 2-Layer Boards | Multilayer Boards | DFM Recommendation |
|---|---|---|---|
| Ground Strategy | Full bottom pour recommended | Dedicated internal planes + outer stitching | Prioritize symmetry for warpage control |
| Clearance to Traces | 0.2-0.3 mm typical | 0.15-0.25 mm | Adjust per voltage and process capability |
| Thermal Relief | Essential under all pads | Via arrays + controlled spokes preferred | Avoid direct pour under fine-pitch pads |
| High-Freq Considerations | Limited isolation options | Separate analog/digital pours + keep-outs | Add keep-outs near RF elements; via fencing |
Balancing Copper Distribution for Panel-Level Manufacturing Stability
Panelization benefits greatly from balanced copper distribution to ensure uniform etching rates, consistent pressure during high-pressure lamination, and minimal resin flow variations. In practice, CAM engineers add copper thieving patterns—small isolated or grounded pads—in low-density regions to equalize copper percentage across the panel (ideally 40-60% per layer). This prevents issues such as over-etching in dense areas, under-etching in sparse zones, and board bow/twist that can cause problems in automated assembly equipment. For HDI and multilayer boards, this balancing directly impacts registration accuracy and overall yield in volume production. Proper implementation reduces scrap rates and improves dimensional stability for downstream processes like V-CUT or routing.
FAQ
Q1: How do copper pours affect thermal performance in multilayer PCBs?
A1: Copper pours act as large heat spreaders that lower thermal resistance and help dissipate heat from high-power components when properly tied to ground planes.
Q2: What are the recommended copper pour strategies for high-frequency PCB designs?
A2: High-frequency designs require separate digital and analog copper pours to prevent ground loops, maintain signal integrity, and control impedance across different circuit sections.
Q3: How can improper copper pours impact signal integrity in automotive or industrial control applications?
A3: Excessive copper under pads or near antennas can cause soldering defects, RF detuning, or increased noise, which reduces long-term reliability in automotive and industrial environments.
Q4: Can excessive copper pours cause board warpage during manufacturing?
A4: Yes, unbalanced copper distribution between layers increases the risk of warping in lamination and reflow. Symmetric pour design and copper balancing techniques mitigate this in production.
Q5: When should copper pours be avoided under specific components?
A5: Avoid pours directly under RF antennas, crystals, or high-speed oscillators, as added capacitance can detune circuits or degrade signal quality. Use explicit keep-out zones in layout.
Ever wondered what those large copper pours on a PCB actually do?
Once tied to ground, they create a low-impedance path — stabilizing signals and simplifying routing. They help spread heat and even add mechanical strength.
But copper pour needs care:
Avoid full copper under pads — too much heat sinking can make rework harder.
Keep it away from antennas — it can detune RF circuits or cause signal distortion.
Pouring strategies vary by board type:
For 2-layer boards: ground goes on the bottom, components and power lines on top.
For multilayer boards:
Analog circuits benefit from copper pour, but watch out for ground loop interference;
Digital circuits prefer large copper areas to reduce ground impedance and spike currents;
High-frequency designs require separate pours for digital and analog grounds to avoid sharing.
Copper pour is essential — but it needs balance between heat, noise, and maintainability.
