PCB Microsection Analysis: Cutting Open Boards to Find Hidden Failures

What This Video Covers

This video provides a practical demonstration of PCB microsection analysis - a destructive testing method where finished circuit boards are cut, mounted, polished, and examined under high-magnification microscopes to evaluate internal quality.

Even when a PCB looks perfect externally, critical internal defects can compromise performance. The analysis focuses on key areas including copper plating thickness in drilled holes, voids in hole walls, cracks, delamination between layers, and registration accuracy of the multilayer stack-up.

These microscopic flaws can lead to premature failure through issues like poor conductivity, thermal stress, or mechanical weakness. Microsection analysis is a cornerstone of quality control in high-reliability PCB fabrication, helping manufacturers verify plating quality, lamination integrity, and overall process consistency.

This inspection method is particularly vital for demanding applications such as aerospace PCBs, medical device PCBs, and automotive electronics, where product failure is not an option. Understanding microsection results enables better design decisions for HDI PCBs, multilayer boards, and high TG applications.

The video translates complex quality control processes into clear visual insights that help OEM engineers and procurement teams evaluate supplier capabilities and reduce field failure risks.

Key Highlights

• Hidden Defects Revealed: Microsection analysis exposes issues like thin copper plating, voids in via walls, cracks, and delamination that standard electrical testing often misses.
• Multilayer Integrity: Examines layer registration, prepreg bonding, and copper-to-resin interfaces critical for reliable high-layer count PCBs.
• Reliability Assurance: Essential quality control step for high-reliability applications in aerospace, medical, and automotive electronics.

What PCB Microsection Analysis Examines in Finished Boards

Microsection analysis evaluates the internal architecture of a completed PCB after all plating, lamination, and finishing steps. The primary zones of interest are the barrel of plated through-holes and vias, the copper-to-resin interfaces, the dielectric layers, and the registration of successive copper layers relative to the drilled holes.

Plating thickness is measured at multiple points around the hole circumference and along the barrel length to verify compliance with the minimum copper requirements specified in IPC-6012 or customer drawings. Any localized thinning, voids, or inclusions inside the plating are recorded because they create high-resistance paths or stress concentrators under thermal expansion.

Layer-to-layer registration is checked by comparing the positions of internal copper features against the hole centerline. Misregistration beyond design tolerances reduces the effective annular ring and can lead to breakout or reduced current-carrying capacity. Delamination or resin recession at the copper interfaces is also documented, as these conditions allow moisture ingress and subsequent conductive anodic filament growth.

The examination therefore supplies quantitative data on process capability that cannot be obtained from external visual inspection or continuity testing alone.

Critical Internal Defects Exposed by Cross-Section Inspection

Common defects revealed by microsection include insufficient or non-uniform copper plating thickness, voids trapped within the plated barrel, cracks propagating from the knee of the hole, resin delamination between prepreg and core layers, and layer misalignment.

Thin plating frequently originates from inadequate current density distribution in high-aspect-ratio holes or from bath chemistry imbalance. Voids often result from incomplete desmear, poor wetting during electroless copper deposition, or gas entrapment during electrolytic plating. Cracks at the knee or within the barrel wall typically appear after thermal stress when the plating lacks sufficient ductility or thickness.

Delamination is linked to incomplete resin flow, moisture in the prepreg, or excessive press-cycle temperature gradients. Layer misregistration arises from tooling inaccuracy, material shrinkage variation, or sequential lamination stack-up errors.

Any of these conditions can pass functional electrical tests yet produce intermittent opens, increased impedance, or catastrophic failure under vibration, thermal cycling, or humidity exposure. Microsection therefore functions as the definitive method for confirming that the internal structure meets the reliability requirements of the application.

Microsection Preparation and Evaluation Process in Production

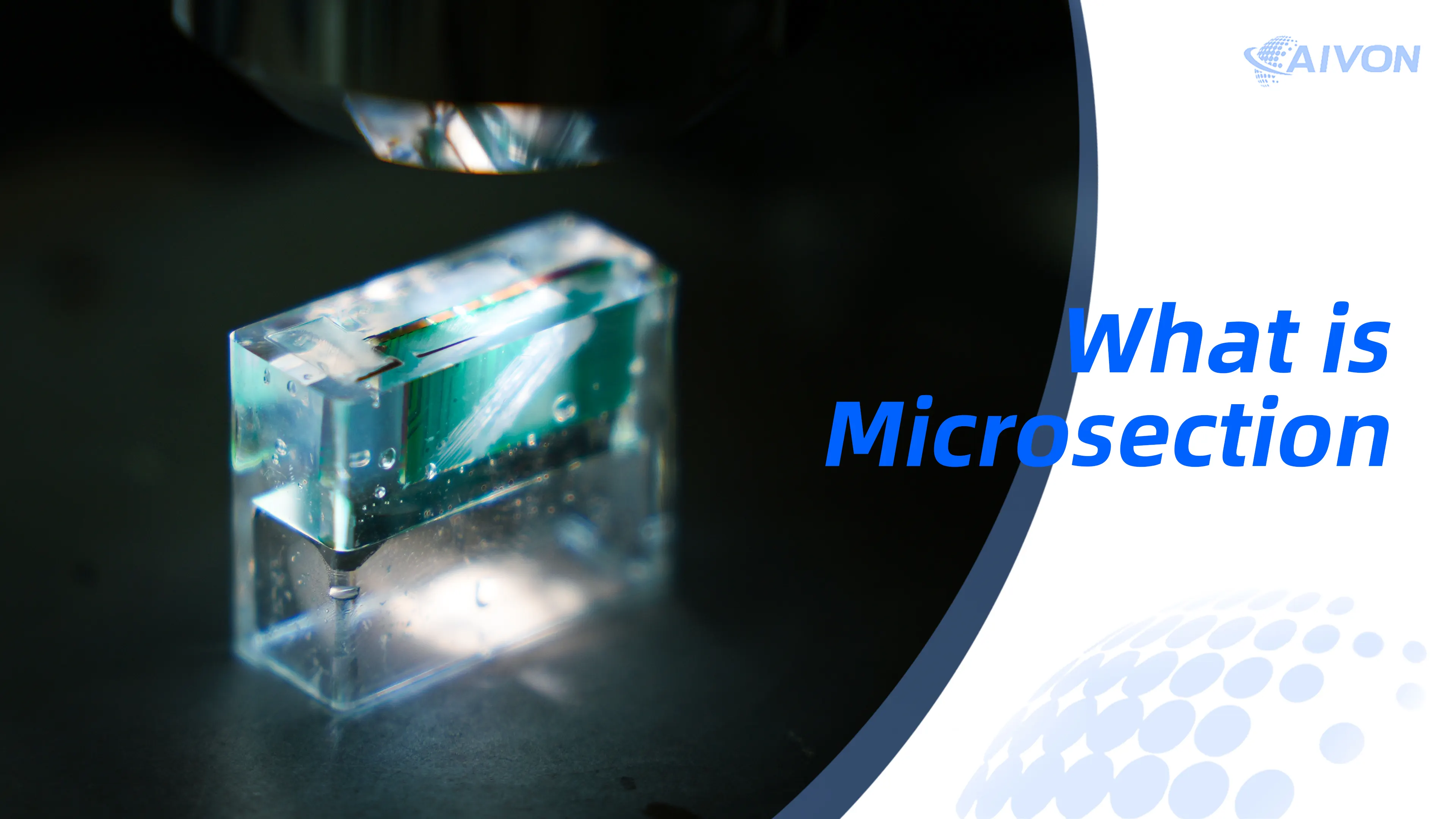

Preparation begins with selection of representative coupons or actual production panels. The board is sectioned through the target features using a precision diamond saw, then the cut surface is mounted in a clear epoxy resin under vacuum to eliminate air bubbles. After curing, the specimen is ground and polished through successive abrasive grades until a mirror finish is achieved, exposing the true cross-section without smearing or edge rounding.

The polished face is examined under a calibrated metallurgical microscope at magnifications typically ranging from 50× to 500×. Measurements of copper thickness, annular ring, and dielectric spacing are taken with digital image-analysis software and compared against the applicable acceptance criteria. Photographs are archived as permanent quality records.

In a production environment the process is performed on first-article boards, after major process changes, and at defined sampling frequencies for ongoing process control. Results feed directly into corrective-action systems when out-of-specification conditions are detected, allowing plating, desmear, or lamination parameters to be adjusted before large volumes of non-conforming material are produced.

Interpreting Microsection Results for DFM and Process Control

Microsection data provide concrete feedback for design-for-manufacturability decisions. When plating thickness falls short in high-aspect-ratio vias, designers can increase minimum hole size, reduce board thickness, or specify sequential plating steps. Persistent voids indicate the need for improved desmear chemistry or longer electroless dwell times.

Layer misregistration findings often drive tighter tooling tolerances or the adoption of sequential lamination for critical high-layer designs. Delamination results may prompt a change to higher-flow prepreg or adjusted press profiles.

From a process-control standpoint, statistical tracking of measured plating thickness and registration offset over successive lots establishes process capability indices. These indices become contractual acceptance criteria for high-reliability programs and serve as objective evidence during supplier audits.

Reliability Implications for High-Layer and High-TG Designs

In high-layer-count boards the cumulative effect of small registration errors and thin plating becomes pronounced because the total thermal-expansion mismatch and current density are higher. High-TG materials, while offering improved thermal stability, can exhibit greater brittleness; any voids or cracks therefore propagate more readily under thermal shock.

Aerospace, medical, and automotive specifications frequently mandate microsection verification precisely because these applications combine extreme temperature ranges, vibration, and long service life. Boards that pass microsection criteria demonstrate that the plating and lamination processes are capable of surviving the required environmental stresses.

Procurement teams use the documented microsection results as part of supplier qualification, reducing the probability of latent field failures that electrical testing alone cannot detect.
