Overview

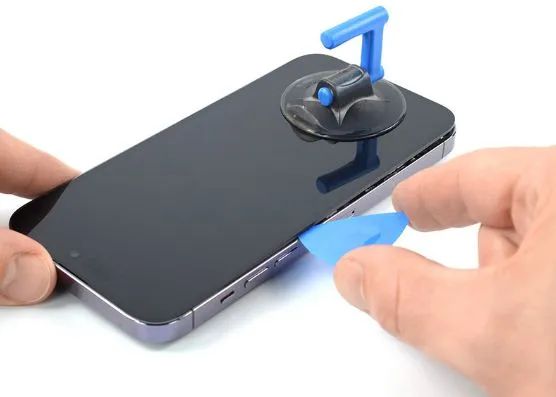

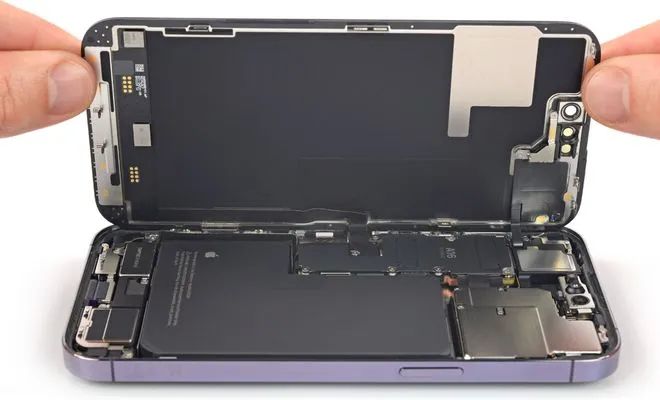

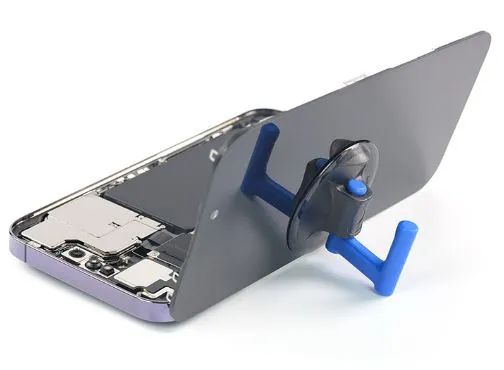

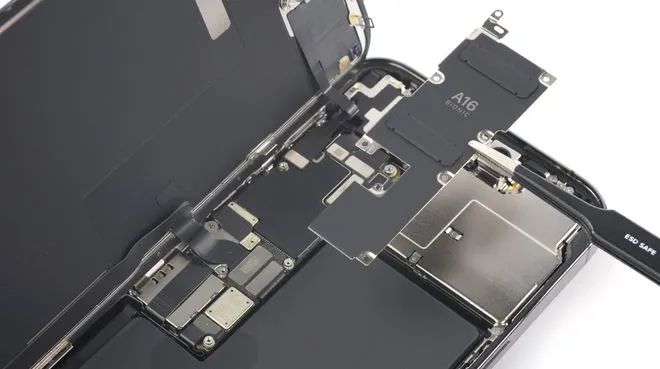

iFixit recently performed a teardown of the Apple iPhone 14 Pro Max. Overall, the iPhone 14 Pro models do not have a removable rear glass, which increases repair costs.

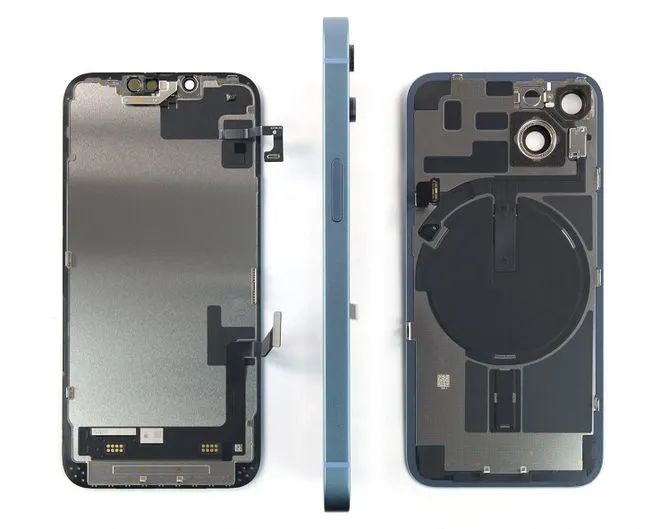

In Apple Stores in China, out-of-warranty rear glass repair for iPhone 14 Pro models is 3598 RMB and 3998 RMB, while repair for the standard iPhone 14 models is 1298 RMB and 1548 RMB.

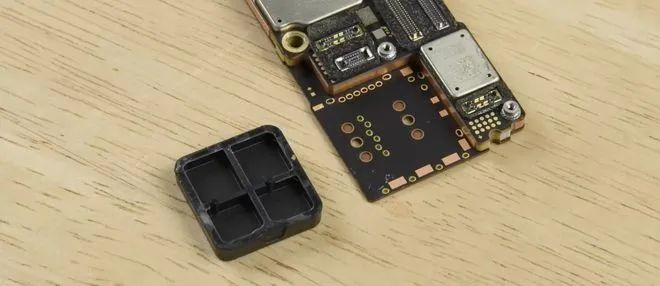

Apple's A16-equipped models use the Qualcomm Snapdragon X65 modem. Below is a breakdown of core component suppliers and parts identified in the iPhone 14 Pro Max teardown.

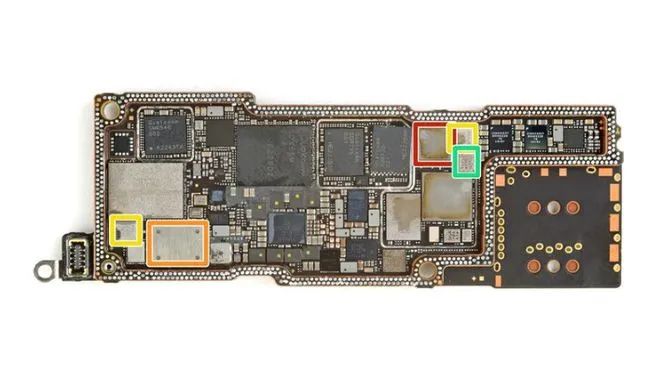

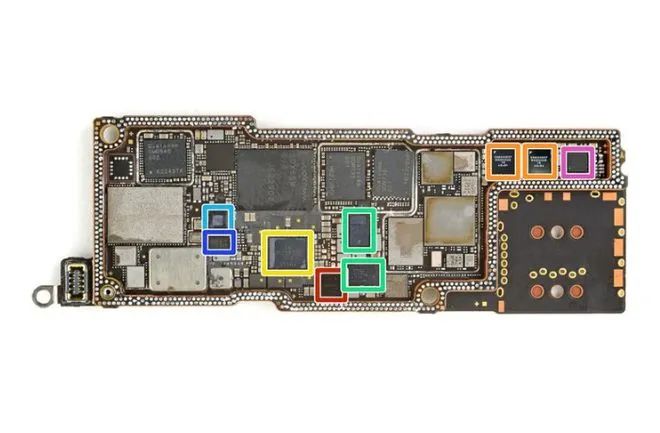

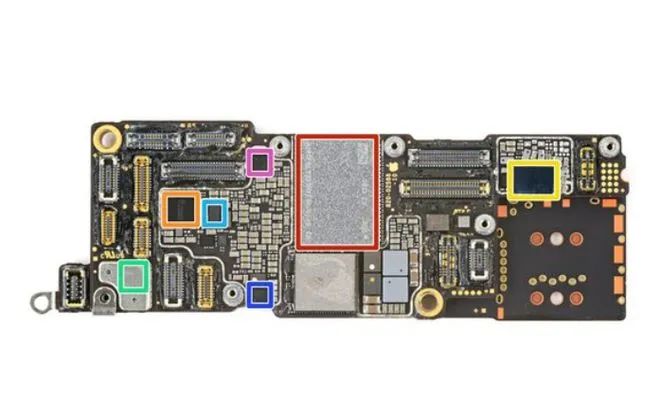

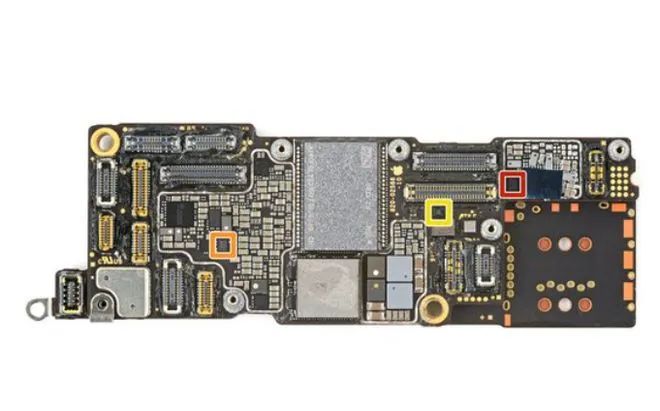

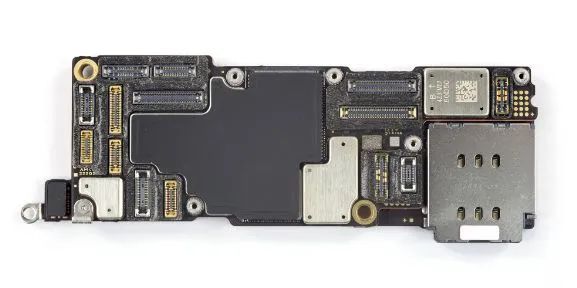

Upper Logic Board, Front
- Red: SanDisk SD MVGKLK2 128G NAND flash
- Orange: Apple / Dialog Semiconductor 338S00819-A1 power management
- Yellow: Likely Apple / Cirrus Logic 338S00843 voice processor
- Green: Apple / Cirrus Logic 338S00537 audio amplifier
- Sky blue: Likely Apple / Dialog Semiconductor 338S0081C power management
- Dark blue: Texas Instruments TPS61280H DC-DC converter
- Purple: Possibly STMicroelectronics serial ROM
- Red: Possibly Infineon load switch
- Orange: NXP NTB0101GS1 1-bit level translator
- Yellow: Texas Instruments LSF0101 1-bit bidirectional level translator
- Red: Suspected WiFi / Bluetooth module

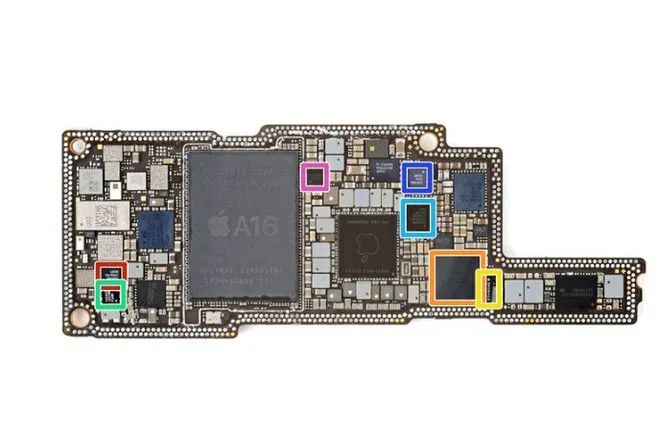

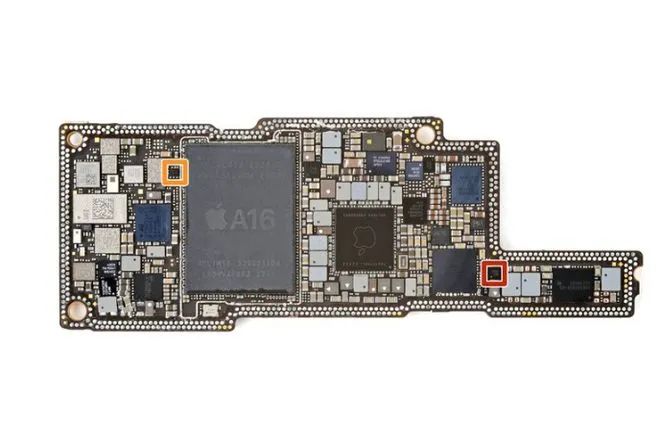

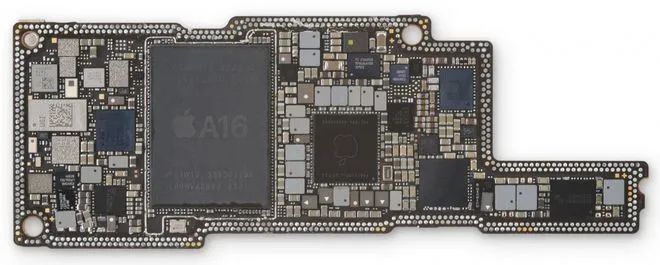

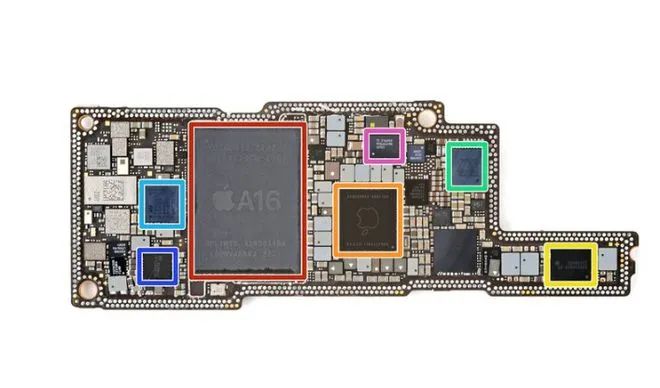

Upper Logic Board, Back
- Red: Apple APL1W10 / 339S01104 A16 processor, Samsung K3LK2K20CM-EGCP 6 GB LPDDR5 RAM
- Orange: Apple APL109A / 338S00942 power management chip
- Yellow: Apple / Dialog Semiconductor 338S00839-B0 power management chip
- Green: Broadcom BCM59365EA1IUBG wireless charging receiver
- Sky blue: STMicroelectronics STB601A05 power management chip
- Dark blue: Apple / Dialog Semiconductor 338S00819-A1 power management chip
- Purple: Texas Instruments TPS65657B0 display power supply
- Red: Texas Instruments LM3567A1 LED flash driver
- Orange: Apple / Cirrus Logic 338S00738 audio codec
- Yellow: Possibly Analog Devices Taptic Engine motor driver
- Green: Texas Instruments CD3710A1 VCSEL array driver
- Sky blue: NXP CBTL1618A0 DisplayPort multiplexer
- Dark blue: Texas Instruments USB 2.0 dual repeater
- Purple: ON Semiconductor DC-DC converter
- Red: Possibly ON Semiconductor DC-DC converter
- Orange: Possibly STMicroelectronics serial EEPROM

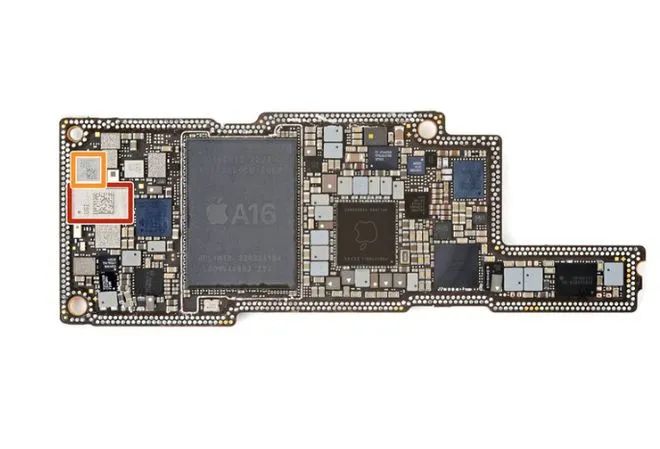

- Red: Renesas Electronics ultra-wideband module
- Orange: Broadcom AFE M-8245 front-end module

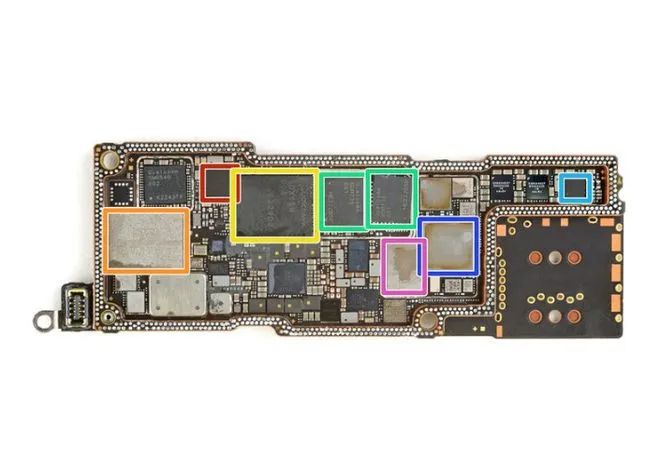

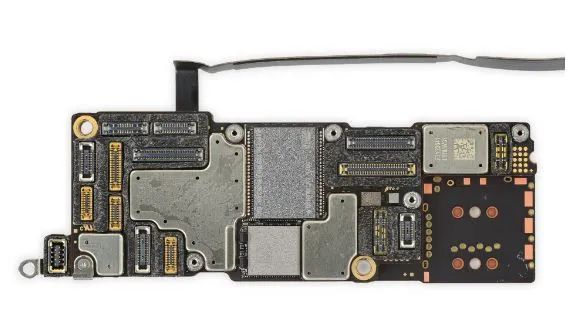

Lower Logic Board, Front
- Red: STMicroelectronics ST33J secure element
- Orange: Apple / Cirrus Logic 338S00537 audio amplifier
- Yellow: Qualcomm PMX65 power management chip
- Green: Qualcomm QET7100 envelope tracker
- Sky blue: Possibly Qualcomm PMK65 clock generator
- Dark blue: Possibly Qorvo envelope tracker
- Purple: Suspected STMicroelectronics power management chip
- Red: NXP SN210V NFC controller with secure element
- Orange: Likely satellite communication module
- Yellow: Qualcomm SDX65M X65 5G modem
- Green: Qualcomm SDR735 RF chip
- Sky blue: Qualcomm SMR546 RF chip
- Dark blue: Broadcom AFEM-8231 front-end module
- Purple: Skyworks SKY58290-20 front-end module
- Red: Broadcom AFEM-8240 front-end module
- Orange: Possibly Skyworks SKY58853-17 front-end module
- Yellow: Possibly Skyworks SKY52628 antenna switch module
- Green: Possibly Skyworks SKY5xx92-16 power amplifier module

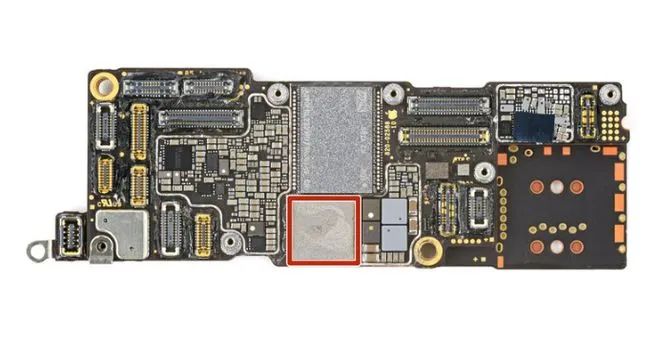

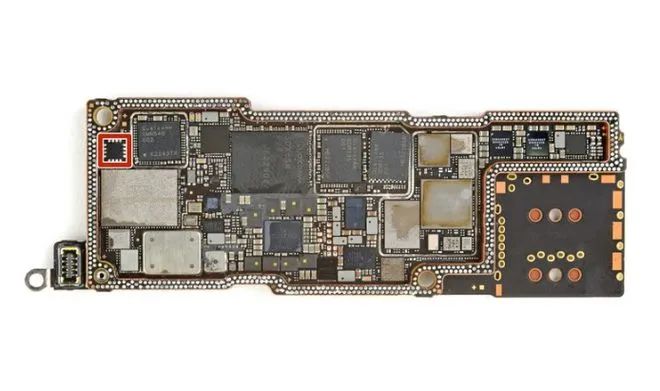

- Red: Bosch 6-axis accelerometer / gyroscope

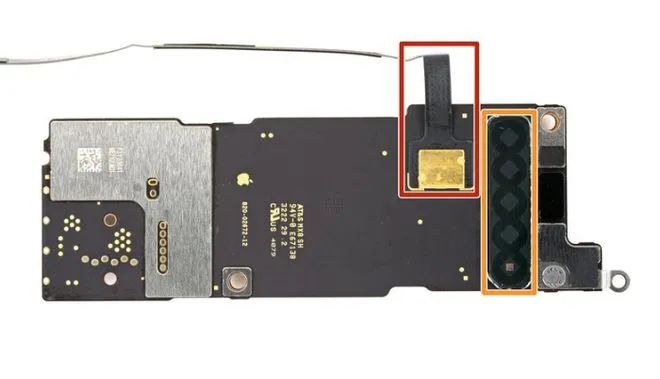

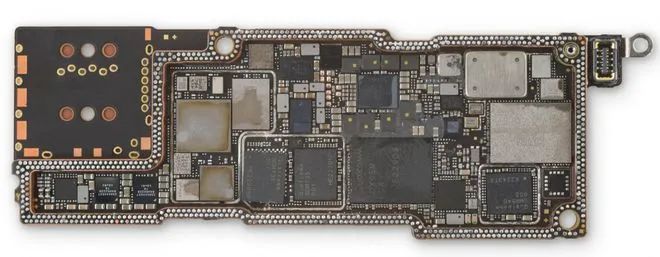

Lower Logic Board, Back
- Red: Likely satellite antenna connector
- Orange: 5G millimeter-wave antenna
(Note: images, supplier names, and component models sourced from iFixit)
