Introduction
Flexible printed circuit boards (PCBs) have become essential components in medical wearables, enabling compact designs that conform to the human body for continuous health monitoring. Devices such as insulin pumps, cardiac monitors, and fitness trackers rely on flexible PCB medical wearables to withstand constant motion, sweat exposure, and varying temperatures. However, ensuring flexible PCB reliability remains a critical challenge, as these boards must endure repeated flexing without failure to maintain patient safety and device performance. Engineers must address factors like material fatigue and mechanical stress to optimize longevity. This article explores proven strategies to enhance flexible PCB bending cycles and overall durability in demanding medical applications. By focusing on design, manufacturing, and testing principles, electrical engineers can achieve higher reliability levels aligned with industry expectations.
The Critical Role of Flexible PCBs in Medical Wearables

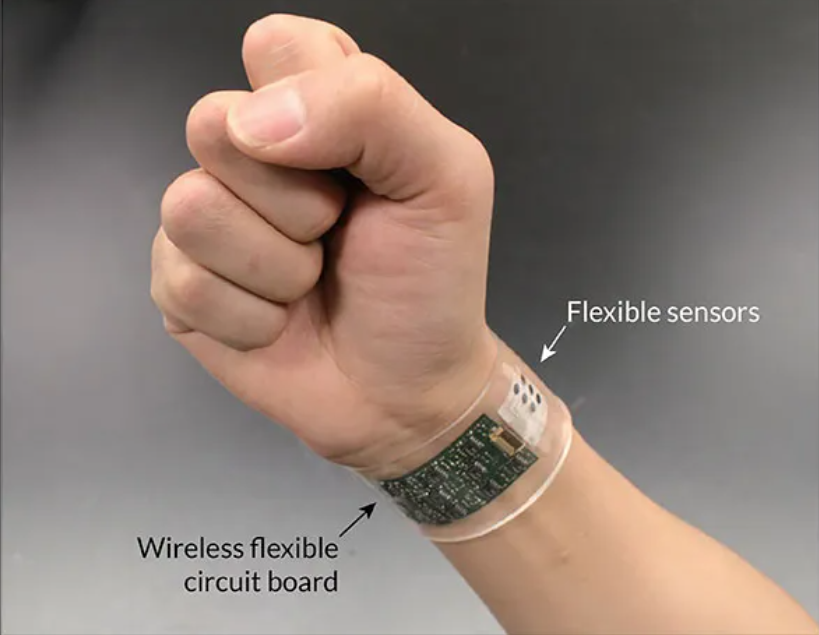

Medical wearables demand PCBs that prioritize flexibility, lightweight construction, and biocompatibility while delivering robust electrical performance. Flexible PCBs allow for three-dimensional shaping, reducing the need for wiring harnesses and enabling sleeker profiles ideal for prolonged skin contact. In high-stakes environments, flexible PCB reliability directly impacts diagnostic accuracy and user trust, as failures can lead to data loss or device malfunction. Standards like IPC-6013 classify flexible PCBs into performance levels, with Class 3 suited for critical medical uses requiring stringent reliability. Engineers must consider dynamic stresses from daily activities, such as arm movements or breathing, which test the limits of material integrity. Ultimately, superior flexible PCB medical wearables balance innovation with proven engineering to support life-saving technologies.
Key Factors Influencing Flexible PCB Reliability
Reliability in flexible PCBs stems from material selection, construction geometry, and environmental resilience. Polyimide substrates dominate due to their high thermal stability and flexibility, outperforming polyester in demanding cycles. Copper foil thickness and adhesion to the dielectric layer play pivotal roles, as thinner foils reduce stress concentrations during bending. Coverlay application protects conductors but must avoid air pockets that promote delamination under humidity. Electrical engineers evaluate these factors through simulated wear scenarios to predict long-term behavior. Proper management of these elements ensures flexible PCB bending cycles meet application needs without compromising signal integrity.
Common Failure Mechanisms in Flexible PCBs

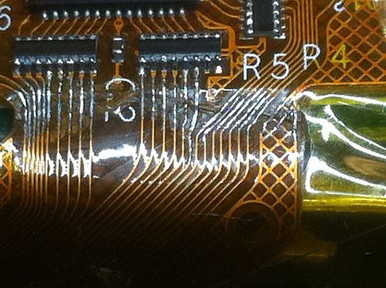

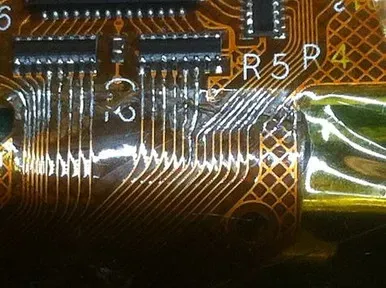

Fatigue cracking in copper traces represents a primary failure mode, occurring when repeated bending exceeds material ductility limits. Delamination arises from poor interlayer adhesion, exacerbated by moisture ingress and thermal expansion mismatches. Conductor migration or opens develop in high-flex zones, where mechanical strain disrupts grain structure over time. Environmental factors like body heat and perspiration accelerate these issues, leading to increased resistance or shorts. Understanding these mechanisms allows engineers to implement targeted mitigations. Cross-sectional analysis reveals microcracks early, guiding iterative improvements.
Design Best Practices for Flexible PCB Reliability
Optimal trace routing forms the foundation of reliable designs, with engineers recommending 45-degree angles in bend areas to distribute stress evenly. Avoid sharp 90-degree bends, which concentrate strain and reduce flexible PCB bending cycles significantly. Minimum bend radii should scale with copper thickness, typically starting at ten times for static flex and higher for dynamic applications per IPC-2223 guidelines. Incorporate teardrop pads and hatched ground planes to minimize impedance discontinuities and enhance mechanical robustness. Component placement outside flex zones prevents solder joint fatigue, while stiffeners reinforce rigid sections for hybrid rigid-flex boards. These practices extend operational life in medical wearables.
Material and Stack-Up Considerations

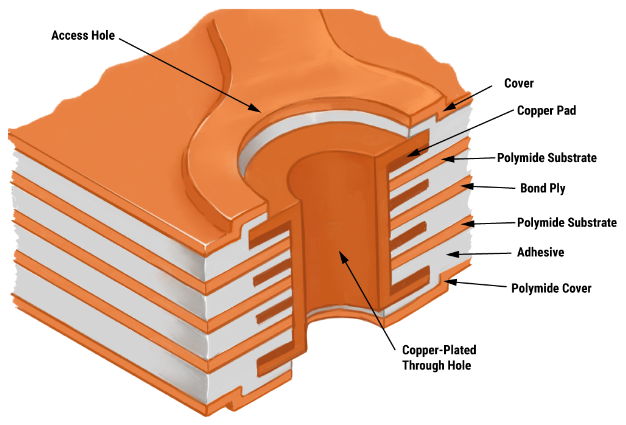

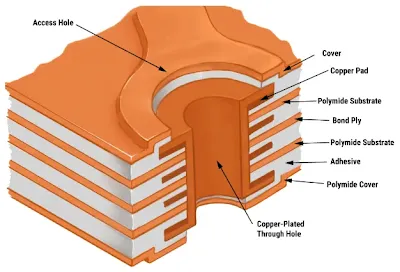

Selecting high-grade polyimides with consistent dielectric properties ensures uniform flex performance across batches. Adhesive-less laminates offer superior peel strength, resisting delamination in humid conditions common to wearables. Multilayer stack-ups demand careful via placement, favoring blind or buried vias to avoid bend-area stress risers. Coverlay thickness matching substrate prevents wrinkling during flexing. Engineers simulate stack-up behavior using finite element analysis to validate reliability under expected loads. Balanced copper distribution across layers maintains flatness, crucial for assembly yield.
Manufacturing Techniques to Boost Durability
Precision lamination controls voids, directly impacting flexible PCB reliability under cyclic stress. Photo-defined coverlay outperforms screen-printed alternatives for finer lines and better registration. Controlled etching preserves copper ductility, avoiding over-etch that embrittles traces. Post-processing like plasma cleaning enhances surface adhesion before assembly. Manufacturers align processes with IPC-TM-650 test methods for consistent quality. These steps minimize defects that propagate during flexible PCB bending cycles.
Testing Protocols for Validation
Cyclic bend testing per IPC-TM-650 methods quantifies endurance by monitoring resistance changes over thousands of flexes. Thermal shock and humidity exposure reveal weaknesses in adhesion and insulation. Peel strength tests verify coverlay integrity, essential for long-term reliability. Electrical continuity checks during flexing detect early opens. Engineers correlate test data with field simulations to refine designs. Comprehensive qualification per IPC-6013 ensures medical-grade performance.
Troubleshooting Reliability Issues
When flexible PCB medical wearables exhibit intermittent failures, inspect bend radii first, as undersized curves accelerate fatigue. Resistance drift signals trace cracking; microsectioning pinpoints locations. Delamination often traces to contamination; bake-out prior to lamination resolves it. Optimize stiffener placement if rigid sections warp under flex. Iterative prototyping with accelerated life testing uncovers root causes efficiently. Documented failure modes inform design rules for future iterations.
Conclusion
Enhancing flexible PCB reliability in medical wearables requires integrated efforts across design, materials, manufacturing, and testing. Adhering to standards like IPC-6013 and IPC-TM-650 provides a structured path to durable solutions capable of withstanding rigorous flexible PCB bending cycles. Electrical engineers benefit from proactive failure mode analysis and best practices in trace routing and stack-up optimization. These strategies not only extend device lifespan but also uphold patient safety in critical applications. As wearables evolve, prioritizing reliability will drive broader adoption and technological advancement.
FAQs
Q1: What role does IPC-6013 play in flexible PCB medical wearables?
A1: IPC-6013 establishes qualification criteria for flexible PCBs, defining performance classes for high-reliability applications like medical devices. It guides acceptance testing for mechanical and electrical integrity, ensuring boards endure environmental stresses. Engineers use it to specify Class 3 for wearables demanding flexible PCB reliability under dynamic conditions. Compliance minimizes risks in patient-facing tech.
Q2: How can engineers improve flexible PCB bending cycles?
A2: Design traces at 45-degree angles in flex zones and maintain adequate bend radii to distribute stress evenly. Select adhesive-less polyimide laminates for better fatigue resistance. Validate with cyclic testing per IPC-TM-650 to quantify endurance. Avoid components in high-flex areas and use stiffeners strategically. These steps significantly enhance flexible PCB bending cycles in medical wearables.
Q3: Why is material selection crucial for flexible PCB reliability?
A3: Materials dictate flex endurance, with polyimides offering superior thermal and mechanical properties over alternatives. Poor adhesion leads to delamination, compromising circuits in humid wearable environments. Consistent dielectric strength preserves signal quality during motion. Engineers match substrates to application demands for optimal flexible PCB reliability.
Q4: What testing ensures flexible PCB medical wearables meet medical standards?
A4: Bend cycling, thermal shock, and humidity tests per IPC-TM-650 verify durability. Peel strength and continuity checks detect adhesion flaws early. Alignment with IEC 60601-1 confirms safety for electrical medical equipment. Comprehensive protocols guarantee reliable performance in real-world use.
References
IPC-6013E — Qualification and Performance Specification for Flexible/Rigid-Flexible Printed Boards. IPC, 2021
IPC-2223E — Sectional Design Standard for Flexible/Rigid-Flexible Printed Boards. IPC, 2020
IPC-TM-650 — Test Methods Manual. IPC, 2023
IEC 60601-1 — Medical electrical equipment - Part 1: General requirements for basic safety and essential performance. IEC, 2005
