Introduction
Flexible printed circuit boards, or flex PCBs, enable compact designs in applications ranging from consumer electronics to aerospace systems. These boards must withstand mechanical stresses like bending while maintaining reliable electrical performance. Signal integrity in flex PCBs refers to the preservation of signal quality over transmission paths, crucial for high-speed data transfer. Bending introduces challenges that can degrade this integrity, leading to issues such as reflections and attenuation. Engineers designing signal integrity flex PCB layouts must account for these effects to ensure system reliability. Understanding the bending effect on signal integrity helps optimize designs for real-world deployment.
Why Signal Integrity Matters in Flex PCBs
Signal integrity ensures signals arrive at their destination with minimal distortion, preserving data accuracy in high-frequency operations. In flex PCBs, this becomes complex due to the thin substrates and copper layers susceptible to deformation. Industries like automotive and medical devices rely on flex PCBs for their conformability, but poor signal integrity can cause communication errors or failures. Bending exacerbates risks by altering electrical characteristics, directly impacting performance metrics like eye diagram quality. Factory production emphasizes adherence to qualification standards to verify integrity under stress. Prioritizing signal integrity flex PCB design prevents costly redesigns and field failures.
Mechanisms of Bending Effects on Signal Integrity

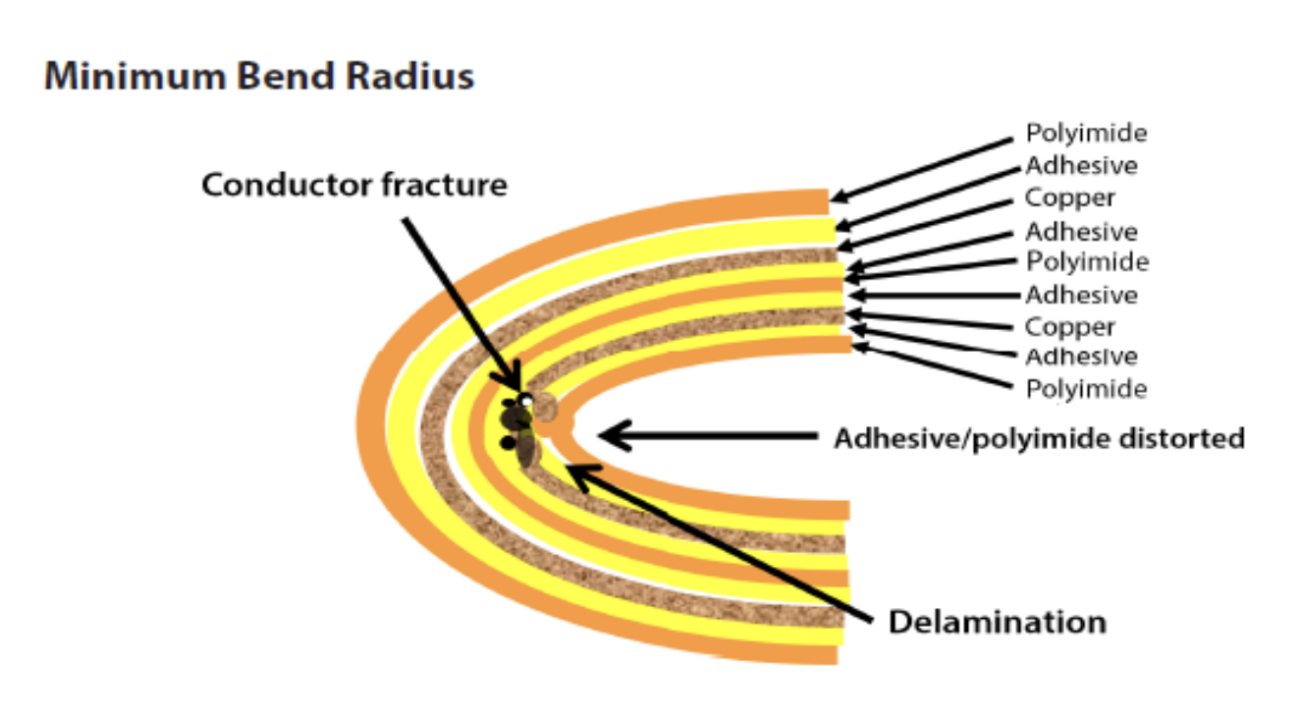

Bending applies tensile and compressive stresses to flex PCB layers, straining copper conductors and dielectrics. Outer layers experience tension, potentially causing microcracks, while inner layers face compression, leading to buckling. These mechanical changes modify trace geometry, resulting in the bending effect on signal integrity through increased insertion loss and mode conversion. For high-speed signals, even minor deformations disrupt waveform fidelity. Dielectric properties shift under strain, altering propagation velocity and contributing to skew in differential pairs. Factory insights reveal that repeated bending accelerates fatigue, compounding these issues over time.
Impedance changes bending flex PCB represent a primary concern, as characteristic impedance depends on trace width, thickness, and surrounding dielectric. During bending, trace elongation or thinning varies cross-sectional area, causing mismatches that generate reflections. Return loss worsens, especially in controlled impedance lines critical for gigabit signals. Crosstalk increases if adjacent traces shift relative positions under flexure. These effects are more pronounced in multilayer flex constructions where interlayer alignment suffers. Engineers observe variations in time-domain reflectometry measurements post-bending, confirming impedance instability.

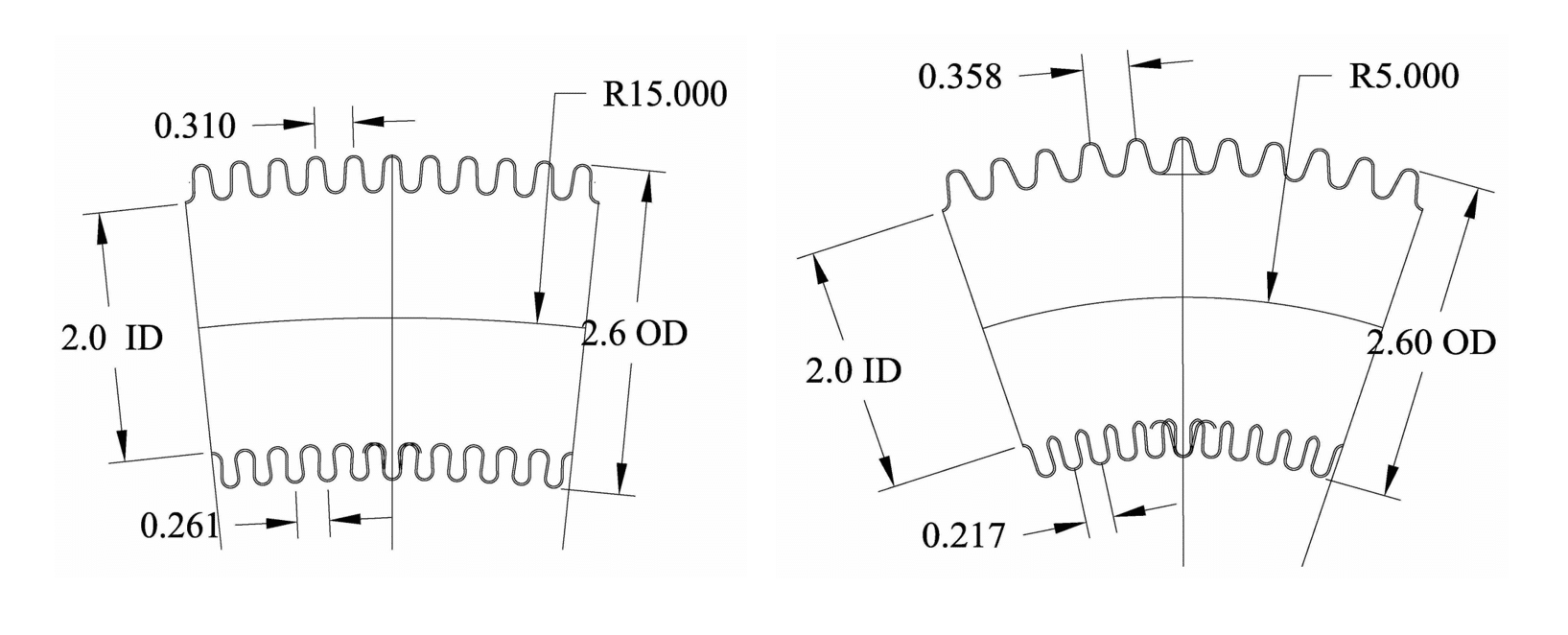

Static Versus Dynamic Bending in Flex PCBs

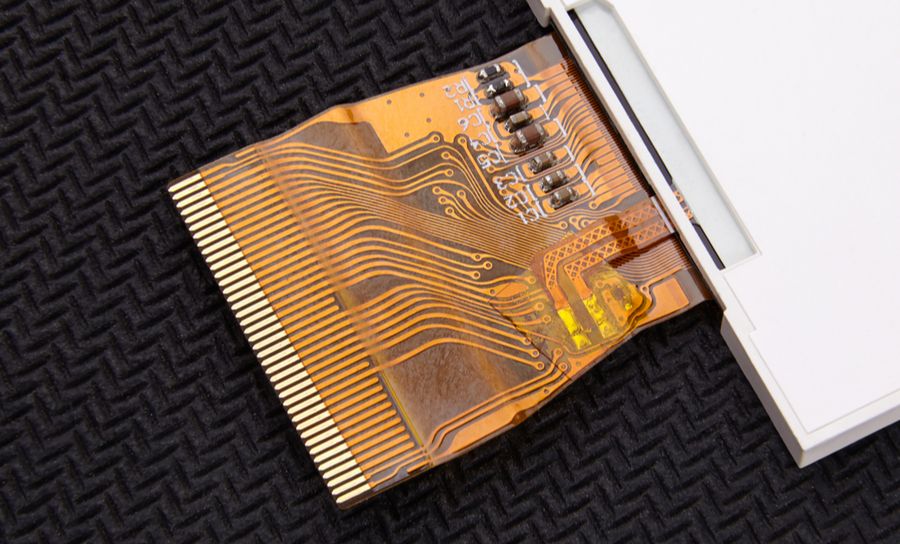

Static bending occurs once during installation, allowing larger radii with less risk to signal paths. Dynamic bending involves repeated cycles in moving parts, demanding robust designs to sustain signal integrity. Static cases primarily affect impedance at installation, while dynamic ones induce cumulative damage like delamination. Standards classify flex PCBs by application, guiding bend limits accordingly. Factory testing differentiates these via endurance cycles, revealing signal degradation thresholds. Both types influence signal integrity flex PCB performance, but dynamic poses greater challenges for longevity.
Key Factors Influencing Impedance Under Bending
Material selection plays a vital role, with polyimide substrates offering superior flex endurance over polyester. Copper foil type, such as rolled annealed versus electrodeposited, affects ductility during bending. Thinner foils reduce strain but may compromise current capacity. Ground plane configuration, often hatched in flex areas, balances shielding with bendability, though it slightly elevates impedance. Adhesive layers must maintain bond strength to prevent voids that trap air and alter capacitance. Factory processes control these factors to minimize impedance changes bending flex PCB layouts.
Trace routing orientation significantly impacts outcomes. Traces perpendicular to the bend line experience uniform stress, unlike angled ones prone to cracking. Curved routing avoids sharp corners, distributing strain evenly. Avoiding vias and pads in bend zones prevents stress concentrations leading to opens. Staggering traces in multilayer stacks enhances flexibility without compromising isolation. These practices align with design standards to preserve signal paths.
Testing Bending Effects on Signal Integrity
Qualification testing per IPC-6013E evaluates flex PCB performance under controlled bending. Static bend tests measure deformation limits using mandrel wraps, checking for cracks via microscopy. Dynamic tests apply cyclic flexure over specified radii, monitoring electrical continuity and isolation. Time-domain reflectometry verifies impedance post-test, detecting bending-induced variations. Thermal cycling combined with bending simulates combined stresses. These methods ensure signal integrity flex PCB reliability from factory to field.
IPC-TM-650 methods detail flexural endurance procedures, correlating mechanical limits to electrical metrics. Visual and automated optical inspection identifies early defects like delamination. High-potential testing confirms dielectric withstand after flexure. Factories integrate these into production to qualify lots. Results guide design iterations, mitigating the bending effect on signal integrity proactively.
Best Practices for Mitigating Bending Impacts
Adhere to IPC-2223E for sectional design standards in flex and rigid-flex boards. Select minimum bend radii proportional to layer count and thickness, measured from the inner surface. Route traces parallel to the neutral axis in compression-prone areas. Implement hatched copper planes in reference layers for flexibility without severe shielding loss. Add stiffeners at component sites to isolate bends from solder joints. Simulate bending using finite element analysis to predict strain distributions.
Material stack-up optimization reduces risks. Position flex layers centrally in multilayers for balanced bending. Use coverlay openings precisely aligned to traces, preventing exposure. Control plating thickness uniformly to enhance ductility. Factory lamination processes minimize voids, ensuring consistent dielectric performance. These steps maintain impedance stability under flexure.
Component placement avoids bend zones entirely. Support high-density areas with polyimide stiffeners. Teardrop entries at pads distribute stress. For high-speed lines, verify differential pair symmetry post-bending. Iterative prototyping with TDR coupons confirms design margins. Such practices deliver robust signal integrity flex PCB solutions.
Troubleshooting Common Bending-Related Issues
Engineers often encounter intermittent failures traced to bend fatigue. Inspect for copper cracking using cross-sectioning, correlating to cycle counts. Impedance drift signals dielectric shifts; retest with vector network analyzer. Delamination appears as bubbles under coverlay, addressed by adhesion testing. Crosstalk spikes indicate trace shifts; redesign routing accordingly. Factory data logs from production tests pinpoint root causes early.
Conclusion
Bending profoundly influences signal integrity in flex PCBs through mechanical strain and electrical parameter shifts. Key mechanisms include trace deformation and impedance changes bending flex PCB structures. Standards like IPC-2223E and IPC-6013E provide essential guidelines for design and qualification. Implementing best practices such as optimal routing and testing ensures reliable performance. Engineers benefit from factory-aligned approaches to balance flexibility with integrity. Prioritizing these factors supports advanced applications without compromise.
FAQs
Q1: How does the bending effect on signal integrity manifest in high-speed flex PCBs?
A1: Bending induces strain on conductors and dielectrics, causing impedance mismatches and signal reflections. This leads to increased insertion loss and potential crosstalk in differential pairs. Dynamic cycles accelerate fatigue, degrading eye patterns over time. Testing per industry standards verifies limits, guiding redesigns for sustained performance.
Q2: What causes impedance changes bending flex PCB during repeated use?
A2: Mechanical stress alters trace dimensions and dielectric thickness, disrupting characteristic impedance control. Hatched planes help but require careful density to avoid excess variation. Adhesive fatigue contributes to voids affecting capacitance. Factory qualification includes post-bend TDR to quantify shifts and ensure compliance.
Q3: How can engineers maintain signal integrity flex PCB in dynamic bending applications?
A3: Follow design standards for bend radii and trace orientation perpendicular to flex lines. Use ductile materials and stiffeners for support. Simulate strain effects and perform cyclic bend tests. Hatched references preserve shielding while enabling flexure. These steps minimize the bending effect on signal integrity effectively.
Q4: What role do standards play in addressing bending issues in flex PCBs?
A4: Standards outline qualification tests for bending endurance and impedance stability. They specify routing rules to prevent stress concentrations. Compliance ensures factory-produced boards withstand real-world flexure without signal degradation. Regular referencing supports reliable signal integrity flex PCB development.
References
IPC-2223E — Sectional Design Standard for Flexible/Rigid-Flexible Printed Boards. IPC, 2020
IPC-6013E — Qualification and Performance Specification for Flexible/Rigid-Flexible Printed Boards. IPC, 2021
