Introduction
High-Tg PCBs (Tg ≥170 °C) no longer carry the extreme premium they once did. Intelligent material selection, panel utilization, and process optimization routinely achieve 15–35 % total cost reduction while maintaining full aerospace, automotive, and industrial reliability requirements. Understanding exactly where cost originates allows engineers and purchasers to eliminate unnecessary expense without sacrificing performance.
Real Cost Breakdown of High-Tg PCBs (2024–2025 pricing trends)
| Cost Element | Standard 140 °C FR-4 | Typical 175–180 °C High-Tg | Optimized 175–180 °C High-Tg | Primary Savings Lever |
|---|---|---|---|---|
| Base material ($/m²) | 45–65 | 95–140 | 72–98 | Volume-optimized slash sheets |
| Prepreg ($/m²) | 35–50 | 80–120 | 58–78 | Standard-fill instead of low-CTE |
| Extra processing (bake, plasma) | None | +18–28 % | +8–12 % | Combined plasma + permanganate |
| Drilling & routing | Baseline | +12–18 % (harder resin) | +5–8 % | Optimized stack & tool life |
| Lamination cycle time | 120–150 min | 180–240 min | 150–170 min | Faster-cure phenolic systems |
| Testing & coupons | Standard | +15–25 % | +5–10 % | Shared coupons, reduced IST |
| Total multiplier vs 140 °C | 1.0× | 1.45–1.85× | 1.18–1.38× |
Most Cost-Effective High-Tg Material Choices That Still Meet Reliability
| Target Application | Minimum Reliable Tg | Recommended Cost-Optimized Material | Approx. Material Cost ($/m² core) | T288 Performance | Typical Total Saving vs “Premium” |
|---|---|---|---|---|---|
| Industrial control (125 °C) | 170 °C | IPC-4101E /129 phenolic-cured | 68–78 | ≥20 min | 28–34 % |
| Automotive Grade 1 (150 °C) | 175 °C | IPC-4101E /130 or /131 standard-fill | 75–88 | ≥20–25 min | 22–30 % |
| Aerospace avionics (6× reflow) | 180 °C | IPC-4101E /126 moderate-fill | 85–98 | ≥25 min | 18–25 % |
| Extreme (175 °C continuous) | ≥200 °C | Polyimide only when unavoidable | 220–380 | — | — |
Ten Proven Cost-Reduction Strategies That Do Not Compromise Reliability
- Stay with phenolic-cured 175–180 °C systems instead of multifunctional or low-CTE versions unless T288 >30 min is explicitly mandated
- Use standard filler level (50–60 %) — ultra-low CTE fillers add 25–40 % with marginal reliability gain in most applications

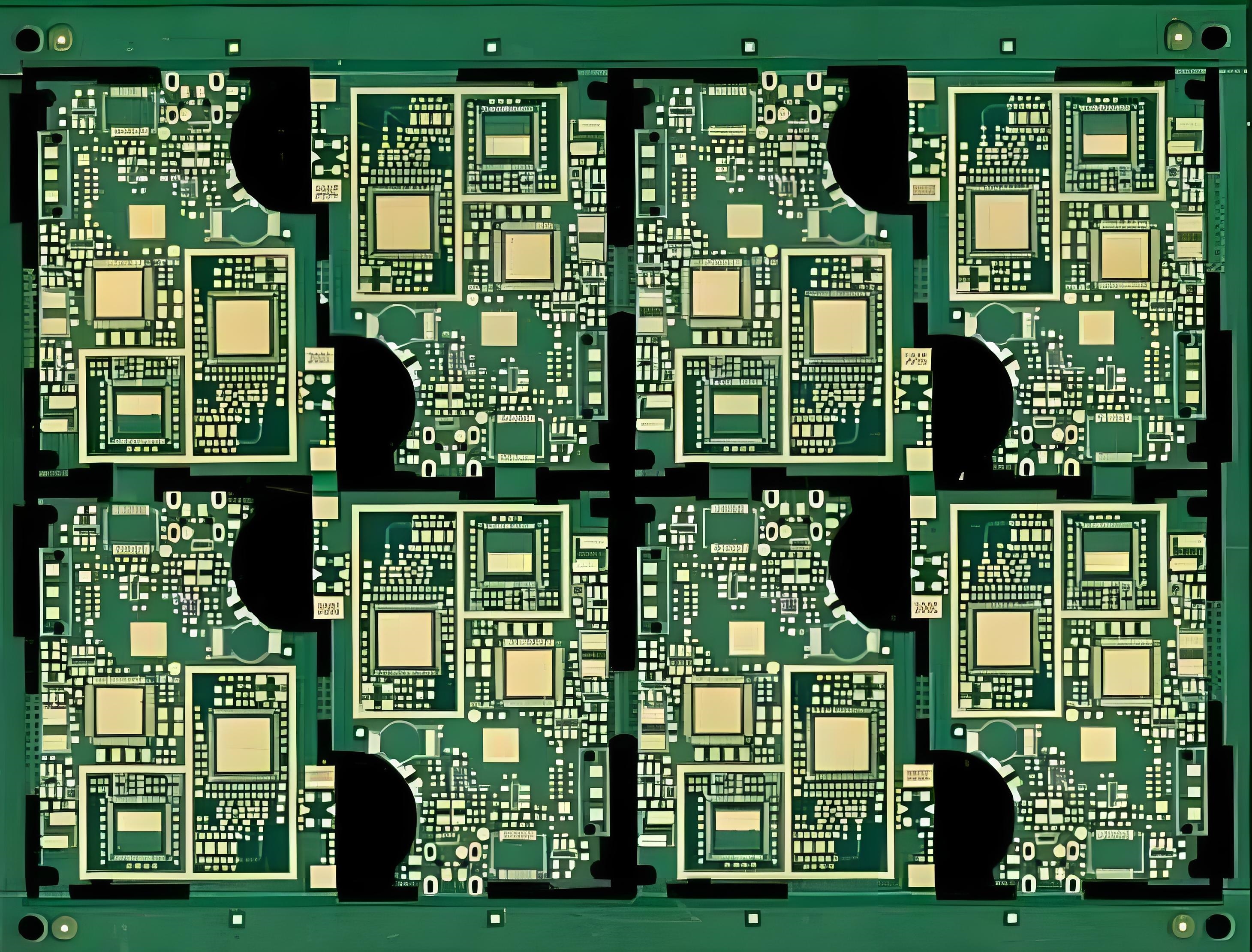

- Panel size 18 × 24 inch (457 × 610 mm) remains the global sweet spot — larger formats increase waste on <2000 pcs runs
- Combine plasma + permanganate desmear in one integrated line — eliminates one full chemical process stage
- Select faster-cure high-Tg prepregs (60–90 min at 185 °C instead of 120+ min) — increases press throughput 25–40 %
- Share IST and T288 coupons across multiple PNs on the same panel — reduces coupon area from 12 % to <4 %
- Specify 0.3 mm minimum drill (no 0.25 mm microvias) unless required — larger holes cut drilling cost 18–22 %
- Accept 2.0–2.5 °C/min cooling rate instead of ultra-slow 1 °C/min — no measurable reliability impact above 170 °C Tg
- Run 6–8 layer stacks instead of 10–12 when possible — material and lamination cost scale almost linearly with layer count
- Negotiate annual volume commitments — top-tier factories drop high-Tg material pricing 12–18 % at 5000 m²/year
Hidden Cost Traps Engineers Accidentally Create
- Over-specifying T288 >30 min or CTEz <45 ppm/°C — forces expensive low-CTE multifunctional resin
- Demanding 100 % IST on every panel instead of statistical sampling — adds 8–12 %
- Using polyimide for 150 °C applications “just to be safe” — 3–4× cost penalty
- Insisting on 0.2 mm finished hole size in 2.4 mm thick boards — drives aspect ratio >12:1 and yield loss
- Separate plasma-only desmear lines — 40–60 % higher processing pcb board cost than integrated plasma + chemical
Conclusion
High-Tg PCBs manufactured intelligently cost only 18–38 % more than standard FR-4 while delivering full 150–175 °C reliability. The largest savings come from staying with proven phenolic-cured 175–180 °C systems (/129, /130, /131), optimizing panel utilization, using integrated desmear, and resisting over-specification of exotic low-CTE or polyimide materials when not required by the actual thermal profile.
FAQs
Q1: How much more does a typical 175 °C high-Tg PCB cost than standard FR-4?
A1: Optimized 175–180 °C 8-layer boards add only 20–35 % total cost when using standard-fill phenolic-cured materials and integrated processing.
Q2: Can I reduce high-Tg PCB cost by dropping to 160 °C material?
A2: No. Most 160 °C systems fail T288 <10 min and delaminate after 4–6 lead-free cycles. True cost becomes higher due to rework and field returns.
Q3: Which single change gives the biggest high-Tg cost reduction?
A3: Switching from low-CTE multifunctional resin to standard-fill phenolic-cured 175–180 °C (/130 or /131) typically cuts material cost 25–32 % with no reliability loss in 150 °C applications.
Q4: Is polyimide ever cost-effective for high-Tg applications?
A4: Only when continuous operating temperature exceeds 175 °C or T260 >120 min is mandated. For everything else, 180 °C filled FR-4 systems remain 3–4× cheaper.
References
IPC-4101E — Specification for Base Materials for Rigid and Multilayer Printed Boards. IPC, 2017.
IPC-TM-650 2.4.24.1 — Time to Delamination (T260, T288). IPC, current version.
IPC-6012E — Qualification and Performance Specification for Rigid Printed Boards. IPC, 2020.
IPC-TM-650 2.6.26 — Interconnect Stress Testing (IST). IPC, current version.
