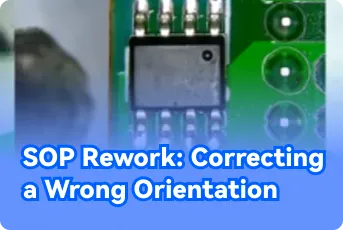

SOP Rework: Correcting a Wrong Orientation
What This Video Covers
This video demonstrates a complete SOP rework process for correcting a chip soldered in the wrong orientation — a common and costly SMT assembly error. Even when solder joints appear perfect, mismatched Pin 1 can cause immediate circuit failure upon power-up.
The procedure includes:
- Even heating and careful removal of the misoriented SOP chip
- Thorough cleaning of pads to remove old solder residue
- Precise realignment using Pin 1 markers
- Flux application and controlled hot air reflow for reliable new joints
Proper polarity verification before final soldering is emphasized to avoid repeated rework that risks pad or trace damage.
These techniques are vital for maintaining signal integrity and reliability in multilayer PCB, HDI PCB, and Rigid-Flex PCB assemblies used in medical devices, automotive electronics, and industrial control systems. Mastering SOP rework reduces scrap rates and supports efficient prototype iteration or field repair.
For complex assembly challenges or professional production, request an instant PCB quote or full turnkey PCB assembly services.
KEY HIGHLIGHTS
- Wrong SOP orientation creates hidden failures despite visually good solder joints — always verify Pin 1 alignment.
- Safe rework involves even heating for removal, complete pad cleaning, and controlled hot air reflow with flux.
- Polarity checking before soldering prevents damage to components and pads in high-value PCB assemblies.
FAQ
Q1: What risks occur when an SOP chip is soldered backwards?
A1: Reversed polarity can cause immediate circuit malfunction, excessive current draw, or permanent damage to the component and surrounding circuitry, especially in dense HDI or multilayer designs.
Q2: How do you safely remove and replace a misoriented SOP chip?
A2: Use even hot air heating to melt solder, lift the chip carefully, clean pads thoroughly, realign Pin 1 correctly, apply flux, and reflow with controlled temperature to ensure reliable joints without lifting pads.
Q3: When is professional SOP rework recommended over in-house repair?
A3: For high-reliability applications such as medical devices PCB or aerospace PCB, or when dealing with fine-pitch components and expensive boards, professional rework minimizes risk of further damage.
What happens if an SOP chip is soldered backwards?
At first glance, this SOP looks perfectly soldered.
But there's one problem.
It's facing the wrong direction.
The chip's Pin 1 doesn't match the PCB marking.
If powered on, it could cause the circuit to fail.
So how do we fix it?
The first step is to carefully remove the chip.
Heat it evenly, and lift it once the solder melts.
After removing the chip, the pads need to be cleaned to prepare for soldering again.
Next, rotate the SOP to the correct orientation and align Pin 1 carefully.
Apply flux and place the chip onto the PCB.
Then heat it evenly with hot air until the solder melts and the chip is securely soldered in place.
Always make sure the polarity is correct before soldering.
Like and follow for more PCB repair tips.
