Overview of IGCT Technology
The Integrated Gate-Commutated Thyristor (IGCT) is a high-power semiconductor switch designed for medium-voltage applications where very high current handling, low conduction losses, and robust turn-off capability are required. As a fusion of GTO (Gate Turn-Off Thyristor) and IGBT technologies, the IGCT has become a preferred device in megawatt-scale power conversion systems.
Technical Fundamentals of IGCT Devices
An IGCT is essentially a GTO thyristor with a monolithic integrated gate driver circuit that provides extremely low-inductance gate commutation. This allows the device to transition from conduction to blocking state in microseconds without the need for bulky external snubber circuits typically required by conventional GTOs.
The core structure consists of hundreds of parallel thyristor cells on a single silicon wafer. During turn-off, a high negative gate current (typically 1:1 with anode current) commutates the entire current out of the gate within a few microseconds, forcing uniform current distribution and preventing destructive localized heating. This hard-drive mechanism is the defining engineering feature that gives the IGCT its superior turn-off performance and high surge current capability.
Primary Applications and Use Cases
IGCTs are predominantly used in high-power industrial and utility applications, including:

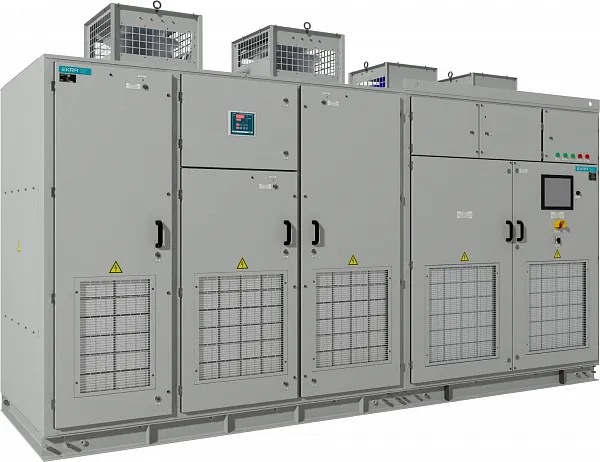

- Medium-voltage drives (MVD) for oil & gas, marine propulsion, and mining
- Static VAR compensators (SVC) and STATCOM systems
- High-voltage DC (HVDC) transmission converters
- Traction power supplies for rail systems
- Megawatt-scale wind power converters
These applications typically operate in the 2.5 kV to 6.5 kV voltage range with currents exceeding 1,000 A, where both IGBTs and IGCTs compete. IGCTs generally offer lower conduction losses and higher surge current ratings, while IGBTs provide easier parallelization and higher switching frequencies.
Manufacturing Challenges and Engineering Considerations
IGCT production is significantly more complex than standard IGBT modules. The process requires precise wafer-level integration of the gate driver circuitry, sophisticated beveling and passivation techniques for high-voltage edge termination, and hermetic or high-reliability press-pack packaging.
Key manufacturing challenges include achieving uniform wafer-level turn-off behavior across thousands of cells, managing mechanical pressure uniformity in press-pack assemblies, and ensuring long-term reliability under extreme thermal cycling. Unlike IGBT modules that are typically soldered or sintered to substrates, IGCTs are often used in press-pack configuration, which places strict requirements on flatness, surface finish, and contact pressure distribution.
Material Selection and PCB Design Relevance
The supporting electronics for IGCT systems present unique PCB challenges. Because the gate driver must deliver very high di/dt pulses (often >1,000 A/µs), the gate circuit requires extremely low stray inductance. This drives the use of specialized low-inductance PCB layouts, laminated bus structures, and sometimes flexible printed circuits (FPC) for gate connections.
Thermal management is equally critical. The PCB materials must maintain mechanical stability under high operating temperatures while providing sufficient isolation. High-Tg laminates, thick copper layers, and controlled CTE materials are essential. In many designs, the gate driver PCB is mounted directly against the IGCT press-pack, requiring precision machining and high-reliability connectors.
Industry Trends in High-Power Semiconductors
The IGCT continues to maintain a strong position in ultra-high-power applications (>5 MW) where its low losses and high reliability provide clear advantages. Recent developments include asymmetric and reverse-conducting IGCT variants, as well as improved wafer processing techniques that push blocking voltages toward 10 kV. While silicon carbide (SiC) devices are making inroads in the lower end of the medium-voltage range, IGCTs remain the technology of choice for the highest power density and most demanding reliability requirements.
How PCB Technologies Support IGCT Systems
Successful IGCT implementation depends heavily on supporting PCB and electronic manufacturing technologies. Low-inductance gate driver circuits require multi-layer PCBs with optimized via stitching, heavy copper planes, and careful component placement to minimize loop inductance. Flexible PCBs are often used to connect the driver to the press-pack contacts while accommodating mechanical movement and vibration.
Thermal solutions integrated into the PCB - such as copper coins, thermal vias, and metal-core substrates - help manage localized heating around gate driver components. Material engineering choices, including high-performance laminates and surface finishes, directly impact long-term reliability under the severe electrical and environmental stresses typical of medium-voltage drive systems.
From a manufacturing perspective, PCB fabrication must deliver tight tolerances on copper thickness, registration accuracy, and surface flatness to ensure consistent contact pressure and electrical performance when integrated with IGCT press-pack assemblies. These engineering considerations are fundamental to achieving the system-level reliability expected in critical power infrastructure applications.
Frequently Asked Questions
Q1: What is the main difference between IGCT and IGBT?
A1: IGCTs typically offer lower conduction losses and higher surge current capability in very high-power applications, while IGBTs are easier to parallel and support higher switching frequencies. IGCTs are usually press-pack devices; IGBTs are most often module-based.
Q2: Why is low inductance critical in IGCT gate driver design?
A2: The IGCT requires extremely fast and high-current gate pulses for uniform turn-off. Any parasitic inductance in the gate loop can slow commutation, leading to uneven current distribution and potential device failure.
Q3: What PCB technologies are most important for IGCT applications?
A3: Low-inductance multilayer designs, thick copper layers, high-Tg materials, flexible circuits for gate connections, and integrated thermal management solutions (copper coins and thermal vias) are essential for reliable operation.
