Overview
Several methods are commonly used to measure the inductance of a common-mode choke. Choose the approach that matches the measurement accuracy required and the available equipment, and ensure the test environment minimizes external interference.
Measurement Methods
- Bridge method: Use a bridge circuit with a standard capacitor and an adjustable resistor. Balance the bridge to determine the inductive reactance and resistive component, then calculate the inductance.
- AC current method: Apply an AC current to the common-mode winding, measure the coil impedance and phase angle, and compute the inductance using circuit analysis.
- Impedance meter: Use an LCR meter to measure the impedance of the common-mode coil directly and read the inductance value.
- Self-resonant method: Connect the common-mode coil with a known capacitor and a variable-frequency sine source, measure the resonant frequency, and derive the inductance from the resonance condition.
Principle and Function of Common-Mode Chokes
A common-mode choke suppresses common-mode noise via electromagnetic induction. Common-mode noise induces identical currents on both signal lines. These currents generate magnetic flux in the choke that produces an opposing electromotive force, which attenuates the common-mode noise and converts it to electromagnetic energy in the choke.
The suppression performance depends on the inductance value, number of turns, and frequency response. Typically, the inductance should be large enough to produce a significant opposing voltage at the frequencies of interest. A higher number of turns increases the magnetic field and the impedance. A sufficiently flat frequency response helps ensure effective suppression across the operating band.

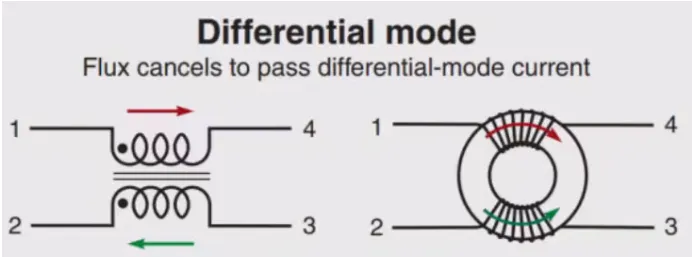

When differential-mode current flows through the choke windings, the two magnetic fields produced are opposite and cancel each other. Because of this cancellation, the core is not subjected to significant net flux from differential signals. Based on this principle, even if a large differential current flows through the windings, the core will not saturate and the component can still function as a common-mode choke without magnetic saturation.

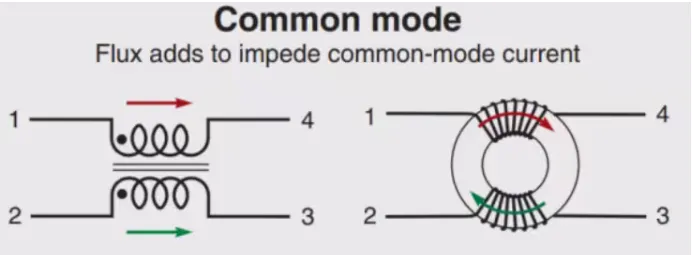

When common-mode current flows through the choke, the magnetic fields from each winding add, increasing the total impedance of the winding and attenuating the common-mode current.
A common-mode choke is an inductive component used to suppress common-mode interference. Common-mode interference refers to the common-mode components present on signal lines that affect other conductors in the circuit. Signal lines commonly encounter common-mode noise from power supplies, ground loops, and external fields, which can degrade signal integrity and cause increased noise or malfunction.
The choke offers a high-impedance path to common-mode signals within the noise frequency band, thereby attenuating them. For differential signals, the fields cancel and the choke has little effect on the desired differential signal.
Typical Applications
- Noise suppression: Reduce common-mode interference to improve signal quality and reliability.
- Circuit protection: Help protect signal lines from external electromagnetic disturbances and improve system immunity.
- Ground isolation: Provide isolation between common-mode signals and ground to reduce conducted noise paths.
Selecting the appropriate common-mode choke requires consideration of the application, frequency range, expected common-mode current, and layout to achieve optimal suppression.
Differences Between Differential-Mode and Common-Mode Inductors
Signals in circuits can be classified as differential-mode or common-mode. Differential-mode signals are the difference between two conductors and typically have equal amplitude and opposite polarity, as in differential signaling. Common-mode signals are the components that are common to both conductors, such as noise that appears on both lines.
Differential-mode inductors are designed for differential signal paths and usually consist of two windings placed so that they affect the differential signal impedance. Common-mode chokes are designed to present high impedance to common-mode signals while exerting minimal effect on the differential signal. The choice between them depends on the signal mode to be controlled and the specific circuit requirements.
