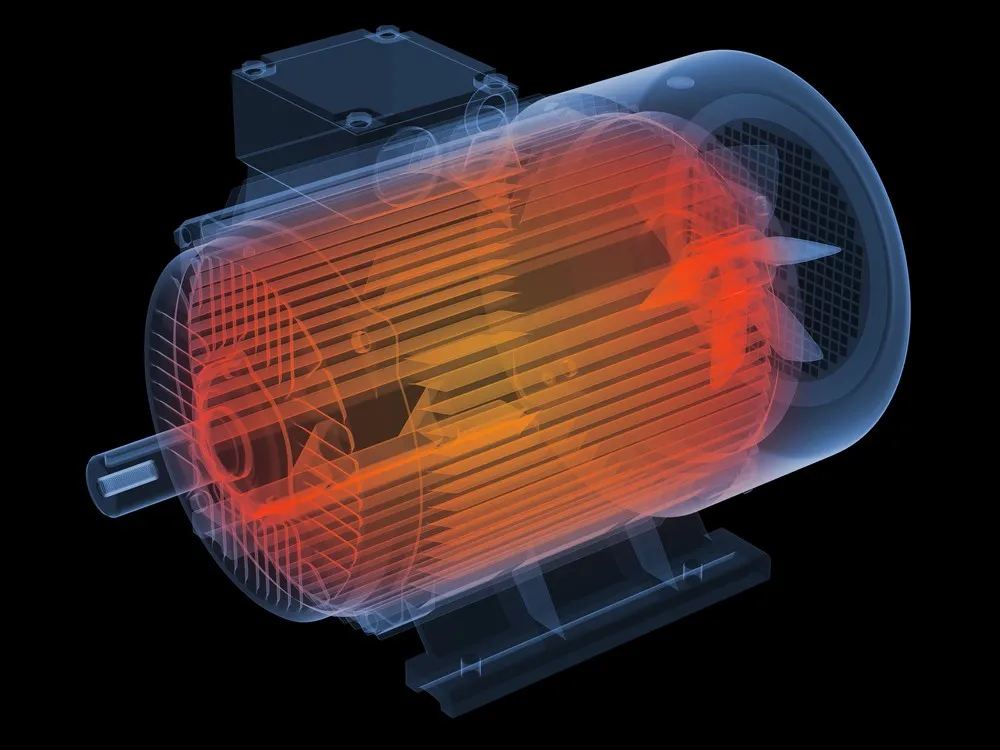

Why Motor Temperature Matters in Industrial Applications
Electric motors generate heat during operation due to copper losses (I2R), iron losses, friction, and windage. Excessive temperature is one of the primary factors accelerating insulation degradation, reducing motor lifespan, and ultimately causing failure.
Motor winding temperature directly impacts the longevity of insulation materials. Operating beyond the insulation class rating can halve motor life for every 10 degree C rise above the recommended limit (following the Arrhenius rule of thumb). Effective thermal management is therefore critical for reliability in industrial control systems, automation, robotics, and heavy machinery.
Insulation Classes and Allowable Operating Temperatures
Motor insulation systems are standardized into thermal classes that define the maximum allowable operating temperature for reliable long-term performance:
- Class Y: 90 degree C
- Class A: 105 degree C
- Class E: 120 degree C
- Class B: 130 degree C (common in general-purpose motors)
- Class F: 155 degree C (widely used in industrial applications)
- Class H: 180 degree C (for high-temperature environments)
- Class C: Above 180 degree C (special high-temperature applications)
For example, a Class B insulated motor has a maximum allowable temperature of approximately 130 degree C. Exceeding this limit accelerates insulation aging, embrittlement, and eventual dielectric breakdown, leading to short circuits or ground faults. Modern industrial motors are frequently Class F or H to provide thermal margin and improved overload capability.
Temperature Rise and Ambient Temperature Considerations
Temperature rise is the increase in winding temperature above ambient when the motor operates at rated load. Standards typically assume a 40 degree C ambient temperature.
- A motor's total temperature = Ambient temperature + Temperature rise + Hot spot allowance.
- Excessive temperature rise (e.g., >25 degree C above expected values) signals problems requiring immediate investigation.
Proper ventilation, cooling fan performance, and ambient conditions must be considered during installation. In hot environments or enclosed panels, derating or enhanced cooling becomes necessary.
Common Causes of Motor Overheating
Several factors can push motor temperatures beyond safe limits:
- Overload conditions: Running above rated current or frequent starts/stops.
- Voltage issues: Unbalanced phases, over/under voltage, or poor power quality.
- Mechanical problems: Bearing wear, misalignment, or seized components increasing friction.
- Cooling system failure: Blocked air ducts, dirty fans, or failed cooling systems (especially relevant in dusty or high-pollen environments).
- Electrical faults: Poor connections, incorrect winding configurations, or degraded insulation.
- Environmental factors: High ambient temperature, altitude effects, or contamination.
PCB and Electronics Role in Motor Thermal Management
Motor control systems play a vital role in preventing overheating through advanced electronics:
- Motor Drives and VFDs: Precise current control, thermal modeling, and electronic overload protection.
- Temperature Monitoring: Integration of PTC thermistors, RTDs, or thermocouples with real-time feedback to drives and PLCs.
- Power Electronics Design: Optimized PCB layouts with heavy copper traces, thermal vias, and efficient heat sinking for IGBTs/MOSFETs to minimize drive losses.
- Industrial Control PCBs: Reliable signal integrity for sensor data, robust power distribution, and protection circuits that enable timely derating or shutdown.
High-reliability PCB manufacturing with proper thermal design ensures that motor controllers and drives themselves do not become additional heat sources while providing accurate protection.
Best Practices and Recommendations
- Select motors with appropriate insulation class for the application environment.
- Implement continuous temperature monitoring with alarms and automatic protection.
- Schedule regular maintenance: clean cooling paths, check connections, and verify alignment.
- Use variable frequency drives (VFDs) with built-in thermal protection and proper parameter setup.
- Ensure adequate ventilation and consider forced cooling or oversized motors in harsh conditions.
- Monitor for abnormal temperature rise during operation and investigate promptly.
By maintaining motor temperatures within insulation class limits, industrial operators can significantly extend equipment life, reduce downtime, and improve overall system reliability.
Conclusion
Motor overheating is not determined by a single temperature threshold. The risk of damage depends on the motor's insulation system, operating conditions, cooling performance, and the duration of thermal stress. Identifying the cause of excessive heat is essential for preventing premature failure and avoiding unnecessary component replacement.
PCB-based motor control systems play an important role in this process by monitoring operating conditions, regulating current, and coordinating protective responses. Reliable sensor interfaces, properly functioning driver circuits, and robust PCB assembly help ensure that abnormal conditions can be detected and addressed before they cause further damage.
When a motor runs hotter than expected, engineers should evaluate the motor, its mechanical load, the cooling system, and the associated control electronics together. A systematic diagnosis helps distinguish motor faults from controller faults, improves maintenance decisions, and supports more reliable industrial operation.
FAQ
Q1: What is the most common insulation class for industrial motors?
A1: Class F (155 degree C) is widely used, offering a good balance of performance and cost with thermal margin over Class B.
Q2: How much temperature rise is considered normal?
A2: It depends on the insulation class and motor design, but excessive rise above rated values (typically monitored via resistance or embedded sensors) indicates a problem.
Q3: How do PCBs help prevent motor damage from overheating?
A3: Advanced motor control PCBs enable precise thermal monitoring, overload protection, efficient power switching, and integration with industrial automation systems for proactive intervention.
Q4: Can a faulty motor control PCB cause a motor to overheat?
A4: Yes. A faulty motor control PCB can contribute to motor overheating if it causes incorrect current regulation, unreliable sensor readings, or improper control signals. Damaged driver components, degraded connections, and faulty protection circuits may also prevent the system from responding correctly to abnormal operating conditions. Checking the controller alongside the motor helps distinguish electronic faults from mechanical or winding problems.
Q5: How can engineers distinguish motor overheating from motor driver PCB overheating?
A5: Engineers should measure the motor temperature and inspect the drive PCB separately under comparable operating conditions. A hot motor with relatively normal drive electronics may indicate excessive mechanical load, winding problems, or inadequate motor cooling. A localized hot spot around power transistors, gate drivers, or connectors may indicate an issue within the drive circuit. Thermal imaging and electrical measurements can help identify the source, but measurements should follow appropriate high-voltage safety procedures.
Q6: How can unreliable PCB temperature sensor readings affect motor protection?
A6: Incorrect temperature readings can cause a motor controller to trigger protection too early or fail to respond when overheating occurs. Potential causes include damaged sensor connections, poor solder joints, electrical noise, and faults in the signal-conditioning circuit. Engineers should verify sensor wiring, compare measured signals with an independent temperature reference, and check the controller's fault thresholds before relying on the protection system.
Q7: When should a motor control PCB be replaced instead of repaired?
A7: Replacement may be preferable when the PCB has extensive thermal damage, carbonized substrate material, damaged internal connections, or failures in safety-critical protection circuits that cannot be reliably restored. Repair may be appropriate for isolated, replaceable component faults when the board's remaining condition can be verified. In either case, the repaired or replacement board should undergo appropriate electrical and functional testing before returning the motor to service.
