Gas sensors function as transducers that convert changes in gas volume fraction into measurable electrical signals. They enable both the detection of specific gases and continuous concentration monitoring. Available detection principles range from electrochemical and metal-oxide-semiconductor (MOS) devices to nondispersive infrared (NDIR), catalytic combustion, photoionization, photoacoustic spectroscopy (PAS), Fourier-transform infrared (FTIR), and quartz crystal microbalance (QCM) technologies. Selection depends on the required balance of sensitivity, selectivity, power consumption, response time, operating temperature range, and cost.
Market forecasts indicate the global gas sensor market will reach approximately $9.5 billion by 2034, growing at a compound annual rate of 6.6 percent between 2024 and 2034. Primary demand originates from industrial process control, automotive, HVAC, consumer electronics, medical diagnostics, and environmental monitoring sectors.
Sensor Miniaturization Through MEMS Technology

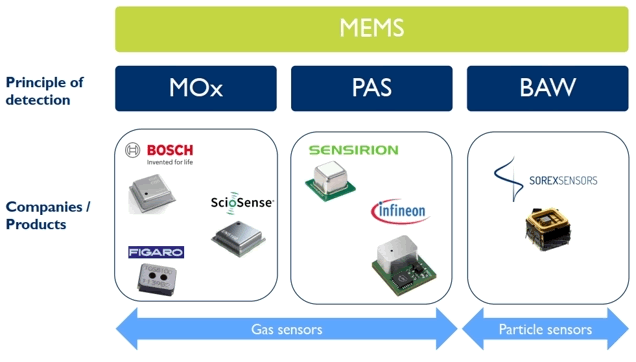

Micro-electro-mechanical systems (MEMS) fabrication has reduced sensor footprints while maintaining or improving performance, enabling integration into compact consumer and automotive products. Typical MEMS implementations include total volatile organic compound (TVOC) and equivalent CO₂ (eCO₂) sensors for indoor air quality, NO₂ and O₃ sensors for outdoor monitoring, and specialized arrays for food-spoilage detection in appliances. One commercial example integrates a four-in-one MEMS sensor capable of measuring VOCs, volatile sulfur compounds, carbon monoxide, hydrogen, plus temperature, humidity, and pressure, with machine-learning models providing electronic-nose functionality.
Electronic Nose Architecture
An electronic nose comprises a gas-sensor array for chemical detection and pattern-recognition algorithms for multivariate analysis. Sensor cross-sensitivity and drift remain inherent limitations; therefore, systems rely on sensor fusion combined with machine-learning or chemometric models to improve selectivity and compensate for environmental variables such as temperature and humidity. Recent deployments span food safety, indoor air-quality control, and clinical breath analysis, including early cancer screening and pathogen identification.
Key Application Domains

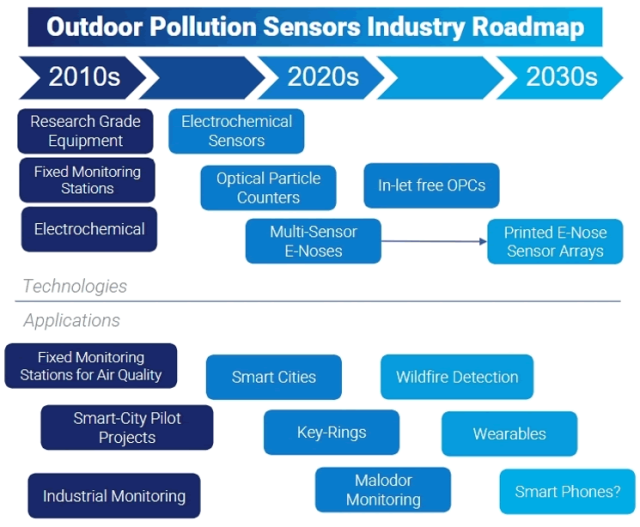

Air-quality monitoring constitutes a major driver. The World Health Organization attributes substantial fractions of ischemic heart disease, stroke, chronic obstructive pulmonary disease, and lung cancer deaths to air pollution. Gas sensors now appear in both outdoor reference networks and indoor or in-vehicle environments.
In electric vehicles, gas sensors support battery safety by detecting early indicators of thermal runaway (CO, CO₂, VOCs) and feed data to the battery management system via CAN bus. Cabin air-quality sensors similarly detect CO, hydrocarbons, and NOₓ to control HVAC recirculation automatically. Industrial and HVAC applications continue to dominate volume, while post-pandemic demand has accelerated adoption in smart-home and wearable devices.
PCB Integration and Manufacturing Considerations
Sensor arrays in electronic-nose systems require precise analog front-end circuitry, temperature compensation networks, and stable reference voltages. Rigid or rigid-flex printed circuit boards provide the mechanical platform for mounting multiple sensor elements while maintaining controlled impedance for low-noise signal paths. High-density interconnect (HDI) technology supports the dense pin counts typical of multi-gas MEMS arrays.
Material selection must address thermal expansion mismatch between sensor packages and the substrate, especially when operating across wide temperature ranges in automotive or outdoor environments. Low-outgassing laminates and controlled copper roughness help minimize baseline drift in sensitive MOS or electrochemical channels. For wearable or conformal applications, flexible printed circuits (FPC) enable three-dimensional sensor placement while preserving bend reliability through optimized coverlay and adhesive systems.
Power-management traces and ground planes require careful layout to isolate digital switching noise from high-impedance analog sensor outputs. Conformal coatings or potting compounds protect against moisture and corrosive gases, yet must not introduce additional cross-sensitivity. Burn-in and accelerated-life testing under target gas concentrations and temperature/humidity cycles form part of qualification protocols to ensure long-term stability.
Reliability and Scalability Challenges
Cross-sensitivity, baseline drift, and humidity interference remain primary engineering constraints. Calibration routines performed at the module level, combined with on-board temperature and humidity compensation, improve field accuracy. Production-scale challenges include maintaining lot-to-lot sensor consistency, achieving high-yield attachment of MEMS dies, and implementing cost-effective calibration procedures for arrays containing four to sixteen elements. Electromagnetic compatibility (EMC) compliance becomes critical when sensors reside near switching power supplies or wireless modules.
Industry Trends
Integration of gas-sensor arrays with edge AI processors is reducing reliance on cloud analytics. Automotive qualification standards (AEC-Q100/Q200) and medical device regulations increasingly govern sensor-module design. Demand for lower power consumption drives development of pulsed-mode operation and advanced heater-control algorithms in MOS devices.
PCB Technologies Enabling Electronic Nose Systems
PCB and FPC manufacturing processes directly influence the performance envelope of electronic-nose implementations. Precision multilayer routing supports simultaneous acquisition from multiple sensor channels while preserving signal integrity. Thermal vias and copper pours aid heat dissipation from integrated heaters. Rigid-flex PCB constructions allow sensor placement in locations that would otherwise be inaccessible, such as curved battery housings or wearable form factors. Material engineering choices—substrate dielectric constant, copper foil type, and surface finish—directly affect long-term drift and calibration stability. These considerations form an integral part of system-level design for reliable, scalable gas-sensing solutions.
FAQs
Q1: What is the main difference between a single gas sensor and an electronic nose?
A1: A single sensor typically targets one analyte, whereas an electronic nose uses an array of sensors combined with pattern-recognition algorithms to identify complex gas mixtures.
Q2: Why are MEMS-based sensors preferred for consumer electronic-nose applications?
A2: MEMS technology reduces size, power consumption, and cost while enabling integration of multiple sensing elements and environmental compensation sensors on a single die.
Q3: How do PCB design choices affect gas-sensor performance?
A3: Substrate material, trace layout, thermal management, and protective coatings influence noise, drift, cross-sensitivity, and long-term reliability of the sensor array.
