Through-wall radar imaging employs low-frequency ultra-wideband (UWB) electromagnetic waves to detect and reconstruct the position, shape, and motion of objects or persons located behind common building materials such as wood, gypsum board, brick, and concrete. A transmitter radiates UWB pulses or continuous waveforms toward the target area, while one or more receivers capture the scattered echoes. Signal-processing algorithms then extract time-of-flight, amplitude, and phase information to generate two- or three-dimensional images of obscured targets. Unlike optical or infrared imaging, which are blocked by opaque surfaces, UWB signals in the appropriate frequency range penetrate these materials with usable attenuation, enabling non-line-of-sight sensing.
Comparison with Conventional Imaging Methods

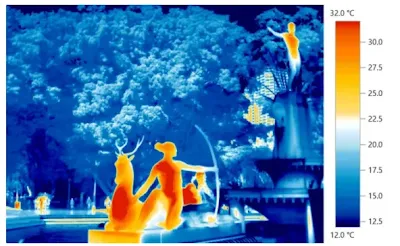

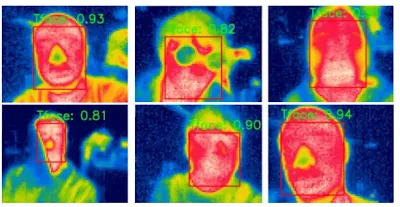

Optical, laser, thermal, and acoustic imaging techniques achieve limited penetration only under specific conditions and generally fail when thick or dense barriers are present. Through-wall radar is engineered specifically for substantial barrier penetration while maintaining usable spatial resolution. Narrowband radar systems developed in earlier decades provided basic one-dimensional detection; the adoption of UWB technology in the 1990s enabled finer range resolution and the formation of two-dimensional images through synthetic aperture or array processing.
Key Technical Components and Performance Factors
A complete through-wall radar system comprises the RF front-end (transmitter, receiver, and antennas), high-speed analog-to-digital converters, digital signal processing hardware, and power management circuitry. Antenna design must balance bandwidth, gain, and beamwidth while remaining compact enough for portable or vehicle-mounted use. UWB operation typically spans several gigahertz, placing strict requirements on impedance matching, phase linearity, and mutual coupling in multi-element arrays.
Signal processing extracts weak echoes from strong clutter and multipath returns caused by walls and interior surfaces. Algorithms often combine migration, beamforming, or compressive sensing techniques. Real-time operation demands low-latency processing pipelines capable of handling high data rates from wide instantaneous bandwidths.
Design and Manufacturing Considerations for Radar Electronics
RF and microwave circuits in through-wall systems require printed circuit boards with controlled dielectric properties. Low-loss laminates such as PTFE-based or hydrocarbon-ceramic materials minimize insertion loss and maintain phase stability across the operating band. Trace geometry, via placement, and ground plane design directly affect return loss and isolation between transmit and receive channels. High-density interconnect (HDI) technology supports the integration of dense digital processing sections alongside sensitive analog RF sections on the same substrate.
Thermal management becomes critical when high-power amplifiers or dense FPGA/ASIC processing clusters are employed. Copper weight selection, thermal vias, and heatsinking strategies must be evaluated during layout to prevent performance drift. Environmental robustness—resistance to vibration, temperature cycling, and humidity—is achieved through appropriate material selection, conformal coatings, and mechanical enclosure design. Reliability testing, including accelerated life testing and electromagnetic compatibility verification, ensures consistent operation in field conditions.
Flexible printed circuits (FPCs) offer advantages for conformal antenna arrays or foldable system architectures that must fit within constrained housings. Material choices for FPCs, including polyimide substrates and low-loss adhesives, must preserve RF performance while providing mechanical flexibility.
Scalability challenges arise when moving from laboratory prototypes to volume production. Maintaining tight tolerances on dielectric thickness and copper etch uniformity across large panels is essential for repeatable antenna and filter performance. Supply-chain considerations for specialty RF laminates and high-frequency connectors also influence design-for-manufacturability decisions.
Applications in Security, Rescue, and Defense
Through-wall radar supports situational awareness in urban operations by revealing occupant locations and movements inside structures without requiring physical entry. In search-and-rescue scenarios, the technology assists in locating trapped individuals and assessing structural voids. Subsurface variants can detect tunnels or buried cavities. Electronic warfare applications include identification of hidden equipment through characteristic scattering signatures. These uses impose requirements for portability, rapid deployment, and operation in electromagnetically contested environments.
Industry Trends and Electronic Integration
Continued improvements in semiconductor technology enable higher integration of RF transceivers and digital processors, reducing system size and power consumption. Advances in waveform agility and adaptive signal processing enhance performance in cluttered or multipath-rich settings. Regulatory considerations for UWB spectrum usage and electromagnetic interference must be addressed during system design.
Electronic Manufacturing and PCB Technologies in Radar Systems
Radar imaging systems depend on specialized printed circuit boards for RF signal routing, antenna feeding networks, and high-speed digital processing. This consumer electronics PCB fabrication processes that achieve tight impedance control and low-loss transmission lines are fundamental to maintaining UWB performance. Multilayer constructions with mixed dielectric materials allow separation of sensitive RF sections from noisy digital domains. Assembly techniques such as surface-mount technology for high-frequency components and precise placement of connectors ensure mechanical and electrical integrity. Reliability engineering practices, including thermal cycling qualification and vibration testing, directly influence field performance. These manufacturing considerations underpin the transition from research prototypes to deployable equipment in defense, public safety, and industrial inspection applications.
Conclusion
Through-wall radar imaging extends sensing capabilities beyond line-of-sight limitations by leveraging UWB propagation characteristics. Successful implementation depends on precise RF hardware design, robust signal processing, and reliable electronic integration. Printed circuit board technologies play a central role in meeting the demanding requirements for bandwidth, isolation, thermal performance, and environmental durability. As system complexity increases, careful attention to material selection, layout techniques, and manufacturing processes remains essential for achieving consistent field performance across security, rescue, and defense applications.
