Overview
3D radar provides a three-dimensional view with range, altitude and bearing. Historically, air defense and interception systems required separate sensors: a search radar for range and azimuth and a dedicated height-finder to determine altitude. Modern solid-state 3D primary radars combine air and weather surveillance techniques to provide accurate aircraft position information, including flight altitude, even under severe weather, ground clutter, and natural or man-made interference. Unlike common two-dimensional radars that deliver distance and azimuth only, 3D radar provides volumetric coverage with elevation information. Typical applications include weather monitoring, defense, and general surveillance.

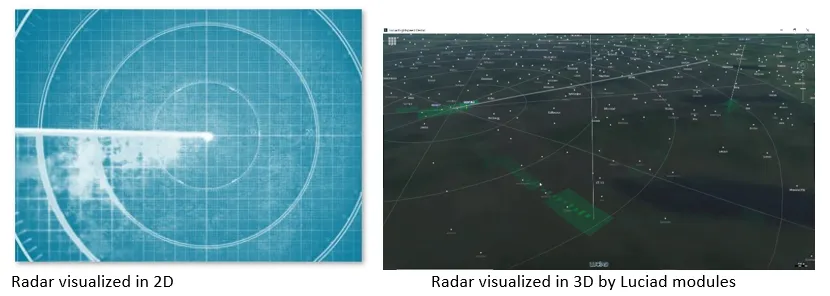

2D Radar versus 3D Radar
2D radar: Air surveillance radars cover a specific volume around the radar and must listen for echo signals. The antenna pattern is tailored to the mission. In many systems, the antenna forms a rotating sector beam or a cosecant-squared antenna pattern; this form of volumetric scan is called two-dimensional radar. Such radars measure only two coordinates to determine a target position. They can fuse vertically separated aircraft into a single, larger target. For the third coordinate, height (either elevation angle or a calculated altitude) had to be provided by a separate height-finder early in radar technology development, roughly during and after World War II. Both the search radar and the height-finder measure only two coordinates; both are 2D radar devices. Cost considerations have influenced military radar use, and many air traffic control deployments historically used primarily 2D radars with auxiliary systems providing altitude information.
When all three spatial coordinates are measured within a single radar system, the system is called a 3D radar.
Pencil-Beam Weather Radar
A specialized form of 3D radar uses very narrow pencil beams for weather observation. After each azimuthal rotation the antenna elevation is changed for the next sweep. This process repeats over multiple elevations to sample the full air volume around the radar. A full cycle of antenna rotation and elevation scanning can take up to 15 minutes. Such a time-based approach is unsuitable for air surveillance because fast aircraft can travel large distances in that interval; a supersonic aircraft could cover nearly 300 km during that time.
Early 3D Air Surveillance Systems
Early 3D air surveillance required substantial technical effort. Multiple receive channels had to operate in parallel, and the radar antenna needed to present multiple receive patterns during reception. Some early systems, such as medium-power radars (MPR), used large parabolic antennas with many feed horns and configured a set of narrow antenna beams aligned at different elevation angles. The radar processor inserted precise elevation interpolation for the received echo signals so that target height could be calculated from elevation and measured range. During transmission, extremely high pulse power had to be transmitted in multiple elevation directions simultaneously; transmitters and power amplifiers were designed to use pulsed high-power klystrons or TWTs to generate pulses of very high peak power.
Older 3D radars with planar or linear phased arrays could not transmit into all observed directions simultaneously; transmission was sequenced in time. The antennas scanned the space in limited rotation angles. Two main approaches were used: mechanical azimuth rotation with electronic elevation scanning, or multiple fixed planar arrays distributed around a tower, each covering a quadrant of the hemisphere. Both variants allowed full coverage around a site. In these designs the radar transmits in one direction and then waits for echoes from that direction.
Rotating antennas have the disadvantage that each elevation is scanned sequentially, so rotation speed cannot be increased arbitrarily without leaving time gaps in the surveillance. Static-antenna solutions have timing advantages because several radar fronts can scan space quasi-simultaneously. These fronts are then processed and displayed by a common radar data processor. Modern radars are typically multifunctional and operate flexibly.
Digital beamforming and parallel digital processing across all receive channels have largely solved the timing problem. However, during transmission the entire scanned region must still be illuminated by pulse power, similar to legacy MPR systems. A single, specially designed volumetric antenna such as the patented "crows nest" antenna developed by the Fraunhofer Institute for High Frequency Physics and Radar Techniques (FHR) can control the entire hemisphere around a radar site simultaneously.
Types of 3D Radar Technology
Pencil-beam 3D technique - This 3D radar uses a narrow high-gain pencil beam. Phase control steers multiple transmit/receive beam directions in elevation while the antenna rotates mechanically in azimuth. Each beam can be configured with optimal pulse count, pulse energy, instrument range and processing type, taking into account required coverage and clutter characteristics of the elevation volume. Detection is improved because clutter or interference affects only the beam pointing at the aircraft. High-elevation beams encounter very little surface clutter, improving detection compared with traditional 2D radars. Aircraft height data from 2D systems typically requires cooperative target behavior to provide altitude.
Planar array antennas and distributed solid-state design - These systems are based on planar arrays composed of vertically stacked horizontal linear arrays. Driven by modular solid-state transmitters and receivers, they synthesize narrow transmit/receive antenna patterns electronically in both azimuth and elevation.
Monopulse technique - Another feature of 3D radar is high-accuracy, high-resolution azimuth and elevation determination using monopulse techniques. Monopulse uses simultaneous sum and difference antenna patterns to obtain angle estimates and is a common first step in altitude estimation. Range accuracy and resolution are achieved by digital pulse compression using phase-coded waveforms and low sidelobe filter responses.
Frequency diversity - Some 3D radars implement dual-frequency channels operating simultaneously. This provides improved detection and accuracy performance, particularly for small targets and in interference conditions.
Clutter resistance - By using moving target detection (MTD) or matched filter processing techniques, radars can detect targets embedded in terrain or weather clutter. Low radial velocity targets can also be detected using high-elevation clutter-free beams or low-elevation beams that apply clutter map detection techniques to provide increased clutter visibility.
Future Trends and Developments
Market projections and growth estimates have been reported in industry sources. It is expected that within a multi-year horizon the radar market segments will experience significant growth driven by new technologies and expanding applications.
Short-range detection using advanced MIMO - Some companies have developed new short-range radar solutions that use 24 GHz MIMO radar technology and advanced signal processing to provide reliable and precise detection. These products add radar tracking and deliver comprehensive target information. Short-range radar sensors are increasingly used in security systems and automated door control.
Adaptive multi-mission radars - Mobile, height-adaptive multi-mission radar systems have been demonstrated for counter-UAV and other battlefield roles. For example, systems based on proven active electronically scanned arrays (AESA) can provide multi-mission 3D performance for air surveillance, weapon cueing, and counterfire target acquisition, including on-the-move protection for deployed forces.
Long-range expeditionary radar (3DELRR) - Large-scale development contracts have been awarded for next-generation long-range radar systems intended for remote, expeditionary deployments. These programs aim to deliver production representative units for fielding and testing.
Deployable long-range tactical radar - Some air forces are procuring deployable military radar systems, such as LTR25 variants based on 3D radar families that emphasize long-range detection, rapid deployment and transportability. Deployable 3D radars provide surge surveillance capability and can be used to augment or replace fixed-site sensors when needed.
Weather radar visualization - 3D weather radar systems and related visualization platforms provide near-real-time volumetric storm imagery for meteorological analysis and broadcast workflows. These platforms integrate 3D weather radar data to support operational weather reporting and visualization on digital platforms.
Autonomous search and tracking radars - Systems such as SMART-L provide 3D multi-beam long-range air and surface surveillance with AESA technology. With high-end processing, such radars achieve very long detection ranges and can track a wide variety of targets, including low-observable targets and ballistic objects. Deployable and shipborne configurations extend operational flexibility. Variants focused on ballistic missile detection use forward/backward scanning and fixed-gaze modes to increase observation time and detection range for ballistic trajectories.
Technical Summary
Key technical trends in 3D radar include: digital beamforming, distributed solid-state architectures, monopulse and pulse-compression techniques for improved range and angular accuracy, frequency diversity for robustness in interference, and advanced clutter suppression via MTD and clutter mapping. System designs range from pencil-beam rotating arrays to fully electronic AESA planar arrays capable of near-simultaneous hemispherical coverage. These developments enable multifunction operation for air surveillance, weather sensing, and battlefield target acquisition.
