Introduction to Graphene and its Properties
Graphene, a single-layer two-dimensional carbon nanomaterial with a hexagonal lattice structure, offers exceptional mechanical strength, electrical conductivity, thermal properties, and a large specific surface area. These attributes make it highly suitable for flexible and stretchable sensors, where traditional rigid materials fall short on conformability and durability under deformation.
Functionalization techniques address graphene's tendency to aggregate due to van der Waals forces, improving dispersion in composites and enabling tailored sensor performance. As demand grows for wearable electronics, electronic skin, and IoT devices, graphene-based flexible sensors are gaining traction in B2B applications requiring lightweight, low-power, and high-sensitivity solutions.

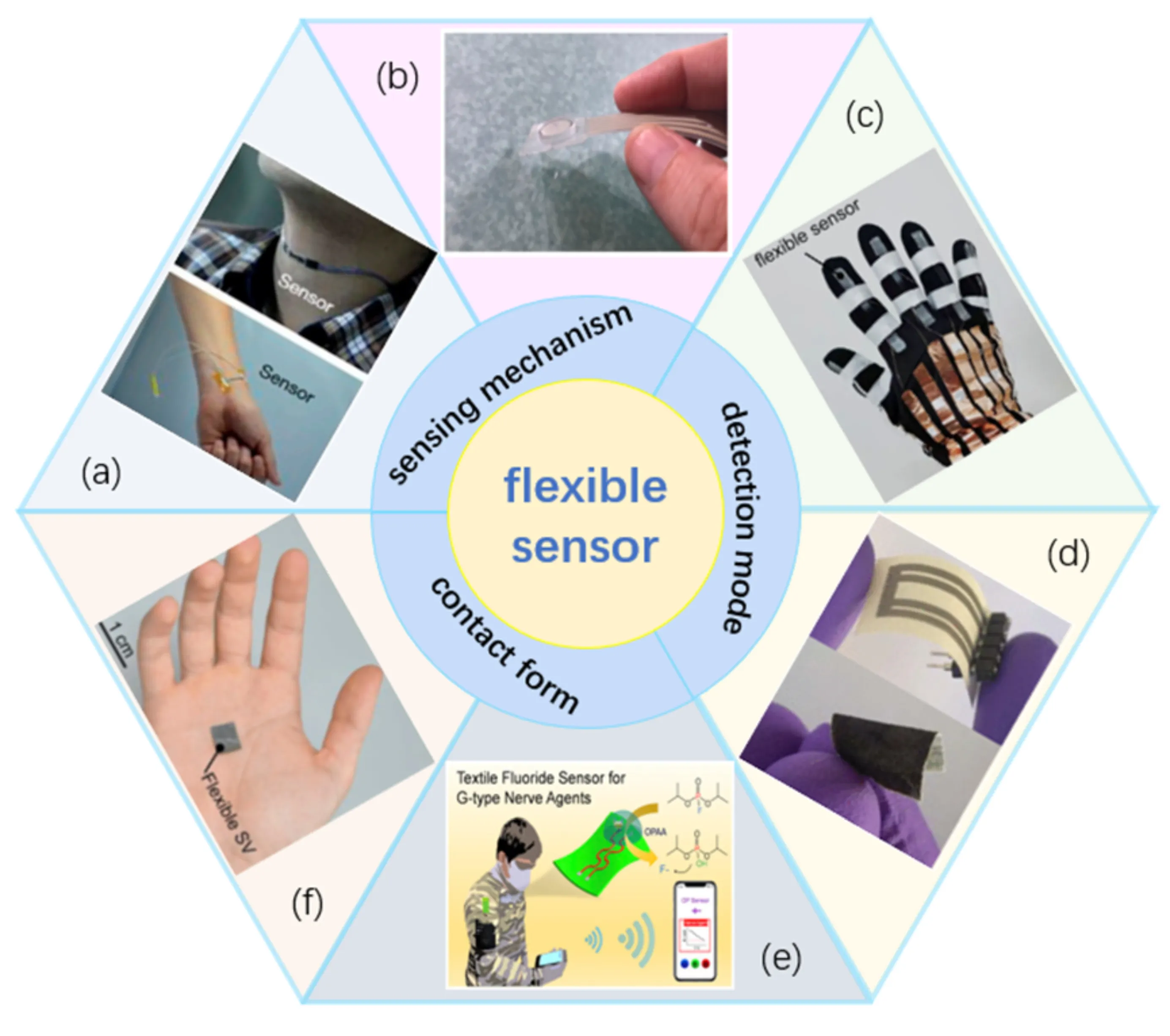

Why Flexible Sensors Matter in Modern Electronics
Rigid sensors based on metals or semiconductors perform well on flat surfaces but struggle with irregular or dynamic geometries common in wearables, medical patches, and structural health monitoring. Flexible sensors provide conformal contact, reduced motion artifacts, and enhanced user comfort while maintaining electrical performance under bending, stretching, and twisting - key requirements for continuous monitoring in healthcare, automotive, and industrial settings.
Key Applications of Graphene in Flexible Sensors
Flexible Strain Sensors
Graphene's atomic thinness allows excellent out-of-plane deformation while preserving conductivity, making it ideal for stretchable strain gauges. Applications range from electronic skin to full-body motion tracking. Examples include graphene-coated spring-like mesh structures on elastic fabrics that detect pressure, stretch, vibration, and bending with high sensitivity, low detection limits, and broad dynamic range. Fish-scale-like reduced graphene oxide (rGO) layers achieve gauge factors up to 16.2, wide strain range (82%), and stability over thousands of cycles.
Flexible Gas Sensors
Graphene's high surface area enables single-molecule sensitivity through adsorption-induced changes in electrical properties. rGO composites with nanofibers demonstrate strong, selective response to gases like NO2 at room temperature, with performance influenced by humidity. Flexible formats on polymer substrates deliver lightweight, portable devices suitable for environmental monitoring and industrial safety.
Flexible Humidity Sensors
Graphene oxide (GO), with its hydrophilic oxygen functional groups, interacts effectively with water molecules, producing measurable changes in conductivity or capacitance. These sensors support low-power, low-cost solutions for environmental control, agriculture, and wearable comfort monitoring, often evolving toward multi-parameter smart systems.
Flexible Biosensors
Functionalized graphene composites enhance electrode sensitivity for biomolecule detection. Combinations such as PEDOT:PSS with rGO yield highly conductive, flexible films suitable for electrochemical sensing of cancer biomarkers and enzymatic reactions. These platforms offer low detection limits and biocompatibility advantages for point-of-care diagnostics.
Design and Manufacturing Challenges
Integrating graphene into flexible sensors involves several engineering considerations:
- Material Compatibility and Dispersion: Uniform distribution in polymer matrices is critical to avoid performance variability.
- Substrate and Electrode Integration: Flexible substrates like polyimide or PET must support graphene deposition while maintaining adhesion under repeated flexing.
- Scalability and Cost: Transitioning to high-volume manufacturing demands reproducible large-area deposition and integration with standard electronics processes.
- Reliability Under Stress: Sensors must withstand mechanical fatigue and maintain stable electrical contacts.
PCB and FPC Integration Insights
Graphene-based flexible sensors are frequently paired with Flexible Printed Circuits (FPCs) for signal routing, power management, and connectivity to microcontrollers or wireless modules. Advanced FPC fabrication supports fine-line traces, controlled impedance, and multilayer constructions essential for high-density sensor arrays.
Key manufacturing considerations include:
- Compatibility of graphene deposition with SMT processes and component assembly.
- Thermal management during lamination and soldering to preserve graphene properties.
- Use of HDI and rigid-flex technologies for hybrid systems combining flexible sensing areas with rigid processing zones.
- Reliability testing for bend cycles, environmental stress, and long-term stability to meet industry standards.
Research Trends and Future Outlook
Ongoing challenges include improving breathability and comfort for wearables, developing self-powered and self-healing designs, and scaling production. Trends point toward multifunctional sensors integrating strain, gas, humidity, and biosensing capabilities, often combined with energy harvesting. As fabrication techniques mature, graphene flexible sensors will expand into smart packaging, robotics, and real-time industrial monitoring.
Enabling Graphene Flexible Sensors Through Advanced Electronics Manufacturing
Successful commercialization of graphene-based flexible sensors depends on robust PCB and FPC platforms. Expertise in flexible circuit fabrication, precise material engineering, and hybrid assembly processes helps bridge laboratory innovations to reliable, scalable products. These capabilities ensure mechanical robustness, electrical performance, and seamless integration with broader electronic systems, supporting the next generation of wearable and conformal sensing solutions in demanding B2B applications.
Frequently Asked Questions
Q1: What makes graphene suitable for flexible sensors?
A1: Its atomic thickness, high mechanical flexibility, excellent electrical conductivity, and large surface area allow it to maintain performance under bending and stretching while providing high sensitivity.
Q2: Which types of flexible sensors commonly use graphene?
A2: Graphene is widely applied in strain sensors for motion detection, gas and humidity sensors for environmental monitoring, and biosensors for medical diagnostics.
Q3: What are the main PCB/FPC challenges when integrating graphene sensors?
A3: Key challenges include uniform material deposition, adhesion under flexing, thermal management during assembly, impedance control for signal integrity, and ensuring long-term reliability through rigorous testing.
Q4: How do flexible sensors benefit from advanced manufacturing processes?
A4: Advanced FPC and rigid-flex technologies enable hybrid designs, precise integration of sensing elements with processing electronics, and scalable production for commercial wearable and industrial applications.
