Introduction
When we drive a car and follow GPS or BeiDou navigation on unfamiliar roads, the navigation system can still provide heading, speed, distance, and time while passing through a tunnel. We notice it continues to work without satellite signal reception; this function is provided by inertial technology.
Inertial technology is the set of techniques used to determine and control the attitude and motion trajectory of moving bodies. It encompasses inertial instruments, inertial stabilization, inertial systems, inertial guidance, and inertial measurement. The field draws on physics, mathematics, mechanics, optics, materials science, precision mechanics, electronics, computer science, control theory, metrology, simulation, and manufacturing processes. It covers the theory, design, manufacture, testing, application, and maintenance of inertial instruments and systems. Applications include aviation, spaceflight, land navigation and geodesy, drilling and tunneling, geological exploration, robots, vehicles, medical equipment, as well as cameras, mobile phones, and toys. In short, any scenario requiring sensing of a body's motion, attitude, position, or orientation relies on inertial technology.
Inertial technology is a core information source for modern precision navigation, guidance, and control systems. In building integrated information systems across land, sea, air, space, and electromagnetic domains, and in developing complex mechanized and informationized military equipment, inertial technology serves as a key enabling capability.
Principles of Inertial Technology
Inertial navigation is the core of inertial technology and a key marker of its development. An inertial navigation system (INS) uses gyroscopes and accelerometers (together called inertial instruments) to measure angular rates and linear accelerations of the carrier. A computer integrates these measurements in real time to compute the carrier's 3D attitude, velocity, and position.
Gyroscopes as the Foundation of Inertial Guidance

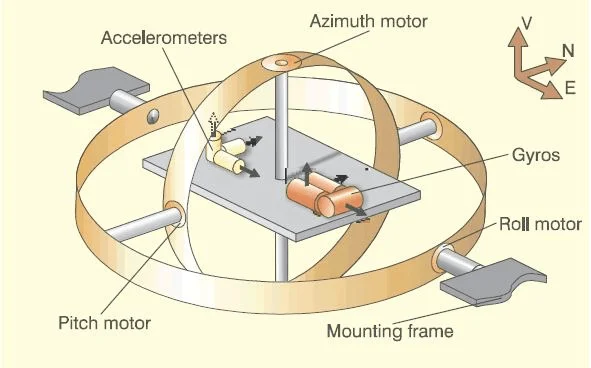

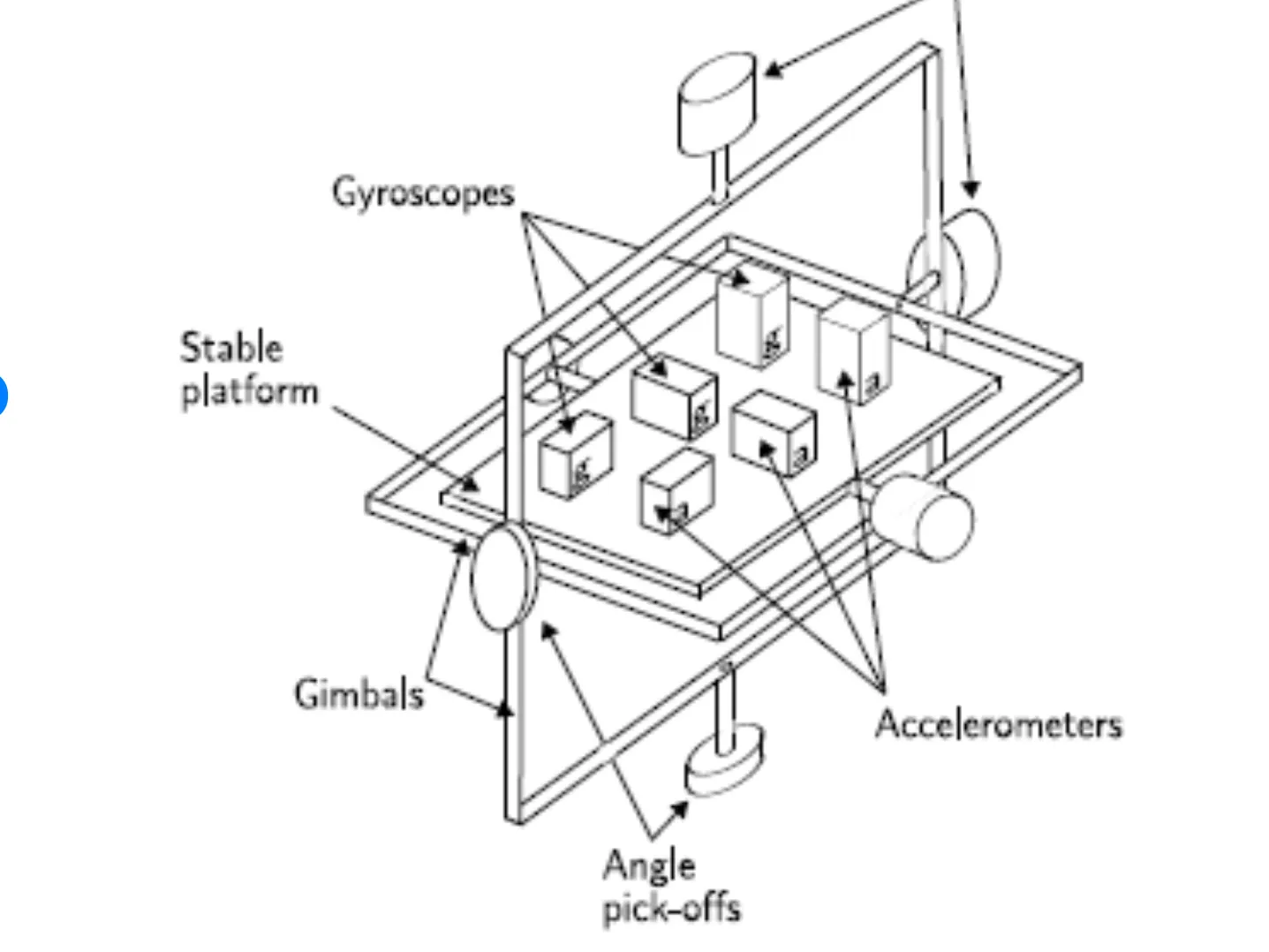

INS implementations are typically either platform-based or strapdown. The platform-based approach uses a physical stabilized platform that tracks a navigation coordinate frame. Inertial instruments are mounted on the platform; integrating accelerometer outputs yields velocity and position, while attitude is provided by sensors on the platform gimbal. Platform INS can isolate the instruments from carrier angular motion, reducing dynamic errors, but they tend to be large, less reliable, expensive, and harder to maintain.
Strapdown INS has no physical platform; the inertial instruments are fixed to the carrier and the platform function is implemented in software. Attitude angles are computed numerically, so the system is often called a "computational" or "mathematical platform."
The basic INS equation (specific force equation) is shown in the following image:
In strapdown systems, inertial instruments are exposed to carrier angular motion, so they must have wide dynamic range, broad bandwidth, and robust environmental tolerance. Strapdown INS requires higher computational speed and memory capacity. Strapdown systems are compact, reliable, lightweight, small, low power, easy to maintain, and lower cost, and they integrate easily with other navigation sensors. Consequently, strapdown INS is the mainstream approach in modern inertial system development.
Characteristics of Inertial Navigation
Compared with other navigation methods, INS provides comprehensive information, full autonomy, high covertness, and continuous real-time data that are independent of time, location, or most human factors. It can operate in air, underwater, underground, and other environments.
For high-maneuverability, high-speed carriers such as missiles, rockets, and aircraft, the guidance, navigation, and control (GNC) system relies on inertial systems because they offer wide measurement bandwidth and high data rates (hundreds of hertz or more), low measurement latency (sub-millisecond), and ease of digital implementation. INS performance is crucial to guidance accuracy; for example, over 70% of the impact accuracy of purely inertial-guided ballistic missiles depends on the inertial system's accuracy.
Inertial technology has also driven application of optimal filtering and other advanced control theories in engineering. As a defense-critical technology that is tightly controlled internationally, inertial technology underpins GNC functions across many carrier types and supports guided weapons and weapon platforms.
Apart from military uses, inertial technology has numerous civilian applications, including geodesy, petroleum drilling, tunneling, geological exploration, robotics, intelligent transportation, medical devices, cameras, mobile phones, and toys. Wherever real-time sensitive motion information is required, inertial technology plays an important role.
The main INS limitation is that navigation errors accumulate over time, and systems can be costly. With the maturation and widespread adoption of satellite navigation technologies like GPS, some researchers once questioned INS's future. However, electronic warfare, navigation jamming, and integrated combat operations demonstrated during regional conflicts showed that only inertial navigation systems can continue to operate reliably under strong electromagnetic interference, reinforcing their irreplaceable role in defense equipment.
History of Inertial Technology
Inertial technology has developed over more than a century. The development timeline includes key theories below the line and the emergence and precision of inertial devices above the line. The field is typically divided into four generations based on gyroscope types, theory, and new sensors.
Generations
First generation: Based on Newtonian mechanics. From Newton's laws in 1687 to Schuler tuning in 1910, this generation formed the foundation of inertial navigation. Typical devices included floated gyros, electrostatic gyros, and dynamically tuned gyros. They offered high precision but were large, heavy, mechanically complex, costly to manufacture and maintain, and limited by mechanical constraints. An example product is the three-gimbal floated instrument platform used on the U.S. MX ICBM.
Second generation: Based on the Sagnac effect. Typical devices include ring laser gyros (RLG) and fiber-optic gyros (FOG). These gyros have fast response, large dynamic range, high reliability, strong environmental tolerance, easy maintenance, and long life. They significantly advanced strapdown system development.
Third generation: Based on Coriolis vibratory effects and micro/nanotechnology. Typical devices are MEMS gyros and MEMS accelerometers. These are compact, low cost, offering medium to low precision, strong environmental tolerance, and are suitable for mass production. MEMS instruments greatly expanded inertial system applications beyond military to many civilian uses.
Fourth generation: Based on modern quantum technologies. Typical devices include nuclear magnetic resonance (NMR) gyros and atom interferometer gyros. The goal is to achieve high precision, high reliability, miniaturization, and broader application. These devices promise very high accuracies; for example, some NMR gyros have reached 0.01°/h (1σ) and atom gyros have demonstrated 6×10^-5 °/h (1σ) performance in research settings.
Development Status in China and Internationally
Western developed countries represent international advanced levels in inertial instruments. Mechanical rotor gyro technology has matured through many bearing and support methods. Optical gyro technology has matured after decades of development. MEMS inertial technology is rapidly advancing due to potential advantages in cost, size, and weight. New gyro technologies also receive significant attention and development.
China lags behind international advanced levels in inertial technology in several respects, mainly due to less depth and breadth in theoretical research, weaker foundational industrial capabilities, and incomplete understanding of development patterns. Technically, gaps appear in the following areas.
1. Inertial Instrument Technology
China's traditional mechanical gyros trail international levels in materials technology and ultraprecision manufacturing. In optical gyros, instrument precision, electronics, environmental tolerance, and market share are areas needing improvement. International MEMS inertial instruments have rapidly progressed to tactical-grade mass-produced products; in China, leading technologies in this precision range remain dynamically tuned gyros and optical gyros. Chinese MEMS inertial devices lag in design theory, manufacturing processes, integrated circuits, and engineering maturity. MEMS accelerometers are not yet widely applied domestically, and mechanical accelerometers lag in precision and stability. In actuation technology, China needs advances in magnetic suspension variable-torque gyros and gyro/flywheel integration. Hemisphere resonator gyro technology also lags in precision, stability, and process technology. Fundamental research on new inertial instruments also shows gaps compared to international work.
2. Inertial System Technology
China's platform-based INS manufacturing, component stability, and materials lag international levels, and long-term system stability needs improvement. For strapdown INS, China needs to improve inertial instrument precision, strapdown algorithm performance, system cost and volume, functionality, and reliability. Gyro health monitoring research began later and still has gaps in critical technical areas and applications.
3. Inertial Integration Technologies
China's inertial integration technologies lag in originality and engineering application. Measurement and acquisition of auxiliary information, matching theory, and matching algorithms need development. Current Chinese INS/GNSS integration technologies require improvements in system maturity and validation; geomagnetic navigation map accuracy and anti-interference compensation, star sensor chip technology for star navigation, terrain and vision navigation application techniques also lag international levels.
4. Inertial Test Technologies and Equipment
In testing, China needs progress in methods for new inertial instruments, error sources and compensation, and system-level test techniques. Chinese testing focuses largely on isolated calibration methods; integrated full-parameter calibration methods used internationally need adoption. Test equipment for angular position resolution, angle measurement precision, extreme rotational speeds, high-dynamic tracking under large loads, and structural rigidity are behind international devices.
5. Inertial Application Technologies
Application gaps exist in aerospace, maritime, and aviation regarding application breadth, instrument and system precision and reliability, system volume and cost. For land systems, initial alignment under vehicle motion, system fault tolerance, and diagnostics need practical improvements. High-end instruments for petroleum and geoscience need enhancement. In robotics, inertial systems lag in size, long-duration operation, precision, and intelligence.
Future Prospects
1. Inertial Sensor Development
Currently available inertial sensors can meet many navigation accuracy requirements. Future goals focus on reducing cost, volume/weight, and power consumption. Key directions include:
- Materials and processes: manufacturers will adopt low-labor, batch-production techniques using silicon, quartz, and optoelectronic materials such as lithium niobate.
- Cost: large-scale production will drive down sensor cost and operational maintenance expenses.
- Size: sensors will trend toward lighter, smaller, and micro-scale devices; some future sensors may be invisible to the naked eye, e.g., NEMS and optical NEMS.
- Research hotspots: improving performance and packaging of small MEMS devices, and integrated optical sensors such as FOG using integrated optics.
- Expectation: compact, low-cost inertial sensors across all precision classes.
Sensor development directly determines INS development and application. Sensor cost, size, and power affect system metrics, so sensor advancement must balance accuracy, continuity, reliability, cost, size/weight, and power consumption.
2. INS Development Directions
Key design trade-offs for INS include: meeting application requirements where performance (especially accuracy) and cost are primary; adapting to application environments that constrain volume, power, reliability, and availability; and improving system versatility to expand application domains.
Trends and observations:
- High-performance autonomous INS remains indispensable where GNSS signals are unavailable or when high navigation reliability is required.
- GNSS advances will replace some traditional INS applications. For example, systems combining GPS and solid-state rate sensors can achieve sub-degree heading accuracy. Research prototypes can achieve sub-degree attitude measurement accuracy over short baselines.
- INS integration with other navigation methods, especially GNSS/INS, continues to be a major focus.
- The civilian market for ground vehicle navigation is growing rapidly. Low-cost integrated, miniaturized, multimodal navigation devices are key market directions, presenting both opportunities and challenges for INS development.
- For shipborne navigation, development emphasizes higher integration for reliable collaborative operation with other navigation sensors, flexible interfaces to ship systems, and cost reduction by using mid-to-low precision sensors combined with other navigation methods. INS first integrates with GNSS, then with sonar, imagery, and other sensors to form comprehensive ship navigation suites.
In device research, low-cost small MEMS sensors and high-performance FOG will remain focal points. With rapid advances in computing, platform-based navigation will increasingly be replaced by strapdown systems.
Inertial technology is an important indicator of a country's technological capability. Its maturity and application level affect multiple industry informationization and automation levels. The field is moving toward miniaturization, digitization, intelligence, low cost, high reliability, and broad application. As economic and technological levels progress, inertial technology applications will continue expanding.
