Hall sensors are widely used magnetic field detectors based on the Hall effect. They play a critical role in modern motion control, power electronics, and automotive systems by providing non-contact measurement of magnetic fields, position, speed, and current. Their robustness, galvanic isolation, and relatively low cost make them essential components in closed-loop feedback systems.
The Hall Effect and Operating Principles
The Hall effect occurs when a current-carrying conductor or semiconductor is placed in a perpendicular magnetic field. Charge carriers experience a Lorentz force, resulting in a measurable transverse voltage (Hall voltage) across the material. The magnitude and polarity of this voltage depend on the magnetic field strength and direction.
A practical Hall sensor typically integrates:
- A Hall element (semiconductor material)
- Signal amplification circuitry
- Output stage (voltage or current)
- Often temperature compensation and protection features
This integration enables reliable detection even in electrically noisy industrial and automotive environments.
Main Applications of Hall Sensors
Hall sensors excel in several key areas:

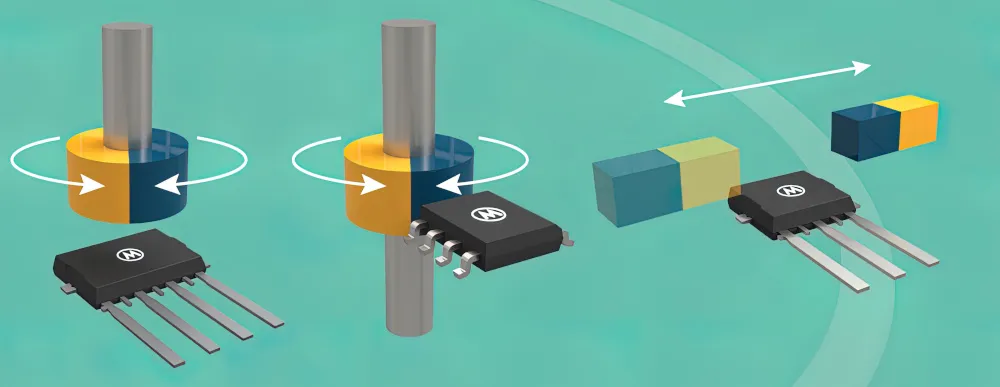

Position and Speed Sensing
They detect rotor position and rotational speed in brushless DC (BLDC) motors, providing commutation feedback for efficient motor control. Applications include electric vehicle powertrains, steering angle measurement, and industrial automation.
Proximity and Presence Detection
As non-contact switches, Hall sensors trigger actions when a magnet approaches or recedes, offering reliable operation in harsh conditions where optical or mechanical switches may fail.
Current Measurement
Hall-based current sensors measure AC or DC currents with galvanic isolation, preventing ground loops and protecting sensitive electronics. This is particularly valuable in power supplies, inverters, and battery management systems.
Magnetic Field Measurement
Used in compasses, magnetometers, and specialized medical equipment, Hall sensors provide directional and intensity data with good immunity to electromagnetic interference.
Types of Hall Sensors
Hall sensors are commonly classified by output type:

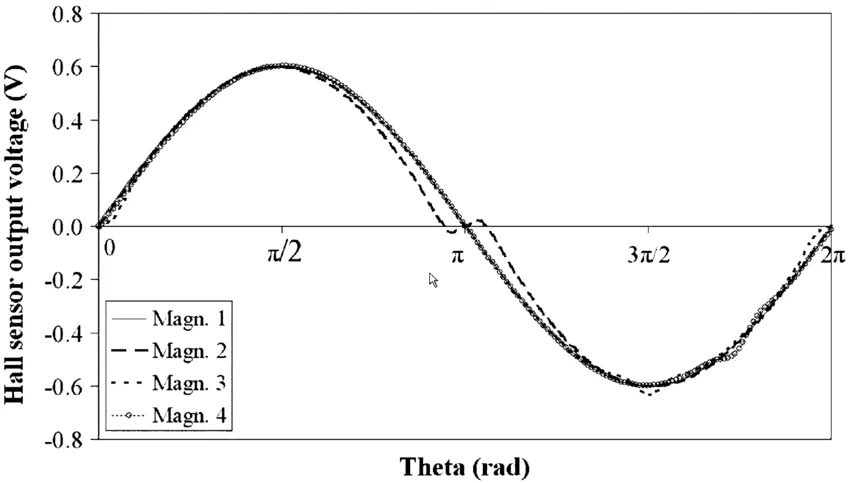

Voltage-Output Hall Sensors
These generate a voltage proportional to the magnetic field. The Hall element produces a small Hall voltage that is amplified internally. They typically require an external supply and offer high sensitivity and accuracy for precise field measurements. Examples include DRV5015 and DRV5057 series devices, known for compact size and performance.
Current-Output Hall Sensors
These produce an output current proportional to the sensed field. They are often preferred in applications with long cable runs or where current-mode signaling provides better noise immunity. Common examples include ACS714 and ACS725. In many designs, the current output is converted to voltage via a sense resistor for microcontroller ADC input.
Selection depends on system requirements: voltage types for high-accuracy amplitude sensing and current types where signal robustness over distance or simpler interfacing is prioritized.
Design and Manufacturing Considerations
Successful Hall sensor integration involves addressing several engineering challenges. Package stress can affect the Hall element's offset and sensitivity, requiring careful mechanical design. Temperature variations influence carrier mobility and must be compensated either internally or through software.
PCB-Level Integration
Printed circuit boards serve as the critical platform for Hall sensor deployment. Key considerations include:
- Signal Integrity: Short traces between the sensor and microcontroller to minimize noise pickup on analog outputs. Proper grounding and shielding are essential near high-current paths.
- Mechanical Stability: Rigid PCB substrates or localized stiffeners to reduce flex-induced errors in precision position sensing.
- Thermal Management: Uniform temperature distribution, especially when sensors are placed near power components or motors.
- Assembly Processes: Precise SMT placement, optimized reflow profiles to avoid damaging the sensor package, and selective conformal coating for environmental protection without affecting magnetic fields.
In motor control boards, Hall sensors are often positioned near magnets on rotors, demanding accurate mechanical alignment during PCB assembly and enclosure integration. High-current sensing applications may utilize thicker copper layers or bus bars on the PCB.
Industry Trends and Reliability
Trends include further miniaturization through CMOS-compatible processes, higher integration with on-chip diagnostics, and improved linearity for automotive-grade applications. Demand is growing in electric vehicles, renewable energy inverters, and smart industrial equipment.
Reliability engineering focuses on wide temperature range operation (-40°C to 150°C+), vibration resistance, and long-term stability. Thorough testing for offset drift, sensitivity variation, and immunity to external fields is standard.
Role of PCB Technologies in Hall Sensor Systems
PCB fabrication and assembly directly impact Hall sensor performance and system reliability. Advanced multilayer designs with controlled impedance support clean signal paths from sensors to control processors. In power electronics, heavy copper PCBs and optimized thermal vias help manage heat while maintaining sensor accuracy. Flexible circuits enable compact sensor placement in space-constrained motor assemblies.
These manufacturing capabilities ensure that Hall sensors deliver consistent, interference-resistant performance in demanding real-world applications across automotive, industrial control, and power electronics sectors.
FAQ
Q1: What is the Hall effect?
A1: The generation of a transverse voltage in a current-carrying conductor exposed to a perpendicular magnetic field.
Q2: How do voltage-output and current-output Hall sensors differ?
A2: Voltage types provide an amplified voltage signal ideal for precision sensing; current types output a proportional current for better noise immunity over distance.
Q3: Why are Hall sensors important for PCB-based motor control?
A3: They provide non-contact rotor position and speed feedback essential for efficient commutation while requiring careful PCB layout for signal integrity and mechanical stability.
