Introduction to the Optics Industry
The optical lens and camera module industry integrates optical design, precision manufacturing, materials science, and electronics. It draws upon geometric optics, colorimetry, thermodynamics, precision mechanics, and information technology. High technical barriers arise from stringent performance requirements across diverse end applications. Manufacturers must develop specialized expertise in core processes to meet evolving demands for higher resolution, wider fields of view, miniaturization, and environmental robustness.
Industry Chain Overview
- Upstream: Raw materials (glass blanks, optical resins, plastics), components (prisms, filters), and electronics (CMOS sensors, PCBs, connectors, gyroscopes).
- Midstream: Lens and camera module design and assembly.
- Downstream: Consumer electronics (smartphones), automotive (ADAS), security/surveillance, machine vision, smart home, drones, and AR/VR.

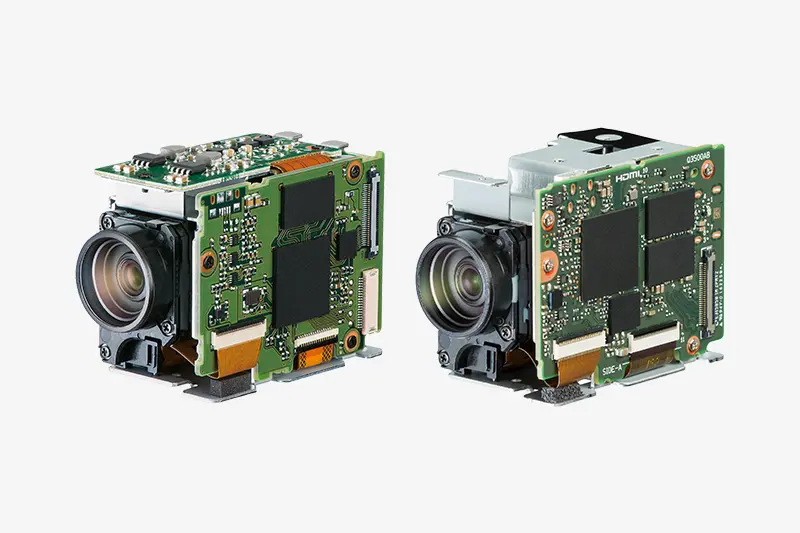

A camera module integrates the lens with an image sensor and processing electronics to convert optical images into digital data.
Glass Optical Lens Manufacturing Processes
Glass spherical lens production from blanks involves multiple precision steps divided into front-end and back-end processes:
Front-End (Semifinished)
- Rough cutting
- Sanding
- Grinding
Back-End (Finishing)
- Centering
- Coating (anti-reflective, filter layers)
- Bonding (multi-element assembly)
- Ink marking
Aspheric glass lenses require additional high-precision molding or polishing to correct aberrations. These processes demand ultra-clean environments, advanced metrology, and tight process control for surface figure, roughness, and centration.
Plastic and Hybrid Lens Processes
Plastic Lenses: Injection molding of optical-grade resins enables complex aspheric shapes, high volume production, and low cost. Suitable for smartphones and consumer cameras but limited in thermal stability and durability compared to glass.
Glass-Plastic Hybrid: Combines glass elements (for high transmittance and stability) with plastic aspheres (for cost and design flexibility). This approach balances performance, weight, and manufacturability for automotive and security applications.
Industry Development History and Trends
The development of the optics industry has progressed through several key stages, from European and Japanese leadership to the modern era of technology diffusion to Korea, Taiwan, and mainland China. Chinese companies have advanced significantly in automotive, security, and consumer segments.
Current Trends:
- Diversification: Expansion into ADAS, smart home, drones, AR/VR, and machine vision.
- Optical Thin Films: Multilayer coatings for anti-reflection, filtering, and polarization control.
- Aspheric Lenses: Reduce element count, aberrations, and size for high-resolution/wide-FOV needs.
- Hybrid Materials: Optimize thermal, chromatic, and mechanical properties.
- Miniaturization and Integration: Wafer-level optics and advanced packaging for compact modules.
Performance Differences by Application
Requirements vary significantly across different sectors:
- Smartphones: High resolution, compact size, low cost, autofocus.
- Automotive: Wide temperature range, high reliability, vibration resistance, specific FOV for ADAS/surround view.
- Surveillance: Low-light performance, weatherproofing, long-term stability.
- Machine Vision: High precision, distortion control, and repeatability.
Market Size and Growth
The global lens market has grown rapidly due to 5G, AI, IoT, and intelligence trends. China's optical industry has expanded significantly, with strong domestic supply chain development supporting NEV, security, and consumer electronics.
Relevance to PCB and Electronics Manufacturing
Camera modules require seamless integration with supporting PCBs:
- Sensor Interface: High-speed MIPI CSI or parallel interfaces demand controlled impedance and signal integrity.
- Power Management: Clean, low-noise supplies for image sensors and processors.
- Mechanical Integration: Precise mounting features, thermal paths, and alignment tolerances for lens-to-sensor focus.
- EMI Shielding: Critical in dense consumer/automotive electronics.
- Assembly Processes: PCB SMT for components, flex circuits for compact designs, and rigorous testing (optical alignment, MTF, reliability).
High-precision PCB fabrication and camera module assembly expertise are essential for yield, performance, and cost in high-volume production.
Industry FAQ
Q1: What is the difference between glass and plastic lenses?
A1: Glass offers superior optical quality, thermal stability, and durability; plastic enables complex aspheres, lighter weight, and lower cost for high-volume applications.
Q2: Why are aspheric lenses increasingly important?
A2: They correct aberrations with fewer elements, enabling smaller, higher-performance modules for modern imaging demands.
Q3: How do PCBs support camera module performance?
A3: Through high-speed signal routing, power integrity, thermal management, mechanical stability, and EMI control for reliable image capture and processing.
