Displacement sensors measure the position, distance, or movement of an object relative to a reference point. These devices are fundamental in automation, robotics, automotive systems, medical equipment, and structural monitoring, converting physical displacement into electrical signals for precise control and feedback.
Selection of the appropriate sensor type depends on required range, accuracy, environmental conditions, and whether contact or non-contact measurement is preferred.

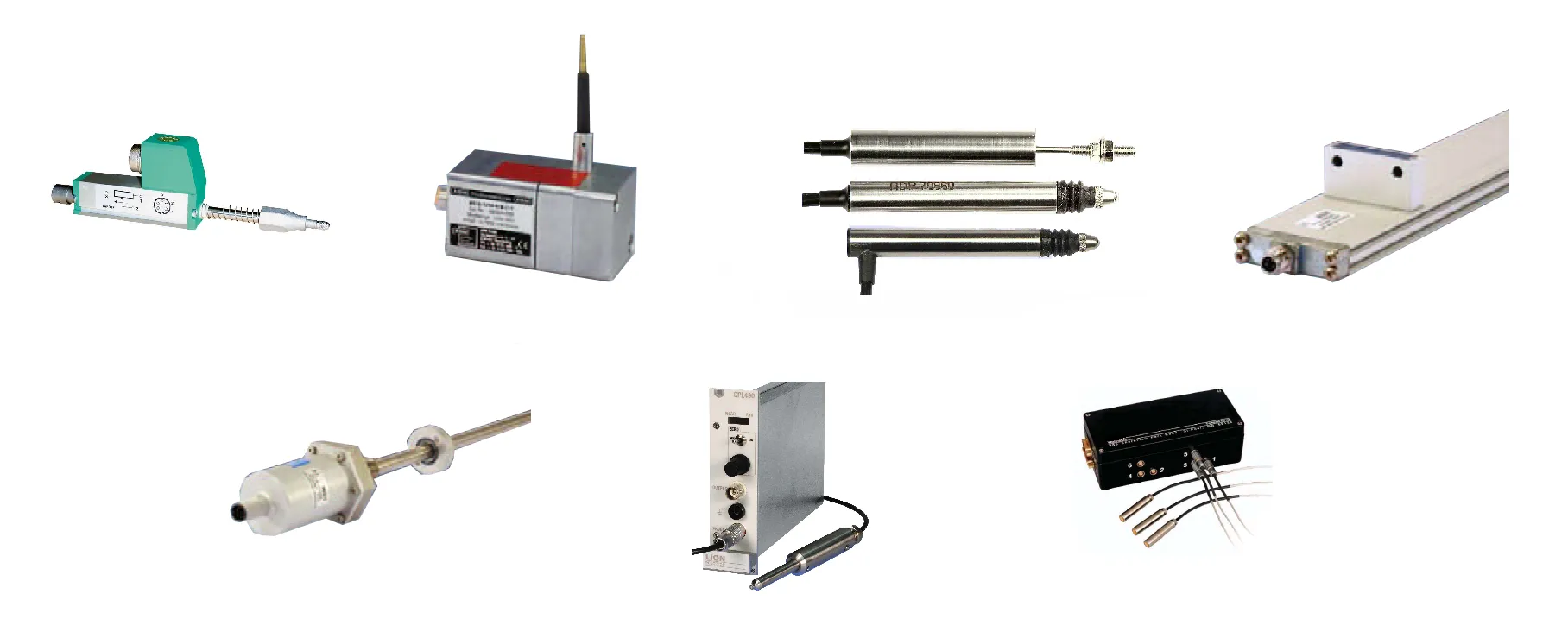

Common Types of Displacement Sensors
Optical Encoders
These sensors use light interruption or reflection with an encoding disk or scale to provide high-resolution position feedback. They excel in precision machining, robotics, and motion control systems.
String-Pot (Cable-Extension) Sensors
A cable attached to the moving object extends or retracts, converting linear motion into a measurable electrical signal. They are robust for industrial automation, aerospace, and large-scale displacement tracking.

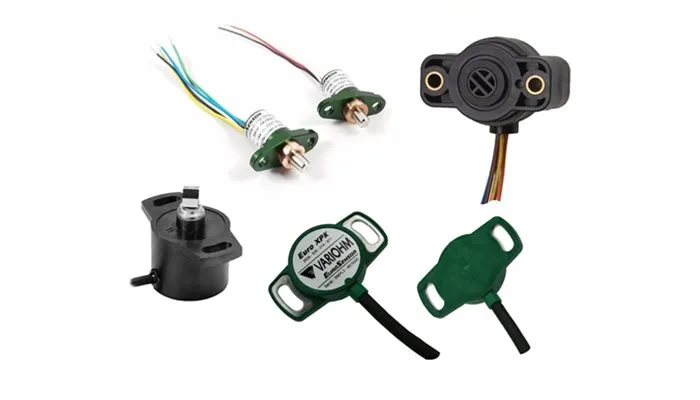

Rotary Displacement Sensors
Typically based on potentiometers or Hall-effect devices, these measure angular position. Applications include throttle valves, steering systems, and robotic joints.
Piezoelectric Displacement Sensors
Leveraging the piezoelectric effect, these sensors detect very small displacements with high sensitivity. They are ideal for precision metrology, MEMS devices, vibration monitoring, and medical instrumentation.
Piezoresistive Displacement Sensors
These rely on resistance changes in response to mechanical stress. Common in touch interfaces, force feedback, and human-machine interaction devices.
Inductive Displacement Sensors
Non-contact sensors that detect changes in inductance caused by target movement. They offer reliable performance in automotive suspension, liquid level sensing, and harsh industrial environments.
Ultrasonic Displacement Sensors
Using time-of-flight of sound waves, these provide non-contact distance measurement. Applications include parking assistance, robot navigation, and level monitoring.
Laser Displacement Sensors
Employing triangulation, interferometry, or time-of-flight, laser sensors deliver high precision and long-range capability for industrial automation and quality control.
Key Applications Across Industries
Displacement sensors enable critical functions in:
- Industrial Automation: Precise positioning on assembly lines, CNC machines, conveyors, and robotic systems.
- Automotive Electronics: Throttle position, steering angle, pedal force, suspension monitoring, and parking assistance.
- Medical Devices: Patient positioning, surgical robot control, and physiological signal acquisition.
- Robotics: Joint angle measurement, end-effector positioning, and path planning.
- Civil Engineering: Structural health monitoring of bridges, buildings, and infrastructure.
- Aerospace: Control surface positioning, landing gear, and navigation systems.
- Consumer Electronics: Touchscreens, gesture recognition, and haptic feedback.
Sensor Selection Guidelines and Engineering Considerations
When specifying displacement sensors, engineers should evaluate:
- Measurement Range and Resolution: Match sensor capability to the expected displacement and required precision.
- Accuracy and Stability: Consider linearity, hysteresis, and long-term drift.
- Environmental Factors: Temperature, humidity, vibration, dust, and EMI tolerance.
- Response Time: Dynamic applications may require high-speed sensors.
- Contact vs. Non-Contact: Non-contact types (optical, laser, inductive, ultrasonic) minimize wear and contamination risks.
- Interface and Integration: Analog, digital (e.g., SSI, CAN), or wireless outputs affect PCB design complexity.
Power consumption, size, and cost must align with the overall system requirements.
PCB and Electronics Integration Challenges
Reliable deployment of displacement sensors depends on the supporting PCB platform:
- Signal Conditioning: Many sensors require amplification, filtering, and ADC circuitry. Low-noise analog layouts and proper grounding are essential to preserve accuracy.
- Rigid-Flex and Flexible Circuits: Dynamic applications benefit from FPCs that accommodate movement while routing signals to processing units.
- EMI/EMC Considerations: Especially important for inductive, optical, and high-resolution sensors in electrically noisy environments.
- Thermal and Mechanical Stability: Sensor mounting and PCB material choices impact measurement consistency under temperature variation or vibration.
- Miniaturization: HDI and multilayer designs support compact integration in wearables, medical devices, and automotive modules.
Advanced manufacturing processes ensure high reliability through controlled impedance, precise component placement, and thorough functional testing under simulated operating conditions.
Industry Trends
Trends include higher integration with MEMS technology, wireless sensor networks, improved non-contact performance, and fusion with AI for predictive maintenance. Miniaturization and cost reduction continue to expand adoption in consumer and IoT applications.
Supporting Displacement Sensors with Advanced PCB Technologies
Effective sensor systems require robust electronics platforms. Expertise in mixed-signal PCB design, flexible circuit fabrication, and precision assembly enables optimal performance, signal integrity, and long-term reliability. Whether for high-precision industrial control or compact medical devices, tailored PCB solutions help overcome integration challenges and accelerate development of advanced displacement sensing applications.
FAQ
Q1: What is the difference between contact and non-contact displacement sensors?
A1: Contact sensors (e.g., string-pot, piezoresistive) physically touch the target, while non-contact types (laser, ultrasonic, inductive) measure without mechanical interaction, offering advantages in wear reduction and high-speed applications.
Q2: Which displacement sensor is best for high-precision micro-measurements?
A2: Piezoelectric or laser sensors are often preferred for sub-micron accuracy in precision metrology and MEMS applications.
Q3: How do PCBs support displacement sensor performance?
A3: PCBs provide signal conditioning, power management, and mechanical mounting. Flexible and rigid-flex designs are particularly valuable for dynamic or space-constrained installations.
