What is a differential pressure sensor

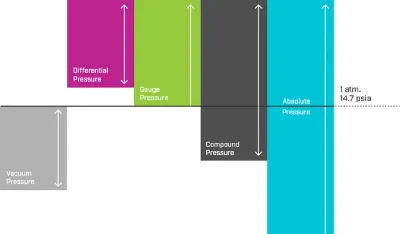

A differential pressure sensor measures the difference between two pressures. It measures pressure at two locations and outputs a signal that represents the pressure difference. Typical differential pressure sensors include two pressure-sensing elements such as diaphragms, chambers, or tubing, and convert the measured difference into an electrical output signal.
Differential pressure sensors are used in applications such as fluid flow monitoring, liquid level measurement, filter clog detection, and gas/liquid pressure control. They provide a means for real-time monitoring and control of pressure differences to achieve more accurate and reliable measurements in relevant applications.
The operating principles of differential pressure sensors vary by technology. Common types include:
- Diaphragm type: Uses diaphragm deformation under pressure difference; an electrical sensor detects the diaphragm deflection and converts it into an electrical signal.
- Piezoresistive type: Measures pressure difference by changes in resistance. When the pressure difference changes, the resistance changes and produces a corresponding electrical signal.

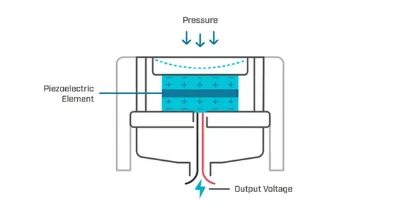

- Piezoelectric type: Uses piezoelectric effect to measure pressure difference. When a pressure difference is applied, the piezoelectric material produces charge that is measured to obtain the pressure difference.
- Pressure sensor arrays: Arrays of multiple sensors measure pressure at several locations and compute differential pressures, suitable for more complex measurement scenarios.
Selecting a differential pressure sensor requires considering application requirements such as pressure range, accuracy, environmental compatibility, and response time.
Effects of differential pressure sensor failures
When a differential pressure sensor fails, it affects measurement accuracy and system performance. Possible impacts include:
- Inaccurate measurement data: Sensor faults can cause incorrect pressure-difference readings. For example, distortion or drift in the sensor output voltage will degrade measurement accuracy.
- Loss of function: Electrical or mechanical failures may render the sensor unable to operate, eliminating its ability to measure pressure differences.
- Display failures: If the sensor cannot provide the required pressure information to a display or acquisition device, the device may not show accurate measurement data.
- System failures: When a differential pressure sensor is used in control loops, sensor faults can affect the stability and reliability of the entire control system.
Therefore, regular inspection and maintenance are necessary to ensure the sensor functions correctly.
Correct application of differential pressure sensors
Proper use of differential pressure sensors involves the following steps and precautions:
- Understand application requirements: Define the pressure-difference range, accuracy requirements, and environmental conditions. Understanding the application is the basis for correct sensor selection and use.
- Select the appropriate sensor: Choose a sensor based on pressure range, accuracy, response time, stability, and durability. Understand characteristics and suitable scenarios for different sensor types such as diaphragm, piezoresistive, and piezoelectric.
- Installation and connection: Install according to the sensor's installation guide. Ensure secure mounting and correct connections to avoid external forces and vibration that could affect the sensor. Protect cables and connectors from damage.
- Calibration and commissioning: Calibrate the sensor before use to achieve the required measurement accuracy, following the manufacturer's calibration procedures. For higher accuracy, adjust gain, offset, and other parameters as needed.
- Maintenance and care: Inspect and maintain the sensor regularly. Clean the sensor surface to prevent deposits and dust from affecting performance. Ensure the stability and reliability of power supply and signal wiring.
- Monitoring and verification: During operation, monitor and verify sensor readings to ensure they meet expectations. Use calibration equipment or compare with other reliable sensors for verification. Investigate and address abnormal readings promptly.
- Safe operation: Take necessary safety measures according to the application. Follow relevant safety procedures to ensure a safe working environment and equipment.
