Why Material Selection is Paramount for Quantum Computing PCBs
Quantum computing operates on principles fundamentally distinct from those governing classical computation. Quantum bits, or qubits, are exceptionally sensitive to minute environmental perturbations such as temperature fluctuations, electromagnetic interference (EMI), and signal attenuation. Printed circuit boards (PCBs) designed for quantum systems must frequently perform under extreme cryogenic conditions—sometimes reaching temperatures merely a few millikelvins above absolute zero (-273°C or -459°F). This ultra-cold environment is critical for minimizing thermal noise and preserving qubit coherence, which is essential for stable quantum operations.
Conventional PCB materials, such as FR-4, widely used in many mainstream types of printed circuit board, are simply inadequate for these demanding conditions. They lack the necessary thermal stability and low-loss electrical properties required for quantum applications. This is precisely where advanced materials become indispensable, offering bespoke solutions for critical aspects such as thermal management, signal integrity, and overall durability within these harsh operating environments.
Key Design Challenges for Quantum PCBs
Before delving into specific materials, it's crucial to understand the unique engineering challenges inherent in quantum PCB design. These challenges fundamentally dictate the necessity for specialized quantum PCB substrate materials and high-performance PCB materials.
● Cryogenic Temperatures: Quantum systems routinely operate within dilution refrigerators at temperatures below 1 Kelvin. The chosen materials must endure extreme thermal contraction and maintain robust mechanical stability without developing cracks or warping under such conditions.
● Minimal Signal Loss: Qubits require highly precise control and readout signals. Any significant signal loss or interference can disrupt delicate quantum states, making low-loss PCB materials absolutely essential for reliable operation.
● High-Frequency Performance: Quantum control signals frequently operate within the microwave frequency range (typically 4-8 GHz). Therefore, materials must effectively support these frequencies with minimal dielectric loss to preserve signal integrity.
● Electromagnetic Shielding: Qubits are extraordinarily susceptible to external electromagnetic noise. PCB materials must be chosen to inherently minimize electromagnetic interference (EMI) to safeguard quantum coherence.
Addressing these intricate challenges requires a profound understanding of material properties and their behavior when subjected to extreme operating conditions. Let's explore the materials specifically engineered to meet these stringent requirements.
Leading Advanced Materials for Quantum Computing PCBs
The following materials represent the cutting edge of high-performance PCB materials specifically developed for quantum computing applications. Each material brings unique properties that are meticulously tailored to the demanding requirements of quantum systems.

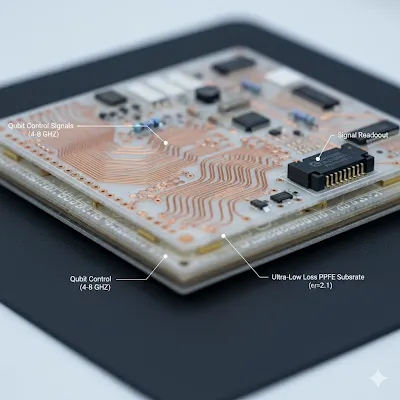

1. Polytetrafluoroethylene (PTFE) for Quantum PCBs
Polytetrafluoroethylene, commonly known as PTFE, is a highly favored choice for PTFE PCB quantum applications due to its exceptional electrical characteristics. PTFE-based laminates are extensively utilized in high-frequency and low-loss circuit designs.
● Low Dielectric Constant: PTFE boasts a very low dielectric constant, typically around 2.1. This property is crucial for minimizing signal propagation delay and ensuring high-speed transmission of microwave signals, which are vital for precise quantum control.
● Ultra-Low Loss Tangent: With a loss tangent as low as 0.0002 at 10 GHz, PTFE stands out as one of the best low-loss PCB materials available, significantly reducing signal attenuation over long traces.
● Thermal Stability: PTFE maintains remarkable stability across a wide temperature range, including cryogenic temperatures, making it a highly suitable material for cryogenic PCB substrates.
PTFE laminates are often enhanced with reinforcements such as woven glass or ceramic fillers. These additions improve mechanical strength while meticulously preserving their superior electrical advantages. These combined properties position PTFE as a leading contender for quantum computing PCBs where ultimate precision and minimal interference are non-negotiable.
2. Rogers Corporation Laminates for High-Performance Quantum Systems
Specialty laminates produced by Rogers Corporation are another outstanding option for high-performance PCB materials in quantum computing. These advanced laminates are specifically engineered to deliver consistent and reliable performance at microwave frequencies and across a broad range of temperatures, including cryogenic levels.
● Optimized Dielectric Performance: Rogers materials offer a wide spectrum of dielectric constants, ranging from 2.2 to 10.2. This versatility allows engineers to precisely select the best match for the specific frequency requirements of their quantum control circuits.
● Enhanced Thermal Conductivity: Certain variants of Rogers laminates are designed with improved thermal conductivity. This feature is critical for effectively managing heat dissipation, even in the extremely cold conditions of cryogenic setups.
● Very Low Loss: With loss tangents as low as 0.0009 at 10 GHz, these laminates are among the top low-loss PCB materials specifically tailored for demanding quantum applications, ensuring minimal signal degradation.
These specialized laminates are frequently employed in quantum systems for the routing of critical RF and microwave signals, guaranteeing minimal signal distortion and exceptionally high reliability.
3. Polyimide for Cryogenic Stability
Polyimide is a high-performance polymer widely used in cryogenic PCB substrates due to its exceptional thermal and mechanical stability. It demonstrates an impressive ability to withstand extreme temperature variations without material degradation.
● Extensive Temperature Range: Polyimide maintains its flexibility and durability across an incredibly broad temperature spectrum, typically from -269°C up to over 400°C. This makes it an ideal material for quantum systems that operate within dilution refrigerators.
● Robust Mechanical Strength: It exhibits strong resistance to cracking and warping, even under the significant thermal stresses induced by rapid cooling cycles.
● Excellent Electrical Insulation: Polyimide provides superb electrical insulation, which is crucial for minimizing the risk of short circuits in the densely packed and complex quantum circuits.
While polyimide may not achieve the ultra-low-loss performance of PTFE at high frequencies, it is often utilized in hybrid PCB designs where robust thermal stability is prioritized or combined with other materials for optimal overall performance.

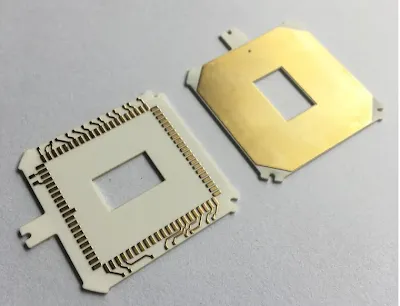

4. Ceramic Substrates for Integrated Performance
Ceramic substrates, including materials like alumina and aluminum nitride, are gaining increasing prominence in quantum PCB design due to their unique combination of outstanding thermal and electrical properties, making them suitable for the most demanding applications.
● High Thermal Conductivity: Aluminum nitride, for example, boasts a thermal conductivity of up to 170 W/m·K. This significantly surpasses traditional materials like PCB FR-4 (which typically offers only 0.3 W/m·K) and is vital for efficient heat management even in extreme cryogenic environments.
● High Dielectric Strength: Ceramics exhibit a high dielectric strength, which is essential for preventing electrical breakdown in high-voltage quantum control circuits.
● Stability at Ultra-Low Temperatures: Ceramic materials consistently maintain their structural integrity and electrical properties at millikelvin temperatures, firmly establishing them as excellent cryogenic PCB substrates.
Ceramic substrates are frequently chosen for applications where both thermal management and precise electrical isolation are mission-critical. However, their higher manufacturing cost can be a limiting factor for large-scale production.

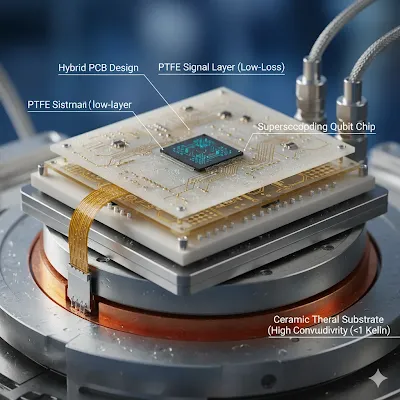

Practical Applications of Advanced Materials in Quantum Computing
Advanced materials are not merely theoretical concepts; they are actively driving the development and shaping the future of quantum computing hardware. Here are several real-world applications where these high-performance PCB materials are making a profound difference:
● Qubit Control and Readout: PTFE-based PCBs are extensively used to accurately route delicate microwave signals required for controlling and reading the states of qubits. Their inherently low dielectric constant ensures that signal speeds remain high, which is critical for maintaining long quantum coherence times.
● Cryogenic System Integration: Polyimide and ceramic substrates are integral components within dilution refrigerators. They provide the necessary mechanical and thermal stability to safely house sophisticated quantum chips at operating temperatures below 1 Kelvin.
● Hybrid Quantum Systems: The strategic combination of different materials, such as employing PTFE for high-frequency signal layers and ceramics for superior thermal management, enables the creation of sophisticated hybrid PCB designs. These designs skillfully balance multiple complex performance criteria to achieve optimal system functionality.
