Why Are Conformal Coatings Essential for Space Probe PCBs?
Space probes operate in environments that present some of the most formidable challenges imaginable, ranging from extreme temperature fluctuations and vacuum conditions to intense radiation and outgassing risks. Ensuring the protection of the printed circuit boards (PCBs) within these probes is absolutely critical for the success of any mission. Conformal coatings play an indispensable role in safeguarding space probe electronics, guaranteeing their long-term reliability under these brutal conditions. This article will delve into how conformal coatings specifically protect against space outgassing, shield electronics from radiation, and enhance overall long-term electronics reliability in space, while also examining the contribution of PCB surface finishes to this protective strategy.
Whether you are involved in designing electronics for a space mission or simply have a keen interest in the technologies powering space exploration, this guide will demystify the core aspects of conformal coatings and underscore their paramount importance in protecting PCBs in extraterrestrial environments. We will explore the detailed mechanisms of how these protective layers function and why they are indispensable for the success and longevity of space probe missions.
What Are Conformal Coatings and Their Importance for Spacecraft?
Conformal coatings are thin, polymeric protective layers meticulously applied to PCBs to shield electronic components from various environmental threats. These films are designed to "conform" precisely to the intricate contours of the board, enveloping every component, joint, and trace. This creates an impermeable barrier against moisture, dust, chemicals, and other potential hazards. In the demanding context of space probes, conformal coatings serve as a primary defense mechanism against the unique challenges of space, including outgassing induced by vacuum, intense radiation exposure, and drastic thermal cycling.
Space probes operate in an environment where even a minor electronic malfunction can compromise an entire mission. A single short circuit or an instance of corrosion could lead to the loss of vital data or communication links with Earth. By applying conformal coatings, engineers significantly enhance the probability that delicate PCB components will remain fully functional for many years, even when subjected to the most severe conditions. Consequently, these coatings are not merely an advantageous addition but a fundamental necessity for achieving enduring electronics reliability in space.
Unique Environmental Challenges for Space Probe PCBs
Before examining the specific protective mechanisms of conformal coatings, it is crucial to grasp the extraordinary challenges that space probe PCBs must overcome. These conditions push electronic components to their absolute limits, rendering failure almost inevitable without adequate protection.
Vacuum Conditions and Space Outgassing
In the near-perfect vacuum of space, there is no atmospheric medium to dissipate heat effectively or to prevent the release of volatile compounds from materials. This phenomenon, known as outgassing, can be profoundly detrimental to electronics. When materials off-gas in a vacuum, these released gases can condense on adjacent components, potentially forming a conductive film that leads to short circuits or corrosive damage. Conformal coatings specifically engineered to protect against space outgassing are designed to mitigate this risk by sealing components and preventing the emission or accumulation of these harmful gases.
Exposure to Ionizing Radiation
Space is permeated by high-energy radiation, including cosmic rays and solar particles, which can penetrate and severely disrupt electronic components. Radiation can cause material degradation, signal interference, and even permanent damage to semiconductor devices. Utilizing specialized coatings against radiation in electronics helps to either absorb or deflect a portion of this energy, thereby diminishing its impact on sensitive components and extending the operational lifespan of the PCB.
Extreme Thermal Cycling
Temperature variations in space can be dramatic, ranging from approximately -150°C in shaded areas to over 120°C when exposed to direct sunlight. Such extreme fluctuations induce thermal expansion and contraction, creating significant mechanical stress on components and their solder joints. Conformal coatings provide a crucial buffer, helping to stabilize the PCB and prevent issues like cracking or delamination during these intense temperature cycles.
Vibration and Mechanical Shock
During launch, space probes are subjected to powerful vibrations and severe mechanical shocks. These forces can dislodge components or fracture solder joints if the PCB lacks adequate protection. Conformal coatings add an essential layer of structural support, effectively damping vibrations and reducing the potential for physical damage.
Varieties of Conformal Coatings for Space Applications
Not all conformal coatings are created with the same properties; different materials offer distinct characteristics that render them suitable for specific challenges encountered in space. Here is an overview of the most common types employed for space probe PCBs and their respective benefits.
Silicone Coatings
Silicone conformal coatings are prized for their exceptional flexibility and resistance to extreme temperatures, making them highly suitable for space applications. They can endure thermal cycling across a wide range, typically from -65°C to 200°C, without cracking or losing adhesion. Furthermore, silicone coatings exhibit low outgassing properties, which is a critical attribute for preventing contamination in vacuum environments.
Parylene Coatings
Parylene represents a unique class of coating applied through a vapor deposition process. This method creates an ultra-thin, extraordinarily uniform layer that precisely conforms to the PCB’s entire surface. It delivers outstanding protection against moisture, chemicals, and radiation, positioning it as a premier choice for coatings against radiation in electronics. Parylene also boasts exceptionally low outgassing rates, ensuring it does not contribute to contamination in space.
Acrylic Coatings
Acrylic coatings are known for their ease of application and provide good protection against moisture and dust. While they may not offer the same level of thermal or radiation resistance as silicone or parylene, they are often used in less demanding sections of a space probe’s electronic systems. Acrylics are also relatively easy to rework or remove, which can be advantageous if repairs or modifications are required prior to launch.
Urethane Coatings
Urethane coatings are recognized for their robust toughness and excellent resistance to abrasion and various chemicals. They provide substantial protection against mechanical stress and vibration, which is particularly vital during the rigorous launch phase of a space mission. However, their performance under extreme temperature fluctuations may not match that of silicone or parylene.
How Conformal Coatings Ensure Long-Term Electronics Reliability in Space
A fundamental objective of applying conformal coatings to space probe PCBs is to guarantee the long-term reliability of electronics in space. Given that missions often span many years and onboard repairs are impossible once a probe is deployed, the durability and consistent performance of these coatings are paramount.
Preventing Corrosion and Contamination
Even in the vacuum of space, minute traces of moisture or contaminants inadvertently trapped during SMT PCB assembly can lead to gradual corrosion over time. Conformal coatings act as an effective barrier, sealing out these threats and preventing the degradation of conductive traces and sensitive components. For example, a parylene coating, even at a thickness of just 10-20 micrometers, can provide a robust shield against such issues.
Reducing Electrical Failures
Conformal coatings significantly enhance the dielectric strength of a PCB, thereby reducing the risk of electrical arcing or short circuits. In space, where high-voltage systems are common, this added insulation is indispensable. Coatings such as silicone can achieve dielectric strengths up to several hundred volts per mil (0.001 inch), ensuring stable operation even under significant electrical stress.
Mitigating Radiation Damage
While no coating can entirely block cosmic radiation, specific materials like parylene can diminish its impact by absorbing or scattering charged particles. This protective action helps safeguard sensitive components such as microcontrollers and memory chips, which are prone to data corruption or outright failure when exposed to prolonged radiation.
Ensuring Thermal Stability
Effective thermal management is a critical concern for space electronics. Conformal coatings contribute by forming a uniform layer that minimizes localized thermal stress on components. Silicone coatings, for instance, can maintain their integrity and protective properties across a temperature range exceeding 250°C, ensuring the PCB remains stable throughout extended missions.
The Interplay of PCB Surface Finishes and Conformal Coating Effectiveness
While conformal coatings provide the primary layer of protection, the underlying PCB surface finishes are equally crucial for ensuring overall reliability. Surface finishes are applied to the copper traces of a PCB to prevent oxidation and improve solderability. For optimal performance, these finishes must be compatible with the chosen conformal coating.
Common PCB Surface Finishes for Space Applications
● ENIG (Electroless Nickel Immersion Gold): This finish offers excellent corrosion resistance and provides a flat, highly solderable surface for component mounting. Its compatibility with most conformal coatings and inherent durability make it a frequent choice in space applications.
● Immersion Silver: This finish provides good electrical conductivity and is well-suited for high-frequency signals, which are prevalent in space communication systems. However, it typically requires a robust conformal coating to prevent tarnishing over time.
● HASL (Hot Air Solder Leveling): Although less common in critical space applications due to its often uneven surface, HASL can be used for less demanding components. If selected, it must be paired with a coating capable of filling surface irregularities effectively.
Compatibility with Conformal Coatings
The adhesion of a conformal coating is heavily dependent on the quality and type of the underlying surface finish. For instance, ENIG provides a smooth, clean surface that allows coatings like parylene to bond exceptionally tightly, ensuring the absence of gaps or weak spots. Poor adhesion can lead to delamination over time, particularly under thermal cycling stress, highlighting the necessity of selecting the correct combination of surface finish and conformal coating for mission-critical space applications.

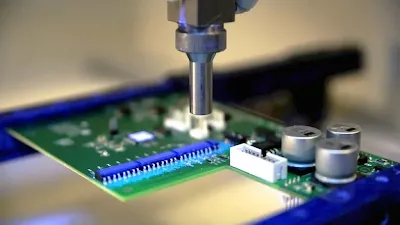

Application Methods for Conformal Coatings in Space Probe Manufacturing
The application of conformal coatings to space probe PCBs is a highly precise process that must adhere to stringent quality standards. Even a minor defect in the coating can lead to catastrophic failure in the harsh space environment. Here are the most common application methods employed in the industry.
Specialized Application Techniques
● Brush Application: This manual method is typically reserved for small-scale production, rework, or localized repairs. While it allows for targeted application, it is prone to uneven coverage and is rarely used for primary space-grade PCB coating.

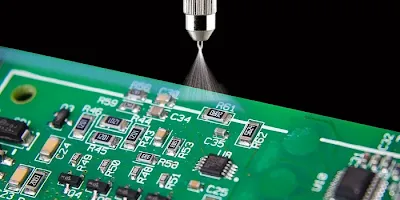

● Spray Application: Spraying, which can be performed either manually or with automated systems, provides a more uniform layer and is suitable for larger production batches. It is commonly used for silicone and acrylic coatings, though careful masking of areas like connectors that must remain uncoated is essential.
● Dip Coating: This method involves fully immersing the high frequency PCB in a liquid coating material, ensuring complete coverage. However, controlling the thickness can be challenging, and it may result in excess material buildup in certain areas.
● Vapor Deposition (for Parylene): For parylene coatings, vapor deposition is the standard method. It creates an ultra-thin, perfectly uniform layer. This technique is ideal for space applications because it eliminates the risk of air bubbles or uneven coverage, providing consistent and reliable protection across the entire PCB.
Regardless of the chosen method, space probe PCBs typically undergo rigorous post-coating testing to detect and ensure the absence of any defects. This often includes thermal cycling tests, vacuum chamber simulations, and comprehensive electrical performance checks to verify the coating’s integrity under simulated operational conditions.
Testing Protocols and Industry Standards for Space-Grade Conformal Coatings
Given that space missions afford no margin for error, conformal coatings must meet exceptionally stringent standards. Organizations such as NASA and the European Space Agency (ESA) have established comprehensive guidelines for materials selection and testing to guarantee reliability.
Key Standards and Testing Regimes
● NASA-STD-8739.1: This standard outlines critical requirements for polymeric applications, including conformal coatings, specifically for space hardware. It places a strong emphasis on properties such as low outgassing and high thermal stability.
● ECSS-Q-ST-70-02C: A European standard that defines detailed test methods for assessing outgassing from materials intended for space use, ensuring that coatings will not release harmful gases in a vacuum.
● MIL-I-46058C: A widely referenced military specification for space applications, this standard focuses on the electrical and environmental performance characteristics of conformal coatings.
Testing frequently involves subjecting coated PCBs to simulated space conditions, utilizing vacuum chambers, radiation sources, and extreme temperature cycling. For example, a typical test might involve cycling a PCB between -100°C and 100°C for thousands of cycles to rigorously verify the coating’s durability. Only coatings that successfully pass these demanding tests are deemed suitable for the unforgiving environment of space missions.
Conclusion: The Indispensable Role of Conformal Coatings in Space Exploration
Conformal coatings are truly an unsung hero in the realm of space exploration, providing the vital protection that space probe PCBs require to endure the most severe conditions imaginable. From safeguarding against the perils of radiation and vacuum outgassing to ensuring thermal stability and enhancing mechanical durability, these specialized coatings are absolutely essential for achieving long-term electronics reliability in space. When judiciously paired with the correct PCB surface finishes, they form a robust defense system that keeps critical electronics operational for many years beyond Earth's atmosphere.
