Why Are Specific PCB Materials Essential for Spacecraft?
Printed Circuit Boards (PCBs) form the foundational electronics in spacecraft and satellites. However, the unique and extremely harsh conditions of space demand materials that far exceed the capabilities of standard electronics. These environments—characterized by intense temperature fluctuations, constant radiation exposure, vacuum, and significant mechanical stress—can easily degrade conventional PCB materials, leading to catastrophic system failure.
For space missions, the selection of PCB materials moves beyond typical cost considerations, prioritizing absolute reliability and unwavering performance. Materials must offer exceptional thermal stability, robust resistance to radiation damage, and impeccable signal integrity, even under duress. Recognizing these stringent requirements is the initial stride for anyone engaging in satellite PCB design or contemplating DIY space electronics projects.

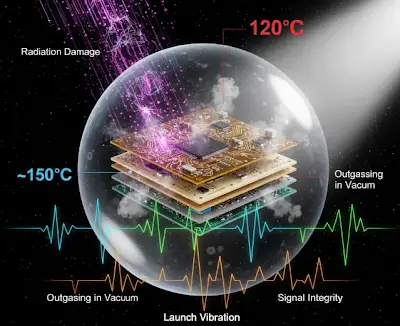

What Environmental Challenges Do Spacecraft PCBs Face?
Before evaluating various PCB materials, it's critical to understand the specific gauntlet these components must endure once launched into orbit and beyond. These challenges dictate the engineering choices made during material selection.
Extreme Temperature Variations
Spacecraft can swing wildly between temperature extremes, from chilling lows of -150°C in shadow to scorching highs of over 120°C in direct sunlight. PCB materials must withstand these rapid and drastic thermal cycles without experiencing degradation, cracking, or performance loss.
Radiation Exposure and Vacuum Effects
High-energy particles in space, a form of radiation, pose a constant threat, capable of damaging electronic components and eroding material integrity, which can lead to data corruption or complete system failure. Furthermore, the hard vacuum of space causes certain materials to "outgas," releasing trapped gases. This phenomenon can contaminate sensitive optical or electronic components and impair overall system functionality.
Mechanical Stress and Signal Demands
The violent vibrations experienced during rocket launches, coupled with continuous micro-movements in orbit, subject PCBs to significant mechanical stress. Materials must possess high structural strength to prevent damage. Moreover, modern satellite communication relies on high-frequency signals, which necessitate PCB materials with exceptionally low dielectric loss to ensure signal clarity and integrity over vast distances.
Exploring Common PCB Materials for Space Applications
When designing for satellite PCBs and other space projects, selecting the appropriate laminate is paramount. Not all materials are capable of withstanding the rigors of extraterrestrial environments. Here’s a comparison of popular PCB laminates and substrates tailored for these demanding applications.
Polyimide Laminates
Polyimide stands out as a top choice for spacecraft PCBs due to its exceptional thermal resilience and inherent flexibility. It maintains stable performance across an incredibly wide temperature range, from -269°C to 400°C, making it ideally suited for the fluctuating temperatures of space. This material also boasts robust resistance to both radiation and chemical exposure, ensuring long-term operational reliability.
● Dielectric Constant: Approximately 3.5 at 1 MHz.
● Thermal Conductivity: 0.2–0.3 W/m·K.
● Key Benefit: Unparalleled performance in temperature extremes and adaptable for compact, flexible designs.
● Limitation: Generally more expensive than common materials like FR-4.
Polyimide is frequently the material of choice for critical satellite PCB designs where unwavering reliability is non-negotiable. It’s also suitable for ambitious DIY PCB enthusiasts willing to invest in premium materials for small-scale space electronics.
PTFE (Teflon) Based Laminates
Polytetrafluoroethylene (PTFE) laminates, often reinforced with ceramic or glass, are celebrated for their remarkably low dielectric loss and superior signal integrity. These characteristics make them indispensable for high-frequency applications, particularly in satellite communication systems where maintaining clear signal transmission is vital.
● Dielectric Constant: 2.1–2.5 at 10 GHz.
● Loss Tangent: Extremely low (0.0009–0.002), minimizing signal degradation.
● Key Benefit: Outstanding performance for high-frequency signals crucial for satellite communication.
● Limitation: Difficult and costly to process, which might be a barrier for beginners in DIY PCB projects.
These materials are frequently integrated into the critical communication modules of spacecraft, where the fidelity of signals across vast cosmic distances is essential.
Ceramic-Filled Laminates
Ceramic-filled laminates offer a powerful combination of high thermal conductivity and low thermal expansion. This makes them exceptionally well-suited for managing heat in space electronics, often utilized in power systems or any area where efficient heat dissipation is a primary concern.
● Dielectric Constant: Varies from 6.0–10.0 depending on the specific composition.
● Thermal Conductivity: 1.5–3.0 W/m·K (significantly higher than polyimide or PTFE).
● Key Benefit: Excellent thermal management capabilities for components generating substantial heat.
● Limitation: Their inherent brittleness can be a disadvantage under mechanical stress or intense vibrations during launch.
While a strong contender for space projects requiring robust thermal management, ceramic-filled laminates are generally not ideal for designs demanding flexibility.
FR-4 (Fiberglass Reinforced Epoxy)
FR-4, a staple in everyday electronics, sees very limited use in spacecraft due to its poor performance in extreme conditions. Composed of woven fiberglass and epoxy resin, it provides decent mechanical strength but falls short in critical areas like thermal and radiation resistance.
● Dielectric Constant: 4.5–4.8 at 1 MHz.
● Thermal Conductivity: 0.25 W/m·K.
● Key Benefit: Low cost and widespread availability, making it accessible for DIY PCB beginners.
● Limitation: Unsuitable for the space environment due to significant outgassing properties and insufficient temperature tolerance (typically max around 130°C).
While PCB FR-4 material might seem attractive for budget-conscious DIY PCB projects, it is not recommended for actual space applications. It serves well for prototyping or Earth-bound testing before transitioning to space-grade materials.
Strategic Tips for Choosing PCB Materials for Satellite Designs
The task of selecting the optimal PCB laminate for space projects can be daunting, particularly for those new to the field. Here are some practical recommendations to guide your decision-making process.
Align Material to Mission Requirements
The primary function of your satellite PCB should heavily influence your material choice. If the focus is on high-frequency communication, materials with minimal signal loss, like PTFE, are paramount. For general control systems or versatile applications, polyimide offers a well-rounded and reliable solution.
Prioritize Thermal Management
Components that generate significant heat necessitate materials with superior thermal dissipation properties. Ceramic-filled laminates, for instance, excel in drawing heat away from critical areas, protecting sensitive electronics. Always consider the expected operational temperatures and the heat output of your components.
Test for Outgassing and Consult Standards
In the vacuum of space, materials can release trapped gases, potentially contaminating other components. Always ensure your chosen material has low outgassing properties by reviewing manufacturer data and confirming compliance with established space standards. Referencing guidelines from reputable space agencies or industry standards like ECSS (European Cooperation for Space Standardization) can provide crucial material recommendations and best practices.
Smart Budgeting for DIY Projects
While compromising on quality is rarely advisable for critical space missions, beginners engaged in DIY PCB designs can judiciously manage costs. Start with more affordable materials for initial prototypes and Earth-bound testing. This allows for iterative design refinement before making the significant investment in premium, space-grade laminates necessary for actual flight hardware.
Impact of Manufacturing Quality on Space PCB Performance
Beyond simply choosing the right PCB laminate, the quality of the manufacturing process profoundly influences how well the material performs in the extreme conditions of space. Substandard fabrication can introduce vulnerabilities that lead to failure under stress.
Critical Manufacturing Factors
● Layer Adhesion: Robust bonding between PCB layers is essential to prevent delamination, particularly during intense temperature swings.
● Trace Accuracy: Precise etching of traces is vital for maintaining signal integrity, especially for high-frequency materials like PTFE, where even minor variations can cause signal degradation.
● Surface Finish: Specialized finishes, such as ENIG (Electroless Nickel Immersion Gold), are preferred for space applications due to their superior corrosion resistance and long-term reliability in harsh environments.
For those new to space electronics, collaborating with a reputable large PCB manufacturer experienced in space-grade requirements, such as AIVON, can significantly enhance the reliability and ultimate performance of the final product. Their expertise ensures that critical standards are met throughout the fabrication process.
Concluding Thoughts on Spacecraft PCB Material Selection
A deep understanding of PCB materials for spacecraft projects is indispensable for anyone navigating the complexities of space electronics, from seasoned engineers to ambitious DIY enthusiasts. This comparison has highlighted why advanced laminates like polyimide, PTFE-based, and ceramic-filled materials are superior to standard options such as FR-4 when confronting the extreme conditions of space. Each material brings unique strengths, whether it's exceptional thermal stability or unparalleled signal integrity, and the optimal choice is always dictated by the specific needs of your satellite PCB design.
For beginners venturing into DIY PCB designs or exploring space electronics, commencing with accessible materials for initial prototyping is a pragmatic approach. However, the transition to verified space-grade laminates becomes essential for any project destined for an actual mission. By meticulously evaluating factors like temperature extremes, radiation exposure, and signal requirements, you can confidently select a PCB laminate that guarantees reliability and mission success in orbit.
