Overview
Buck converters used in power electronics are essential for regulating and controlling an output voltage that is lower than the input voltage (Figure 1). Designers commonly use buck converters where power efficiency and space constraints are critical, for example:
- Portable electronics. Buck converters enable efficient power management in smartphones, tablets, and wearable devices, extending battery life and reducing heat.
- DC-DC power. Buck converters provide regulated power to various subsystems and components in industrial and automotive applications.
- Voltage regulators. Voltage regulator modules (VRMs) use buck converters to supply stable voltages to microprocessors and other sensitive electronics.
Figure 1. Voltages and currents of a buck converter. Image from Wikipedia, under Creative Commons license.
Continuous and Discontinuous Conduction Modes
The choice between continuous conduction mode (CCM) and discontinuous conduction mode (DCM) is central to modern buck converter design. Understanding the characteristics and trade-offs of each mode is important for designing efficient, reliable converters.
Continuous Conduction Mode (CCM)
In CCM, the inductor current flows continuously and never reaches zero within a switching cycle. Designers prefer CCM for applications that require a stable output voltage and higher efficiency at heavy load. CCM offers:
- Reduced output voltage ripple. Continuous inductor current in CCM produces lower output voltage ripple compared with DCM, which benefits noise-sensitive applications.
- Higher efficiency at heavy loads. Continuous power transfer and lower peak currents allow CCM to achieve higher efficiency under heavy-load conditions.
- Simpler control. CCM supports simpler control schemes, such as voltage-mode or current-mode control, which are easier to implement and optimize.
Achieving CCM performance requires careful selection of inductor size, switching frequency, and control-loop stability (Figure 2). Designers must ensure the inductance is sufficient to maintain continuous current and properly compensate the control loop to avoid instability.
Figure 2. Voltages and currents of an ideal buck converter operating in CCM. Image from Wikipedia, under Creative Commons license.
Discontinuous Conduction Mode (DCM)
In DCM, the inductor current falls to zero for part of each switching cycle. This mode can be advantageous in applications with widely varying or light loads, where it can improve efficiency. DCM offers:
- Improved light-load efficiency. When the inductor current reaches zero, switching losses are reduced, improving efficiency at light loads.
- Intrinsic stability. DCM has inherent self-starting behavior because each switching cycle begins from zero inductor current, which can simplify control-loop design and enhance stability.
- Reduced reverse-recovery losses. When the inductor current returns to zero before the next switching cycle, DCM minimizes reverse-recovery losses in diodes or synchronous rectifiers.
Designers should consider DCM drawbacks as well, such as increased output voltage ripple and higher peak currents, which can affect output capacitor selection and overall system performance.

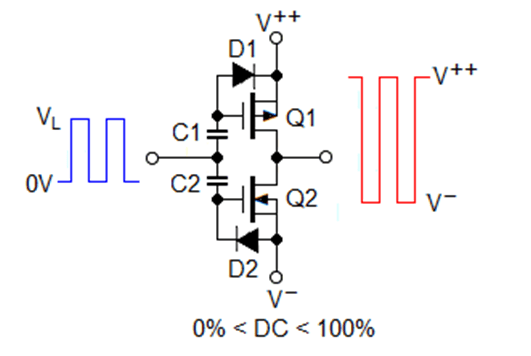

Figure 3. Voltages and currents of an ideal buck converter operating in DCM. Image from Wikipedia, under Creative Commons license.
Adaptive Mode Switching
Adaptive mode switching is an approach that allows a buck converter to dynamically adapt to load conditions by switching between CCM and DCM to optimize efficiency across a wide load range. The basic idea is to run the converter in CCM under heavy-load conditions to take advantage of lower output voltage ripple and higher efficiency, and to switch to DCM under light-load conditions to benefit from improved light-load efficiency and inherent stability.
Implementing adaptive mode switching requires advanced control algorithms to detect load changes accurately and decide when to switch modes. Typical implementations monitor the inductor current or output voltage ripple to determine the appropriate conduction mode. Hysteresis control, load-current sensing, and zero-cross detection are commonly used techniques for practical adaptive mode switching.
A key challenge in adaptive mode switching is ensuring smooth transitions between modes. Abrupt mode changes can introduce transient disturbances that cause output voltage deviations or instability. To mitigate these issues, designers must carefully design the control system to provide gradual and controlled transitions between CCM and DCM. Techniques such as soft-start, current limiting, and adaptive compensation help enable smooth mode transitions.
Adaptive mode switching can yield significant efficiency and performance benefits. By optimizing the conduction mode for the instantaneous load, a buck converter can achieve higher overall efficiency across a broader load range. This reduces power consumption in portable devices, improves thermal management, and extends battery life. Adaptive mode switching also enhances dynamic response, enabling the converter to respond quickly to abrupt load changes while maintaining stable output regulation.
