In gateways, mobile phones, and other wireless devices, filter technology is key to reducing crosstalk, preserving peak signal performance, and optimizing system efficiency. Without these filters, designers would struggle to meet multiple system-level specifications required for reliable always-on connectivity.
Role of Filters in Product Design
Filters significantly improve modern end-product designs, helping system engineers reduce or eliminate system-level challenges. They also enable practical preferred solutions that shorten design time.
RFFE and RF Filter Overview
Driven by rapid spectrum growth, the allocation of many frequency bands to meet throughput and capacity needs, and new technologies such as ultra-wideband (UWB) and cellular vehicle-to-everything (C-V2X), filter technology continues to evolve to enable coexistence across multiple bands. As a core component of the RF front end (RFFE), RF filters are widely used in base stations, automotive systems, Wi-Fi, and other wireless applications. The following sections examine filter technology and its relation to the front end.
Duplexing
Duplexing enables bidirectional communication on a single communications link. There are two basic duplex modes:
- Half duplex: Parties alternate between transmitting and receiving. One side transmits while the other receives.
- Full duplex: Parties can transmit and receive simultaneously.
Full duplex is implemented with frequency-division duplexing (FDD), while half duplex is implemented with time-division duplexing (TDD).
FDD uses two separate frequency bands or channels to achieve full duplex operation. The two bands are physically separated by a duplex gap to prevent interference. TDD uses a single band with alternating time slots for transmit and receive. Although TDD transmissions are not simultaneous, the rapid alternation makes the communication appear continuous to the endpoints.
Isolation and Cross-Isolation
Duplexers are commonly used in FDD radios where one filter serves transmit (Tx) and the other serves receive (Rx). The duplexer design prevents passband loading errors on each filter.
Isolation measures the amount of power leaked from one RF port path into another RF port path. Higher isolation between two RF paths reduces leakage. Low isolation allows signals to mix, causing interference or receiver desensitization (reduced sensitivity).
Transmit signals at the receive filter output must be heavily attenuated to avoid overdriving the receiver front end. This transmit-receive isolation often targets 55 dB or higher. High isolation must also be provided at the receive frequency to prevent noise from the transmit chain from appearing at the receiver input and degrading sensitivity. These requirements drive in-band isolation performance.
As wireless devices evolve, achieving isolation between RF paths becomes more challenging. For example, some modern mobile phones are foldable and integrate multiple antennas to serve cellular, Wi-Fi, GPS/GNSS, UWB, mmWave, and Bluetooth. With overlapping paths and tighter antenna packing, interference risk increases, making high isolation, strict passband, and attenuation specifications critical. RF filter designers must meet stricter isolation and passband requirements to ensure foldable phones operate without interference.
Receiver Desensitization and Sensitivity
Receiver sensitivity is the minimum detectable received signal power for a digital radio receiver. Receiver desensitization means electromagnetic interference raises the noise floor, reducing the received signal-to-noise ratio and lowering throughput or effective range.
Maintaining receiver performance in the presence of RF interference and high received signal levels is a primary requirement. Desensitization is caused by noise sources often generated by the same device radio. Interference can be internal or externally generated, but in many systems the dominant interference is self-generated. Effective filtering is essential to mitigate desensitization and preserve sensitivity.
RFFE Selectivity and Coexistence
In an ideal filter, passband insertion loss would be 0 dB and stopband insertion loss would be minus infinity dB, with an instantaneous transition between passband and stopband. In practice, filters have finite stopband attenuation, passband ripple, and nonzero insertion loss.
The transition region between passband and stopband, or the skirt steepness, is a key characteristic that determines a filter's usefulness in a given application.
Receiver selectivity is critical. Since many RF signals coexist, the receiver must accept only the desired frequency while suppressing unwanted signals. Receiver selectivity performance determines the interference level the receiver will experience. Effective off-band attenuation and low insertion loss improve isolation between signals on the receiver. High isolation between signal paths also limits intermodulation products and helps meet out-of-band emission requirements. Filter performance is central to receiver selectivity.
Filter selectivity is closely related to quality factor (Q). Narrower filter bandwidth increases Q, producing steeper skirts and higher selectivity. Designing highly selective bandpass filters requires trade-offs among skirt steepness, insertion loss, and Q.
Receiver discrimination is commonly measured by adjacent channel rejection (ACR), adjacent channel selectivity (ACS), in-band blocking, and out-of-band blocking.
Crowded Spectrum
As more bands are pushed into an already crowded RF space, spectrum becomes squeezed. In some cases, the transition between the passband and stopband is only 2 MHz, making it difficult to meet system-level requirements. Temperature-induced filter response drift can exceed the width of the band transition itself, causing interference or degraded signal quality. Filters are especially valuable in these scenarios, where steep out-of-band transitions are needed to separate, for example, Wi-Fi and V2X bands.
Spectrum is a scarce resource and regulated. RF system designers must proactively address coexistence challenges across evolving spectrum regions such as Wi-Fi, automotive, IoT, and mobile bands. These bands require filters with minimal temperature drift, excellent insertion loss, and steep skirts to avoid RF interference.
Small-Form-Factor Impacts on Filter Design
Wireless device form factors continue to shrink. Distributed Wi-Fi and mesh architectures use compact Wi-Fi pods, and mobile phones reduce RF area to accommodate larger batteries, more cameras, and additional RF paths. In infrastructure, RF sections move up the tower, requiring smaller RFFE components to meet higher transmit and receive performance.
For example, printed circuit board area in phones has decreased while batteries have grown to support more features. To support a wide frequency range—Wi-Fi, low, mid, high, UWB, and mmWave—more antennas are required; some modern phones use up to six antennas. Integrating these filters into compact RFFE modules forces designers to create smaller front-end components, including filters.
As additional antennas are added, high antenna performance is required. Antennas need sufficient volume and spacing to perform well, yet available space is shrinking. Designers face a difficult trade-off: add separate antennas, which may reduce system-level performance, or adopt new techniques such as antenna multiplexers.
In short, antenna multiplexers combine multiple RF filters so several radios, such as Wi-Fi, GPS, and UWB, can share a single antenna. By using an antenna multiplexer, mobile devices can make more efficient use of available antenna area while supporting additional bands without increasing device size. Antenna multiplexers remove the need for separate antennas and meet coexistence and insertion loss requirements.

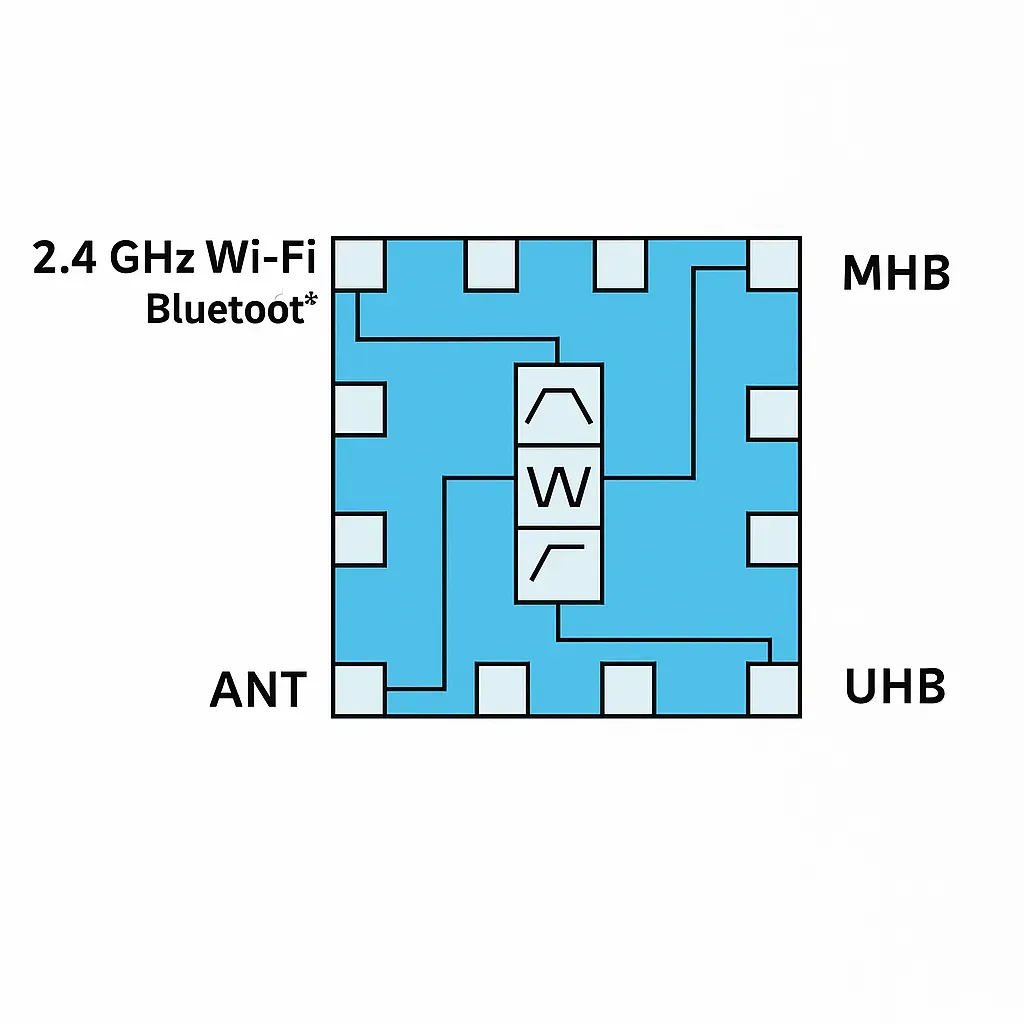

Figure : Using an antenna multiplexer, Wi-Fi and cellular mid/high bands can share a single antenna.
Wi-Fi RFFE manufacturers are also using front-end module technology to reduce product size, reduce the number of matching components, and minimize PCB area. By integrating multiple RF paths in front-end modules, system designers can lower cost, shorten development time, and accelerate time to market.
Adding MIMO and higher frequencies in the 6 GHz band raises system temperature in Wi-Fi gateways. To meet thermal and coexistence requirements, reliable RFFE components that support high temperatures and multiple frequency ranges are needed. Temperature-compensated filter technologies and complete RFFE module solutions have been developed to help Wi-Fi gateways, automotive, and 5G system designers meet their requirements.
Some transmit-side filters used in Wi-Fi RFFEs can improve signal performance. For example, when a Wi-Fi signal operates near the edge of a channel and transmits at full power, some out-of-band leakage can occur. Lowering output power is a common mitigation, but that reduces range. Effective RF filtering can reduce out-of-band leakage without lowering transmit power, enabling radios to operate at maximum power on edge channels.
Multiplexers and Antenna Multiplexers
Bandpass filters and duplexers alone are no longer sufficient for coexistence in modern complex RF devices. More advanced filtering techniques are required to support contemporary connected devices and functions, such as mobile phones and gateways. Multiplexers and antenna multiplexers are particularly useful in these systems.
What is the difference between these technologies? An antenna multiplexer sits near the antenna and routes the appropriate signal into the device efficiently, reducing the number of discrete components and the number of antennas required. For example, an antenna multiplexer can combine GPS, Wi-Fi, and cellular bands to support all three RF paths with a single antenna.

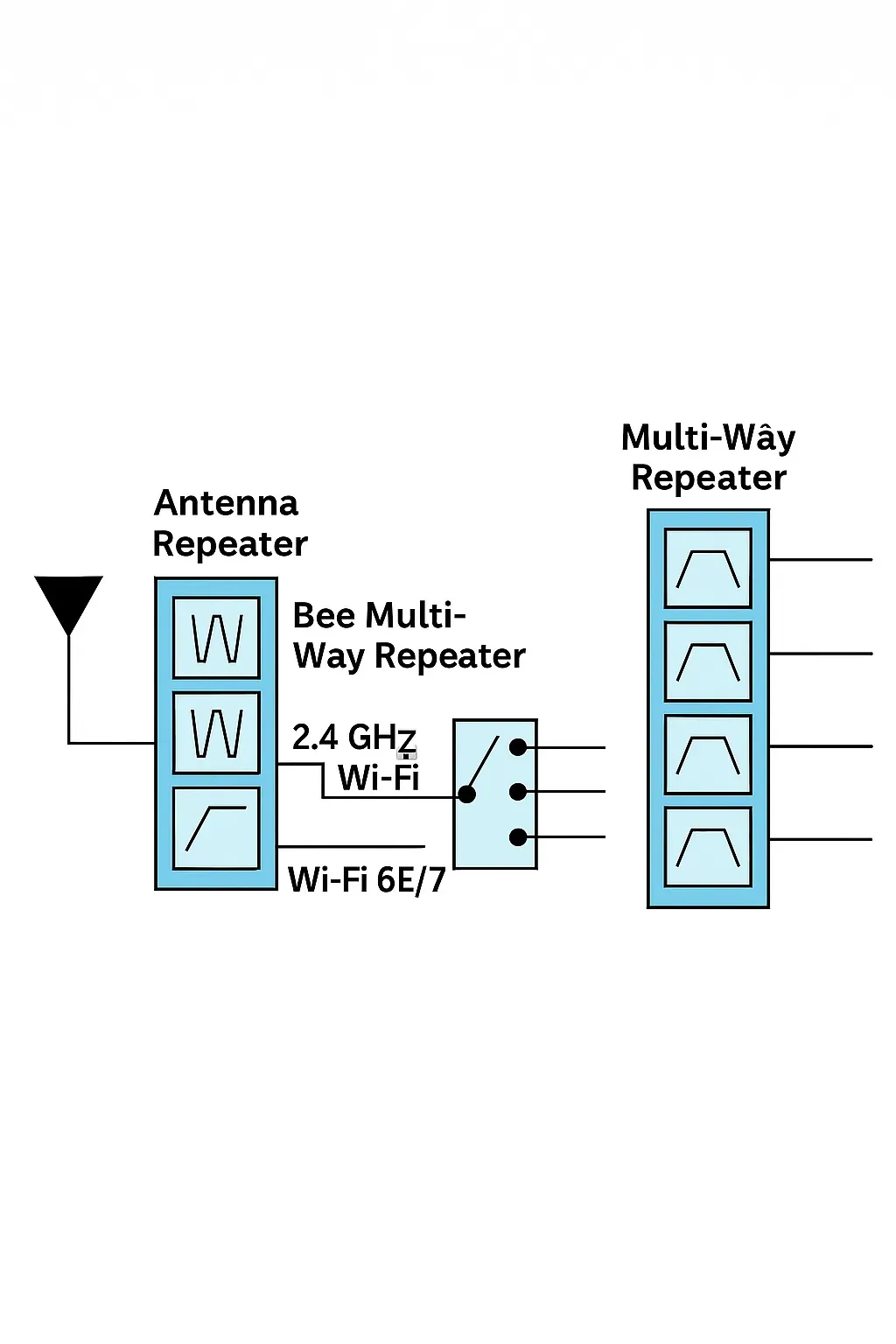

Figure : Block diagram showing antenna multiplexer and multiplexer.
Multiplexers are located further down the RF front end, closer to the transceiver. Multiplexers separate RF paths, reduce system complexity, and decrease the need for individual discrete RF filters. They also support carrier aggregation (CA) for higher data throughput.
