Introduction
Precision agriculture relies on remote sensors deployed across vast fields to monitor soil moisture, temperature, nutrient levels, and environmental conditions in real time. These sensors, often powered by batteries due to their isolated locations, demand PCBs that prioritize ultra-low power consumption to extend operational life between charges or replacements. Effective power management strategies ensure reliable data collection without frequent maintenance, which is critical in large-scale farming operations. Low-power PCB design techniques, combined with efficient power components, address the challenges of limited energy sources in harsh outdoor environments. This article explores key strategies for optimizing battery life in these applications, focusing on engineering principles and practical implementations tailored for electric engineers.
The Importance of Power Optimization in Agricultural Sensors
Remote sensors in precision agriculture operate in environments with extreme temperatures, humidity, and dust, placing unique demands on PCB power systems. Battery life directly impacts system reliability and operational costs, as frequent replacements disrupt data continuity and increase labor expenses. Power consumption optimization techniques become essential to achieve months or years of autonomy, especially when grid power is unavailable. Engineers must balance sensor accuracy, wireless transmission, and processing needs against stringent energy budgets. Standards like IPC-6012E ensure PCB performance under such conditions, emphasizing qualification for rigid boards in demanding applications. Ultimately, well-managed power systems enable scalable IoT networks for smarter farming decisions.
Core Principles of Low-Power PCB Design
Low-power PCB design starts with selecting components that minimize quiescent current and leakage. Microcontrollers with sleep modes and event-driven architectures reduce average power draw by deactivating unused peripherals during idle periods. Voltage regulators, particularly low-dropout types, maintain efficiency across varying battery voltages without excessive heat generation. PCB layout plays a crucial role, as short traces and ground planes reduce parasitic inductance and resistance, preserving signal integrity in power paths. Thermal management prevents efficiency losses from self-heating, especially in enclosed sensor housings exposed to sunlight.
Efficient DC-DC converters for agriculture applications step down battery voltages to logic levels with minimal losses. Buck converters operating above 90% efficiency at light loads suit intermittent sensor duties. Engineers should prioritize converters with burst mode operation to handle low-duty cycles typical in data logging. Synchronization with switching frequencies avoids interference with sensitive analog front-ends for soil or humidity sensing. Adhering to JEDEC J-STD-020E guidelines for component moisture sensitivity ensures reliability during assembly and field exposure.
Integrating Energy Harvesting for PCBs
Energy harvesting for PCBs supplements primary batteries, capturing ambient sources like solar, thermal gradients, or vibrations from farm machinery. Solar cells paired with maximum power point tracking circuits provide trickle charging during daylight, extending battery life significantly. Thermoelectric generators suit sensors near equipment with heat differentials, converting waste heat efficiently. Vibration-based harvesters use piezoelectric materials tuned to field-specific frequencies, such as tractor passes. PCB integration requires dedicated management ICs that prioritize harvested energy over battery discharge.
Challenges include variable harvest rates, necessitating supercapacitors for buffering and stable output. Low-power maximum power point trackers with MPPT algorithms optimize yield under partial shading from crops. Hybrid systems combining harvesting with batteries demand careful impedance matching to prevent backflow. J-STD-001ES, for soldered electrical assemblies, guides reliable connections in these multi-source power domains. Overall, energy harvesting reduces battery sizing, lowering weight and cost for drone-deployed or fixed sensors.
Battery Management Systems for Remote Sensors
Battery management systems for remote sensors monitor voltage, current, and temperature to prevent over-discharge and extend cycle life. State-of-charge estimation algorithms, based on Coulomb counting or voltage curves, trigger low-power modes proactively. Protection circuits cut off loads during faults, complying with safety margins for lithium-based cells common in long-life applications. Balancing for multi-cell packs equalizes charge, maximizing usable capacity in stacked configurations.
Fuel gauging ICs with integrated ADCs provide precise remaining capacity data, enabling predictive maintenance alerts via wireless uplinks. Temperature compensation adjusts charge rates to mitigate cold-weather performance drops in winter deployments. PCB real estate constraints favor system-in-package solutions embedding BMS functions. Efficient algorithms sample infrequently to conserve power, aligning with overall consumption goals.

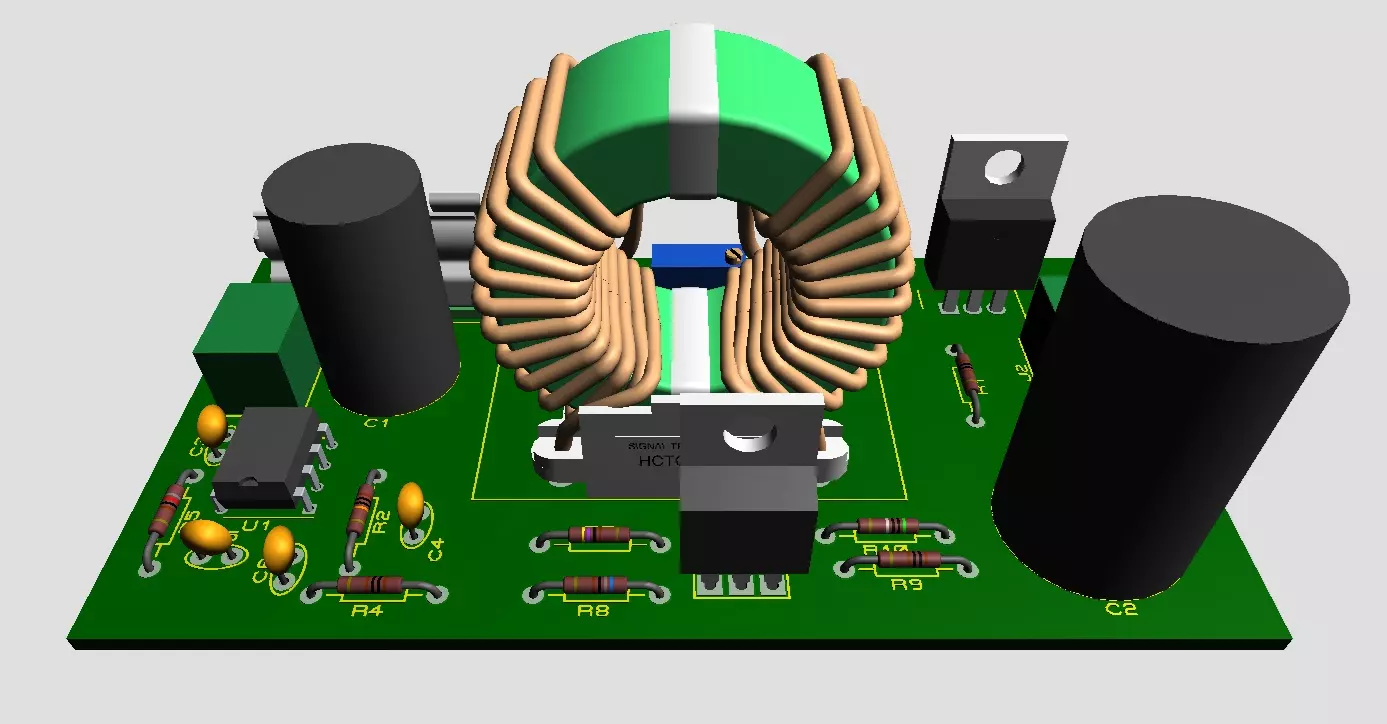

Efficient DC-DC Converters in Agricultural Contexts
Efficient DC-DC converters for agriculture handle wide input ranges from aging batteries while delivering clean rails to mixed-signal circuits. Synchronous rectification minimizes conduction losses at low currents, outperforming diode-based designs. Spread-spectrum modulation reduces EMI, critical for co-located wireless modules operating in 900 MHz bands. Soft-start features limit inrush, protecting downstream components during wake-up.
Selection criteria include no-load quiescent current below 1 microampere and efficiency peaks over 95% at 10-50% loads matching sensor profiles. Programmable output voltages accommodate diverse sensor requirements, from 1.8V MCUs to 5V actuators. PCB decoupling with low-ESR ceramics suppresses ripple, ensuring ADC accuracy for precision measurements. Integration with power path controllers seamlessly switches between battery and harvested sources.
Power Consumption Optimization Techniques
Power consumption optimization techniques encompass firmware, hardware, and layout synergies. Dynamic voltage and frequency scaling adjusts MCU speed to task demands, slashing active power. Gated clocks disable unused domains, while peripheral power gating isolates standby blocks. Firmware schedulers batch sensor reads and transmissions to minimize radio-on time, the largest consumer.
Hardware techniques favor passive components like high-value resistors for pull-ups to cut bias currents. Stacked die packages reduce interconnect parasitics in dense designs. Layout symmetry in power planes equalizes drops across multi-layer boards. Event-based interrupts replace polling, preserving sleep states longer. Profiling tools quantify contributions, iterating designs toward sub-microwatt averages.
Advanced Strategies and Troubleshooting
In multi-sensor networks, mesh topologies distribute power loads, with battery-equipped gateways charging edge nodes inductively. Over-the-air firmware updates refine power profiles post-deployment based on field data. Troubleshooting high consumption starts with scope captures of current waveforms, isolating spikes from wake-ups or EMI-induced resets. Thermal imaging reveals hot spots from inefficient switching.
Common pitfalls include overlooking reverse leakage in diodes or mismatched harvester impedances. Validation per IPC-A-600K acceptability criteria verifies solder joints under vibration. Simulations predict battery life using real duty cycles, correlating with accelerated aging tests.
Conclusion
Optimizing battery life in precision agriculture PCBs demands a holistic approach integrating low-power design, efficient DC-DC converters, energy harvesting, and robust battery management. Electric engineers can achieve multi-year autonomy by applying these strategies systematically, from component selection to firmware tuning. Compliance with key standards ensures field reliability amid agricultural rigors. As sensor networks expand, these techniques will drive more sustainable and data-rich farming practices, minimizing environmental impact through reduced maintenance.
FAQs
Q1: What are the primary low-power PCB design techniques for remote agricultural sensors?
A1: Low-power PCB design prioritizes sleep-capable MCUs, low-quiescent regulators, and minimal trace lengths to curb leakage and IR drops. Event-driven firmware batches operations, while multi-layer ground planes shield sensitive nodes. These yield average draws under 10 microwatts, extending battery life. Validation focuses on real-world duty cycles for accuracy.
Q2: How do efficient DC-DC converters for agriculture improve sensor performance?
A2: Efficient DC-DC converters for agriculture use synchronous bucks with burst modes, achieving over 90% efficiency at light loads common in sensors. They handle 2–5V battery swings cleanly, powering mixed signals without ripple issues. EMI mitigation via spread spectrum prevents wireless interference. Pairing with power path ICs enables harvesting integration seamlessly.
Q3: What role does energy harvesting play in battery management systems for remote sensors?
A3: Energy harvesting for PCBs captures solar or vibrational energy, feeding battery management systems for remote sensors via MPPT circuits and buffers. It offsets discharge during peaks, extending primary cell life by 2–3× in sunny fields. Supercapacitors smooth intermittency, while protection prevents overcharge. Firmware prioritizes sources dynamically.
Q4: Which power consumption optimization techniques offer the best ROI for agriculture PCBs?
A4: Power consumption optimization techniques like DVFS, power gating, and radio duty cycling deliver high ROI by targeting major drains. Hardware profiling quantifies gains, often halving total power. Layout refinements add marginal wins cost-effectively. Field testing refines implementations for site-specific conditions.
References
IPC-6012E — Qualification and Performance Specification for Rigid Printed Boards. IPC, 2017
JEDEC J-STD-020E — Moisture/Reflow Sensitivity Classification. JEDEC, 2014
J-STD-001ES — Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2019
IPC-A-600K — Acceptability of Printed Boards. IPC, 2020
