Introduction
Analog circuit design forms the backbone of many electronic systems where precise signal processing is essential. In PCB layout, the physical arrangement of components and traces directly influences the performance of these circuits by minimizing noise and maintaining signal integrity. Engineers must consider factors like grounding schemes, power supply decoupling, and trace routing to ensure reliable operation. This comprehensive guide explores analog circuit design essentials tailored for PCB implementation, focusing on key building blocks such as op-amp circuits, filter design, amplifier design, and signal conditioning. By adhering to structured layout practices, designers can optimize analog building blocks for real-world applications. Understanding these principles helps electric engineers achieve high-fidelity performance in mixed-signal boards.
Why Analog Circuit Design Matters in PCB Layout
Analog circuits process continuous signals, making them susceptible to interference from electromagnetic coupling, thermal noise, and power supply variations. Unlike digital circuits, which tolerate some distortion due to regeneration, analog signals degrade cumulatively, demanding meticulous PCB layout. Poor layout can introduce crosstalk between traces or ground bounce, degrading metrics like signal-to-noise ratio and common-mode rejection. In applications such as audio processing or sensor interfaces, these issues manifest as distortion or inaccurate measurements. PCB layout thus bridges schematic intent with physical realization, ensuring analog circuit design translates to functional hardware. Electric engineers prioritize layout early to avoid costly respins.
The relevance extends to mixed-signal systems where analog and digital domains coexist. Digital switching noise can couple into sensitive analog paths, necessitating isolation strategies. Compliance with standards like IPC-2221C for trace spacing and clearances supports robust design. Effective layout preserves bandwidth and dynamic range, critical for high-performance systems. Ultimately, thoughtful PCB implementation elevates analog circuit design from theory to reliable practice.
Fundamental Analog Building Blocks in PCB Context
Analog building blocks include operational amplifiers, filters, amplifiers, and signal conditioning stages, each requiring specific layout considerations. Op-amp circuits, for instance, demand balanced routing for inverting and non-inverting inputs to minimize offset voltages. Filter design involves careful capacitor and inductor placement to avoid parasitic effects that shift cutoff frequencies. Amplifier design focuses on feedback loop stability, where trace inductance can cause oscillations. Signal conditioning circuits preprocess raw inputs, relying on low-noise paths for accuracy. These blocks form the core of analog circuit design, and their PCB realization dictates overall system fidelity.
When integrating these blocks, engineers evaluate interactions like power supply rejection ratio (PSRR) degradation from shared rails. Decoupling capacitors placed close to each block suppress ripple, a standard practice in layout. Component selection influences footprint density, guided by land pattern standards such as IPC-7351B. Symmetrical layouts reduce differential-mode noise in differential amplifiers. By structuring the board around these blocks, designers create modular, maintainable analog sections. This approach aligns schematic functionality with manufacturable PCB geometry.
Op-Amp Circuits: Layout Essentials

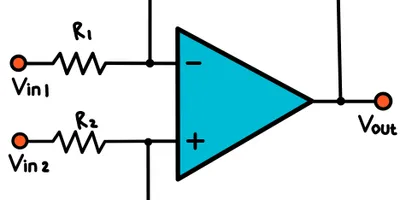

Op-amp circuits excel in amplification, integration, and comparison tasks within analog circuit design. In PCB layout, inputs must route with equal lengths and minimal vias to preserve common-mode rejection. Guard rings around high-impedance nodes shield against leakage currents, especially in precision applications. Power pins require bypass capacitors within millimeters to maintain stability under load. Feedback resistors demand low-temperature-coefficient materials, positioned to avoid thermal gradients from nearby power devices. These practices ensure op-amp circuits perform as simulated.
Layout symmetry extends to output traces, preventing slew-rate asymmetry from unequal impedances. Star grounding connects analog grounds at a single point, avoiding loops that induce noise. For dual-supply op-amps, separate positive and negative rails with dedicated decoupling prevent cross-talk. Engineers simulate parasitics post-layout to verify bandwidth. Proper implementation makes op-amp circuits versatile building blocks in complex systems.
Filter Design Considerations for PCBs
Filter design in analog circuit design shapes frequency responses for noise rejection or band selection. Active filters using op-amps require component values tuned for Q-factor stability, with capacitors near the op-amp to reduce lead inductance. PCB traces acting as unintended inductors can detune RC or RLC networks, altering roll-off characteristics. Layout separates filter sections from high-speed digital lines to curb capacitive coupling. Ground planes under filters provide return paths, minimizing inductive pickup. These steps maintain filter design integrity on the board.
Passive filters benefit from short, wide traces for inductors to lower resistance. In multi-stage filters, isolate stages with shielding vias to prevent inter-stage crosstalk. Engineers consider PCB material dielectric constant, as it affects distributed capacitance in high-frequency filters. Testing prototypes verifies passband flatness post-layout. Robust filter design enhances signal conditioning in noisy environments.
Amplifier Design Best Practices
Amplifier design amplifies weak signals while controlling gain and linearity in analog circuit design. Non-inverting amplifiers need feedback networks routed away from input signals to avoid phase shifts. Current-feedback amplifiers prioritize short feedback paths for speed. Thermal management prevents gain drift, achieved by spacing heat-generating components. Decoupling at multiple frequencies stabilizes supply rejection. These techniques ensure amplifier design delivers consistent performance.
In PCB layout, differential amplifiers use twisted-pair routing or guarded traces for balance. Power amplifiers require thermal vias under output transistors. Engineers apply symmetry to minimize even-order harmonics. Bandwidth limits from trace capacitance guide routing topology. Effective amplifier design supports diverse analog building blocks.
Signal Conditioning Techniques in Layout
Signal conditioning prepares sensors or transducers for analog-to-digital conversion, involving attenuation, amplification, and filtering. Layout positions conditioning circuits near inputs to reduce noise pickup over long traces. Anti-aliasing filters precede ADCs, with analog sections isolated from digital outputs. Kelvin connections for low-level signals preserve accuracy. Buffers isolate sources, placed with minimal loop area. These methods optimize signal conditioning for precision.
Multi-channel conditioning uses common-mode chokes on inputs. Ground referencing ties shields strategically. Engineers verify CMRR through layout simulations. Proper techniques elevate signal conditioning reliability.
PCB Layout Guidelines for Analog Circuits
Partitioning divides the board into analog and digital zones, with split ground planes joined at a single point. Analog grounds remain solid to low impedance, while digital grounds handle return currents separately. Power planes dedicate sections for analog rails, bypassed locally. Routing prioritizes analog signals first, using orthogonal directions to digital traces. Vias in analog paths are minimized, with stitching for ground returns. IPC-2221C guidelines for clearances prevent arcing in high-gain stages.
Decoupling capacitors employ 0.1 μF ceramics close to pins, paralleled with larger electrolytics for low frequencies. Trace widths match current needs without excess inductance. Shielding cans or fences isolate sensitive nodes. Symmetrical pin escapes for ICs reduce stub effects. These guidelines form the foundation of analog circuit design success.
Component placement groups analog blocks, minimizing trace lengths. Op-amps near filters reduce inter-stage noise. Thermal reliefs on pads aid soldering per IPC J-STD-001J criteria. Review for manufacturability avoids acute angles. Final DRC checks enforce rules.
Common Pitfalls and Troubleshooting
Ground loops from improper tying cause hum in audio circuits; resolve with single-point connections. Crosstalk appears as feedthrough; shorten parallels or add guards. Instability from poor decoupling manifests as ringing; add capacitors iteratively. Parasitic oscillations in amplifiers stem from feedback inductance; reroute shorter. Offset drifts trace to thermocouple effects; separate resistors thermally. Systematic troubleshooting restores performance.
Layout reviews catch violations early. Simulations with extracted parasitics predict issues. Prototyping with scopes confirms fixes. Learning from pitfalls refines analog circuit design expertise.
Conclusion
Mastering analog circuit design for PCB layout demands attention to partitioning, grounding, and routing. Key elements like op-amp circuits, filter design, amplifier design, signal conditioning, and analog building blocks thrive under disciplined practices. Standards such as IPC-2221C, IPC-7351B, and IPC J-STD-001J provide frameworks for reliability. Engineers who integrate these principles deliver noise-immune, high-fidelity boards. Continuous refinement through testing ensures evolving performance. This guide equips electric engineers for superior analog implementations.
FAQs
Q1: What role do ground planes play in analog circuit design for PCB layout?
A1: Ground planes offer low-impedance return paths essential for analog circuit design, reducing inductive noise in op-amp circuits and filter design. Splitting planes between analog and digital sections prevents digital switching from corrupting analog signals. Stitching vias maintain continuity while allowing isolation. Proper implementation boosts PSRR and CMRR, critical for precision. Engineers verify plane integrity in layout reviews.
Q2: How does decoupling impact amplifier design on PCBs?
A2: Decoupling capacitors in amplifier design suppress supply ripple, preserving linearity and stability in analog building blocks. Place 0.1 μF units within 5 mm of power pins, combined with bulk capacitance. This counters high-frequency noise from switching regulators. Layout symmetry ensures even distribution. Testing under load confirms effectiveness, avoiding oscillations.
Q3: Why is trace routing critical in filter design?
A3: Trace routing in filter design minimizes parasitics that shift cutoff frequencies and Q-factors in analog circuit design. Keep analog traces short, away from digital lines, using ground shielding. Orthogonal routing reduces coupling. Follow IPC-2221C for spacings to prevent crosstalk. Simulations validate post-layout response.
Q4: What are best practices for signal conditioning PCB layout?
A4: Signal conditioning layouts position circuits near inputs, using buffers and guards for low-noise paths in analog circuit design. Isolate from digital domains with partitions. Kelvin sensing maintains accuracy. Decoupling and symmetry enhance CMRR. Prototype testing refines for application-specific needs.
