Introduction
Industrial sensors play a critical role in modern printed circuit boards designed for harsh environments, such as manufacturing plants, automotive systems, and process control equipment. Selecting the appropriate industrial sensors ensures reliable data acquisition for parameters like temperature, pressure, humidity, acceleration, and gas concentration. Engineers must balance performance, compatibility with PCB assembly processes, and long-term durability when integrating these components. This guide provides practical insights into evaluating temperature sensors, pressure sensors, humidity sensors, accelerometers, and gas sensors for PCB applications. By focusing on key technical criteria and integration strategies, designers can avoid common pitfalls and achieve robust system performance. Understanding these elements helps in creating PCBs that meet demanding industrial requirements without compromising functionality.
Why Industrial Sensors Matter in PCB Integration
Industrial sensors enable real-time monitoring essential for predictive maintenance and process optimization in automated systems. In PCB designs, these sensors must endure vibration, thermal cycling, and exposure to contaminants while maintaining accuracy. Poor selection can lead to signal drift, false readings, or outright failure during operation, resulting in costly downtime. For electric engineers, the challenge lies in matching sensor capabilities to the PCB's electrical and mechanical constraints. Temperature sensors track heat buildup to prevent overheating, pressure sensors monitor fluid dynamics in pneumatic controls, and humidity sensors detect moisture ingress that could degrade assemblies. Accelerometers and gas sensors further support motion detection and safety compliance in dynamic environments.
The integration of industrial sensors directly impacts overall system reliability, especially in compliance with assembly standards. Engineers prioritize sensors that align with surface-mount technology processes to minimize defects. This selection process influences power budgets, board space utilization, and signal integrity. Ultimately, well-chosen sensors contribute to PCBs that perform consistently under stress, supporting applications from robotics to environmental monitoring.

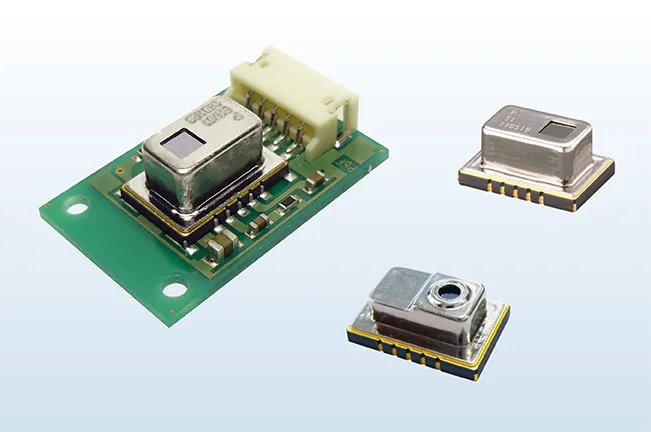

Key Types of Industrial Sensors for PCB Use
Temperature Sensors
Temperature sensors convert thermal energy into electrical signals, making them fundamental for thermal management on PCBs. Common types include resistance temperature detectors, thermistors, and integrated circuit-based sensors suited for surface-mount assembly. These sensors offer varying accuracy levels and response times, with many designed for operating ranges from -40°C to 125°C or higher. Engineers select them based on linearity, sensitivity, and noise immunity in noisy industrial settings. For PCB integration, digital output variants with I2C or SPI interfaces simplify microcontroller connectivity. Placement near heat sources requires consideration of self-heating effects to ensure precise measurements.
Pressure Sensors
Pressure sensors detect force per unit area, often using piezoresistive or capacitive transduction principles ideal for compact PCB footprints. They excel in applications like hydraulic monitoring or altitude compensation, with gauge, absolute, or differential configurations available. Response times in milliseconds support dynamic pressure changes in industrial machinery. Electrical outputs range from analog voltage to digital protocols, allowing flexible integration. Board-level mounting demands attention to media compatibility, as some sensors handle corrosive gases or liquids. Calibration stability over temperature variations proves crucial for long-term accuracy.
Humidity Sensors
Humidity sensors measure relative humidity through capacitive or resistive changes in hygroscopic materials, vital for preventing condensation-related failures in PCBs. Capacitive types dominate due to low power and fast response, typically covering 0% to 100% RH ranges. They often pair with temperature sensing for dew point calculations in climate control systems. Integration challenges include protecting the sensing element from dust and chemicals common in industrial atmospheres. Digital interfaces reduce wiring complexity and improve noise rejection. Engineers verify hysteresis and long-term drift specifications to maintain reliability.

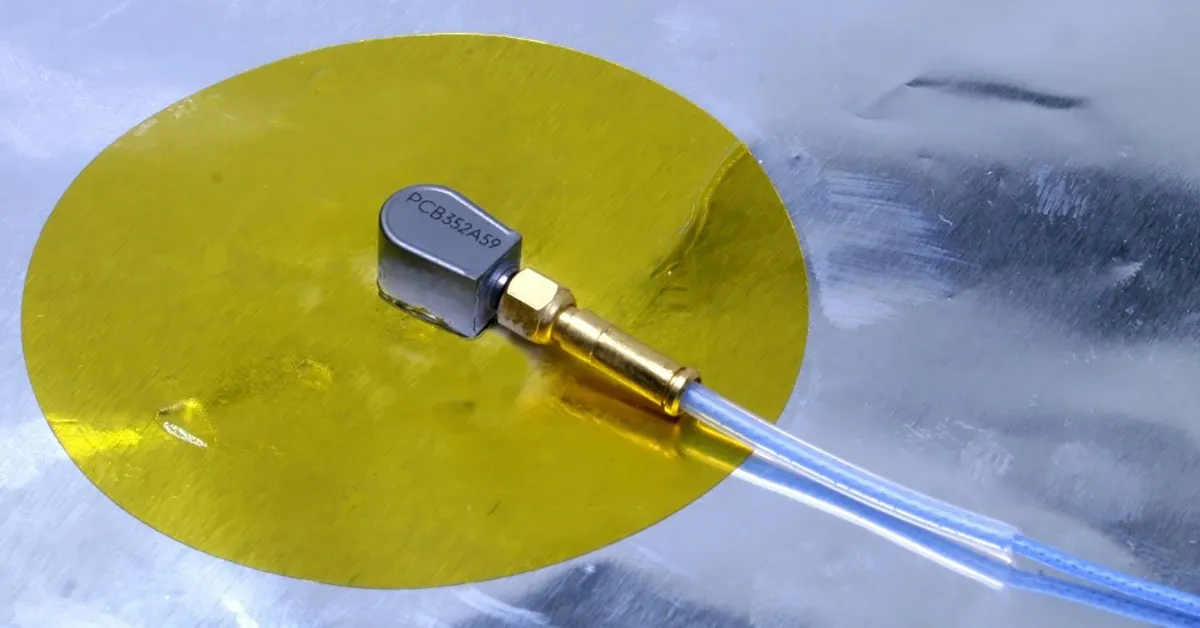

Accelerometers
Accelerometers quantify acceleration via MEMS structures that deform under inertial forces, enabling vibration analysis and tilt sensing on PCBs. Three-axis models provide comprehensive motion data for predictive maintenance in rotating equipment. Sensitivity ranges from micro-g to g levels, with bandwidths up to several kHz for high-frequency events. Low-power modes suit battery-operated industrial nodes. Mechanical shock resistance ensures survival during handling and operation. Output formats like PWM or serial bus facilitate easy PCB routing.
Gas Sensors
Gas sensors detect specific gases through electrochemical, metal oxide semiconductor, or infrared mechanisms, critical for safety in confined industrial spaces. Electrochemical cells offer high selectivity for toxic gases like CO or H2S, while MOS types suit broad VOC detection. Response times vary from seconds to minutes, influencing alarm system design. Power consumption and baseline drift require periodic calibration strategies. PCB integration favors miniaturized modules with UART outputs for remote monitoring. Environmental sealing prevents cross-sensitivity from humidity or temperature shifts.
Essential Selection Criteria for Industrial Sensors
When choosing industrial sensors, engineers start with environmental specifications to match the PCB's deployment conditions. Operating temperature extremes, humidity tolerance, and IP ratings guide initial filtering. Mechanical aspects like package size, from 0603 to larger QFN, dictate board real estate and routing density. Vibration and shock ratings, often per IEC standards, prevent delamination during transport or use.
Electrical characteristics demand scrutiny next. Supply voltage compatibility with PCB rails, typically 3.3V or 5V, avoids level shifters. Current draw influences power plane design, especially for multiple sensors. Interface selection balances simplicity of analog pins against the precision of digital buses like I2C, which support multi-device addressing but risk bus capacitance issues.
Accuracy, resolution, and repeatability form the performance core. Datasheets specify these under nominal conditions, but engineers derate for aging and interference. Reflow soldering compatibility requires checking moisture sensitivity levels to avoid popcorning. Footprint standardization per IPC guidelines streamlines layout.
Longevity and cost-effectiveness close the evaluation. Mean time between failures data, derived from accelerated life tests, predicts field performance. Total cost includes not just unit price but assembly yield impacts from handling sensitivity.
Best Practices for PCB Integration
Begin integration by verifying sensor datasheets against PCB process parameters, particularly peak reflow temperatures. Surface-mount sensors must comply with soldering requirements outlined in J-STD-001 to ensure void-free joints. Pre-bake components if needed to remove absorbed moisture before placement.
Layout strategies optimize performance. Isolate sensitive analog sensors from digital noise sources using ground planes and guards. Thermal vias dissipate heat from power-hungry types like gas sensors. For accelerometers, minimize board flex with stiffeners to preserve zero-g levels.
Post-assembly validation involves functional testing under simulated conditions. Thermal cycling chambers replicate industrial stresses, checking for hysteresis. Signal integrity probes confirm output fidelity across frequencies.
Firmware calibration routines compensate for offsets and gains observed during bench testing. Over-the-air updates allow field adjustments for drift. Documentation of selection rationale aids future revisions.
Troubleshooting Common Integration Issues
Sensor drift often stems from improper storage, leading to moisture ingress; always follow manufacturer handling protocols. If temperature sensors read erroneously high, inspect for solder bridges shorting outputs or self-heating from nearby resistors. Pressure sensor offsets shift post-reflow due to package stress; anneal boards if specified.
Humidity sensors fail from contamination; use conformal coatings selectively, avoiding the sensing area. Accelerometers exhibit noise spikes from PCB resonances; modal analysis identifies fix points. Gas sensors baseline wander requires periodic zeroing algorithms.
Assembly defects show in IPC-A-610 criteria inspections, like lifted pads under heavy sensors. Vibration failures trace to inadequate adhesive or underfill. JEDEC J-STD-020 classification guides MSL handling to prevent voids.
System-level issues arise from I2C address conflicts; scan buses pre-shipment. Power supply ripple affects all types; add local decoupling capacitors per datasheet.
Conclusion
Selecting industrial sensors for PCB integration demands a methodical approach balancing technical specs, process compatibility, and application needs. Temperature sensors, pressure sensors, humidity sensors, accelerometers, and gas sensors each present unique integration hurdles resolvable through standards adherence and best practices. Engineers achieve reliable designs by prioritizing environmental robustness, precise electrical matching, and thorough validation. This guide equips teams to make informed choices, enhancing PCB performance in industrial settings. Future advancements in MEMS and wireless interfaces will further simplify selections, but core principles remain timeless.
FAQs
Q1: What factors determine the best temperature sensors for industrial PCB applications?
A1: Temperature sensors for PCBs should prioritize wide operating ranges, low self-heating, and digital interfaces like I2C for noise immunity. Reflow compatibility and thermal response time suit high-volume assembly. Select based on accuracy needs, such as 0.5°C for precision monitoring. Integration with existing power rails simplifies design. Always verify against assembly processes for reliability.
Q2: How do pressure sensors integrate reliably on PCBs in harsh environments?
A2: Pressure sensors require media-compatible ports and vibration damping for PCB mounting. Use differential types for dynamic measurements in industrial controls. Analog outputs need filtering circuits to reject noise. Solder joint integrity per soldering standards prevents drift. Test under operational pressures post-assembly to confirm stability.
Q3: Why are accelerometers challenging to integrate on industrial PCBs?
A3: Accelerometers demand rigid mounting to avoid microphonic effects from board flex. MEMS structures sensitize to shock during handling. Bandwidth matching to vibration profiles ensures useful data. Low-g ranges suit condition monitoring. Digital outputs reduce cabling, but address bus loading carefully.
Q4: What considerations apply to gas sensors and humidity sensors on PCBs?
A4: Gas and humidity sensors need protection from contaminants while exposing sensing elements. Electrochemical gas types require venting, balanced with sealing. Capacitive humidity prefers low-power modes. Both benefit from periodic calibration routines. Environmental testing validates cross-sensitivity performance.
References
J-STD-001G — Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2017
IPC-A-610H — Acceptability of Electronic Assemblies. IPC, 2019
JEDEC J-STD-020E — Moisture/Reflow Sensitivity Classification of Nonhermetic Solid State Surface Mount Devices. JEDEC, 2014
