Introduction
In the field of medical electronics, hearing aids demand PCBs that balance extreme miniaturization with unwavering reliability. Customized immersion tin hearing aids multilayer rigid-flex PCBs with impedance control emerge as a premier solution, enabling compact designs that conform to the ear's contours while maintaining signal integrity. PCB factories in China specialize in producing these advanced boards, leveraging precision manufacturing to meet stringent requirements for wearable devices. These PCBs integrate rigid sections for component mounting and flexible regions for dynamic bending, all finished with immersion tin for superior solderability. Impedance control ensures high-frequency signals in audio processing circuits perform without distortion. This article delves into the engineering behind these PCBs, from design principles to factory best practices.
What Is a Customized Immersion Tin Hearing Aids Multilayer Rigid-flex PCB?

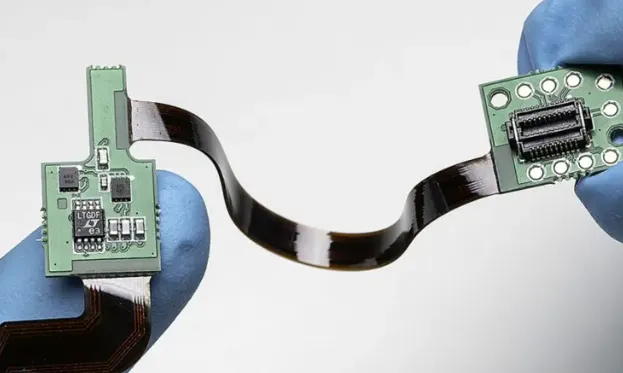

A multilayer rigid-flex PCB combines rigid substrates, typically FR-4, with flexible polyimide layers to create a hybrid structure suitable for space-constrained applications like hearing aids. The multilayer aspect refers to stacking multiple conductive and dielectric layers, often 8 to 14 in hearing aid designs, to support complex circuitry. Immersion tin surface finish deposits a thin, uniform tin layer over exposed copper, providing excellent flatness and solder wettability without the lead issues of HASL. Customization occurs at the PCB factory level, tailoring stackups, trace geometries, and finishes to client specifications. Impedance control is embedded through precise trace widths, spacings, and dielectric thicknesses to match characteristic impedance, typically 50 or 100 ohms for differential pairs in signal lines.
These PCBs matter profoundly in hearing aids because they enable ultra-small form factors, often under 10 mm x 10 mm, while enduring repeated flexing from user insertion and removal. Factory-driven production ensures compliance with medical reliability needs, reducing failure rates in humid, body-warm environments. Without rigid-flex construction, traditional rigid boards would require wiring harnesses, increasing size and assembly complexity. Impedance control prevents signal reflections that could degrade audio quality or digital communications. In essence, these customized boards drive innovation in behind-the-ear and in-the-canal hearing aids.
Technical Principles of Multilayer Rigid-flex Construction
Rigid-flex PCBs rely on a layered stackup where rigid sections use epoxy-based cores and prepregs for structural integrity, while flex areas employ adhesive-bonded polyimide films with copper foils. The transition zones, critical for integrity, incorporate controlled bend radii to avoid stress concentrations during flexing. Multilayer builds alternate signal, ground, and power planes, with vias staggered to minimize impedance discontinuities. In hearing aids, this allows dense integration of amplifiers, processors, and microphones on rigid islands connected by flex tails. Materials must exhibit low CTE mismatch to prevent delamination under thermal cycling.

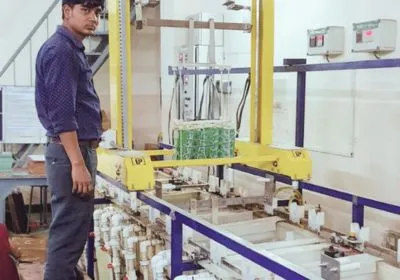

Immersion tin plating follows pattern plating or panel plating, where boards undergo microetching, activation, and immersion in a tin sulfate or stannous chloride bath. This yields 0.8 to 1.2 microns of tin, free of whiskers when alloyed properly, enhancing shelf life up to 12 months. The finish coplanar surface suits fine-pitch components common in hearing aids. Factory processes adhere to IPC-4554 for immersion tin specifications, ensuring void-free deposits and solder joint reliability.
Impedance control in rigid-flex demands stackup modeling, accounting for differing dielectric constants: FR-4 at around 4.0-4.5 and polyimide at 3.2-3.5. Microstrip traces on outer layers or striplines between planes require field solver calculations for width adjustments. Transitions from rigid to flex alter reference plane continuity, so blind or buried vias maintain return paths. Factories verify via time-domain reflectometry (TDR), targeting ±10% tolerance. IPC-6013 outlines qualification for flexible and rigid-flex boards, emphasizing electrical performance under flexure.
Manufacturing Best Practices in a PCB Factory
Producing customized immersion tin hearing aids multilayer rigid-flex PCBs starts with design review for manufacturability, focusing on bend allowances and via-in-pad restrictions. Factories employ sequential lamination, building rigid sections first, then laminating flex layers with coverlays. Laser drilling ensures microvias under 0.15 mm for high-density interconnects. After multilayer pressing, plasma cleaning prepares surfaces for immersion tin, minimizing oxidation.

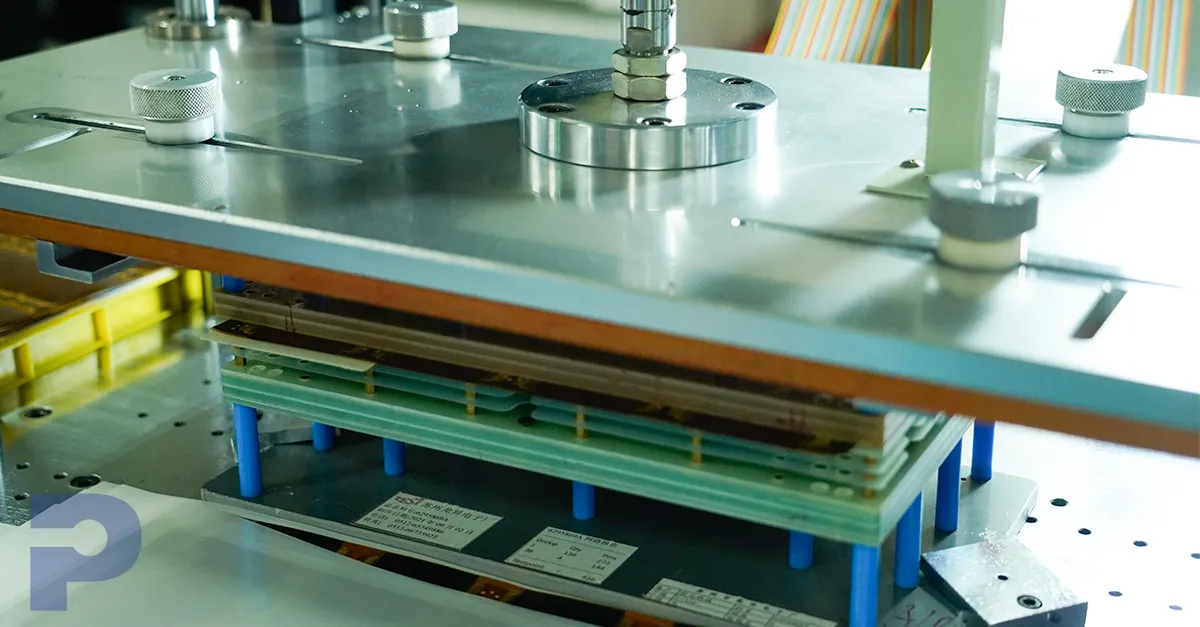

Quality control integrates IPC-2223 guidelines for rigid-flex design, verifying coverlay adhesion and flex endurance through cyclic bending tests. Impedance coupons on panels undergo TDR and vector network analysis (VNA) post-plating to confirm specs before routing. Solder mask registration tolerances tighten to 50 microns for fine features. Factories implement flying probe testing for opens/shorts, followed by automated optical inspection (AOI) for tin uniformity.
Environmental controls in the cleanroom prevent contamination, crucial for medical-grade boards. Post-fabrication, boards receive polyimide stiffeners on rigid areas for handling. Traceability via MES systems logs each step, supporting ISO 9001 quality management. These practices yield yields over 95% for complex builds.
Challenges and Troubleshooting in Impedance Control
Impedance variations arise at rigid-flex interfaces due to dielectric thickness inconsistencies or air gaps in lamination. Engineers mitigate by specifying uniform prepreg flow and void-free bonding via vacuum pressing. Vias in high-speed lines introduce stubs; back-drilling or filled vias per IPC-6013 resolve this. Flex regions demand wider traces to compensate for polyimide's lower Dk, ensuring matched impedance across zones.
Common issues include tin whisker growth, addressed by process optimization under IPC-4554, and warpage from asymmetric stackups. Factories use symmetric builds or carrier panels during processing. Signal crosstalk in dense audio circuits requires ground plane stitching and guard traces. Troubleshooting involves cross-section analysis for layer alignment and thermal shock testing for reliability.
In hearing aids, humidity accelerates tin-copper diffusion; baking stabilizes boards pre-assembly. Factories provide design files with stackup drawings and impedance reports for validation.
Applications and Factory Insights for Hearing Aids
Hearing aids leverage these PCBs for integrating DSP chips, batteries, and telecoils in receiver-in-canal (RIC) models. The rigid-flex form folds to fit ear canals, with immersion tin enabling reliable soldering of 01005 passives. Impedance control supports Bluetooth low-energy signals without attenuation. Chinese PCB factories excel in low-volume, high-mix production, prototyping in days via rapid tooling.
A typical build might feature 12 layers: 6 rigid, 6 flex, with 100-ohm differential pairs for I2S audio buses. Factory scaling from prototype to volume uses panelization for efficiency. Long-term reliability stems from adherence to standards, ensuring 10+ year lifecycles.
Conclusion
Customized immersion tin hearing aids multilayer rigid-flex PCBs with impedance control represent the pinnacle of compact, reliable electronics manufacturing. PCB factories deliver these through precise stackup engineering, advanced plating, and rigorous testing aligned with industry standards. Designers benefit from enhanced signal integrity and mechanical durability, vital for hearing aid performance. By prioritizing impedance control and quality finishes, these boards advance medical wearables. Partnering with experienced factories ensures tailored solutions that meet exacting demands.
FAQs
Q1: What advantages does immersion tin provide for customized immersion tin hearing aids multilayer rigid-flex PCBs?
A1: Immersion tin offers flat, lead-free surfaces ideal for fine-pitch soldering in compact hearing aids. It resists oxidation better than bare copper, extending usability in humid environments. Factories apply it per established specifications for uniform thickness, enhancing joint reliability without HASL's coplanarity issues. This finish suits high-volume assembly lines.
Q2: How do PCB factories achieve impedance control in multilayer rigid-flex PCBs?
A2: Factories model stackups using field solvers to set trace dimensions for target impedances, accounting for rigid-flex material differences. Production includes impedance test coupons verified by TDR on every panel. Adjustments during lamination ensure dielectric uniformity. This process maintains tolerances critical for hearing aid signal paths.
Q3: Why choose rigid-flex over pure flexible PCBs for hearing aids?
A3: Rigid-flex provides mounting stability for components like processors while allowing flex tails for conformity. It supports multilayer density without wire bonds, reducing failure points. Impedance control is more predictable with rigid reference planes. Factories produce them reliably for medical durability.
Q4: What standards guide quality in these customized PCBs?
A4: Key standards include those for flexible boards, immersion finishes, and design rules. They dictate performance under flexure, plating thickness, and electrical tests. Factories align processes to these for consistent output.
References
IPC-4554 - Specification for Immersion Tin Plating for Printed Circuit Boards. IPC
IPC-6013DS - Qualification and Performance Specification for Flexible and Rigid-Flexible Printed Boards. IPC
IPC-2223 - Sectional Design Standard for Flexible/Rigid-Flexible Printed Boards. IPC
