Introduction
Railway signaling systems depend on printed circuit boards (PCBs) engineered for exceptional durability, often required to function without failure for 30 to 40 years in demanding operational conditions. Component obsolescence disrupts this reliability, as many electronic parts enter end-of-life status after just 5 to 10 years of production. In railway applications, where safety is paramount and system downtime can have severe consequences, proactive strategies for long-life PCBs become critical. Effective parts management and lifecycle planning mitigate these risks by anticipating shortages and enabling seamless replacements. This article outlines structured approaches to design railway signaling PCBs that withstand obsolescence while maintaining performance standards.
What Is Component Obsolescence and Why It Matters for Railway Signaling
Component obsolescence occurs when a manufacturer announces the discontinuation of a part, transitioning it through phases like active production, not recommended for new designs (NRND), and fully obsolete. In railway signaling, this creates vulnerabilities because PCBs integrate thousands of components, including semiconductors, passives, and connectors, each with lifecycles mismatched to the 20 to 40-year asset expectations of rail infrastructure. The mismatch arises from rapid technological advancements in consumer electronics, contrasting with the conservative evolution in safety-critical sectors. Downtime from unavailable parts leads to costly redesigns, requalifications, and potential safety risks in signaling systems that control train movements and prevent collisions. Moreover, regulatory compliance demands unbroken availability, amplifying the need for robust lifecycle planning.
Key Challenges in Designing Long-Life PCBs for Railway Applications

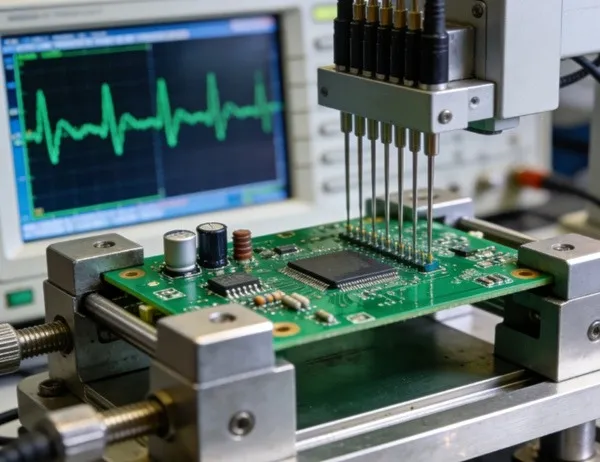

Railway signaling PCBs face extreme environmental stresses, including continuous vibration, thermal cycling from -40°C to +85°C, shock, and electromagnetic interference, which accelerate wear on components. Obsolescence compounds these issues, as replacement parts must match exact form, fit, and function without compromising system integrity. Long product lifecycles demand foresight, yet supply chains prioritize short-term volume over sustained support for niche high-reliability needs. Traditional reactive fixes, like last-minute sourcing, often fail due to counterfeit risks and validation delays. Addressing these requires integrating obsolescence considerations from the schematic stage onward.
Technical Principles of Obsolescence in Railway Electronics
Obsolescence stems from economic factors, such as manufacturers phasing out older process nodes for costlier advanced ones, leaving legacy designs stranded. In PCBs, active devices like microcontrollers and FPGAs pose the highest risks due to their rapid iteration cycles, while passives like capacitors offer more stability if selected from mature lines. Signal integrity degradation over time further interacts with aging components, necessitating derated operation to extend mean time between failures (MTBF). Modular architectures decouple subsystems, allowing targeted updates without full board respins. Predictive modeling, such as risk registers tracking part status, enables early intervention.
Practical Strategies for Parts Management and Lifecycle Planning
Begin with requirements-driven component selection, prioritizing parts from multiple manufacturers with proven long-term roadmaps and active support beyond 10 years. Maintain an approved alternates list (A/B/C options) for critical components, ensuring pin-compatible or drop-in equivalents to minimize PCB layout changes. Employ swap-ready footprints, such as dual-pattern pads or mezzanine connectors, to facilitate substitutions during production or field maintenance. Conduct regular BOM clinics with engineering, procurement, and quality teams to review lifecycle shifts, PCN notices, and supply trends. This cross-functional approach embeds obsolescence forecasting into the design workflow.
For high-reliability railway signaling PCBs, qualify boards to IPC Class 3 standards, which specify stringent criteria for conductor spacing, plating thickness, and solder joint integrity to endure mechanical stresses. Derating components to 50-70% of rated values for voltage, current, and temperature enhances longevity, aligning with reliability predictions. Incorporate redundancy in power supplies and critical signal paths to buffer against single-point failures from obsolete parts.

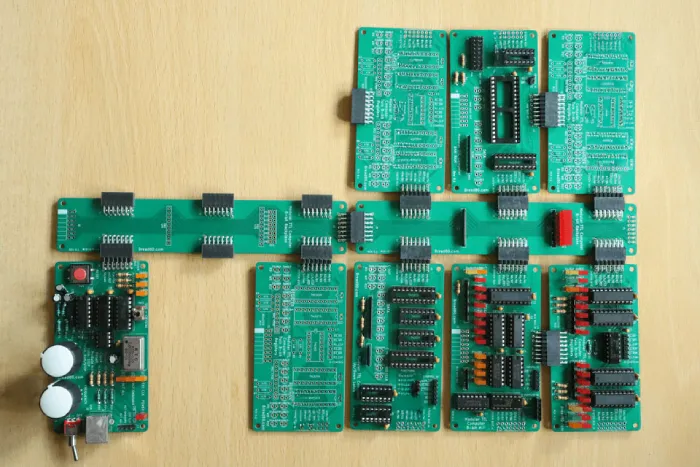

Lifecycle planning involves categorizing components by risk: high-risk items trigger lifetime buys or redesigns early, medium-risk monitored quarterly, and low-risk handled reactively. Modular design at the board level allows replacement of sub-assemblies, such as upgrading communication modules without altering the core signaling logic. Strategic stocking in controlled environments preserves parts for decades, while second-source qualification ensures supply continuity. IEC 61508 guidelines for functional safety further guide these efforts by emphasizing lifecycle management from concept to decommissioning in safety-related electronics.
Advanced Mitigation Techniques and Best Practices
Proactive monitoring of global databases for EOL announcements prevents surprises, with automated alerts integrated into design tools. Flexible PCB architectures, using standardized interfaces, support emulation or hybrid solutions where direct replacements are unavailable. Field data from warranty returns refines selection criteria, favoring series with low failure rates in vibration-heavy applications. For railway signaling, FMEA analysis per relevant standards identifies obsolescence-vulnerable nodes early. These practices reduce redesign frequency by up to 80% in long-life systems, based on industry patterns.
In practice, design teams perform periodic reviews every six months, updating risk scores with traffic-light indicators: green for stable multi-sourced parts, yellow for narrowing availability, and red for NRND status. This enables timely actions like authorized last-time buys or footprint adaptations. Collaboration with supply chain partners ensures pre-qualified alternates, streamlining qualification under accelerated testing protocols.
Conclusion
Designing railway signaling PCBs for obsolescence demands a holistic approach integrating component selection, modular architectures, and continuous lifecycle planning. By prioritizing mature, multi-sourced parts and adhering to high-reliability standards like IPC Class 3 and IEC 61508, engineers can achieve long-life performance matching infrastructure demands. Parts management evolves from reactive fixes to predictive strategies, safeguarding safety and minimizing costs. Implementing these methods ensures signaling systems remain operational across decades, supporting reliable rail transport.
FAQs
Q1: What is component obsolescence in the context of long-life PCBs for railway applications?
A1: Component obsolescence refers to the discontinuation of electronic parts by manufacturers, creating supply gaps in railway signaling PCBs designed for 30-40 year lifecycles. It affects safety-critical systems where replacements must maintain exact performance under harsh conditions. Effective parts management involves early identification through lifecycle data and selecting mature components with extended support.
Q2: How can lifecycle planning help manage obsolescence in railway signaling electronics?
A2: Lifecycle planning forecasts part EOL using risk registers and regular BOM reviews, enabling lifetime buys or alternates before shortages occur. For railway applications, it incorporates modular designs for sub-board swaps, reducing full redesign needs. This structured approach aligns component availability with 20+ year system requirements, enhancing reliability.
Q3: What role do industry standards play in designing long-life PCBs for railways?
A3: Standards like IPC Class 3 ensure PCB robustness against environmental stresses, while IEC 61508 addresses functional safety across the product lifecycle. They guide derating, qualification, and FMEA to mitigate obsolescence impacts. Compliance facilitates reliable parts management in high-stakes railway signaling.
Q4: What are best practices for parts management in railway PCB design?
A4: Key practices include multi-sourcing critical components, maintaining drop-in alternates, and conducting quarterly obsolescence audits. Flexible footprints and modular layouts support quick adaptations. These steps, combined with controlled stocking, extend PCB usability in long-life railway applications.
