Introduction
Agricultural PCB prototyping plays a crucial role in developing reliable sensors for precision farming. These sensors monitor soil moisture, temperature, humidity, and nutrient levels, enabling data-driven decisions that optimize crop yields and resource use. Electric engineers face unique challenges when prototyping PCBs for such applications, including exposure to harsh outdoor conditions like extreme temperatures, moisture, and dust. This step-by-step guide outlines the process from design to validation, focusing on practical techniques for agricultural PCB prototyping. By following these steps, engineers can achieve quick-turn PCB prototyping cycles while ensuring durability in field deployments. The emphasis here is on balancing performance, cost, and reliability without compromising on industry standards.
Why PCB Prototyping Matters for Agricultural Sensors
Prototyping PCBs for agricultural sensors allows engineers to iterate designs rapidly, addressing real-world issues before full-scale production. In agriculture, sensors must withstand vibration from machinery, corrosive soils, and fluctuating humidity levels that can degrade standard boards. Quick-turn PCB prototyping reduces time-to-market, enabling field tests during growing seasons when data is most valuable. Poorly prototyped boards lead to failures like signal noise from EMI or delamination due to moisture ingress, costing time and resources. Effective prototyping incorporates environmental resilience from the start, aligning with demands for IoT-enabled smart farming. Ultimately, robust prototypes translate to sensors that provide accurate, continuous data for irrigation control and yield prediction.
Key Design Considerations for Agricultural PCB Prototyping

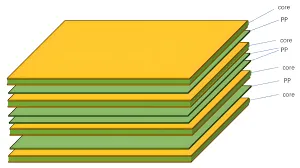

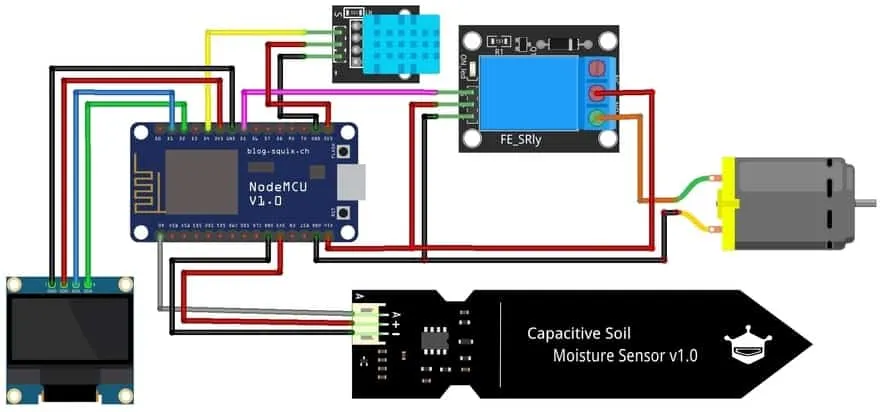

Start with defining sensor requirements, such as analog inputs for soil probes or digital interfaces for wireless modules. Select materials with high glass transition temperature to handle temperature swings from freezing nights to hot days. Incorporate ground planes to minimize noise in sensitive analog signals from humidity or pH sensors. Design for conformal coatings to protect against dust and moisture, ensuring traces and vias remain intact. Layer stackups should prioritize signal integrity, with power and ground planes separated to reduce crosstalk in multi-sensor boards. Always perform a design for manufacturability check to avoid fabrication pitfalls like narrow traces that fail in quick-turn processes.
Engineers must consider power efficiency, as battery-powered sensors in remote fields demand low quiescent current components. Antenna placement for wireless communication requires clear line-of-sight while shielding from soil interference. Enclosure integration influences PCB outline, with mounting holes positioned for vibration resistance. Simulate thermal profiles early to predict hotspots near power regulators. These steps ensure the prototype aligns with agricultural PCB prototyping needs, facilitating seamless transition to production.
PCB Fabrication for Sensors: Materials and Processes
PCB fabrication for sensors begins with selecting substrates suited to environmental stresses, such as FR-4 with enhanced thermal stability. Photolithography defines traces with tight tolerances for fine-pitch sensor footprints. Multi-layer boards enable complex routing for mixed-signal designs common in agriculture. Drilling and plating vias must maintain barrel integrity to prevent failures under mechanical stress. Solder mask application protects copper from oxidation in humid conditions. Final fabrication includes electrical testing to verify continuity before assembly.
For quick-turn PCB prototyping, prioritize processes like laser drilling for high-density interconnects needed in compact sensors. Controlled impedance etching ensures signal quality for data transmission. Bake-out procedures remove moisture prior to lamination, critical for field reliability. Adherence to IPC-6012E standards guarantees qualification for rigid printed boards in demanding applications. Surface finishes like ENIG provide corrosion resistance against fertilizers and soils. These fabrication steps form a solid foundation for durable agricultural sensors.
PCB Assembly for Agriculture: Component Placement and Soldering

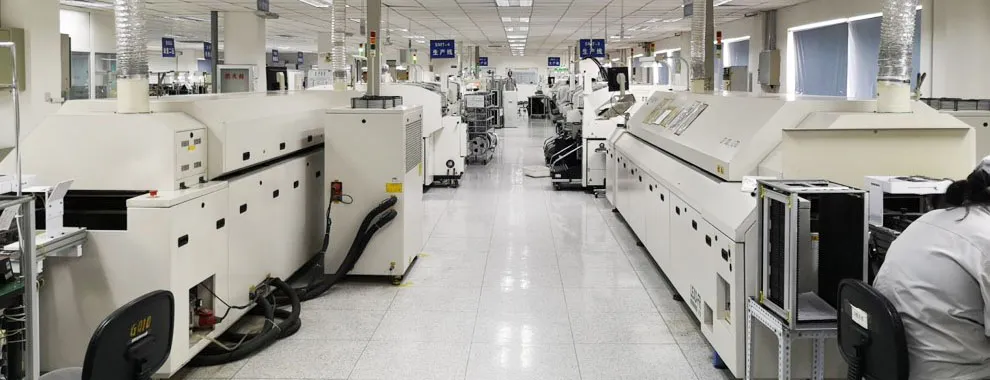

Assembly starts with stencil printing for precise solder paste deposition on sensor pads. Surface-mount technology suits small components like accelerometers and MCUs used in ag sensors. Reflow soldering profiles must account for moisture-sensitive devices, following J-STD-020 guidelines. Pick-and-place machines align components accurately, minimizing offsets that cause open joints. Post-reflow inspection via automated optical systems detects defects early. Wave soldering handles through-hole connectors for rugged mounting.
In agricultural PCB assembly, selective soldering preserves heat-sensitive sensors. Conformal coating application follows cleaning, forming a barrier against contaminants. Potting compounds add mechanical strength for vibration-prone tractor mounts. IPC-A-610 criteria define acceptability, ensuring joints withstand thermal cycling. Functional testing post-assembly verifies sensor outputs under simulated loads. These practices enable reliable PCB assembly for agriculture, ready for environmental exposure.
PCB Testing and Validation: Ensuring Field Reliability
Testing begins with in-circuit verification to check resistor values and short circuits. Functional tests simulate sensor inputs, confirming outputs match specifications. Environmental chambers replicate field conditions, cycling temperatures from -40°C to 85°C. Humidity tests at 85% RH assess coating efficacy against ingress. Vibration tables mimic tractor operation per IEC standards. These validate PCB testing and validation protocols.
Burn-in screening accelerates aging, revealing early failures. X-ray inspection uncovers hidden voids in BGA sensor packages. Signal integrity analysis with oscilloscopes detects noise in data lines. Compliance with IPC standards confirms quality. Iterative fixes based on test data refine prototypes. Comprehensive PCB testing and validation ensures sensors perform in real agricultural settings.
Quick-Turn PCB Prototyping Best Practices
Streamline design reviews with collaborative tools to cut iteration time. Use standard panel sizes for cost-effective quick-turn runs. Specify DFM early to avoid respins from drill breakout or annular ring violations. Partner with fabricators offering 24-48 hour turns for urgent prototypes. Batch testing accelerates validation loops. Document deviations for traceability.
Minimize layer count initially, scaling as needed. Pre-bake panels to prevent popcorning during reflow. Employ flying probe testers for low-volume electrical checks. These tactics optimize quick-turn PCB prototyping for ag sensors.
Troubleshooting Common Issues in Agricultural Prototypes
Warpage from asymmetric copper distribution causes assembly misalignment; balance pours and use constrained cores. Solder joint cracks under vibration stem from inadequate profiles; adjust ramp rates per J-STD-001. Moisture-induced failures trace to poor storage; implement dry packing. EMI pickup in sensors results from unshielded traces; add fences and filters. Delamination appears after humidity exposure; select high-Tg laminates. Systematic root-cause analysis resolves these, enhancing prototype robustness.
Conclusion
PCB prototyping for agricultural sensors demands a methodical approach from design through validation. By prioritizing environmental resilience, standards compliance, and quick-turn efficiency, engineers deliver reliable boards for precision farming. Key steps—fabrication, assembly, and rigorous testing—ensure prototypes withstand field rigors. Implementing best practices accelerates development while minimizing risks. This guide equips electric engineers to innovate in agricultural PCB prototyping effectively.
FAQs
Q1: What materials are best for agricultural PCB prototyping in harsh environments?
A1: For agricultural PCB prototyping, high-Tg FR-4 laminates provide thermal stability against temperature extremes. Conformal coatings like acrylic or silicone protect against moisture and dust. Select ENIG finish for corrosion resistance in soils. These choices align with quick-turn needs while ensuring durability. Always verify compatibility during design.
Q2: How does PCB testing and validation differ for agriculture sensors?
A2: PCB testing and validation for agriculture involves environmental chambers for humidity and thermal cycling, plus vibration tests. Functional checks simulate soil moisture inputs. Adherence to IPC-A-610 ensures joint integrity. These steps confirm reliability beyond standard bench tests. Iterate based on field-like stresses.
Q3: What are quick-turn PCB prototyping tips for sensor integration?
A3: Prioritize DFM checks for fine-pitch sensors in quick-turn PCB prototyping. Use standard stackups to speed fabrication. Test power domains separately for low-power ag designs. Batch small runs for cost efficiency. This approach supports rapid iterations without quality loss.
Q4: Why is conformal coating essential in PCB assembly for agriculture?
A4: Conformal coating in PCB assembly for agriculture shields against humidity, salts, and insects. It prevents dendritic growth on traces. Apply post-cleaning for uniform coverage. Select types matching operating temperatures. This extends sensor life in outdoor deployments.
References
IPC-6012E — Qualification and Performance Specification for Rigid Printed Boards. IPC, 2015
IPC-A-610H — Acceptability of Electronic Assemblies. IPC, 2019
J-STD-020E — Moisture/Reflow Sensitivity Classification for Nonhermetic Surface Mount Devices. JEDEC/IPC, 2014
J-STD-001H — Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2018
