Railway Signaling PCB Troubleshooting: Common Issues and Solutions

Introduction

Railway signaling systems rely on printed circuit boards (PCBs) to process critical data for train control, track monitoring, and safety interlocks. These PCBs operate in harsh environments characterized by constant vibration, temperature fluctuations, electromagnetic interference, and moisture exposure. When faults occur, they can lead to signal disruptions or system failures, compromising passenger safety and causing operational delays. Effective PCB fault finding in these applications demands a systematic approach to identify issues like signal loss, component failure, and thermal management problems. Troubleshooting railway electronics requires engineers to combine visual inspections with advanced diagnostic tools to restore reliability quickly. This article explores common PCB issues in railway signaling and provides practical solutions tailored for electric engineers.

Why Railway Signaling PCBs Demand Rigorous Troubleshooting

Railway signaling PCBs must meet high reliability standards due to their role in fail-safe operations. Vibration from tracks and shocks from train movements accelerate mechanical wear, while power surges and EMI from overhead lines introduce electrical stresses. Poor thermal management exacerbates these challenges, leading to accelerated component degradation. According to industry practices, adhering to standards like IPC-A-610 ensures assembly quality that withstands such conditions. Neglecting PCB fault finding can result in cascading failures, from intermittent signal loss to complete system shutdowns. Engineers must prioritize troubleshooting railway electronics to minimize downtime and uphold safety protocols.

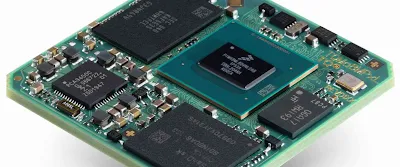

Railway Signaling PCB Assembly

Common Causes of Signal Loss in Railway Signaling PCBs

Signal loss in PCBs manifests as attenuated or distorted waveforms, often disrupting communication between sensors and control units. In railway environments, electromagnetic interference from traction power systems induces noise on traces, causing crosstalk between adjacent signal lines. Vibration loosens connectors or cracks solder joints, creating intermittent open circuits that mimic signal dropouts. Dielectric losses in PCB materials under high frequencies further contribute to attenuation, especially in high-speed data links for track circuits. Poor impedance matching at vias or bends reflects signals back, amplifying the issue. Engineers performing PCB fault finding first check for these symptoms using oscilloscopes to capture eye diagrams and verify signal integrity.

Moisture ingress exacerbates signal loss by promoting corrosion on exposed pads or traces. Harsh outdoor conditions in signaling cabinets accelerate this degradation, leading to increased trace resistance. Thermal expansion mismatches between layers can delaminate inner planes, interrupting ground returns and worsening noise susceptibility. Addressing these requires isolating affected nets through boundary scans or time-domain reflectometry. In practice, signal loss PCB issues often trace back to inadequate shielding during design, making post-assembly fixes challenging but essential.

Component Failure Modes in Railway Signaling PCBs

Component failures dominate PCB issues in railway signaling due to mechanical and thermal stresses. Electrolytic capacitors suffer from vibration-induced electrolyte leakage, resulting in value drift or short circuits over time. Integrated circuits handling signal processing crack under repeated shocks, leading to parametric shifts or total loss of function. Solder joint fatigue from thermal cycling creates high-resistance connections, detectable as voltage drops across pins. Resistors and inductors exposed to humidity develop cracks in terminations, altering circuit performance. Component failure PCB diagnostics start with in-circuit testing to measure parameters against datasheets.

Visual signs like discoloration or bulging on components signal advanced degradation. Railway PCBs often use through-hole parts for robustness, but even these fail if mounting exceeds mechanical limits. Power devices such as transistors overheat from inadequate heatsinking, entering thermal runaway. Engineers isolate suspects by desoldering and bench-testing, confirming failures before replacement. Proactive measures include selecting components rated for extended temperature ranges and vibration profiles.

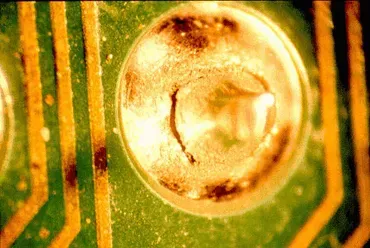

Close-up of cracked solder joints

Thermal Management Challenges in Railway PCBs

Thermal management PCB problems arise from confined enclosures and high power dissipation in signaling logic. Hotspots develop around voltage regulators and power amplifiers, where heat buildup exceeds component ratings. Poor via placement limits heat spreading to inner copper planes, concentrating stress at junctions. In railway applications, ambient temperatures swing widely, amplifying coefficient of thermal expansion mismatches that warp boards or lift pads. Convection cooling proves insufficient in dust-laden cabinets, forcing reliance on conduction paths. Infrared thermography reveals these hotspots during PCB fault finding, guiding targeted improvements.

Dielectric materials with high glass transition temperatures help, but assembly processes must avoid voids under components. Excessive current densities in traces cause electromigration, further degrading thermal performance. Standards like J-STD-001 guide soldering to minimize defects that trap heat. Solutions involve embedding thermal vias arrays and using thicker copper weights for better dissipation. Monitoring junction temperatures prevents premature failures in troubleshooting railway electronics.

Mechanical Stress and Other Faults

Vibration and shock dominate mechanical issues, causing PCB warpage or trace microcracks. Flexible mounting reduces resonance, but rigid boards still suffer delamination at layer interfaces. Corrosion from humidity attacks unprotected finishes, increasing leakage currents. EMI shielding failures allow external noise to corrupt analog signals for position feedback. Dust accumulation clogs vents, compounding thermal woes. Comprehensive PCB fault finding includes X-ray for hidden cracks and environmental stress screening.

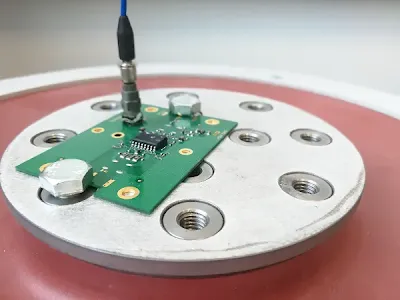

Vibration Test on Railway Signaling PCB

PCB Fault Finding Techniques for Railway Electronics

Systematic troubleshooting railway electronics begins with power-on safety checks using multimeters for shorts or opens. Visual inspections under magnification reveal cold joints, tombstoning, or contamination. Comparing waveforms on suspect boards against golden samples pinpoints signal anomalies. Boundary scan tools interrogate digital chains without disassembly. For analog paths, spectrum analyzers detect EMI signatures. Thermal cameras identify intermittent faults triggered by heat.

Isolate sections by injecting test signals or powering subsections independently. In-circuit emulators debug firmware-related issues mimicking hardware faults. Acoustic microscopy detects voids or delams non-destructively. Document findings in failure modes effects analysis for root cause. These techniques ensure efficient PCB fault finding.

Best Practices and Solutions

Prevent signal loss by routing high-speed traces with controlled impedance and ground stitching vias. Shield sensitive areas with grounded planes and ferrite beads. For component reliability, qualify parts per vibration specs and use conformal coatings against moisture. Thermal management PCB strategies include metal-core substrates and embedded heat pipes for extreme dissipation. Adhere to IPC-6012 for board qualification to withstand railway rigors.

Assembly per IEC 61508 principles enhances functional safety. Replace failed parts with exact matches, reflowing under nitrogen to avoid oxidation. Post-repair, perform burn-in testing to validate fixes. Firmware updates address marginal designs. Regular preventive maintenance extends PCB life in signaling systems.

Conclusion

Troubleshooting railway signaling PCBs demands vigilance against signal loss, component failures, and thermal issues inherent to the environment. PCB fault finding techniques like visual, electrical, and thermal inspections enable rapid diagnosis. Implementing solutions rooted in standards ensures long-term reliability. Electric engineers benefit from structured approaches that prioritize safety and minimize disruptions. Proactive design and maintenance keep systems operational, safeguarding rail networks.

FAQs

Q1: What are the primary steps in PCB fault finding for railway signaling systems?

A1: Start with visual inspection for damage or contamination, followed by power supply verification using a multimeter. Use an oscilloscope to check signal integrity on critical paths and isolate components with in-circuit testing. Thermal imaging helps detect heat-related faults. This methodical PCB fault finding process identifies issues efficiently without unnecessary disassembly.

Q2: How do you address signal loss PCB problems in troubleshooting railway electronics?

A2: Examine traces for damage or poor soldering, then measure impedance mismatches with a TDR. Mitigate EMI by adding shielding and decoupling capacitors. Verify connector seating, as vibration often loosens them. Retest signals post-fix to confirm integrity in signal loss PCB scenarios.

Q3: What causes component failure PCB in harsh railway environments?

A3: Vibration fatigues solder joints, while thermal cycling stresses semiconductors. Humidity corrodes leads, and EMI spikes overload devices. Select ruggedized parts and apply conformal coating to prevent recurrence during component failure PCB investigations.

Q4: Why is thermal management PCB critical in railway signaling?

A4: Overheating accelerates degradation in confined, high-vibration setups. Effective strategies like thermal vias and heatsinks maintain junction temperatures, preventing failures. Regular thermography during troubleshooting railway electronics ensures optimal performance.
