Introduction

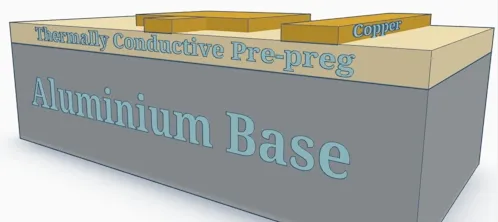

Aluminum printed circuit boards, also known as metal core PCBs, play a vital role in high-power applications such as LED lighting, power supplies, and automotive electronics. These boards feature an aluminum base for superior thermal dissipation, a thin dielectric layer, copper traces, and a solder mask overlay. Selecting the right silkscreen color on aluminum PCB becomes crucial because the legend layer must withstand elevated operating temperatures and mechanical stresses unique to these substrates. Poor choices can lead to readability issues during assembly or failure in harsh environments. This article explores aluminum PCB silkscreen color options, focusing on contrast, durability, and adhesion. Engineers benefit from understanding these factors to ensure reliable performance aligned with manufacturing realities.
Silkscreen provides essential markings like component identifiers, polarity symbols, and revision numbers. On aluminum boards, the white solder mask commonly used for light reflection in LED applications demands specific color strategies. Traditional FR4 boards differ due to aluminum's high coefficient of thermal expansion and heat conductivity, influencing ink stability. Factory processes emphasize inks that cure effectively without cracking under thermal cycling. By prioritizing contrast and robustness, designers avoid costly rework. This unique approach optimizes silkscreen for aluminum's demanding conditions.
What Is Silkscreen on Aluminum PCBs and Why It Matters
Silkscreen refers to the printed ink layer applied atop the solder mask, conveying critical information for board identification and assembly guidance. On aluminum PCBs, it uses specialized non-conductive inks formulated for polymer surfaces. The process involves screen printing or liquid photoimaging, followed by curing to bond the ink permanently. Colors range from standard white and black to yellow, each serving visibility needs.
This layer matters profoundly in electric engineering contexts. It aids technicians during soldering, testing, and rework by clearly denoting pin 1, test points, and part numbers. Traceability improves quality control, essential for high-reliability sectors. On aluminum boards, where heat dissipation reaches extremes, silkscreen must resist yellowing or peeling to maintain legibility over the product lifecycle. IPC-A-600 standards outline acceptability criteria for markings, ensuring legibility under magnification. Neglecting this risks assembly errors or field failures.
Aluminum's properties amplify these requirements. The metal core enables operation at temperatures exceeding 100 degrees Celsius, stressing the ink's thermal stability. Vibration in automotive uses demands abrasion resistance. Proper silkscreen enhances safety through warning labels. Factory-driven insights reveal that mismatched colors lead to 20 percent higher inspection rejects in production runs.
Technical Principles of Silkscreen Application on Aluminum PCBs
Silkscreen adhesion to aluminum relies on the solder mask's surface energy, typically enhanced by plasma treatment or chemical cleaning before printing. Epoxy-based or UV-curable inks penetrate micro-roughness for mechanical interlocking. Pigments in the ink provide color while binders ensure flexibility during thermal expansion mismatches between layers. Aluminum's rigidity contrasts with FR4 flex, so inks must accommodate CTE differences without delamination.
Color selection hinges on optical contrast against the solder mask. White solder masks, prevalent on aluminum PCBs for LED reflection, pair best with dark inks for sharp edges. Light transmission and reflectance properties influence visibility under various lighting. Durability stems from cross-linking during curing, forming a robust film resistant to solvents and heat. IPC-6012E specifications guide performance qualification, including marking permanence after environmental exposure.

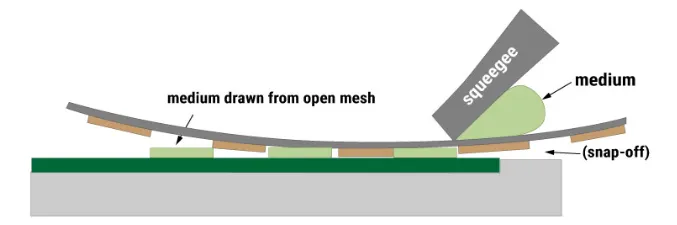

Curing mechanisms differ by ink type. UV inks polymerize rapidly under ultraviolet light, ideal for high-volume aluminum board production. Thermal curing suits epoxy inks, baking at controlled temperatures to avoid warping the thin dielectric. Factory processes control viscosity and screen tension for uniform deposition. These principles ensure silkscreen withstands reflow soldering peaks.
Aluminum PCB Silkscreen Color Options
Aluminum PCB silkscreen color options include white, black, yellow, and occasionally red or blue, limited by ink availability and cost. White offers high visibility on dark solder masks but blends on white ones. Black provides stark contrast on light backgrounds, maintaining sharpness post-assembly. Yellow excels for caution markings due to its brightness.
Each color's formulation affects properties. Black inks use carbon pigments for opacity and heat stability, crucial for aluminum's thermal profiles. White relies on titanium dioxide, prone to yellowing under prolonged heat. Yellow achieves vibrancy with chrome pigments, aiding quick identification. Factories stock these for efficiency, with custom shades increasing lead times.
Contrast ratios dictate usability. On white solder masks, black yields the highest legibility per IPC-A-600 guidelines. Durability varies; black resists fading better in UV-exposed environments. Engineers should simulate end-use lighting for validation.
Summary of common choices:
- Black: Best pairing: white solder mask; Advantages: high contrast, durable; Considerations: opaque, heat stable.
- White: Best pairing: green/black solder mask; Advantages: standard, cost-effective; Considerations: poor on white solder mask.
- Yellow: Best pairing: green/black solder mask; Advantages: bright, caution use; Considerations: moderate durability.
Best Silkscreen Color for Aluminum Boards: Practical Guidance

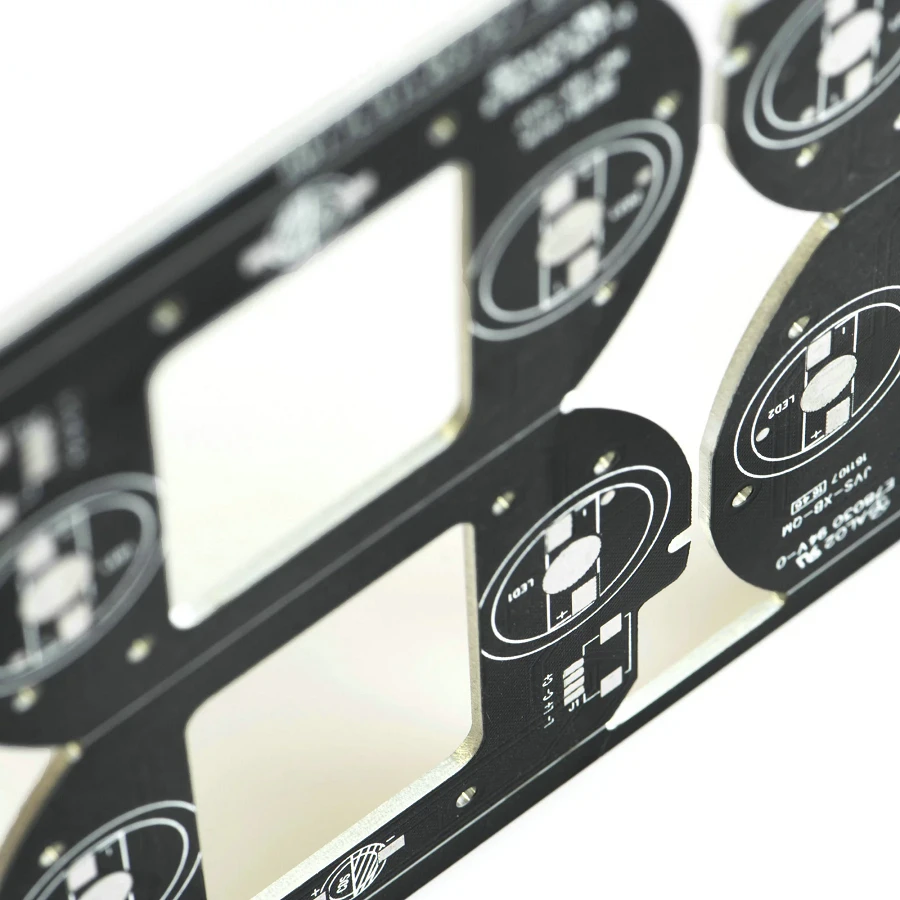

The best silkscreen color for aluminum boards is black when paired with white solder mask, offering optimal readability and longevity. This combination suits LED and power electronics, where assembly precision matters. White silkscreen suits rarer dark mask aluminum variants. Factory best practices start with design reviews for overlap avoidance on pads or traces.
To achieve durable silkscreen color for aluminum, select UV-curable epoxy inks tested for adhesion. Apply crosshatch and tape tests per industry norms before full runs. Cure profiles match aluminum's low warpage tolerance, typically 120 to 150 degrees Celsius. Surface preparation via plasma boosts bond strength by 30 percent in trials.
Actionable steps include specifying line widths over 0.15 mm for legibility. Position legends near components without encroaching fiducials. Validate under operational temperatures simulating power dissipation. These ensure silkscreen adhesion to aluminum substrates remains intact through lifecycle stresses.
Factors Influencing Silkscreen Adhesion and Durability
Silkscreen adhesion to aluminum depends on solder mask cleanliness and ink compatibility. Contaminants like oils reduce wetting, causing peeling. Plasma etching activates surfaces, increasing polar groups for chemical bonding. Humidity during storage affects viability, so controlled environments prevail in factories.
Durability challenges arise from thermal cycling inherent to aluminum's role. Inks must endure 1000 cycles without cracking, per qualification tests. Abrasion from handling favors harder cured films. Chemical resistance counters flux residues in assembly.
Black inks often prove most durable silkscreen color for aluminum due to stable pigments. Yellow may fade under UV, white discolors thermally. J-STD-020 guidelines inform handling for moisture-sensitive inks. Proactive testing mitigates risks.
Troubleshooting Silkscreen Issues on Aluminum PCBs
Common issues include ink lifting during reflow, traced to inadequate curing or poor prep. Solution: Extend bake times and verify plasma efficacy. Fading legends signal pigment instability; switch to proven UV inks. Low contrast from mismatched colors hampers inspection; audit against mask hue.
Peeling at edges often stems from CTE stress; thinner inks alleviate this. Factory audits reveal overprinting as a culprit, resolved by tension controls. Thermal shock tests expose weaknesses early. Consistent processes aligned with standards prevent recurrence.
Conclusion
Selecting silkscreen color on aluminum PCB requires balancing contrast, adhesion, and durability tailored to metal core demands. Black emerges as the top choice for white solder masks, ensuring legibility in high-heat applications. Factory insights underscore surface prep and ink selection for reliability. Engineers applying these principles achieve robust markings per IPC guidelines. This unique approach elevates aluminum PCB performance across electric engineering uses.
FAQs
Q1: What are the main aluminum PCB silkscreen color options?
A1: Aluminum PCB silkscreen color options typically include white, black, and yellow, with black or white most common. Black provides excellent contrast on white solder masks prevalent in LED designs. Yellow suits caution labels. Selection depends on mask color and visibility needs, ensuring legibility per manufacturing standards. (52 words)
Q2: What is the best silkscreen color for aluminum boards?
A2: The best silkscreen color for aluminum boards is black over white solder mask for superior contrast and readability during assembly. It maintains sharpness under heat and handling. White works on dark masks, but avoid same-color pairings. Factory validation confirms this optimizes traceability. (48 words)
Q3: How to ensure silkscreen adhesion to aluminum?
A3: Silkscreen adhesion to aluminum improves via plasma cleaning of the solder mask, followed by UV-curable epoxy inks. Perform crosshatch and tape tests post-curing. Control humidity and cure temperatures to match aluminum's thermal profile. Standards guide qualification for long-term bond integrity. (46 words)
Q4: What makes a durable silkscreen color for aluminum?
A4: A durable silkscreen color for aluminum features heat-stable pigments like those in black inks, resisting yellowing and abrasion. UV-curable formulations enhance chemical resistance. Pair with proper surface prep for lifecycle reliability in power applications. Avoid low-stability options in high-temp environments. (50 words)
References
IPC-A-600K — Acceptability of Printed Boards. IPC, 2020
IPC-6012E — Qualification and Performance Specification for Rigid Printed Boards. IPC, 2017
J-STD-020E — Moisture/Reflow Sensitivity Classification. JEDEC, 2014
