Introduction
In the fast-paced world of PCB assembly, engineers face mounting pressure to balance performance, cost, and environmental responsibility. Recycled tin solder emerges as a practical solution, enabling sustainable soldering practices without compromising joint integrity. This approach aligns with the shift toward lead-free solder alternatives, driven by global regulations and resource conservation needs. By incorporating recycled tin, assembly processes can reduce reliance on virgin materials while maintaining reliability in high-volume production. Electric engineers troubleshooting assembly lines will find value in understanding how recycled tin integrates into eco-friendly PCB assembly workflows. This article explores the tin recycling process, implementation strategies, and real-world considerations.
Why Recycled Tin Solder Matters for Electric Engineers
Tin scarcity and e-waste accumulation make recycled tin solder a strategic choice for forward-thinking PCB assembly. Traditional mining depletes resources, whereas recycling recovers high-purity tin from electronic scrap, supporting circular economy principles. Sustainable soldering practices like this lower the carbon footprint of manufacturing without altering solder joint performance. Engineers benefit from consistent alloy properties that meet class 3 requirements under IPC J-STD-001 standards for soldered assemblies. Moreover, adopting lead-free solder alternatives with recycled content helps comply with environmental directives, easing procurement challenges. Ultimately, it positions teams for long-term supply chain resilience amid fluctuating raw material prices.
Recycled tin addresses key pain points in eco-friendly PCB assembly, such as material traceability and impurity control. Facilities processing e-waste generate solder dross and obsolete boards ripe for reclamation, closing the loop on waste streams. This practice not only cuts disposal costs but also ensures solder meets wetting and flow characteristics essential for surface mount technology. Engineers evaluating suppliers should prioritize certifications verifying recycled content purity to avoid downstream defects.
Understanding the Tin Recycling Process

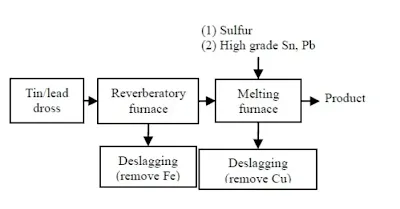

The tin recycling process begins with collection of electronic waste, including scrap PCBs and solder dross from assembly lines. Material is shredded and separated to isolate tin-rich fractions, often through heating above the solder melting point to detach components. Electrolytic refining then purifies the tin by removing metallic impurities like copper and iron, yielding ingots suitable for alloying. This multi-stage approach ensures recycled tin matches primary tin in terms of oxide-free surfaces and low contaminant levels. Engineers overseeing incoming materials can verify process efficacy through spectrometry checks during quality gates.
Advanced techniques in the tin recycling process employ chemical vapor transport or selective dissolution to enhance recovery rates from complex e-waste. Post-refining, tin is cast into bars or powder for blending into lead-free alloys. Consistency in particle size and alloy homogeneity prevents variability in reflow profiles. Facilities implementing these methods report streamlined integration into existing solder pots, minimizing downtime. Troubleshooting tip: Monitor dross generation rates post-switch, as recycled tin may initially produce more skim due to trace residuals.
Technical Integration of Recycled Tin in Lead-Free Solder Alloys
Recycled tin solder typically forms the base for common lead-free alloys, alloyed with silver and copper for enhanced strength and creep resistance. The recycling purity directly influences wetting behavior on copper pads and component leads during reflow or wave soldering. Engineers must ensure alloy formulations adhere to established compositions to avoid issues like tombstoning in fine-pitch components. Flux compatibility remains critical, as recycled tin's surface oxides require activated fluxes for optimal fillet formation. Testing solder paste spread on test coupons reveals any deviations early in the qualification phase.
In eco-friendly PCB assembly, recycled tin solder supports both vapor phase and convection reflow, with profiles adjusted for higher liquidus temperatures compared to tin-lead predecessors. Joint microstructure analysis post-assembly confirms intermetallic layer thickness aligns with reliability expectations. IPC-A-610 criteria for acceptability guide visual inspections, focusing on voiding and bridge prevention. Practical adjustment: Extend preheat zones if recycled batches show sluggish flow, ensuring full melt without overheating boards.
Best Practices for Implementing Sustainable Soldering Practices
Start supplier qualification by requesting detailed tin recycling process documentation and third-party purity assays. Implement incoming inspection protocols using XRF for elemental composition, rejecting lots exceeding impurity thresholds. During stencil printing, verify paste release matches virgin tin benchmarks to prevent insufficient deposits. Reflow oven zoning should incorporate real-time profiling to capture peak temperatures precisely for recycled tin solder. Post-reflow, automated optical inspection flags anomalies like incomplete coalescence early.

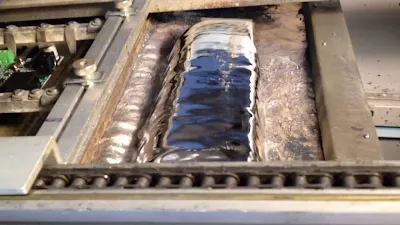

Sustainable soldering practices extend to dross management, where on-site reclamation units filter and reuse tin from wave pots. Train operators on handling recycled materials to prevent cross-contamination with legacy leaded stock. For high-reliability builds, accelerate aging tests per IPC J-STD-001 to validate electromigration resistance. Document process windows in control plans, correlating alloy source to defect rates. These steps embed eco-friendly PCB assembly into standard operations seamlessly.
Challenges and Troubleshooting in Recycled Tin Solder Use
Impurities from incomplete tin recycling processes can lead to brittle joints or accelerated intermetallic growth under thermal cycling. Engineers often encounter de-wetting on HASL finishes if oxide levels spike in recycled batches. Solution: Introduce nitrogen atmospheres in reflow to suppress oxidation, restoring spreadability. Solder balling during wave soldering signals flux mismatch; switch to no-clean formulations optimized for recycled surfaces. Track lot traceability to isolate problematic recyclers quickly.
Reliability concerns arise from trace elements promoting tin whisker growth in storage, mitigated by conformal coatings or alloying tweaks. Vibration testing reveals early fatigue in high-stress applications if purity dips. Troubleshooting flowchart: Correlate defect maps to incoming certs, then refine supplier specs. While recycled tin solder upholds lead-free solder alternatives' performance, vigilance in process control prevents field failures. ISO 14001 frameworks aid in auditing recycling partners for consistent quality.
Conclusion
Recycled tin solder empowers electric engineers to advance sustainable soldering practices in PCB assembly effectively. By mastering the tin recycling process and applying rigorous best practices, teams achieve eco-friendly outcomes with proven reliability. Lead-free solder alternatives incorporating recycled content reduce environmental impact while meeting stringent standards. Proactive troubleshooting ensures seamless integration, from stencil to final test. Embrace this shift to future-proof operations against resource constraints and regulatory evolution.
FAQs
Q1: What is the tin recycling process for PCB solder production?
A1: The tin recycling process involves shredding e-waste PCBs, melting to recover solder, and electrolytic refining to purify tin. Impurities like copper are separated, yielding high-grade material for lead-free alloys. Engineers verify quality via spectrometry before alloying. This supports sustainable soldering practices by minimizing virgin tin use.
Q2: How does recycled tin solder perform as a lead-free solder alternative?
A2: Recycled tin solder matches virgin alloys in wetting and joint strength when properly refined. It forms reliable intermetallics under standard reflow profiles for eco-friendly PCB assembly. Minor flux adjustments handle surface oxides. Reliability tests confirm equivalence in thermal cycling.
Q3: What challenges arise in eco-friendly PCB assembly with recycled tin?
A3: Key issues include potential impurities causing de-wetting or voiding. Troubleshoot with enhanced inspection and profile tweaks. Supplier purity certs prevent whisker risks. Adhering to IPC standards ensures class 3 compliance. Sustainable practices yield consistent results.
Q4: Are there best practices for sustainable soldering practices using recycled tin?
A4: Qualify suppliers rigorously, inspect incoming lots, and profile reflow ovens specifically. Manage dross reclamation on-site for efficiency. Train on IPC-A-610 acceptability to catch defects early. These steps optimize recycled tin solder in production.
References
IPC J-STD-001J - Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2024
IPC-A-610J - Acceptability of Electronic Assemblies. IPC, 2024
ISO 14001:2015 - Environmental Management Systems. ISO, 2015
