Introduction
In the realm of modern electronics, printed circuit boards (PCBs) have evolved into highly complex structures supporting data rates exceeding 25 Gbps and beyond. Advanced PCB diagnostics play a crucial role in ensuring these boards perform reliably under high-speed conditions. Traditional visual inspections and basic continuity tests fall short when addressing issues like signal degradation in multilayer stacks with fine-pitch traces. Techniques such as signal integrity testing and impedance testing reveal hidden flaws that could lead to system failures. For electrical engineers working on telecommunications, automotive, or computing hardware, mastering these methods is essential. This article explores key advanced diagnostic approaches, focusing on their principles and applications for complex boards.
Why Advanced PCB Diagnostics Matter for Complex Boards
Complex PCBs integrate dense routing, high-frequency materials, and mixed-signal environments, amplifying risks to signal quality. Signal reflections, crosstalk, and attenuation can degrade performance, causing bit errors or timing violations in high-speed systems. Advanced PCB diagnostics provide precise fault localization, enabling proactive corrections during design validation and manufacturing. Without these, engineers risk costly respins or field failures in mission-critical applications. Industry standards like IPC-2221 emphasize controlled impedance to mitigate such issues, underscoring the need for rigorous testing. Ultimately, these diagnostics bridge the gap between design intent and real-world reliability.
As board densities increase, phenomena like via stubs and layer transitions introduce discontinuities that basic tests overlook. High-speed PCB testing identifies these early, optimizing yield and reducing time-to-market. Engineers benefit from data-driven insights that inform stackup adjustments or routing refinements. In production, consistent application ensures compliance with performance specs across batches.
Core Principles of Signal Integrity Testing
Signal integrity testing evaluates how well electrical signals maintain their shape and timing across a PCB. Key concerns include rise time degradation, overshoot, and jitter, which intensify with faster edge rates. Testing involves probing traces to capture waveforms and analyze metrics like eye height and width. Oscilloscopes with high bandwidth capture these transients, revealing interactions between driver, line, and receiver. For complex boards, de-embedding fixtures compensates for probe effects, yielding accurate measurements.
Crosstalk testing isolates aggressive coupling between adjacent traces. By stimulating one net and monitoring victims, engineers quantify near-end and far-end interference. Differential signaling adds complexity, requiring balanced pair analysis. These principles guide high-speed PCB testing, ensuring signals arrive intact at destinations.
Impedance Testing: The Backbone of Advanced PCB Diagnostics
Impedance testing verifies that trace characteristic impedance matches design targets, typically 50 ohms single-ended or 100 ohms differential. Mismatches cause reflections, distorting signals in high-speed environments. Techniques measure impedance along the entire length, detecting variations from etching tolerances or material inconsistencies. Consistent impedance control is vital for minimizing return loss and insertion loss.
Time domain reflectometry (TDR) for PCBs sends a step signal and analyzes reflection coefficients from discontinuities. The voltage waveform shows impedance profile versus distance, with rises indicating low impedance and drops high impedance. Resolution depends on rise time and propagation velocity, allowing pinpointing of faults like opens or shorts. TDR excels in production for its speed and non-destructive nature.

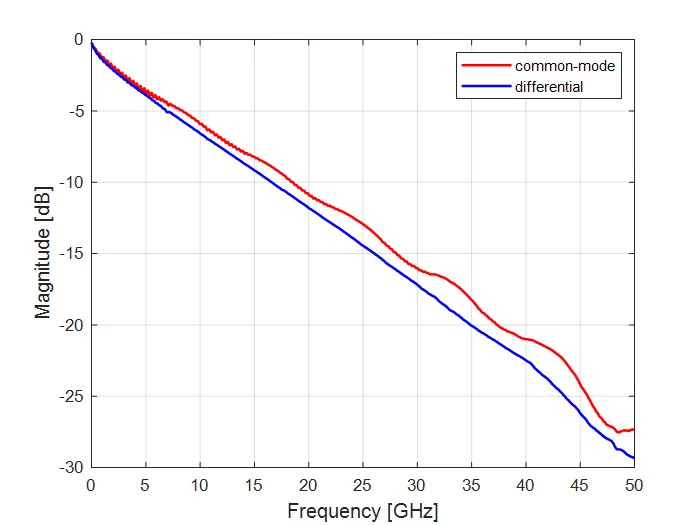

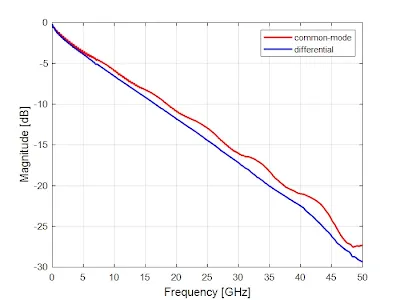

Frequency domain reflectometry (FDR) complements TDR using swept sine waves to compute S-parameters. Vector network analyzers (VNAs) measure reflection (S11) and transmission (S21), transforming data to time domain if needed. This method suits broadband analysis, capturing frequency-dependent losses from dielectrics or connectors. Together, TDR and FDR form comprehensive advanced PCB diagnostics suites.
As outlined in IPC-TM-650 method 2.5.5.7, TDR procedures standardize impedance measurement on printed boards. Calibration with known lines ensures accuracy, accounting for launch effects.
Time Domain Reflectometry in Depth for PCB Signal Analysis
Time domain reflectometry PCB testing begins with launching a fast-edge pulse into the trace via a high-impedance probe. Reflections occur at impedance changes, governed by the reflection coefficient formula: Γ = (Z_L - Z_0)/(Z_L + Z_0). Positive steps signal higher impedance, negative lower, enabling distance-to-fault calculations using time-of-flight. Engineers interpret waveforms to diagnose via transitions, bends, or plating voids.

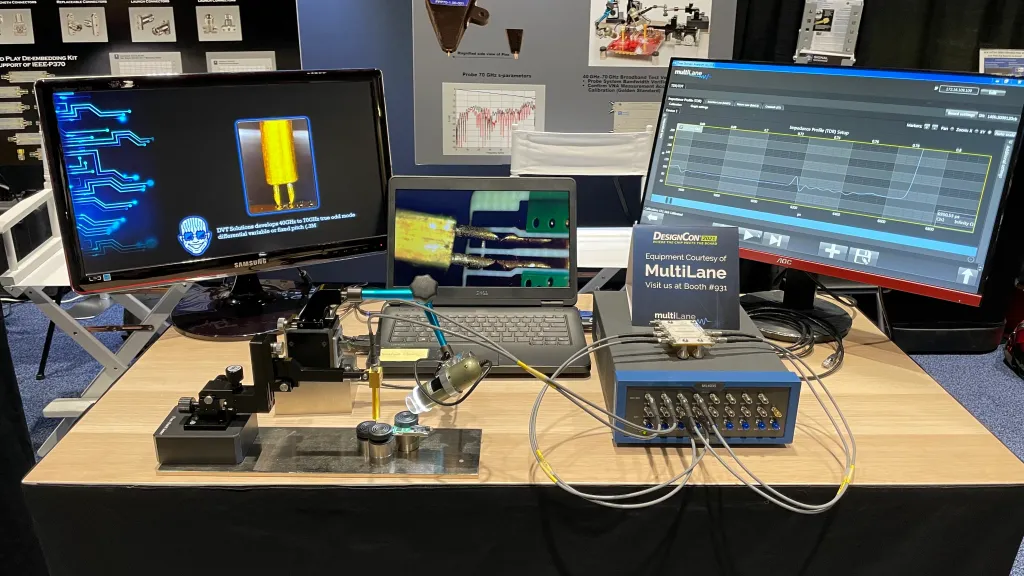

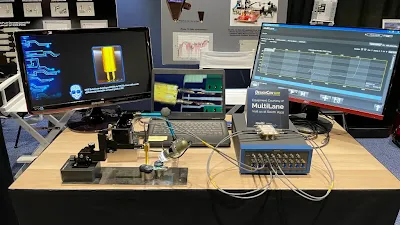

For multilayer boards, back-drilling stubs or blind vias require specialized TDR setups with multiple channels. Differential TDR assesses pair balance, critical for USB or PCIe interfaces. Post-processing software converts raw data to impedance plots, overlaying specs for pass-fail decisions. This precision supports PCB signal analysis at gigabit speeds.
Practical challenges include bandwidth limitations and fixture parasitics, addressed through automated de-skewing. In high-speed PCB testing, TDR verifies coupons on panels before full-panel etch, catching process drifts early.
Frequency Domain Reflectometry and Advanced Signal Analysis
Frequency domain reflectometry PCB evaluation uses VNAs to sweep from DC to tens of GHz. S11 magnitude and phase reveal standing waves from mismatches, while time-domain gating isolates sections. Inverse Fourier transforms yield TDR-like views without pulses, ideal for lossy lines. This approach excels in PCB signal analysis for insertion loss budgeting.

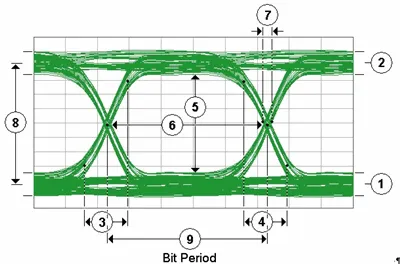

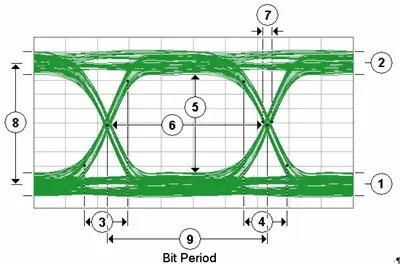

Combining with eye diagram testing provides holistic insights. Eyes quantify margin against masks derived from standards, predicting BER. Jitter decomposition separates deterministic and random components, linking to power integrity. For complex boards, statistical analysis over thousands of bits ensures robustness.
High-speed PCB testing integrates these with near-field probing for EMI sources. Automated scripts correlate diagnostics, streamlining root-cause analysis.
Best Practices for Implementing Advanced PCB Diagnostics
Start with design-for-test features like dedicated impedance coupons per layer. Position them near critical nets, matching stackup and routing. During fabrication, test panels before routing to flag systemic issues. Use edge-launch connectors for repeatable fixturing in TDR and VNA setups.
Calibrate instruments per manufacturer guidelines, verifying with air lines or standards. For signal integrity testing, minimize ground loops and use active probes. Document baselines for trend analysis across builds. Train teams on interpretation, focusing on common failure modes like glass weave skew.
In troubleshooting, correlate electrical faults with cross-sections or X-rays. Iterate stackups based on data, targeting <5% impedance variation. Adhere to IPC-6012E for performance qualification, integrating diagnostics into acceptance criteria.
Troubleshooting Common Issues in High-Speed PCBs
Engineers often encounter intermittent failures traced to subtle discontinuities. For instance, excessive via capacitance from unbackdrilled stubs shows as eye closure. TDR localizes these, guiding targeted fixes. Crosstalk spikes in dense routing demand length matching and guard traces.
Material variations cause dielectric constant drifts, inflating losses at mmWave. Frequency sweeps quantify this, prompting low-Dk alternatives. Power plane splits induce inductance, visible in voltage droop tests. Systematic PCB signal analysis resolves these, enhancing reliability.
Conclusion
Advanced PCB diagnostics unlock the full potential of complex boards by pinpointing signal integrity flaws invisible to basic methods. Techniques like time domain reflectometry PCB testing, frequency domain reflectometry PCB evaluation, and impedance testing provide actionable data for optimization. Electrical engineers armed with these tools ensure high-speed performance, aligning with industry benchmarks. Integrating them into workflows minimizes risks and accelerates innovation. Prioritize standardized procedures for consistent outcomes in demanding applications.
FAQs
Q1: What is time domain reflectometry PCB testing and when should it be used?
A1: Time domain reflectometry PCB testing sends a pulse along traces to detect impedance changes via reflections, ideal for high-speed PCB testing. Use it during fabrication verification and failure analysis to locate discontinuities like voids or etches. It offers distance-to-fault precision without board damage. Combine with specs for quick pass-fail judgments in advanced PCB diagnostics.
Q2: How does impedance testing contribute to signal integrity testing?
A2: Impedance testing ensures traces match target values, preventing reflections that distort signals in signal integrity testing. Methods like TDR and VNA quantify variations from design. Consistent impedance reduces jitter and crosstalk in high-speed environments. Regular testing during production maintains quality for complex boards.
Q3: What role does frequency domain reflectometry play in PCB signal analysis?
A3: Frequency domain reflectometry PCB uses swept frequencies to measure S-parameters, revealing broadband losses and mismatches in PCB signal analysis. It complements TDR for frequency-dependent effects like skin effect. Engineers transform data for time views, aiding advanced PCB diagnostics. Essential for validating multi-gigabit interfaces.
Q4: Why is high speed PCB testing critical for modern designs?
A4: High speed PCB testing uncovers issues like attenuation and EMI in dense, fast-edged signals. Techniques including eye diagrams and reflectometry ensure compliance and reliability. Early detection avoids respins, supporting applications from 5G to AI hardware. Standards guide implementation for repeatable results.
