Introduction
Low-volume PCB projects present unique hurdles in PCB component sourcing, where securing parts quickly and affordably can determine project timelines and budgets. Engineers often face long lead times, minimum order quantities that exceed project needs, and fluctuating component availability due to global supply chain dynamics. Effective strategies in this area not only mitigate delays but also control costs without compromising assembly quality. For electric engineers working on prototypes or small-batch production, mastering BOM management becomes essential to navigate these challenges. This article explores practical approaches to sourcing electronic component suppliers, handling obsolete components, and optimizing overall procurement processes. By focusing on proactive planning and troubleshooting tactics, teams can achieve reliable outcomes even in constrained environments.
Why Component Sourcing Matters for Low-Volume PCB Projects
Component sourcing directly impacts the feasibility of low-volume PCB fabrication and assembly, as even minor shortages can halt progress. In small runs, typically under 100 units, the inability to source specific parts leads to redesigns, increased engineering hours, and escalated expenses. Poor component availability exacerbates risks like counterfeit parts entering the supply chain, which can fail during reliability testing or field use. Engineers must prioritize suppliers who offer traceability and compliance to maintain design integrity. Ultimately, robust PCB component sourcing ensures that projects align with performance specifications while keeping costs manageable. Neglecting this phase often results in rushed substitutions that introduce compatibility issues downstream.
Key Challenges in PCB Component Sourcing
Supply chain volatility remains a primary obstacle, with lead times stretching from weeks to months for popular passives and actives. Obsolete components pose another frequent issue, especially for legacy designs where manufacturers discontinue parts without ample notice. Minimum order quantities from electronic component suppliers frequently mismatch low-volume needs, forcing engineers to purchase excess inventory that ties up capital. High-demand periods amplify component availability problems, pushing teams toward riskier brokers or unverified sources. Additionally, pricing volatility affects budgeting, as spot market fluctuations can double costs overnight. Troubleshooting these challenges requires a systematic approach to identify alternatives early in the design cycle.
Understanding Obsolete Components and Their Impact
Obsolete components disrupt low-volume projects by necessitating urgent searches across secondary markets, where quality verification becomes critical. Engineers encounter this when parts reach end-of-life, often announced via manufacturer notices months in advance. The lack of direct replacements forces evaluations of pin-compatible alternatives or form-factor equivalents, which may alter electrical characteristics. In PCB assembly, substituting without thorough analysis risks signal integrity problems or thermal mismatches. Effective BOM management tracks obsolescence risks through regular audits, allowing preemptive redesigns. Addressing this proactively preserves project momentum and avoids costly respins.
Technical Principles of Effective BOM Management

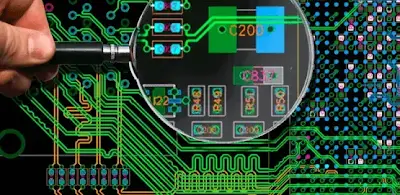

BOM management serves as the foundation for successful PCB component sourcing, organizing part numbers, quantities, footprints, and values into a centralized document. Engineers structure BOMs with columns for manufacturer part numbers, descriptions, package types, and sourcing status to facilitate quick reviews. Parametric searches based on voltage ratings, tolerance levels, and operating temperatures guide alternative selections during shortages. Version control prevents errors from propagating into Gerber files or assembly instructions. Integrating lifecycle data, such as planned obsolescence dates, enhances foresight. This disciplined approach aligns sourcing efforts with design intent, reducing iteration cycles.
A well-managed BOM also incorporates derating factors and environmental qualifications, ensuring components meet application stresses. For instance, selecting parts with appropriate moisture sensitivity levels prevents reflow defects. Cross-referencing datasheets against assembly processes verifies compatibility. Collaborative tools enable procurement teams to flag availability issues in real-time. Overall, these principles transform BOMs from static lists into dynamic roadmaps for low-volume success.
Strategies for Ensuring Component Availability
Diversifying electronic component suppliers mitigates single-point failures by maintaining relationships with multiple authorized distributors. Engineers start by qualifying suppliers based on lead time commitments, stock levels, and quality certifications. Building a preferred vendor list categorized by component families, such as resistors, capacitors, and ICs, streamlines future orders. For critical parts, securing allocations through blanket purchase agreements reserves inventory without full upfront payment. Monitoring industry forecasts helps anticipate shortages in high-volume commodities like MLCCs. These tactics ensure steady component availability even during peak demand.
Proactive obsolescence management involves subscribing to notifications from component databases and conducting quarterly BOM reviews. When facing shortages, engineers perform side-by-side comparisons of drop-in replacements, validating electrical, mechanical, and thermal specs. Uploading BOMs to distributor platforms yields instant availability quotes across networks. For low-volume needs, excess inventory markets offer viable options if authenticity is confirmed via holograms or certificates. Phased prototyping with readily available parts validates designs before committing to scarcer components. Consistent application of these strategies minimizes downtime.
Adherence to JEDEC J-STD-020E standards during storage and handling preserves component integrity, reducing availability losses from mishandling.
Cost Optimization Techniques in PCB Component Sourcing
Controlling costs starts with accurate BOM costing during design, factoring in unit prices, shipping, and tariffs. Engineers negotiate volume discounts even for low quantities by bundling similar projects or committing to future orders. Selecting standard package sizes over custom variants avoids premium pricing. Tray or tape-and-reel packaging for assembly reduces handling fees compared to cut tape. Grouping orders to meet supplier thresholds consolidates shipments, lowering per-part logistics expenses. These methods balance availability with fiscal constraints.
Substitution strategies further trim expenses by prioritizing lower-cost equivalents from the same family. For example, replacing a high-end microcontroller with a feature-matched alternative maintains functionality at reduced price points. Lifecycle costing evaluates total ownership, including testing and potential failures. Collaborative forecasting with suppliers stabilizes pricing through long-term partnerships. Avoiding panic buys during shortages prevents markup inflation. Through diligent cost management, low-volume projects remain viable.
Best Practices for Low-Volume PCB Assembly Integration

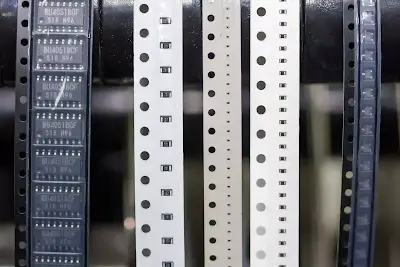

Integrating sourcing with assembly planning ensures components arrive in optimal formats for SMT or through-hole processes. Engineers specify reel diameters and feeder setups in BOM notes to match pick-and-place machines. Pre-baking moisture-sensitive devices per IPC/JEDEC J-STD-033 guidelines prevents popcorn effects during reflow. Quality checks upon receipt, including visual inspections and electrical tests, catch discrepancies early. Phased kitting assembles kits incrementally as parts arrive, avoiding storage risks. These practices synchronize procurement with production.
Supplier scorecards track performance metrics like on-time delivery and defect rates, informing future selections. Implementing ISO 9001:2015 quality management principles fosters consistent supplier audits. For obsolete components, redesign buffers incorporate multiple sourcing paths. Documentation of substitutions updates engineering change orders for traceability. Regular team debriefs refine processes based on lessons learned. This holistic framework enhances reliability.
Troubleshooting Common Sourcing Pitfalls
Engineers often overlook footprint variances in alternatives, leading to assembly rejects. Troubleshooting involves 3D model verifications against library files before ordering. Long lead times for ASICs demand parallel prototyping with FPGA emulations. Counterfeit risks surface in visual anomalies like font irregularities on markings; X-ray inspections confirm internals. Excessive MOQs prompt split sourcing or inventory sharing across projects. Documenting resolutions builds a knowledge base for recurring issues.
Conclusion
Navigating PCB component sourcing for low-volume projects demands foresight in BOM management, diversified supplier engagement, and cost-conscious strategies. By addressing component availability and obsolete components head-on, engineers avert delays and overruns. Practical tactics like proactive reviews and standardized handling per industry guidelines ensure smooth assembly transitions. Electronic component suppliers play a pivotal role when vetted rigorously. Implementing these insights equips teams for resilient procurement in dynamic markets. Ultimately, disciplined sourcing elevates project success rates.
FAQs
Q1: What is PCB component sourcing, and why is it critical for low-volume projects?
A1: PCB component sourcing involves procuring resistors, capacitors, ICs, and other parts needed for PCB assembly from electronic component suppliers. In low-volume projects, it is critical due to mismatched MOQs, long lead times, and obsolescence risks that can delay prototypes. Effective sourcing prevents redesigns and maintains budgets. Troubleshooting early through BOM audits resolves issues swiftly.
Q2: How can engineers manage obsolete components in PCB designs?
A2: Managing obsolete components requires regular BOM reviews and lifecycle tracking to identify end-of-life parts early. Engineers source from excess markets or select drop-in replacements after validating specs like pinouts and ratings. Redesign buffers incorporate alternatives during initial layouts. This approach sustains component availability without compromising performance.
Q3: What role does BOM management play in component availability?
A3: BOM management centralizes part data, enabling quick checks on stock levels and supplier quotes for improved component availability. It facilitates substitutions and version control to handle shortages. Integrating parametric searches speeds alternative sourcing. For low-volume PCB projects, it minimizes disruptions and supports cost efficiency.
Q4: How do you optimize costs with electronic component suppliers for small runs?
A4: Optimize costs by negotiating allocations, bundling orders, and selecting standard packages from electronic component suppliers. Prioritize lifecycle pricing over spot buys to avoid premiums. Kitting strategies reduce handling fees. Diversifying vendors prevents markup during shortages, ensuring affordability in low-volume scenarios.
References
JEDEC J-STD-020E — Moisture/Reflow Sensitivity Classification of Nonhermetic Surface Mount Devices. JEDEC, 2014
IPC/JEDEC J-STD-033D — Handling, Shipping and Use of Moisture/Reflow and Process Sensitive Materials. IPC/JEDEC, 2020
ISO 9001:2015 — Quality Management Systems — Requirements. ISO, 2015
