Introduction
High-volume PCB manufacturing faces intense pressure to deliver consistent quality while minimizing production costs and lead times. Automation has become essential in addressing these demands, particularly in processes like surface mount technology assembly and inspection. Electric engineers designing complex boards for consumer electronics, automotive systems, or telecommunications must understand how automated systems enhance throughput without compromising reliability. Automated PCB assembly high volume setups integrate robotic handling, precise placement, and real-time monitoring to handle thousands of boards daily. This shift from manual to automated workflows reduces human error and scales production efficiently. By focusing on SMT automation PCB lines, manufacturers achieve tighter tolerances and faster cycle times that manual methods cannot match.
Why Automation Matters in High-Volume PCB Manufacturing
High-volume production involves fabricating and assembling PCBs in quantities exceeding 10,000 units per run, often for mass-market products. Manual processes introduce variability in component placement, solder paste application, and defect detection, leading to yield losses and rework. Automation standardizes these steps, ensuring every board meets design specifications regardless of shift or operator. For electric engineers, this means greater predictability in signal integrity and thermal performance post-assembly. SMT automation PCB systems synchronize multiple machines into a continuous flow, from stencil printing to reflow soldering. The result is a factory environment where efficiency metrics align with quality benchmarks, supporting just-in-time delivery.
In such setups, pick and place machine high volume capabilities determine overall line speed. These machines handle diverse component sizes, from 01005 chips to large QFNs, at rates exceeding 100,000 components per hour. Engineers benefit from data logging that tracks placement accuracy, aiding root cause analysis for any deviations. Without automation, scaling to high volumes amplifies risks like inconsistent solder joints or misalignment. Factory-driven insights reveal that automated lines maintain sub-1% defect rates through closed-loop feedback.
Core Technologies Driving Automated High-Volume PCB Assembly
Surface mount technology forms the backbone of modern PCB assembly, and its automation enables high-volume scalability. SMT automation PCB processes begin with solder paste printing using laser-aligned stencils for uniform deposition. Automated vision systems verify paste volume and alignment before components enter the line. Robotic arms then populate the board, followed by reflow ovens that melt the paste into reliable joints. This sequence minimizes handling, reducing contamination risks and oxidation exposure. Electric engineers appreciate how these systems preserve fine-pitch spacing critical for high-density interconnects.

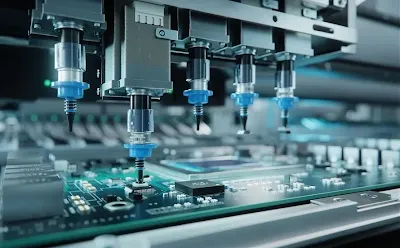

Pick and place machine high volume operations rely on dual-beam or turret architectures for parallel processing. Feeders supply taped components via vibration-free delivery, while nozzle changes adapt to part geometries. Machine vision with dual cameras corrects for offsets in real-time, achieving placement accuracy below 25 microns. High-volume runs demand feeder optimization to avoid starvation, often using intelligent software for dynamic scheduling. Integration with upstream printers ensures synchronized throughput, preventing bottlenecks.

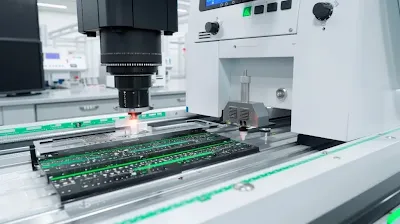

Automated optical inspection stands out in AOI high volume PCB verification, scanning boards at multiple stages. Pre-reflow AOI detects paste and placement errors, while post-reflow checks solder fillet formation and bridging. Multi-angle LED lighting and 3D profiling identify coplanarity issues or voids invisible to the eye. Algorithms programmed against golden samples flag anomalies per class definitions. This non-contact method supports inline operation without slowing the line, capturing over 99% of visual defects. For engineers, AOI data exports enable statistical process control, correlating defects to process parameters.
Compliance with IPC-A-610 ensures AOI systems evaluate assemblies against established acceptability criteria for soldering and component mounting. Factories implement these checks to classify boards into performance levels matching end-use requirements.
Enhancing Efficiency Through Automation Integration

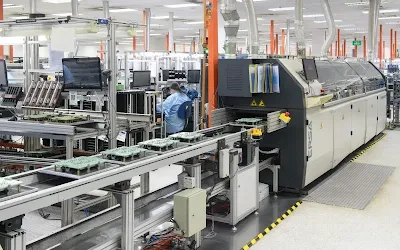

Automation boosts efficiency by reducing cycle times from hours to minutes per board in high-volume scenarios. Automated PCB assembly high volume lines feature conveyor systems that transport panels seamlessly between stations. Software orchestrates timing, adjusting speeds based on component complexity. This orchestration cuts idle time, maximizing equipment utilization rates. Engineers can model these flows using simulation tools to predict bottlenecks before full deployment. Factory experience shows that well-tuned lines achieve uptime exceeding 95%, supporting 24/7 operations.
Quality improvements stem from repeatability inherent in programmed motions and sensors. Pick and place machine high volume units log every placement, allowing traceability back to specific feeders or nozzles. Deviations trigger auto-correction or alarms, preventing scrap propagation. SMT automation PCB also incorporates nitrogen reflow to inhibit oxidation, yielding brighter, more reliable joints. Post-process analytics refine parameters iteratively, narrowing process windows. Overall, these gains translate to lower cost per unit and faster time-to-market.
Best Practices for Deploying Automation in PCB Factories
Successful high-volume automation starts with line balancing, matching machine capacities to demand forecasts. Engineers should specify feeder counts and nozzle versatility during design reviews to ease programming. Regular calibration using traceable artifacts maintains precision across shifts. SMT automation PCB requires cleanroom protocols to control particulates affecting optics and paste rheology. Operator training on HMI interfaces ensures quick changeovers for product variants. Adhering to J-STD-001 guidelines during process validation confirms solder joint integrity meets requirements.
Maintenance schedules prevent downtime, with predictive algorithms monitoring vibration and temperature. Spare parts inventory for critical feeders avoids production halts. Data integration via MES platforms provides real-time dashboards for yield tracking. For AOI high volume PCB, algorithm tuning against diverse board types avoids false calls. Factories emphasize cross-training to handle multi-line operations fluidly. ISO 9001 frameworks guide these practices, embedding continuous improvement into daily routines.
Overcoming Challenges in High-Volume Automated Production
Programming complexity arises with frequent NPI transitions in high-volume facilities. Engineers mitigate this by standardizing CAD outputs for direct machine import. Feeder setup times dominate changeovers, so modular designs with quick-release mechanisms help. Thermal profiling in reflow zones demands periodic verification to counter ambient drifts. AOI false positives from reflections require lighting adjustments and retraining. Proactive SPC charts flag drifts early, sustaining capability indices above 1.33.
Supply chain variability for components challenges feeder replenishment. Automated storage towers buffer against shortages, integrating with ERP for just-in-time delivery. Power stability protects sensitive vision systems from glitches. These solutions ensure robust operation, aligning automation with factory realities.
Conclusion
Automation transforms high-volume PCB manufacturing by delivering unmatched efficiency and quality consistency. From SMT automation PCB to AOI high volume PCB systems, these technologies minimize variability and maximize throughput. Electric engineers gain reliable processes that support innovative designs with dense interconnects. Factory insights underscore the value of standards compliance and best practices in sustaining gains. As production scales, investing in integrated automation positions manufacturers for competitive advantage. The future lies in smarter, adaptive systems that evolve with industry demands.
FAQs
Q1: What advantages does automated PCB assembly high volume offer over manual methods?
A1: Automated PCB assembly high volume eliminates operator fatigue and variability, achieving precise component placement at high speeds. It integrates vision feedback for real-time corrections, reducing defects like misalignment or bridging. Factory lines process thousands of boards daily with consistent quality, lowering rework costs. Engineers benefit from traceable data for process optimization, ensuring scalability for complex products. Compliance with soldering standards enhances joint reliability across runs.
Q2: How does a pick and place machine high volume contribute to SMT efficiency?
A2: A pick and place machine high volume uses multi-head gantries to handle diverse parts rapidly, syncing with printers and ovens. Intelligent feeders prevent starvation, while dual-camera systems ensure sub-50-micron accuracy. This setup shortens cycle times, supporting high-mix production without slowdowns. Electric engineers value the logging for failure analysis, refining designs iteratively. Overall, it boosts line throughput while maintaining tolerances.
Q3: Why is AOI high volume PCB essential in automated lines?
A3: AOI high volume PCB provides inline defect detection at pre- and post-reflow stages, using 3D imaging for comprehensive coverage. It identifies issues like insufficient paste or tombstoning before they propagate, preserving yields. Algorithms aligned to acceptability criteria minimize escapes. For engineers, exported reports enable SPC, correlating inspections to upstream parameters. This non-contact method fits seamlessly into fast-paced SMT automation PCB flows.
Q4: What role do standards play in SMT automation PCB quality?
A4: Standards like IPC-A-610 define visual criteria for assemblies, guiding AOI programming and operator judgments. J-STD-001 specifies soldering processes, ensuring joints withstand environmental stresses. ISO 9001 promotes systematic quality management in automated setups. These frameworks reduce variability, supporting high-volume reliability. Engineers rely on them for consistent performance across suppliers.
References
IPC-A-610H — Acceptability of Electronic Assemblies. IPC, 2017
IPC J-STD-001H — Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2018
ISO 9001:2015 — Quality Management Systems. ISO, 2015
