Introduction
Semi-flex PCBs represent a hybrid solution in printed circuit board technology, combining the stability of rigid substrates with localized flexible zones for controlled bending. In medical devices, these boards enable innovative designs that prioritize compactness, reliability, and patient comfort. Engineers designing semi-flex PCB medical devices must address unique challenges like biocompatibility and repeated handling in clinical environments. This article explores advanced applications, design considerations, and best practices to help electric engineers optimize performance while meeting stringent requirements. From wearables to implantable systems, semi-flex PCBs push the boundaries of medical electronics.
What Are Semi-Flex PCBs and Why They Matter in Medical Devices

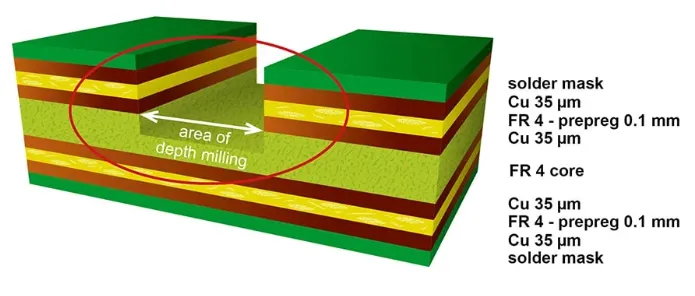

Semi-flex PCBs feature a primarily rigid structure, typically based on FR4 material, with designated areas thinned or reinforced with flexible dielectrics like polyimide for limited flexing. Unlike fully rigid boards, they allow installation bends or static curving without full dynamic cycling. In medical applications, this design reduces overall size and weight, critical for devices like endoscopes and wearable monitors. Engineers value semi-flex PCB medical devices for their ability to conform to curved body surfaces or navigate tight spaces during procedures. Troubleshooting common issues, such as delamination in flex zones, starts with proper material layering during layout.
The relevance stems from medical trends toward miniaturization and portability. Traditional rigid PCBs limit form factors in patient-worn sensors or imaging probes. Semi-flex versions mitigate vibration and motion stresses in handheld diagnostics, extending device lifespan. Procurement teams appreciate cost savings over full rigid-flex boards, as semi-flex requires fewer process steps. Overall, they enhance signal integrity in compact assemblies where space constraints demand creative routing.
Technical Principles of Semi-Flex PCB Design for Medical Use
Designing semi-flex PCBs involves balancing mechanical flexibility with electrical performance through precise control of copper thickness and substrate thinning. Flexible tails often use 25 to 50 micrometer polyimide films laminated to rigid cores, enabling a bend radius of several millimeters without cracking. Engineers must simulate stress concentrations at transition zones using finite element analysis to predict fatigue. Material selection prioritizes low dielectric constant for high-frequency signals in imaging equipment. Adhesion between layers, tested via peel strength, prevents failures under thermal cycling common in sterilization.
In semi-flex PCB design medical contexts, trace routing avoids sharp bends in flex areas to maintain impedance control. Vias in rigid sections support high-density components, while flex zones carry signals to sensors. Troubleshooting signal loss involves shielding flex tails against electromagnetic interference from bodily fluids or equipment. Layer stackups typically feature two to four rigid layers with one flex extension, optimizing for HDI features in advanced diagnostics. These principles ensure reliable operation in dynamic medical environments.
Ensuring Biocompatibility in Semi-Flex PCBs
Biocompatibility remains a core concern for semi-flex PCB biocompatibility in devices contacting skin or implants. Materials like polyimide exhibit low cytotoxicity and resistance to hydrolysis from bodily fluids. Engineers select coverlays and adhesives passing cytotoxicity and sensitization tests to avoid inflammatory responses. Surface finishes, such as ENIG, minimize ion migration that could leach into tissues. Troubleshooting biocompatibility issues starts with material datasheets and accelerated aging simulations.
ISO 10993 series guides biological evaluation, covering tests from in vitro cytotoxicity to in vivo implantation studies. Semi-flex constructions benefit from polyimide's proven track record in long-term wearables like glucose monitors. Fabrication processes must eliminate contaminants through cleanroom handling and plasma cleaning. Validation involves extractables testing to quantify leachables under simulated use conditions. These steps confirm safe integration into patient-facing devices.
Sterilization Compatibility for Semi-Flex Medical PCBs

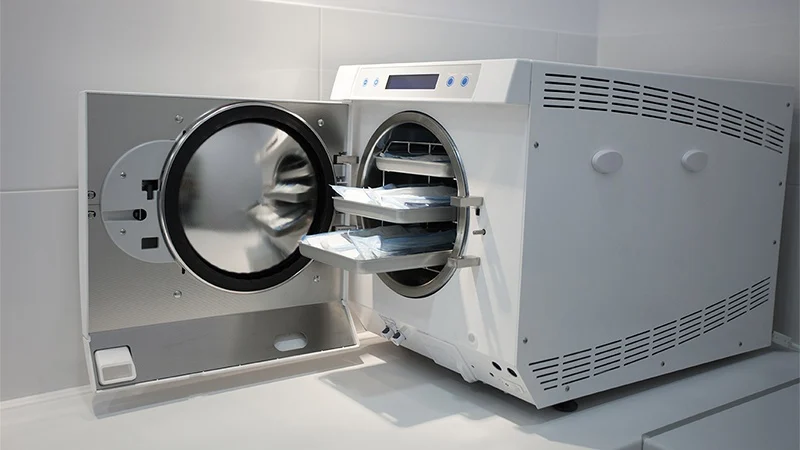

Semi-flex PCB sterilization demands materials stable under gamma radiation, ethylene oxide, or autoclaving without degrading electrical properties. Polyimide withstands high temperatures up to 260 degrees Celsius briefly, suitable for steam processes. Engineers design with strain relief at flex-rigid interfaces to counter shrinkage from radiation. Coverlay integrity prevents moisture ingress post-sterilization, a common failure mode. Troubleshooting post-process cracks involves pre-baking boards to remove absorbed moisture.
Multiple cycles test endurance, as devices like endoscopes face repeated sterilization. Flexible zones require thicker copper to resist embrittlement. Validation protocols mimic clinical workflows, measuring insulation resistance pre- and post-exposure. These practices ensure semi-flex PCBs maintain functionality in sterile fields. Proper documentation supports regulatory submissions for reusable instruments.
Adhering to Key Medical Standards in Semi-Flex PCB Fabrication
IPC-6013 outlines qualification for flexible and rigid-flex boards, specifying bend testing and environmental conditioning for medical reliability. Designs follow IPC-2223 guidelines for flex-to-install applications, defining minimum bend radii and layer configurations. ISO 13485 enforces quality management, from design controls to traceability in production. Electric engineers troubleshoot non-conformances by auditing stackups against these specs. Compliance reduces field failures in critical devices.
Standards emphasize Class 3 workmanship for high-reliability medical use, with zero defects in vias and plating. Solder mask adhesion and via fill verify robustness under thermal shock. IEC 60601-1 addresses electrical safety, requiring creepage distances suited to flex geometries. Integrating these early prevents costly redesigns. Audits confirm process controls meet medical demands.
Advanced Applications and Best Practices
In endoscopes, semi-flex PCBs enable slender probes with imaging sensors at tips, bending through anatomical curves. Wearable ECG patches use flex tails for skin contact electrodes, troubleshooting adhesion via flexible adhesives. Pacemaker leads incorporate semi-flex sections for implantation flexibility, prioritizing hermetic seals. Drug delivery implants leverage compact routing for precise dosing control. Best practices include prototyping with scored panels for cost-effective testing.
For neurostimulators, semi-flex designs route high-density signals to electrodes, mitigating crosstalk through ground planes. Handheld ultrasound devices benefit from lightweight boards reducing operator fatigue. Troubleshooting thermal management involves heat sinks on rigid areas only. Multi-layer semi-flex supports mixed-signal processing in diagnostics. These applications demonstrate versatility in semi-flex PCB medical devices.
Conclusion
Semi-flex PCBs advance medical device innovation by offering tailored flexibility, biocompatibility, and standards compliance. Engineers gain practical tools for designing reliable, compact systems amid miniaturization pressures. Key takeaways include material choices for sterilization, IPC-guided layouts, and ISO validations. Troubleshooting focuses on transition zones and process controls. As medical electronics evolve, semi-flex solutions will drive next-generation wearables and implants, balancing performance with safety.
FAQs
Q1: What are the primary advantages of semi-flex PCB medical devices?
A1: Semi-flex PCB medical devices provide a cost-effective hybrid of rigidity and flexibility, ideal for compact endoscopes and wearables. They reduce weight and volume compared to full rigid boards, enabling better patient comfort and device portability. Reliability in static bends supports imaging probes and sensors. Design flexibility aids high-density integration without the expense of full rigid-flex. Overall, they streamline assembly in clinical tools.
Q2: How does semi-flex PCB biocompatibility impact medical design?
A2: Semi-flex PCB biocompatibility ensures safe contact with tissues using materials like polyimide that resist fluids and irritation. ISO 10993 testing validates cytotoxicity and sensitization for wearables and implants. Engineers select low-leach finishes to prevent reactions. Troubleshooting involves extractables analysis under use conditions. This focus supports long-term devices like monitors, enhancing patient safety and regulatory approval.
Q3: What sterilization methods suit semi-flex PCB medical standards?
A3: Semi-flex PCB medical standards accommodate gamma, ETO, and autoclave via stable polyimide and controlled copper. Pre-bake removes moisture to avoid cracks during exposure. Post-process checks verify insulation and adhesion integrity. Multiple cycles simulate clinical reuse for endoscopes. IEC 60601-1 complements by ensuring safety post-sterilization. These practices maintain performance in sterile environments.
Q4: Key steps in semi-flex PCB design medical projects?
A4: Semi-flex PCB design for medical starts with stackup planning per IPC-2223 for bend zones. Simulate stresses at transitions for reliability. Select biocompatible materials and validate per ISO 13485. Prototype tests confirm radius and thermal stability. Troubleshoot vias and traces for signal fidelity. Documentation traces processes for audits, ensuring compliance in applications like implants.
References
IPC-6013 - Qualification and Performance Specification for Flexible and Rigid-Flex Printed Boards. IPC.
IPC-2223 - Section Qualification and Performance of Permanent Polymer Thick Film Printed Board Assemblies. IPC.
ISO 10993 - Biological Evaluation of Medical Devices. ISO.
ISO 13485:2016 - Medical Devices - Quality Management Systems - Requirements for Regulatory Purposes. ISO, 2016.
Hemeixin PCB - Applications of Rigid-Flex PCB and Semi-Flex PCB Design: https://www.hemeixinpcb.com/company/news/474-applications-of-rigid-flex-pcb-and-semi-flex-pcb-design.html
FS Circuits - Semi Flexible PCB: https://www.fscircuits.com/semi-flexible-pcb
