How Aluminum PCBs Move Heat Straight Down
WHAT THIS VIDEO COVERS
This video explains why aluminum PCBs (also known as metal core PCBs) are the preferred solution for thermal management in high-power electronics. Unlike standard FR4 boards where heat becomes trapped, aluminum PCBs channel heat vertically downward and spread it rapidly across the base.
The construction consists of three main layers: a top copper circuit layer for signal routing, a thin thermally conductive dielectric layer, and a thick aluminum base that acts as a heat sink. This structure enables efficient vertical heat flow, reducing hotspots and improving overall component reliability and lifespan.
Aluminum PCBs are most commonly built as single-layer or simple double-layer boards and are widely used in LED lighting, power supplies, automotive electronics, and industrial control systems where effective cooling is critical.
The video highlights the engineering advantages of aluminum PCBs over traditional materials when dealing with increasing power densities and thermal challenges in modern electronics designs.
Get an instant PCB quote for your thermal-critical project. Explore dedicated solutions for LED lighting PCB or power supply PCB applications.
KEY HIGHLIGHTS
- Aluminum PCBs feature a three-layer structure — copper circuit, thermal dielectric, and aluminum base — that enables direct vertical heat transfer.
- Heat spreads quickly across the aluminum substrate, preventing hotspots common in standard FR4 boards under high power loads.
- Ideal for LEDs, power modules, and high-current applications where efficient thermal management is essential for performance and longevity.

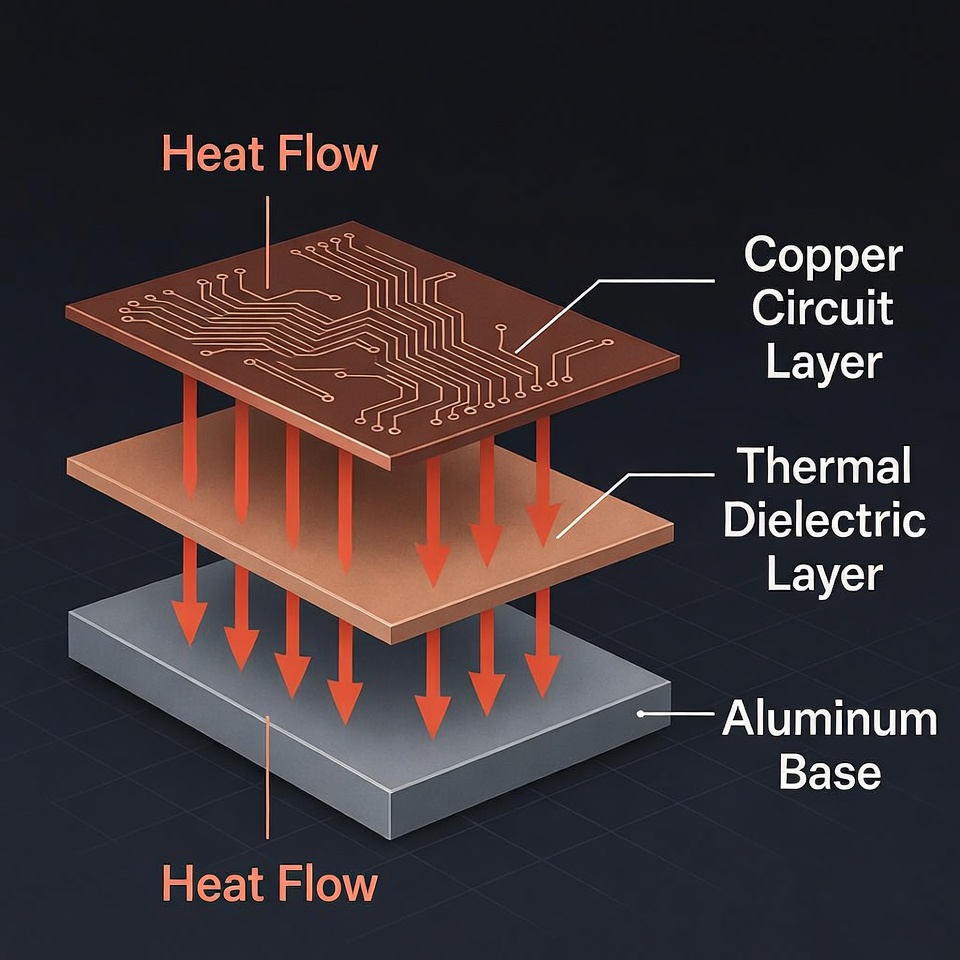

Understanding the 3-Layer Structure of Aluminum PCBs
The standard aluminum PCB consists of three primary layers engineered for optimal thermal performance. The top layer is the copper circuit, which handles electrical signals and component mounting. This is bonded to a thin thermally conductive dielectric layer, typically 50–200 μm thick, formulated with high thermal conductivity fillers. Below this sits the thick aluminum base, usually 0.5–3.0 mm thick, serving as both structural support and primary heat spreader.
This layered design enables direct vertical heat flow from components through the dielectric to the aluminum substrate, where heat spreads laterally across a large surface area. In production, the dielectric material must maintain electrical isolation while allowing efficient phonon transfer. Variations in dielectric thickness or filler distribution directly impact thermal resistance.
How Vertical Heat Transfer Outperforms Traditional FR4 Boards
Standard FR4 boards rely on lateral heat spreading through copper traces and vias, which often leads to localized hotspots under sustained high power loads. Aluminum PCBs overcome this limitation by using the metal base as an integrated heat sink, achieving significantly lower thermal resistance.
In manufacturing tests, aluminum PCBs typically demonstrate 5–10 times better thermal conductivity compared to equivalent FR4 designs. This results in lower operating temperatures for LEDs, power transistors, and ICs, directly extending component lifespan and reducing thermal runaway risks. The aluminum base also provides mechanical rigidity, minimizing board warpage during thermal cycling.
Key Applications and Real-World Performance Benefits
Aluminum PCBs are widely adopted in LED lighting fixtures, where consistent thermal management prevents color shift and lumen depreciation. They are equally critical in power supply modules, automotive LED headlights, motor drives, and industrial controls. In these applications, effective heat dissipation maintains stable performance across wide temperature ranges and extends product reliability in harsh environments.
Production data shows that properly designed aluminum PCBs can reduce junction temperatures by 20–40°C compared to FR4 equivalents in high-current scenarios. This improvement translates to higher power handling capability without increasing board size or adding external heatsinks, optimizing both cost and space.
DFM Guidelines for Reliable Aluminum PCB Production
Successful aluminum PCB fabrication requires careful attention to material selection and process parameters. The aluminum alloy (typically 5052 or 6061) should be chosen based on required thermal conductivity and mechanical properties. Dielectric thickness must balance thermal performance with voltage isolation requirements.
Key DFM considerations include:
- Maintaining minimum trace-to-edge clearances to prevent shorting during routing
- Specifying appropriate solder mask types compatible with aluminum surfaces
- Accounting for coefficient of thermal expansion (CTE) mismatch during lamination and assembly
- Designing adequate copper thickness for current-carrying capacity while ensuring proper adhesion to the dielectric
Panelization strategies must incorporate sufficient tab spacing and fiducial markers to accommodate the rigidity of the metal base during assembly.
Table 1: Aluminum PCB vs FR4 Thermal Performance Comparison
| Parameter | Aluminum PCB | Standard FR4 | Typical Benefit |
|---|---|---|---|
| Thermal Conductivity | 1–5 W/m·K (effective) | 0.3–0.4 W/m·K | 5–10x better heat dissipation |
| Junction Temperature Rise | Lower by 20–40°C | Higher | Extended component life |
| Common Applications | LEDs, Power Supplies | General Electronics | High-power thermal-critical use |
| Board Thickness Range | 0.8–3.0 mm | 0.6–3.2 mm | Better rigidity and heat sinking |
| Cost for High-Power Designs | Competitive | Lower for low-power | Superior value in heat apps |
Table 2: Recommended Aluminum PCB Design Parameters
| Design Aspect | Recommended Value | Manufacturing Note |
|---|---|---|
| Dielectric Thickness | 75–150 μm | Balance thermal vs voltage isolation |
| Aluminum Base Thickness | 1.0–2.0 mm | Optimal for most LED/power applications |
| Copper Weight | 1–3 oz | Higher for high current |
| Thermal Via Density | As needed under hot components | Filled or plated for best results |
| Operating Temperature | Up to 150°C | Verify with specific dielectric |
Common Manufacturing Challenges and How to Avoid Them
During production, aluminum PCBs can experience issues such as poor copper-to-dielectric adhesion, delamination under thermal stress, or uneven heat distribution due to inconsistent dielectric filling. Hole breakout or drill wander is more common due to the hardness of the aluminum base, requiring specialized tooling and parameters.
To mitigate these risks, fabricators apply controlled oxide treatments before lamination and use precise pressure-temperature profiles during pressing. Designers should avoid placing high-aspect-ratio vias directly over the aluminum base without proper thermal via filling. Thorough DFM reviews early in the design phase significantly reduce yield loss and ensure reliable performance in the field.
FAQ
Q1: Why choose aluminum PCBs over standard FR4 for high-power designs?
A1: Aluminum PCBs provide superior vertical heat dissipation, reducing operating temperatures and improving reliability in LEDs, power supplies, and automotive applications where FR4 cannot manage heat effectively.
Q2: What is the typical structure of an aluminum PCB?
A2: It consists of a copper circuit layer, a thin thermally conductive dielectric, and a thick aluminum base that acts as a heat spreader. Most designs are single-layer or basic double-layer.
Q3: When should you use aluminum PCBs?
A3: Use aluminum PCBs whenever your design involves significant power dissipation, such as LED lighting, power converters, motor drives, or any application where thermal management directly impacts performance and lifespan.
Q4: How does the dielectric layer affect thermal performance?
A4: The dielectric is the primary thermal bottleneck in aluminum PCBs. Thinner layers with higher conductivity fillers reduce thermal resistance but must still meet voltage isolation requirements. In production, variations in filler distribution can create inconsistent thermal paths—reputable manufacturers control this through rigorous material qualification and process monitoring.
Q5: What are the main DFM concerns when transitioning from FR4 to aluminum PCBs?
A5: Key concerns include CTE mismatch causing warpage, specialized drilling requirements for the metal base, and solder mask compatibility. Designers should increase annular rings, avoid sharp internal corners on the aluminum, and verify component footprint thermal pads align properly with the base for effective heat sinking. A complete DFM review prevents costly revisions.
Why do LEDs and power modules prefer aluminum PCBs?
Because heat has to go somewhere.
When power increases in a circuit, the real challenge isn't the signal —it's the heat.
On a standard PCB, heat builds up and struggles to escape, causing hotspots and reduced performance.
This is where aluminum PCBs shine.
They aren't just solid metal; they have three layers.
The top is copper traces for signals, the middle is a thin thermal-insulating layer, and the bottom is the aluminum base.
Heat moves straight down, through the copper and dielectric, and spreads quickly across the aluminum.
This vertical conduction prevents heat from piling up sideways.
That's why aluminum PCBs are ideal for LEDs, power modules, and high-current devices.
Most designs remain single-layer or simple double-layer.
For high-power circuits, efficient heat dissipation is critical.
Aluminum PCBs are built for exactly that.
