This 4-layer FR4 board presented specific challenges around finished board thickness tolerance of 1.2mm ±0.12mm, blind via implementation, and controlled-depth drilling to expose L2/L3 pads at 0.78 ±0.1mm. The evaluation focused on whether these parameters could be achieved repeatably in production.
Project Overview and Critical Manufacturing Requirements
This 119 × 98 mm single-piece 4-layer FR4 board ( #FR4-20260516-065 ) (using KB-6165F material, TG150) targets applications requiring stable mechanical structure and reliable inner layer access. Key specifications included outer copper at 2oz, inner at 1oz, ENIG surface finish, 0.3mm minimum hole size, and blind vias. The lamination target of 1.2mm total thickness with tight ±0.12mm tolerance, combined with precise depth control to expose pads on L2 and L3, required careful process capability review before production release.
Our engineering team confirmed the stackup and panelization data after multiple rounds of verification. The primary concerns centered on thickness consistency post-lamination and the repeatability of depth-controlled drilling without damaging underlying structures or compromising via integrity.
Board Thickness Tolerance and Lamination Process Limits
Achieving a finished board thickness of 1.2mm ±0.12mm on a 4-layer construction demands precise control over prepreg flow, copper foil thickness variation, and press parameters. FR4 material like KB-6165F exhibits natural resin flow characteristics under heat and pressure that can introduce variability of ±0.08mm to ±0.15mm depending on panel utilization and copper distribution.

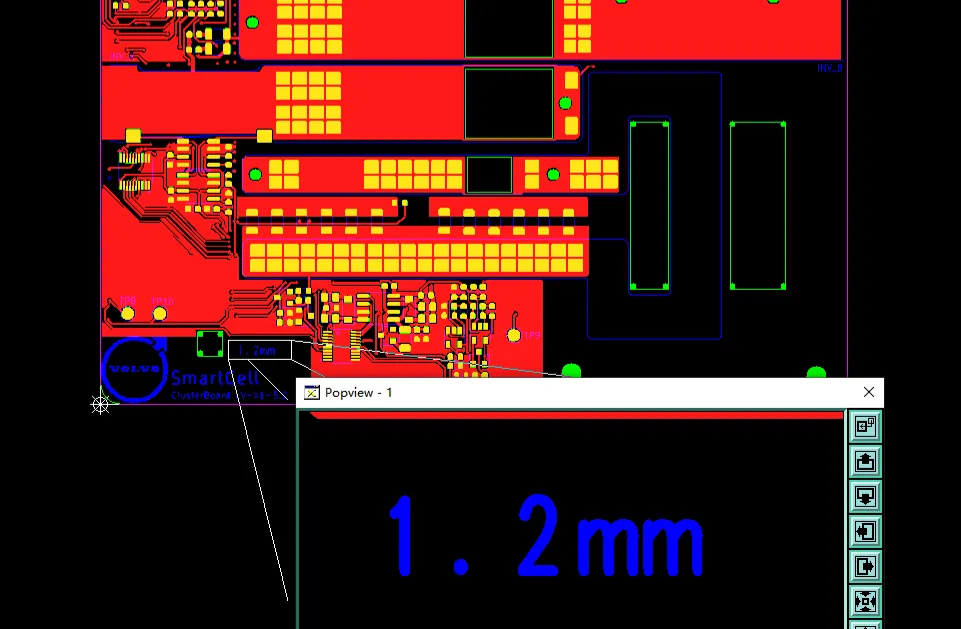

Figure 1: 1.2mm total thickness
In our internal capability assessment, we mapped the requested tolerance against historical process data. Standard 4-layer lamination typically holds ±0.10mm to ±0.15mm for this thickness range. The ±0.12mm window sits at the tighter end of our stable production capability, particularly with 2oz outer copper which affects thermal mass and resin squeeze-out during high-pressure lamination.
| Parameter | Requested Value | Typical Capability | Assessment |
|---|---|---|---|
| Finished Thickness | 1.2 ±0.12mm | ±0.10~0.15mm | Acceptable with enhanced press monitoring |
| Copper Distribution | 2oz outer / 1oz inner | Balanced flow required | Marginal; requires symmetric design review |
| Material TG | TG150 | Standard FR4 | Suitable for controlled lamination |
From process data, we observed that uneven copper density can shift thickness by up to 0.05mm across a panel. For this order, the 1x1 panelization (single piece) helped minimize edge effects, but we still recommended verification of the provided stackup diagram to ensure prepreg and core symmetry.

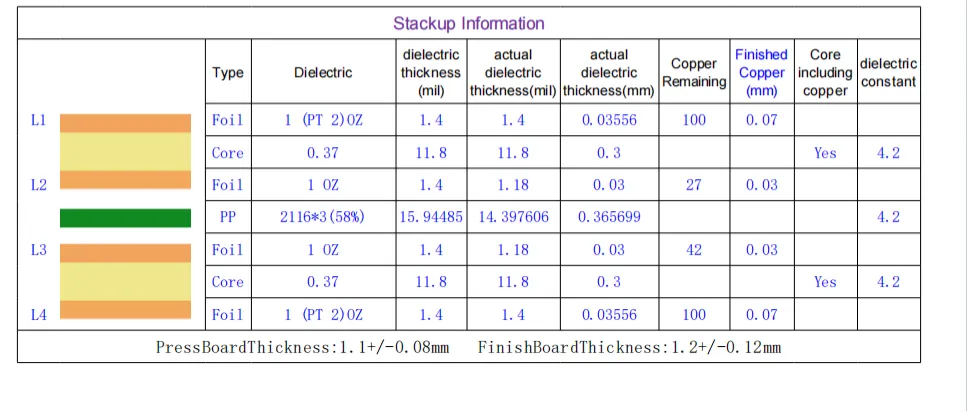

Figure 2: PCB lamination stack-up
Blind Via Fabrication and Depth-Controlled Drilling Capability
The presence of blind vias combined with specified depth drilling to 0.78 ±0.1mm (targeting exposure of L2/L3 pads) introduced significant process control considerations. Depth accuracy depends on drill bit wear, Z-axis precision, and material consistency. Our CNC drilling equipment maintains depth tolerance typically within ±0.08mm under controlled conditions, placing the requested ±0.1mm within achievable range but requiring active monitoring.
In practice, over-drilling risks damaging inner layer pads or traces, while under-drilling leaves resin residue that interferes with subsequent ENIG plating on exposed pads. We confirmed the depth parameters against the working gerber and panel data, noting that the "just exposing" requirement leaves minimal margin for variation.
| Process Step | Key Control | Risk if Out of Spec | Mitigation |
|---|---|---|---|
| Depth Drilling | 0.78 ±0.1mm | Pad damage or residue | First-article cross-section + depth gauge verification |
| Blind Via Plating | Aspect ratio control | Voiding in via barrel | Optimized plating bath parameters |
| Post-Drill Cleaning | Resin smear removal | Poor plating adhesion | Plasma desmear + chemical cleaning |
During our review, I noted that the 0.3mm hole size combined with blind structures approaches typical aspect ratio limits for reliable plating. We validated this through capability studies showing acceptable copper thickness distribution when drill parameters are tightly controlled.
Surface Finish and Inner Layer Exposure Considerations
ENIG (Immersion Gold) on both outer surfaces and selectively exposed inner pads adds complexity. The depth drill must leave clean copper surfaces on L2/L3 without excessive copper removal. Our process window for selective plating after depth control requires precise mask alignment and chemistry control to avoid bridging or skip plating.
Figure 3: ENIG Plating Cross-Section
According to IPC-6012 Class 2 acceptability criteria commonly applied in such evaluations, exposed inner layer features must maintain minimum annular ring and plating integrity. Our assessment confirmed the feasibility provided the depth target allows sufficient margin for the 1U" gold specification.
Engineering Validation and Process Capability Confirmation
Prior to production release, we performed a detailed capability study including test coupons for thickness measurement at multiple panel locations and cross-sectional analysis of depth-drilled features. The stackup provided was verified against material datasheets for KB-6165F to ensure Tg performance supports the lamination cycle without excessive Z-axis expansion.
100% flying probe testing was specified, which aligns well with our standard electrical verification for boards with blind vias. Production confirmation followed successful first-article inspection, including verification of the 1.2mm thickness marking for finished board identification as requested in the EQ communication.
| Capability Metric | Process Window | Stability Rating | Notes |
|---|---|---|---|
| Thickness Control | ±0.12mm | Good | Symmetric stackup key |
| Depth Drill Accuracy | ±0.1mm | Acceptable | Requires tool monitoring |
| Blind Via Yield | High volume | Stable | 0.3mm holes optimized |
Testing and Verification Protocols
Post-lamination, boards underwent automated optical inspection (AOI) and X-ray verification for blind via registration. Depth-controlled features were validated through microsection analysis on sample boards to confirm pad exposure and plating quality. Electrical testing at 100% coverage verified continuity and isolation, with particular attention to vias connecting to the selectively exposed inner layers.
Mechanical performance was assessed for warp and twist within IPC-A-600 limits. The 27-day delivery schedule allowed sufficient time for these rigorous checks while maintaining production flow. All EQ points regarding panel data, stackup confirmation, and depth parameters were resolved prior to full release.
Conclusion: Achievable Within Defined Process Windows
This case demonstrates that the combination of 1.2mm ±0.12mm thickness control, blind vias, and 0.78 ±0.1mm depth drilling can be manufactured reliably when engineering evaluates the full process chain. By confirming stackup details and implementing targeted controls, the board meets production requirements without exceeding practical capability boundaries. Such evaluations ensure consistent quality and help designers align specifications with manufacturing realities.
At AIVON, our process expertise supports custom solutions that balance performance demands with repeatable production. This project was approved for manufacturing following the detailed capability assessment.
FAQs
Q1: How tightly can finished board thickness be controlled on standard 4-layer FR4 PCBs?
A1: For 1.2mm target thickness, ±0.12mm is generally achievable with good stackup symmetry and controlled lamination parameters. Tighter tolerances require additional process monitoring and may impact yield depending on copper weight distribution.
Q2: What are the practical limits for depth-controlled drilling to expose inner layer pads?
A2: Depths around 0.78mm with ±0.1mm tolerance fall within standard CNC capabilities for FR4, provided drill bit condition and material consistency are maintained. Cross-section verification is essential to ensure clean exposure without underlying damage.
Q3: Why is lamination structure confirmation critical for boards with blind vias?
A3: Proper stackup ensures uniform resin flow and registration accuracy for blind features. Mismatches can lead to thickness variation or via misalignment, affecting overall manufacturability and reliability.
Q4: How does 2oz outer copper affect thickness control capability?
A4: Heavier copper increases thermal mass and can influence resin flow during pressing, requiring adjustments in press cycle parameters to maintain thickness within tolerance.
Q5: When do blind vias require special engineering review?
A5: Review is needed when combined with tight depth controls or small hole sizes, as plating uniformity and depth accuracy become more process-sensitive. Capability studies help define safe production parameters.
