Overview
As precision reducers that are core components of industrial robots, robot reducers require a short transmission chain, compact size, high power, low mass, and ease of control compared with general-purpose reducers. The two main types used extensively in articulated robots are RV reducers and harmonic reducers.
1. Principles and basic characteristics
RV reducer: RV reducers are commonly used for high-torque joints such as the hip, waist, and elbow in heavy-duty industrial robots; the first, second, and third axes often use RV units. Compared with harmonic drives, the key factors for RV reducers are manufacturing and assembly technology. RV units generally provide higher fatigue strength, stiffness, and life, and their motion accuracy does not degrade as significantly with service time as harmonic drives. The drawback is greater weight and larger physical size.
RV-E reducer
Harmonic reducer: Harmonic reducers are used for lower-load joints or the end axes of larger robots. A harmonic drive system includes a rigid ring, a flexspline, a bearing, and a wave generator; all are essential. The rigid ring has slightly more teeth than the flexspline. Harmonic reducers are compact, lightweight, have high load capacity for their size, high motion precision, and can achieve a large single-stage reduction ratio.

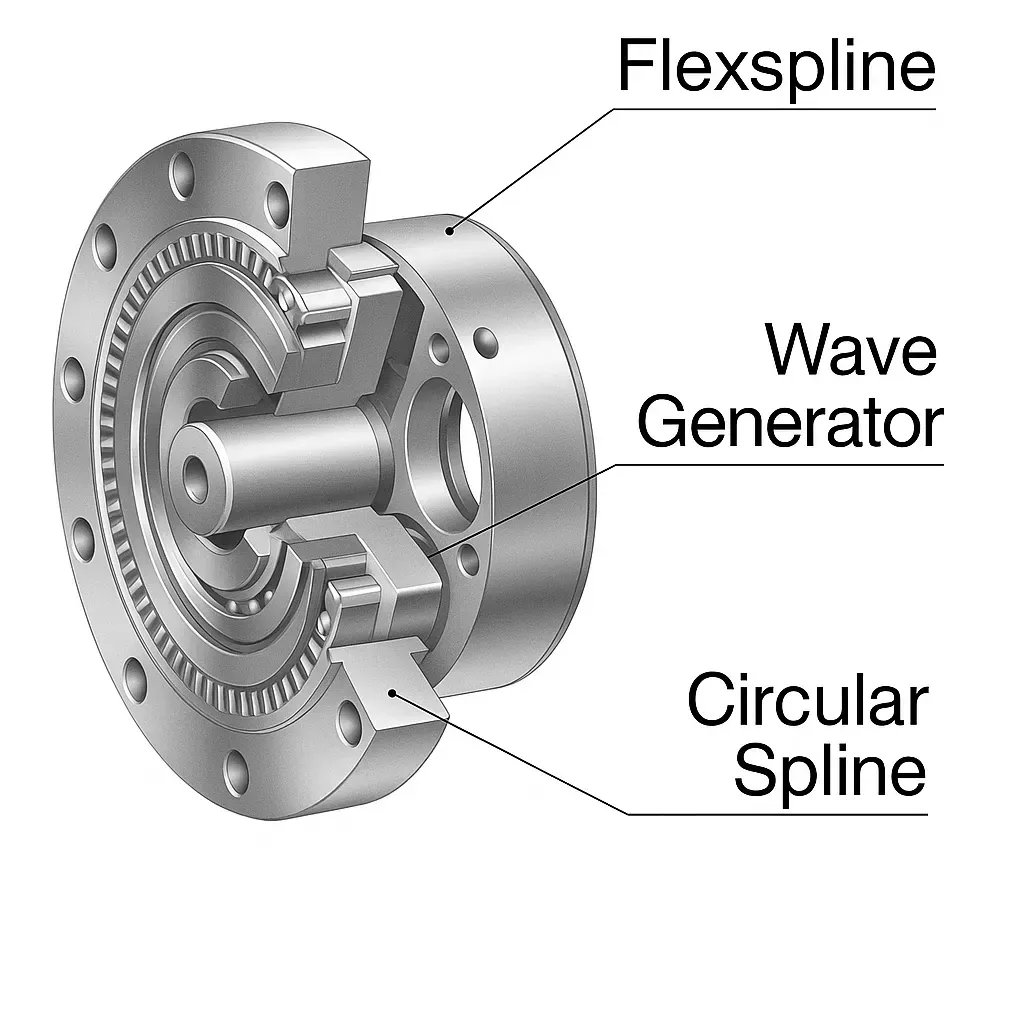

Harmonic reducer
Both types use a small tooth-count difference for meshing. The difference is that harmonic drives include a flexible gear that undergoes repeated high-speed deformation, which makes it more fragile and limits its load capacity and lifetime. RV designs typically use cycloidal pin-wheel mechanisms, while harmonic drives traditionally used involute tooth profiles; some manufacturers now use double-arc tooth profiles, which offer performance advantages over involute profiles.
Two major suppliers in the reducer market are Nabtesco and Harmonica Drive; they dominate global robot reducer supply. Both reducer types require micrometer-level manufacturing accuracy, which is challenging for high reliability in mass production, especially under high-speed operation and long life requirements.
Harmonic reducers consist of four basic components: the flexspline, wave generator, rigid ring, and bearings. The flexspline outer diameter is slightly smaller than the inner diameter of the rigid ring, commonly with two fewer teeth on the flexspline. The elliptical shape of the wave generator determines that contact points between the flexspline and rigid ring are located on two opposite sides across the ellipse center. As the wave generator rotates, the engaged tooth region moves. For every 180 degrees of wave generator rotation, the flexspline effectively rotates one tooth relative to the rigid ring in the opposite direction. At two 180-degree symmetric regions, more than 30% of teeth can be engaged simultaneously, which enables high torque transmission.
Compared with harmonic reducers, RV transmission is a more recent development based on traditional cycloidal pin planetary drives. It addresses many shortcomings of earlier pin-swing drives and offers advantages such as smaller volume, lower weight, wide reduction ratio range, long life, stable accuracy retention, high efficiency, and smooth transmission. RV reducers use a solid steel housing and cycloidal pin wheel for load transmission, resulting in high load capacity. By contrast, harmonic reducers transmit torque through repeated deformation of the flexspline, which limits their ability to withstand high torque and shock loads; accordingly, harmonic units are generally applied toward the front end of a robot where loads are smaller.
2. Comparative strengths and weaknesses
Harmonic reducers have a simple, compact structure and are suitable for miniaturized applications and low to medium load scenarios.
RV reducers offer good rigidity, strong shock resistance, smooth transmission, and high precision, making them suitable for medium and heavy loads. However, because RV units must transmit large torques and withstand significant overload impacts to meet expected service life, their designs often include relatively complex over-constraint structures, which increases manufacturing and cost-control difficulty. RV reducers do not contain elastic deformation load-bearing elements, so they can tolerate certain torque levels. Their bearings are a potential weak point: under load, bearings can reach their stress limits and suffer accelerated wear or failure. This issue becomes more pronounced at high input speeds, so the rated torque of an RV reducer typically decreases as input speed increases.
3. Can one type replace the other?
Argument for partial replacement: RV reducers offer much higher fatigue strength, stiffness, and lifetime compared with commonly used harmonic drives in robots, and their backlash accuracy remains stable over time, unlike harmonic drives whose motion accuracy can significantly decline with use. Therefore, many high-precision robot transmissions use RV reducers, and RV units have been increasingly adopted in advanced robot transmissions. In some models, RV units do replace harmonic drives, but only partially. In most cases, different reducer types are not easily interchangeable. For example, in terms of reduction ratio, harmonic and RV ratios are typically much larger than planetary gear ratios, so planetary gears dominate low-reduction applications. Planetary ratios can be increased but rarely substitute for harmonic or RV in practice. Regarding rigidity, planetary and RV solutions are stiffer than harmonic drives, so in applications requiring high rigidity harmonic drives perform poorly. Conversely, harmonic drives excel in being light and compact, where planetary and RV solutions struggle to match them. Therefore, full replacement of one type by another across all criteria is not realistic.
Argument for complementarity: Reducer types are generally complementary rather than mutually replaceable. RV and harmonic transmissions have complementary advantages, though structural design optimization and manufacturing breakthroughs could produce local competition in medium to low-load application areas.
