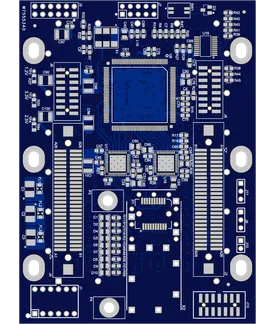

High Layer Count FR4 PCB Production Record #FR4-20260511-083

Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 30 pcs
Layers 10 Layers Board Type Single PCB
Dimensions 104.1 x 76.2 mm Copper Weight 1oz
Thickness 1.6 mm Min Track / Spacing 5/5mil
Surface Finish HASL Lead Free Min Hole Size 0.2mm
Solder Mask Blue Silkscreen White
Stack-up Custom Impedance Control Yes

Manufacturing Timeline

Order Created
Apr 29 21:04
Files Ready
Apr 29 21:04
Engineering Review Completed
May 05 19:48
Payment down
Apr 30 21:28
Production Started
May 05 19:49
Production Completed
May 10 19:12
Progress: 0/6
Engineering Review time: 6.0d
Production time: 5.0d

Logistics Information

Production Completed→Shipping : 1.0d
Carrier
UPS
Destination
UNITED STATES OF AMERICA
Shipping Method
Express Air
Shipping Time
May 11 17:02

Key Manufacturing Processes

01
Engineering Review
02
Stackup Impedance Engineering
03
Trace Width Compensation
04
Material Preparation
05
Inner Layer Imaging
06
Circuit Imaging & Etching
07
Layer Stack Alignment
08
High Pressure Lamination
09
Solder Mask Application
10
Molten Solder Coating
11
Hot Air Leveling
12
TDR Impedance Testing
13
Electrical Testing

Manufacturing Summary

This production record covers thirty 10-layer impedance controlled PCBs built on FR4 with a custom stackup. Boards measured 104.1 × 76.2 mm at 1.6 mm thickness, using 1 oz copper throughout, 5/5 mil minimum trace and spacing, and 0.2 mm minimum hole size. We applied blue soldermask, white silkscreen, and HASL Lead Free finish. The combination of tighter geometry on a ten-layer construction without blind vias required exact trace width compensation and stackup modeling to maintain the specified impedance values.



Engineering review, inner layer imaging, circuit etching, and high-pressure lamination were sequenced to ensure layer registration across the multilayer stack. After solder mask application, molten solder coating, and hot air leveling, each board underwent TDR impedance testing followed by full electrical testing. All thirty boards met the impedance targets and passed continuity checks. The complete manufacturing cycle took five days and delivered consistent dimensional and electrical results matching the custom parameters.
