Introduction to Tactile Sensing in Robotics
Industrial and service robots have long depended on vision systems and inertial sensors for perception. However, these modalities lack the critical human-like sense of touch. Without tactile feedback, robots struggle to detect surface textures, measure contact forces, or gain proprioceptive awareness of joint positions and loading. This limitation restricts adaptability in unstructured environments, dexterous manipulation, and safe human-robot collaboration.
Pressure sensors address this gap by providing essential tactile and proprioceptive data, transforming robots into more responsive, intelligent systems.
Tactile and Proprioceptive Functions of Pressure Sensors
Pressure sensors deliver two primary capabilities in robotics:
- Proprioception: Monitoring internal pneumatic or hydraulic pressures in actuators and joints supplies real-time feedback on motion, torque, and loading. This data enables precise closed-loop control and force modulation.
- Tactile Sensing: Conformal, flexible sensor arrays distributed across a robot's exterior create an "electronic skin." These arrays detect and map external contact forces, enabling safe interaction with humans, objects, and the environment.
When integrated into the control loop, pressure data supports human-like dexterity, collision response, and adaptive behavior in collaborative settings.
Key Applications in Modern Robotics
Pressure sensors serve multiple critical functions:
- Joint Torque and Force Estimation: Miniature MEMS pressure sensors installed at joints or in tendon-driven systems provide high-resolution feedback for manipulation and stability.

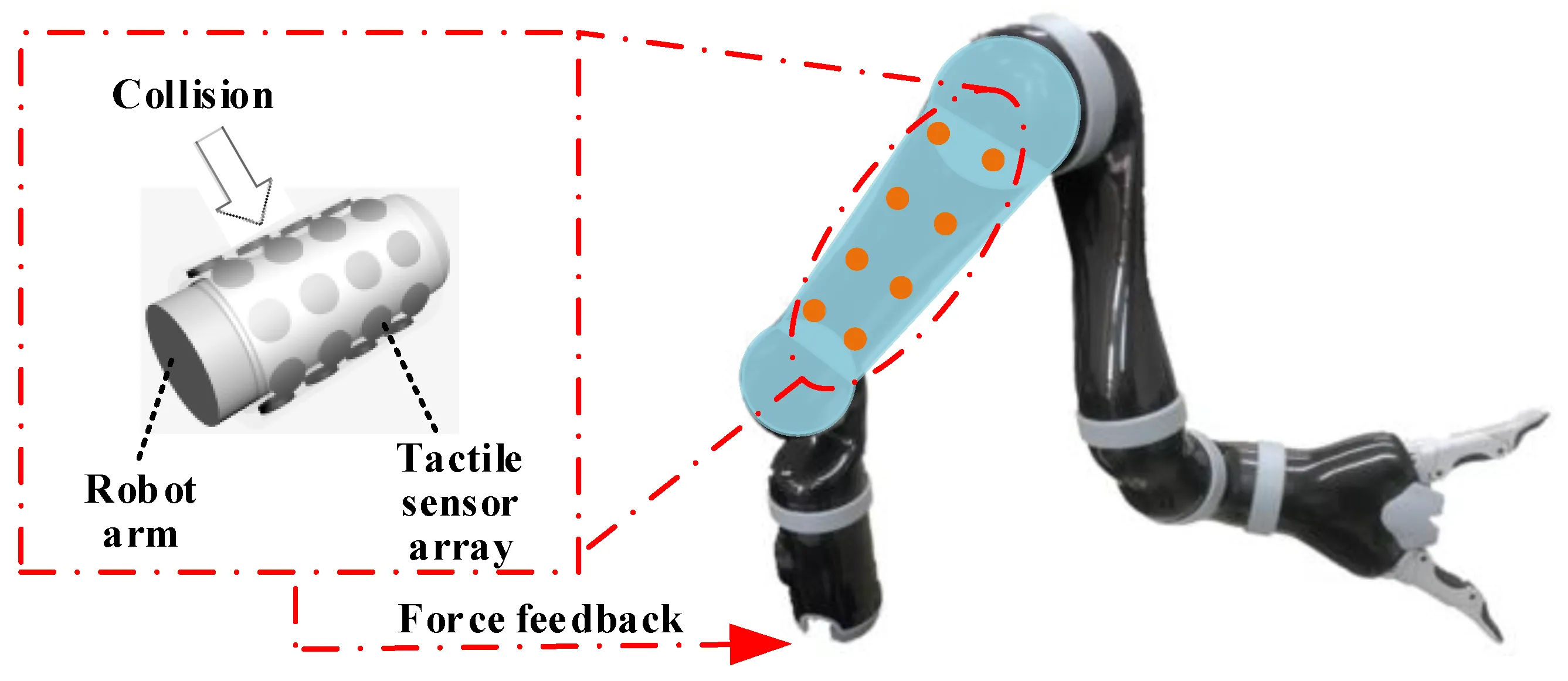

- Tactile Skin Systems: Large arrays of flexible pressure sensors map force distribution across the robot body, supporting gentle touch detection, collision avoidance, and safe human interaction.
- Collision Detection: Differential pressure sensors in fluid-filled bladders or soft structures detect imminent impacts and trigger protective responses.
- System Health Monitoring: Internal pressure sensors identify leaks in hydraulic/pneumatic systems, monitor pump performance, and detect environmental intrusion (e.g., water ingress via waterproof MEMS designs).
- Environmental Sensing: Altitude/depth changes and weather resistance in outdoor or harsh-environment robots.
These applications span industrial automation, collaborative robots (cobots), soft robotics, medical devices, search-and-rescue, and space exploration.
Technical Innovations Driving Adoption
Recent advances have accelerated pressure sensor integration:
- MEMS Technology: Compact, high-resolution differential sensors with integrated digital filtering and closed-loop control (e.g., from Superior Sensor Technology) enable precise proprioceptive feedback.
- Flexible Sensor Arrays: Printed using quantum tunneling composites, graphene, or nanomaterials on stretchable substrates, allowing conformal coverage over complex surfaces and joints.
- Soft Robotics Integration: Fluidic elastomer actuators rely on distributed pressure monitoring for compliant grasping and safe interaction.
- AI and Machine Learning: Deep neural networks and reinforcement learning process pressure data for reflexive responses and dexterous tasks.
These innovations make pressure sensing a foundational modality alongside vision and inertial systems.
PCB Design and Manufacturing Considerations for Robotic Pressure Sensing
Reliable integration of pressure sensors demands sophisticated electronics hardware:
- Flexible and Stretchable PCBs (FPCs): Essential for conformal sensor skins and moving joints. Polyimide or specialized stretchable substrates maintain performance under repeated deformation.
- High-Density Interconnects (HDI): Support dense arrays of MEMS sensors with precise analog signal routing and minimal noise.
- Signal Integrity: Careful separation of analog sensor traces from digital and power circuits, plus shielding for harsh electromagnetic environments.
- Power Management: Low-power designs and efficient voltage regulation for battery-operated or distributed sensor networks.
- Reliability Features: Conformal coating, strain relief, waterproofing, and robust assembly for vibration, thermal cycling, and environmental exposure.
- Miniaturization: HDI and rigid-flex solutions enable compact integration in miniature and soft robots.
Electronics manufacturers with expertise in flexible circuits and sensor integration help OEMs achieve high-reliability, scalable production of tactile-enabled robotic systems.
Future Directions and Industry Impact
As costs decrease and integration improves, pressure sensors will combine with other modalities to create truly multimodal perception. This will accelerate progress in:
- Human-like dexterity for manufacturing and surgery
- Safe human-robot collaboration
- Operations in hazardous environments
- Medical robotics and prosthetics
- Infrastructure inspection and maintenance
FAQ
Q1: What is the difference between tactile and proprioceptive sensing?
A1: Tactile sensing detects external contact forces via skin-like sensor arrays, while proprioception monitors internal joint pressures for motion and torque feedback.
Q2: Why are flexible PCBs important for pressure sensors in robotics?
A2: They enable conformal, stretchable sensor skins and reliable interconnects across moving joints while maintaining signal integrity under deformation.
Q3: How do MEMS pressure sensors benefit robotic applications?
A3: They provide compact, high-resolution feedback for precise control, collision detection, and system monitoring in both rigid and soft robotic platforms.
