1 Layer FR4 PCB Production Record #FR4-20251223-021
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 50 pcs |
| Layers | 1 Layers | Board Type | Panel PCB |
| Dimensions | 258 x 187 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 10/10mil |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.8mm↑ |
| Solder Mask | Green | Silkscreen | White |
| Stack-up | Custom | Impedance Control | No |

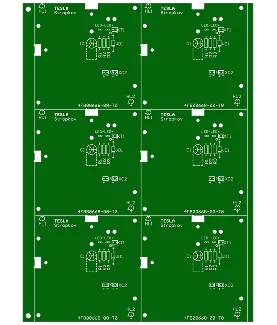

The manufacturing of these 50 single-layer FR4 panel PCBs involved boards sized at 258 x 187 mm, built to 1.6 mm thickness with 1 oz copper foil. Featuring standard 10/10 mil geometry and 0.8 mm minimum holes, production proceeded smoothly from engineering review through material preparation, circuit imaging, and etching.
Green solder mask and white silkscreen were applied as specified. For the HASL Lead Free surface finish, molten solder coating and hot air leveling created a uniform, lead-free protective layer that supports reliable component attachment. Electrical testing at the end confirmed full functionality on every panel.
Completed over 3.7 days, this order resulted in consistent panelized boards that fully matched the custom requirements. The straightforward parameters allowed standard process controls to deliver dependable results for customer use.
Single-sided FR4 boards form the foundation for numerous electronic products. We provide an optimal balance of cost, reliability, and manufacturability for diverse applications.
Discover the most common engineering queries (EQ) in 1 layer FR4 PCB production, from hole plating confusion to solder mask mismatches. Learn practical file preparation tips to minimize delays and speed up approval.
