1 Layer FR4 PCB Production Record #FR4-20251224-009
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 50 pcs |
| Layers | 1 Layers | Board Type | Panel PCB |
| Dimensions | 130 x 73 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.3mm↑ |
| Solder Mask | Green | Silkscreen | White |
| Stack-up | Custom | Impedance Control | No |

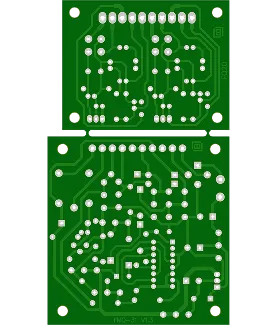

This order comprised 50 single-layer FR4 panel PCBs, each measuring 130 x 73 mm with standard 1.6 mm thickness and 1 oz copper weight. The design used conventional 6/6 mil trace and spacing geometry together with 0.3 mm minimum hole size, green solder mask, white silkscreen, and HASL Lead Free surface finish. No impedance control was required, and the custom stackup followed standard single-sided construction, allowing straightforward material preparation and processing.
After engineering review, circuit imaging and etching formed the copper pattern on one side of each panel. Solder mask was applied and cured before the molten solder coating and hot air leveling steps that produced a uniform, lead-free finish. Every panel then completed electrical testing to confirm continuity and isolation across the batch.
The full quantity was delivered in two production days with consistent thickness control and surface quality. Panel format handling and process parameters remained stable throughout, meeting all dimensional and finish requirements for these single sided FR4 PCBs.
Single-sided FR4 boards form the foundation for numerous electronic products. We provide an optimal balance of cost, reliability, and manufacturability for diverse applications.
Discover the most common engineering queries (EQ) in 1 layer FR4 PCB production, from hole plating confusion to solder mask mismatches. Learn practical file preparation tips to minimize delays and speed up approval.
